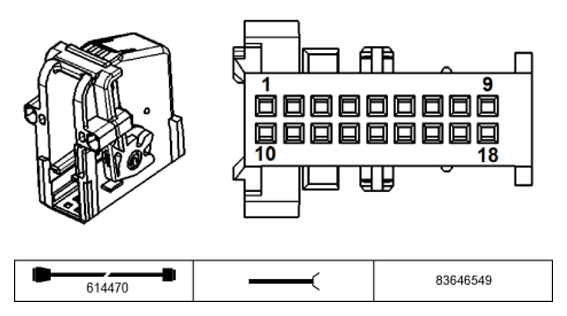

Electronic Night Vision Module X16664 Connector End View
Pin Assignments X16664
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A/E | Signal, CAN-bus | CAN-bus connector |
| 2 | Not occupied | ||
| 3 | E | Signal, night vision button | Light switch unit |
| 4 | Not occupied | ||
| 5 | E | Supply, terminal 30 | Fuse F9 |
| 6 | E | Video signal | Night vision camera |
| 7 | E | Video signal | Night vision camera |
| 8 | Not occupied | ||
| 9 | A | Video signal | Video module Navigation control module |
| 10 | A/E | Signal, CAN-bus | CAN-bus connector |
| 11 | Not occupied | ||
| 12 | A/E | Signal, LIN bus | Night vision camera |
| 13 | A/E | Signal, LIN bus | Night vision camera |
| 14 | M | Ground | Ground point |
| 15 | M | Shielding | Night vision camera |
| 16 | A | Supply Night vision camera | Night vision camera |
| 17 | M | Ground Night vision camera | Night vision camera |
| 18 | M | Shielding | Video module Navigation control module |
