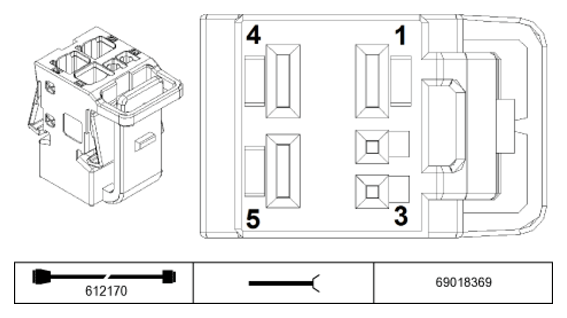

Driver's Seat Module X18178 Connector End View
Pin Assignments X18178
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, rapid heating area | Driver's seat cushion heating |
| 2 | E | Signal, heating area sensor | Driver's seat cushion heating |
| 3 | E | Signal, heating area sensor | Driver's seat cushion heating |
| 4 | A | Signal, rapid heating area | Driver's seat cushion heating |
| 5 | A | Signal, remaining heating area | Driver's seat cushion heating |
