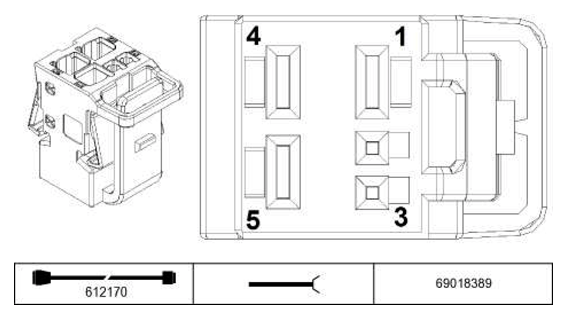

Driver's Seat Module X13536 Connector End View
Pin Assignments X13536
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, rapid heating area | Driver's seat backrest heating |
| 2 | E | Signal, heating area sensor | Driver's seat backrest heating |
| 3 | E | Signal, heating area sensor | Driver's seat backrest heating |
| 4 | A | Signal, rapid heating area | Driver's seat backrest heating |
| 5 | A | Signal, remaining heating area | Driver's seat backrest heating |
