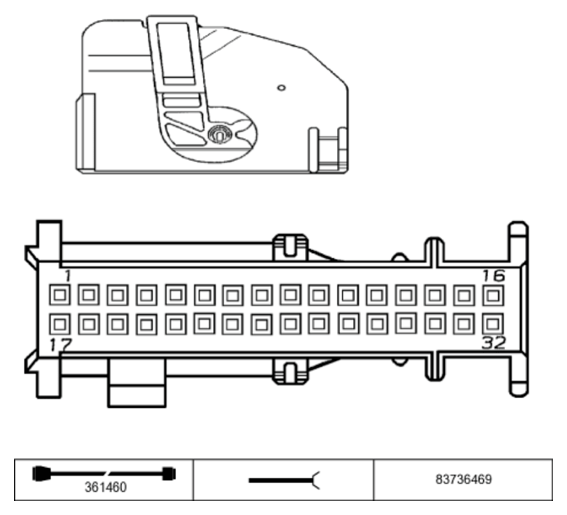

Control Module, Tire Pressure Control (RDC) X18034 Connector End View
Pin Assignments X18034
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | Not occupied | ||
| 2 | A/E | Signal, CAN-bus | CAN-bus connector |
| 3 | Not occupied | ||
| 4 | Not occupied | ||
| 5 | E | Signal, RDC receive antenna | Receive antenna (RDC), front left |
| 6 | M | Shielding | Receive antenna (RDC), front left |
| 7 | E | Signal, RDC receive antenna | Receive antenna (RDC), front right |
| 8 | E | Signal, RDC receive antenna | Receive antenna (RDC), rear left |
| 9 | M | Shielding | Receive antenna (RDC), rear left |
| 10 | E | Signal, RDC receive antenna | Receive antenna (RDC), rear right |
| 11 | Not occupied | ||
| 12 | Not occupied | ||
| 13 | Not occupied | ||
| 14 | Not occupied | ||
| 15 | E | Supply, terminal 30 | Fuse F9 |
| 16 | M | Ground | Ground point |
| 17 | Not occupied | ||
| 18 | A/E | Signal, CAN-bus | CAN-bus connector |
| 19 | Not occupied | ||
| 20 | Not occupied | ||
| 21 | E | Signal, RDC receive antenna | Receive antenna (RDC), front left |
| 22 | M | Shielding | Receive antenna (RDC), front right |
| 23 | E | Signal, RDC receive antenna | Receive antenna (RDC), front right |
| 24 | E | Signal, RDC receive antenna | Receive antenna (RDC), rear left |
| 25 | M | Shielding | Receive antenna (RDC), rear right |
| 26 | E | Signal, RDC receive antenna | Receive antenna (RDC), rear right |
| 27 | Not occupied | ||
| 28 | Not occupied | ||
| 29 | Not occupied | ||
| 30 | Not occupied | ||
| 31 | Not occupied | ||
| 32 | Not occupied |
