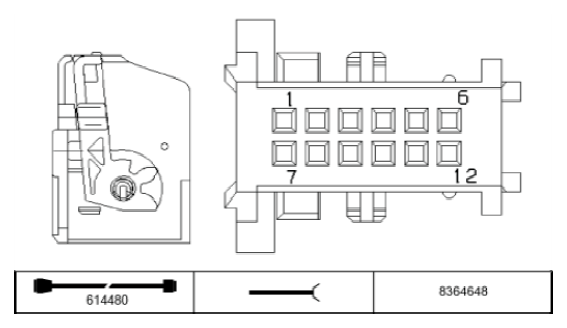

Control Display X10613 Connector End View
Pin Assignments X10613
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Video signal, red | Navigation control module |
| 2 | E | Video signal, green | Navigation control module |
| 3 | E | Video signal, blue | Navigation control module |
| 4 | Not occupied | ||
| 5 | Not occupied | ||
| 6 | M | Shielding | Navigation control module |
| 7 | Not occupied | ||
| 8 | Not occupied | ||
| 9 | Not occupied | ||
| 10 | Not occupied | ||
| 11 | Not occupied | ||
| 12 | Not occupied |
