Remote Control Receiver

The remote control receiver is located in the antenna amplifier.

The receiver is responsible for intercepting the radio signals and converting them into a digital signal for the CAS.

The CAS receives the signals over a dedicated serial data wire.

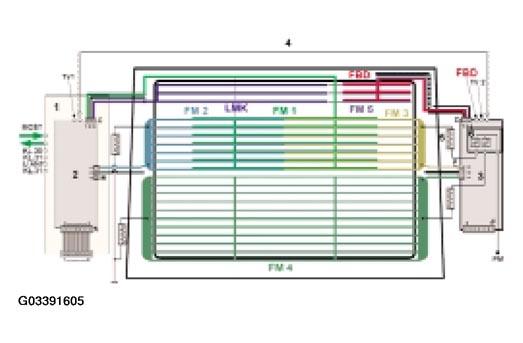

Fig 1: Remote Control Receiver Circuit
G03391605Courtesy of BMW OF NORTH AMERICA, INC.
