51 11... Installing/Replacing License Plate (Without Base)

Initial Fitting:

Place drilling hole template (1) on bumper (2).

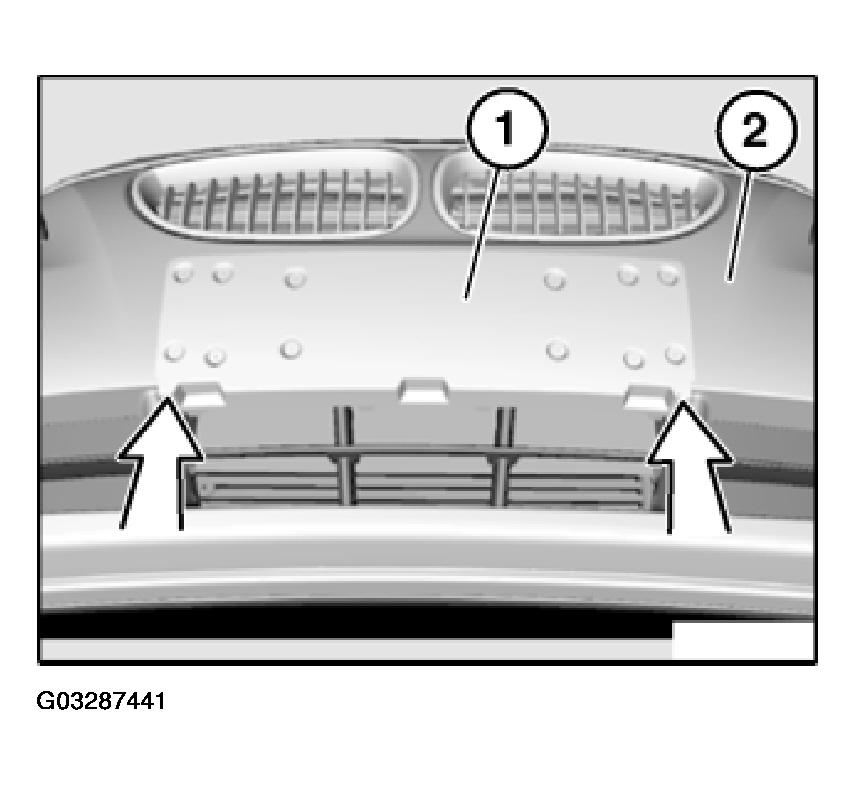

Fig 1: Placing Drilling Hole Template On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to license plate.

Remove template (1).

Secure license plate with screws provided.

Installation:

Tightening torque, refer to 51 11 7AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fit protective caps.

Repairing Thread:

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1).

Secure license plate (3) with license plate screw (M5 x 20).

Installation:

Tightening torque, refer to 51 11 8AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

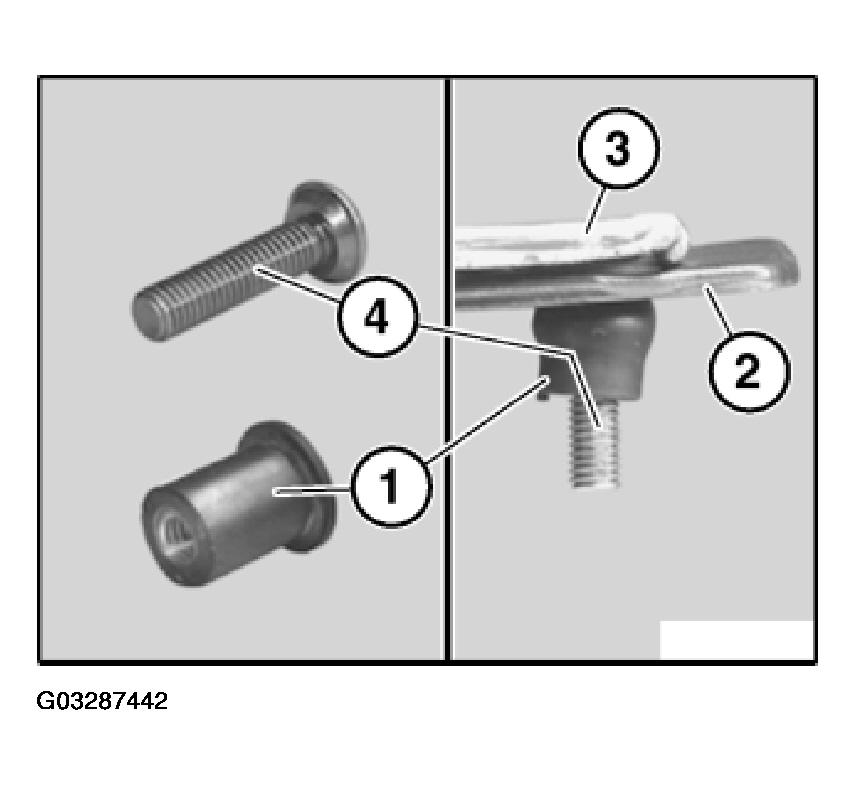

Fig 2: Securing License Plate With License Plate Screw

Courtesy of BMW OF NORTH AMERICA, INC.
