Optical Receiver

The receiver receives the data from the MOST bus. The receiver consists of:

• An LED
• A pre-amplifier
• A wake-up circuit
• An interface that converts the optical signal into an electrical signal

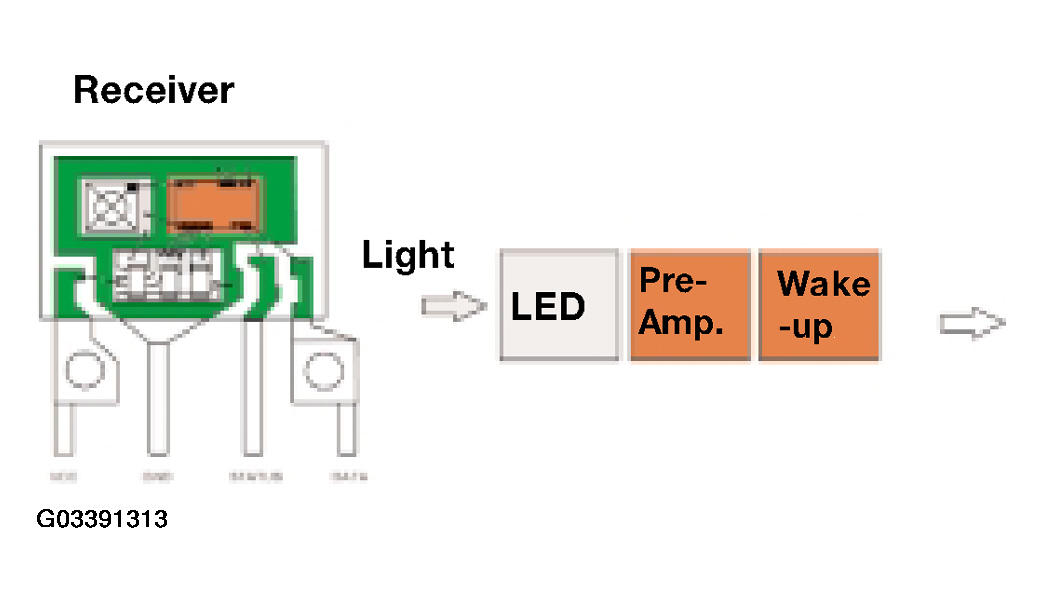

  Fig 1: Identifying Optical Receiver

  Courtesy of BMW OF NORTH AMERICA, INC.

The receiver contains a diode that converts the optical signal into an electrical signal. This signal is amplified and further processed at the MOST network interface.
