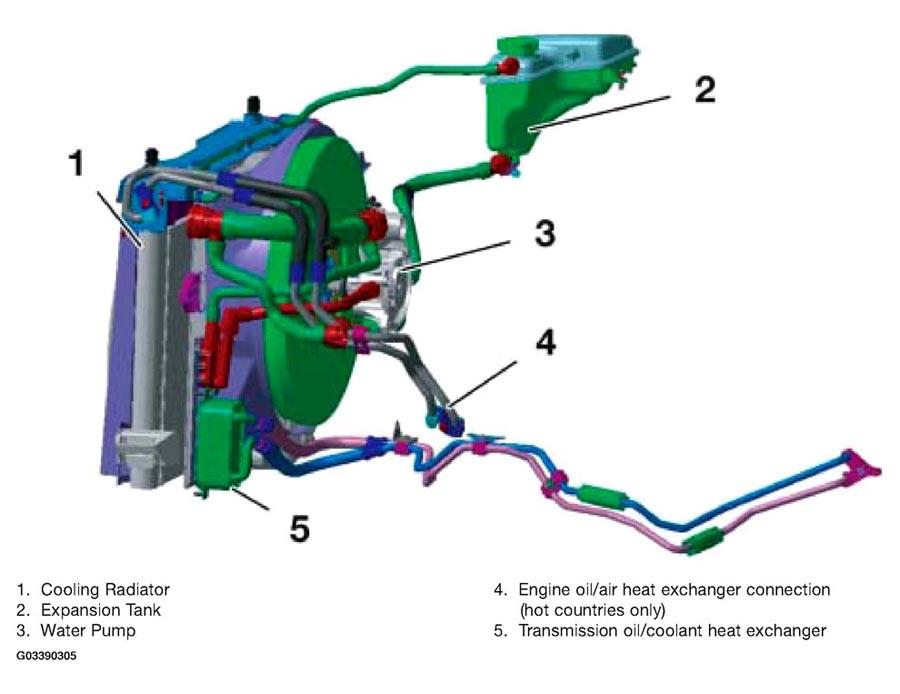

Cooling Module
The cooling module contains the following main cooling system components:
- Cooling radiator
- Air conditioning condenser
- Transmission oil/water heat exchanger
- Hydraulic fluid radiator
- Engine oil radiator
- Main electric fan
- Fan shroud for viscous coupling fan
All the components (with the exception of the transmission oil radiator) can be removed for repairs without disassembling any other coolant circuit. All connections have been fitted with the quick-release coupling which are used in current models.
