Data Transmission

The ISIS has a number of sensors positioned at strategic points throughout the vehicle. They are located in the satellites that are connected to the SIM via the byteflight  . All sensors are scanned continuously and the data distributed to all satellites.

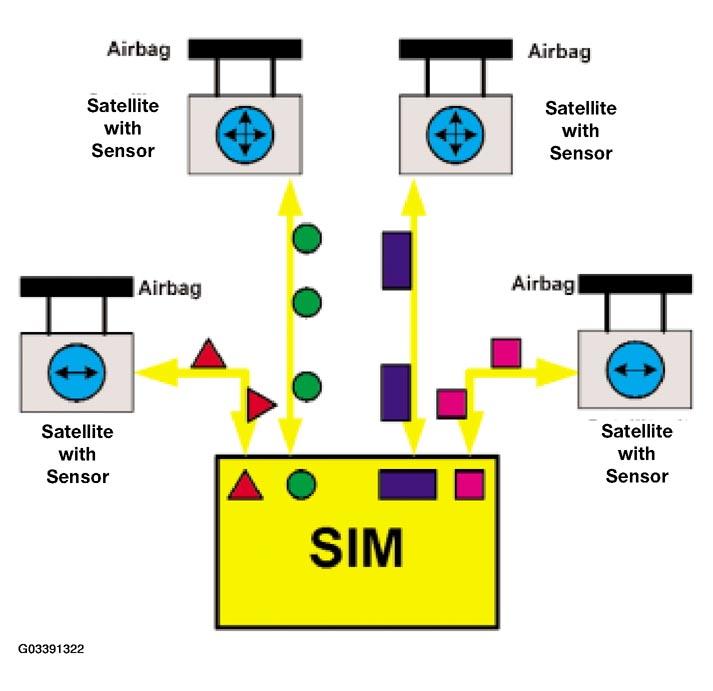

Fig 1: Identifying Data Transmission
G03391322Courtesy of BMW OF NORTH AMERICA, INC.
