EXTRACTION TOOL REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 02 03, Date of Issue: January 2003

BMW:	E65/66
GROUP:	04 - Tools and Equipment

SUBJECT

Extraction Tool Replacement

MODEL

E65/66

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

IMPORTANT: This tool replaces a previously distributed tool. Read the explanation below carefully.

TOOL INFORMATION

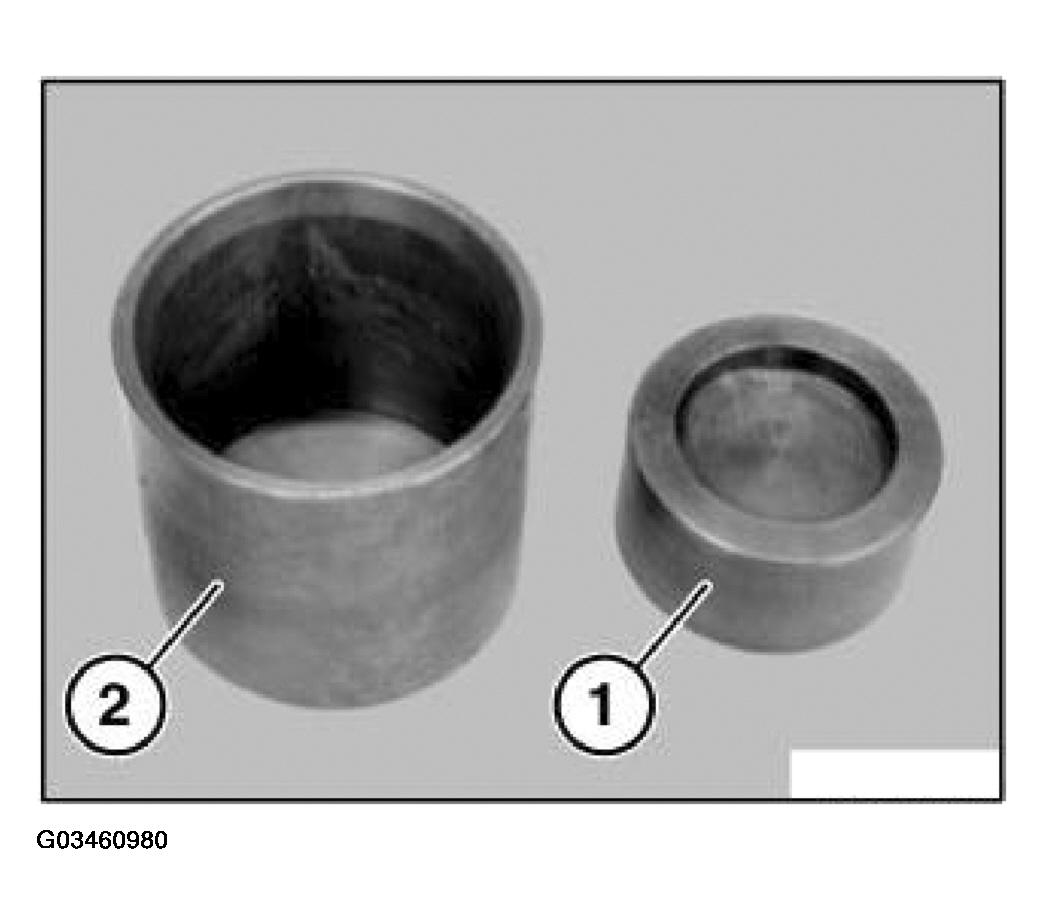

Fig 1: Extraction Tool

Extraction Tool

PN 90 88 6 313 030

Used to R & R the rubber bushings in the trailing arm. Refer to repair manual section 31 12 138.

Tool 313 030 previously distributed (SI B04 31 01 ) has been replaced due to Engineering changes in the vehicle.

The old tool must be discarded and the new tool must be placed on the tool board (Board #18) in its place. The new tool is identified by the date code "N 06/02" stamped next to the tool PN .

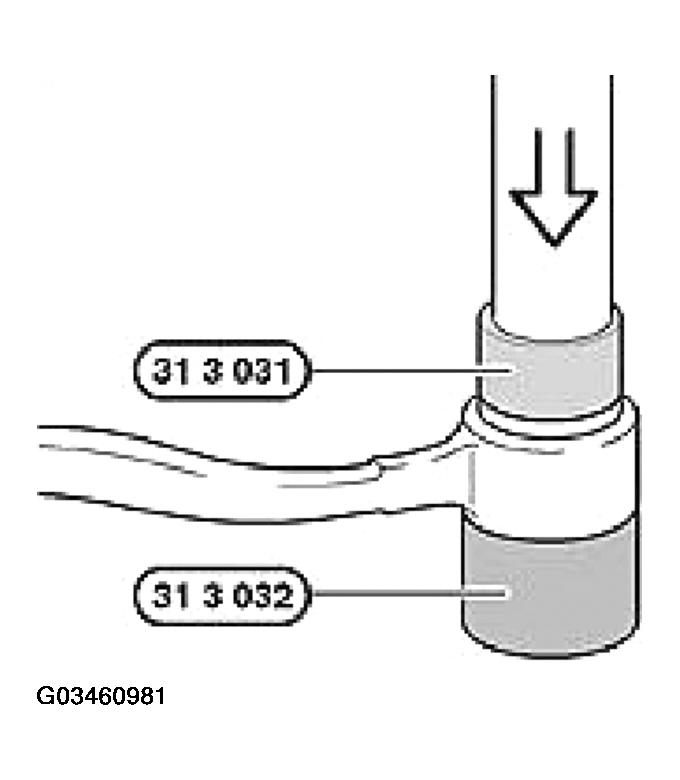

Fig 2: R & R The Rubber Bushing

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
