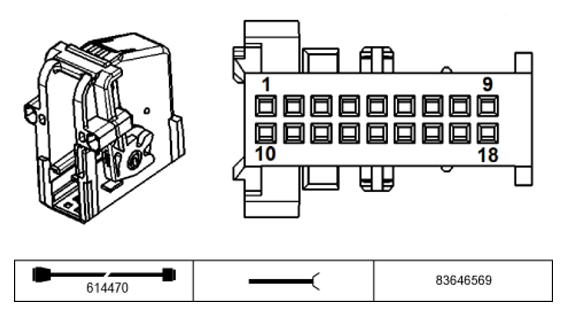

Park Distance Control Module (PDC) X18013 Connector End View
Pin Assignments X18013
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | M | Ground, ultrasonic converter | Ultrasonic transducer, rear center right |
| 2 | M | Ground, ultrasonic converter | Ultrasonic transducer, rear center left |
| 3 | Not occupied | ||
| 4 | Not occupied | ||
| 5 | A | Supply, ultrasonic converter | Ultrasonic transducer, rear center right |
| 6 | A | Supply, ultrasonic converter | Ultrasonic transducer, rear center left |
| 7 | A | Supply, ultrasonic converter | Ultrasonic transducer, rear right |
| 8 | A | Supply, ultrasonic converter | Ultrasonic transducer, rear left |
| 9 | Not occupied | ||
| 10 | M | Ground, ultrasonic converter | Ultrasonic transducer, rear right |
| 11 | M | Ground, ultrasonic converter | Ultrasonic transducer, rear left |
| 12 | E | Signal, ultrasonic converter | Ultrasonic transducer, rear center right |
| 13 | E | Signal, ultrasonic converter | Ultrasonic transducer, rear center left |
| 14 | E | Signal, ultrasonic converter | Ultrasonic transducer, rear right |
| 15 | E | Signal, ultrasonic converter | Ultrasonic transducer, rear left |
| 16 | Not occupied | ||
| 17 | Not occupied | ||
| 18 | Not occupied |
