System Overview: Notes

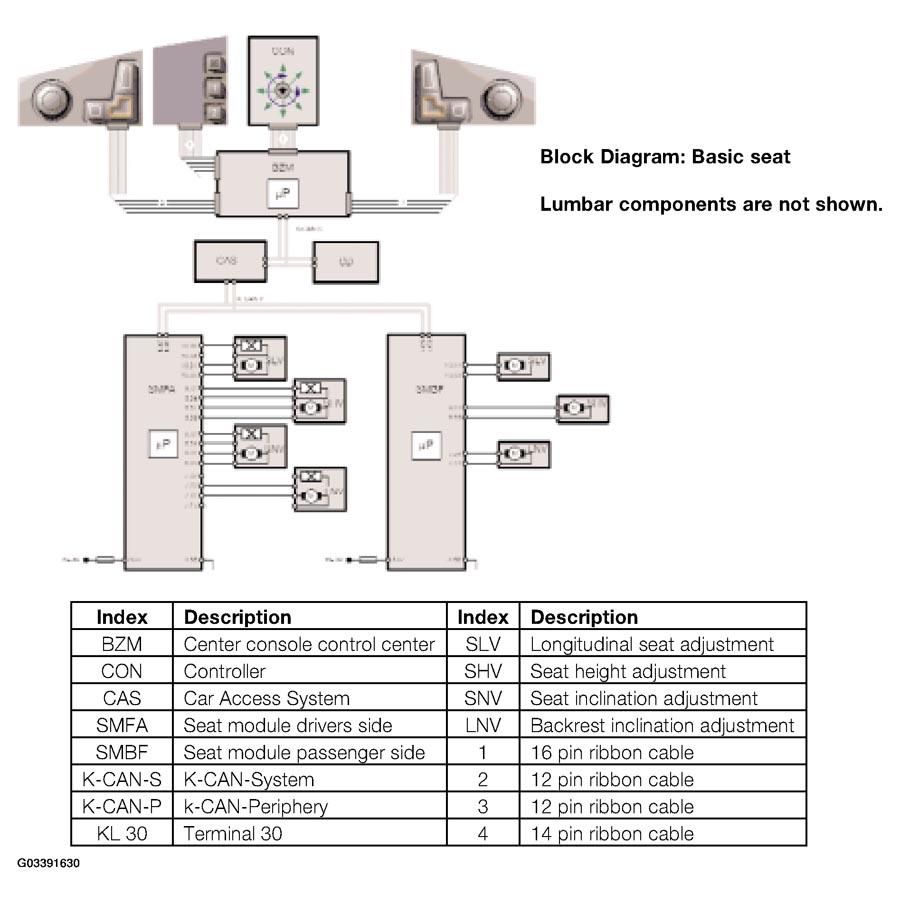

Block Diagram: Basic seat

Lumbar components are not shown.

Fig 1: System Overview - Basic Seat
G03391630Courtesy of BMW OF NORTH AMERICA, INC.

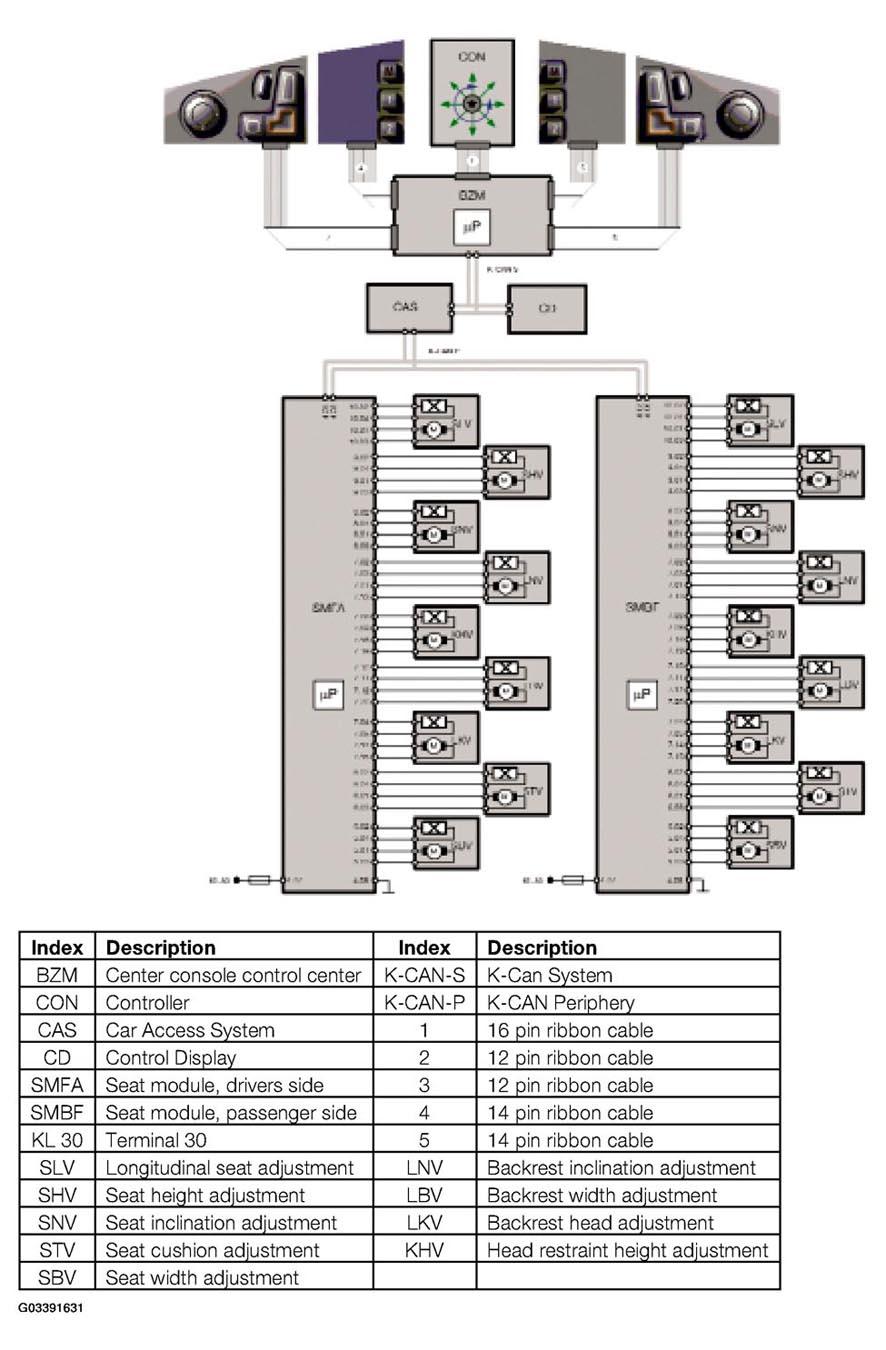

Block Diagram: Comfort seat.

Lumbar, ventilation and active seat components are not shown.

Fig 2: System Overview - Comfort Seat
G03391631Courtesy of BMW OF NORTH AMERICA, INC.
