Switch Operation

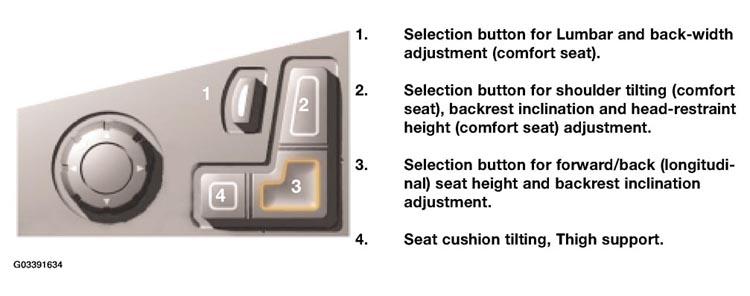

Fig 1: Identifying Switch Operation
G03391634Courtesy of BMW OF NORTH AMERICA, INC.

The selected menu button lights up to confirm the request

The control knob is a "joystick" that can be pushed or rotated. It is used to control whichever portion of the seat has been selected using the menu buttons.

The operation of the memory and auxiliary seat function buttons is discussed separately in "Principle of Operation".
