Vehicle Bus System Interfaces: Notes

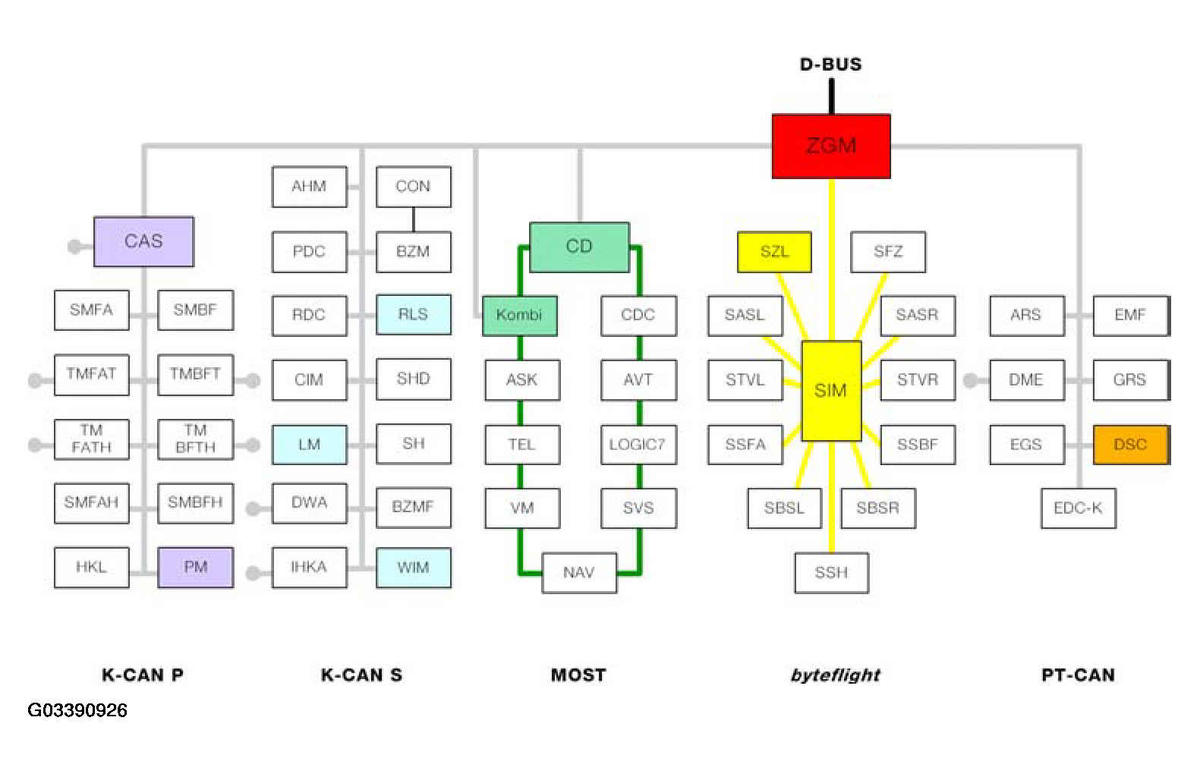

Fig 1: Identifying Vehicle Bus System Interfaces

G03390926

Courtesy of BMW OF NORTH AMERICA, INC.
