Home >> BMW >> 2003 >> 745Li >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Memory Modules >> General Electrical System - Repair Instructions >> Headlight - Washer System >> 61 61... Overview of windshield washer system and headlight cleaning system (SRA)

61 61... Overview of windshield washer system and headlight cleaning system (SRA)

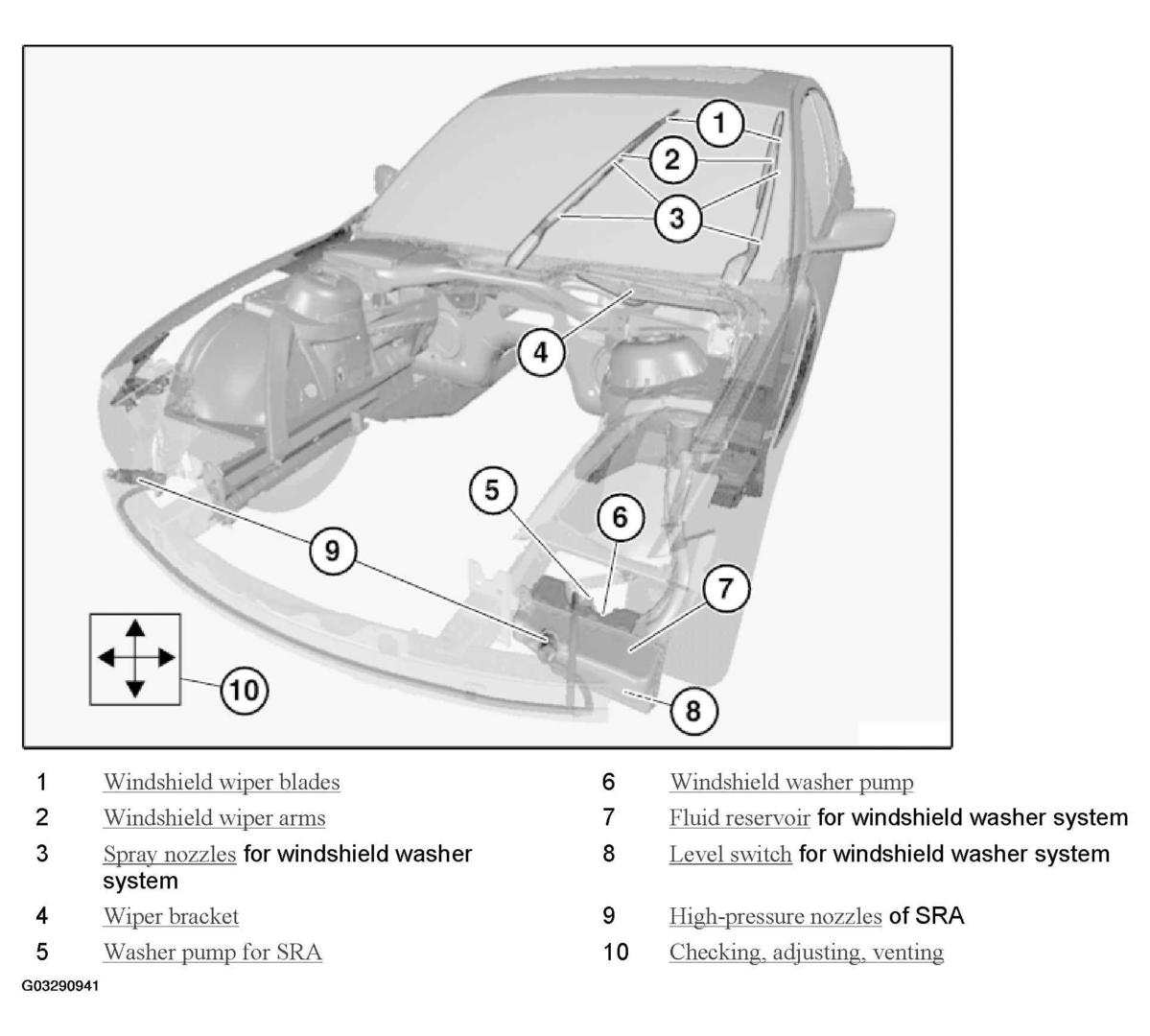

Fig 1: Overview Of Windshield Washer System And Headlight Cleaning System

G03290941

Courtesy of BMW OF NORTH AMERICA, INC.
