System Overview

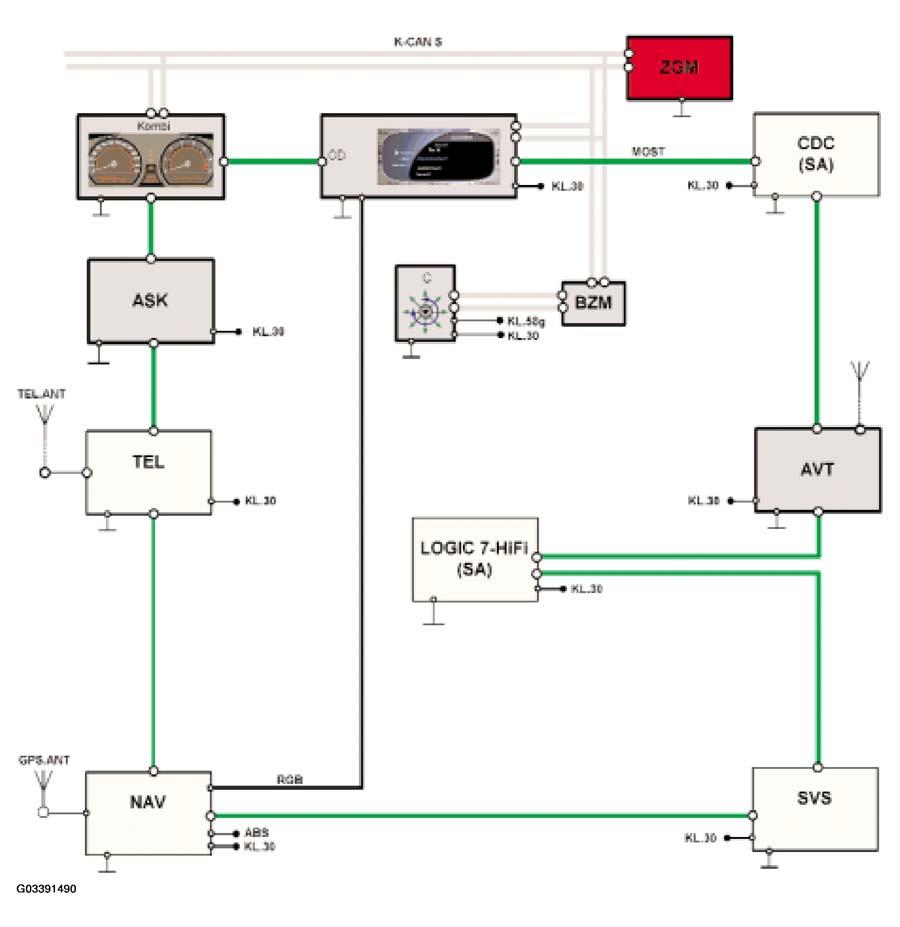

Fig 1: E65 Navigation System Overview
G03391490Courtesy of BMW OF NORTH AMERICA, INC.
