Control Module Locations

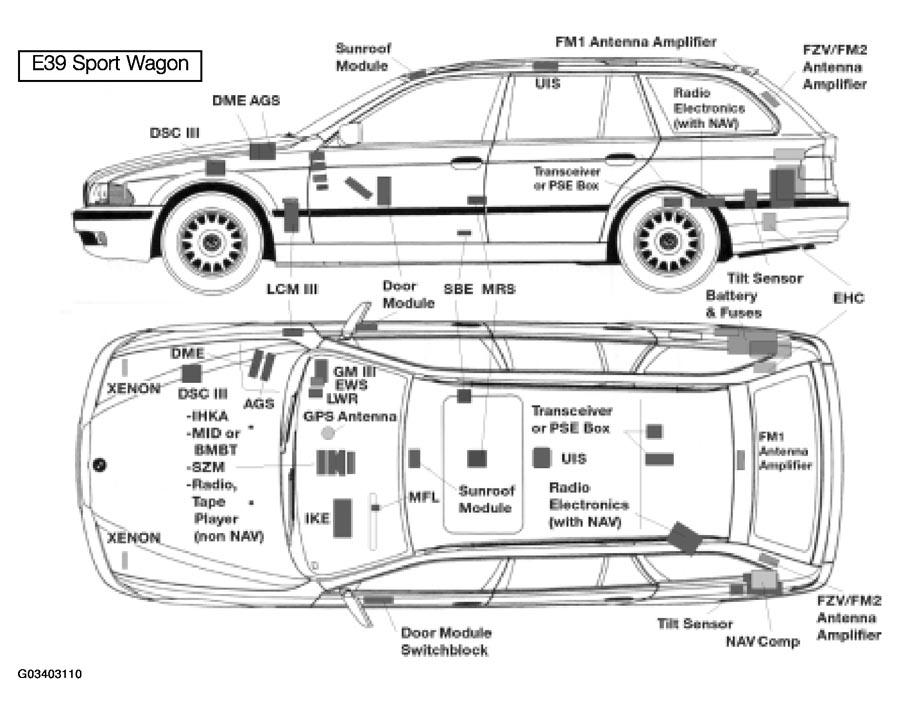

Fig 1: Identifying Control Module Locations (1 Of 2)
G03403110Courtesy of BMW OF NORTH AMERICA, INC.

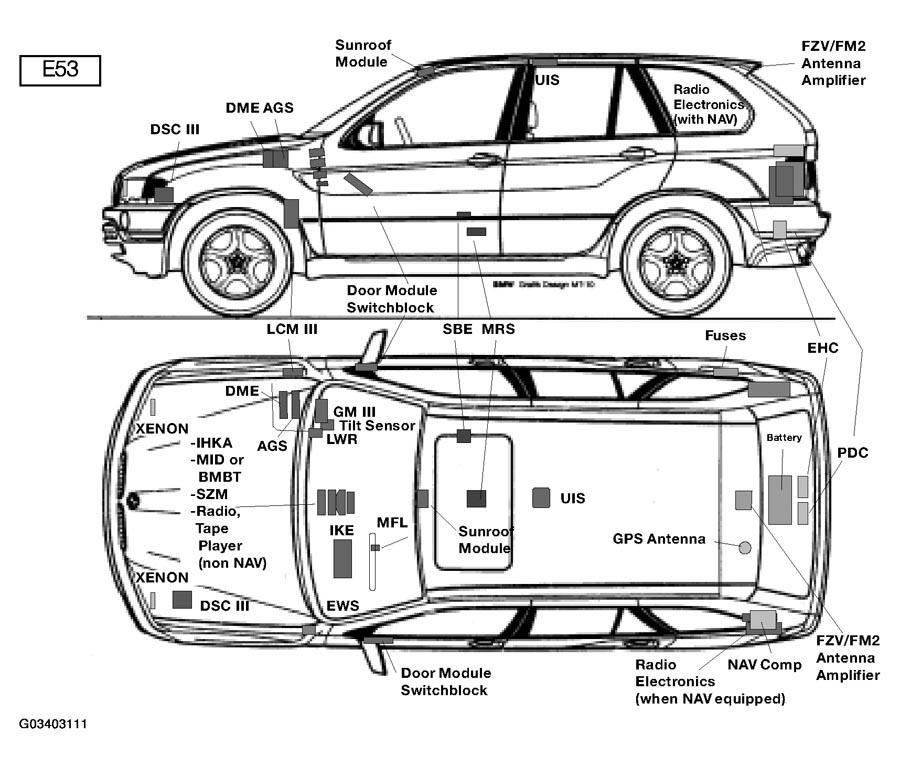

Fig 2: Identifying Control Module Locations (2 Of 2)
G03403111Courtesy of BMW OF NORTH AMERICA, INC.
