Wiring Diagrams

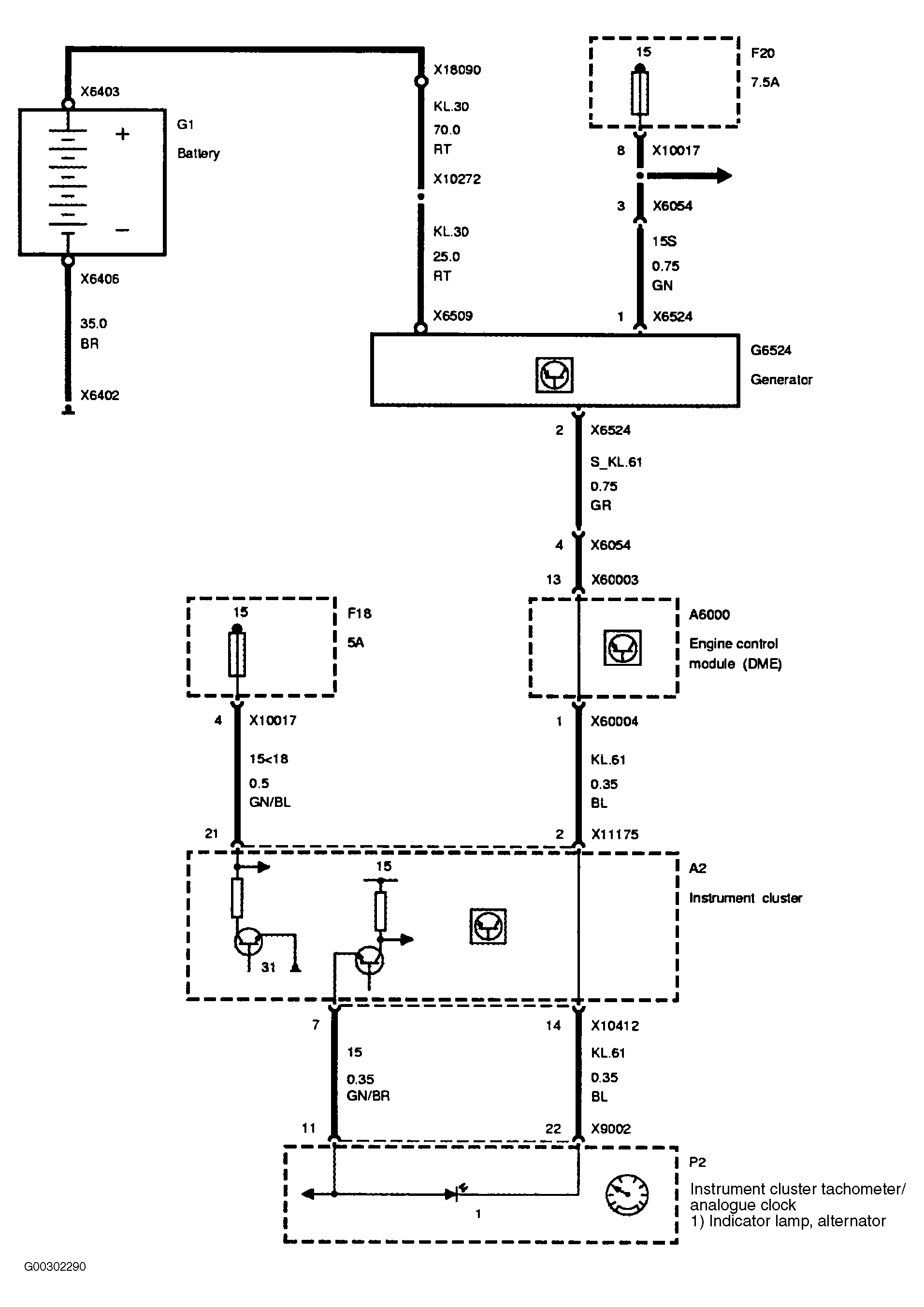

Fig 1: Charging System Wiring Diagram (Z8)

G00302290

Courtesy of BMW OF NORTH AMERICA, INC.
