Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| Anti-Theft Control Module (Alpine) | Behind glove box. |
| Board Computer (BC) | Behind center console. |
| Body Electronics Control Module (ZKE IV) | Behind glove box. |
| Chime Module | Below left side of dash. |
| Crash Control Module | On relay panel, under left side of dash. See Figure . |
| Cruise Control Interface | Near steering column. |
| Dynamic Stability Control Unit (DSC) | On left side of engine compartment. |
| Electronic Immobilizer Control Module (EWS III) | Under left side of dash, left of steering column. |

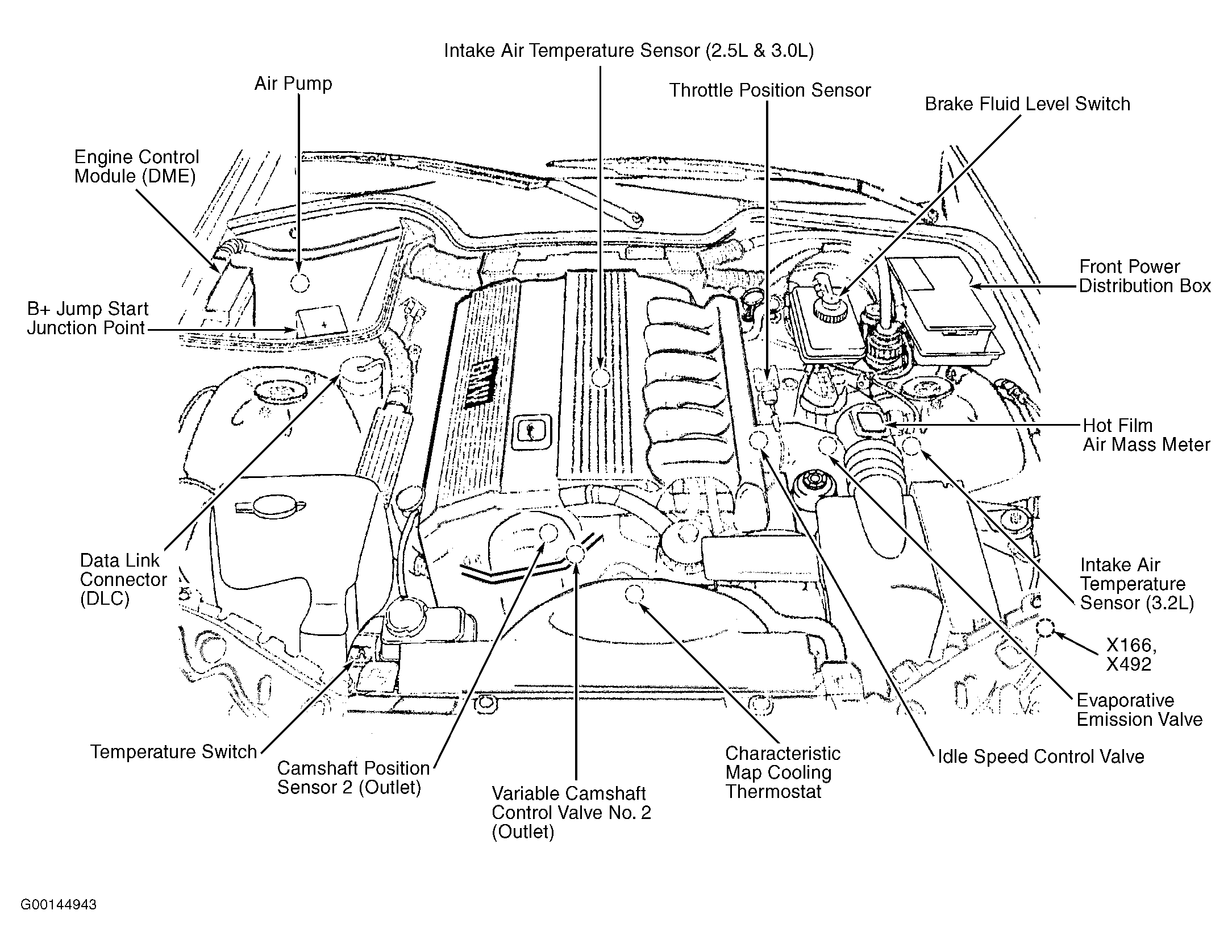

| Engine Control Module (DME) | On right rear side of engine compartment, in E-box. See Figure . |
| Evaporator Controller | On right side of left footwell. |
| Rear Wiper/Washer Interval Control Module | In liftgate. |
| Remote Control Module | In interior rear view mirror. |
| Oil/Outside Temperature Gauge Control Module | Under glove box. |
| Slip Control Module (ABS/ASC) (2.5L) | In left front side of engine compartment. |
| Slip Control Module (ABS/ASC) (3.0L) | In left front side of engine compartment. |
| Slip Control Module (ABS/ASC) (3.2L) | Under right side of dash, behind glove box. |
| Sub-Woofer Amplifier Module | On left side of luggage compartment. |
| Supplemental Restraint System Control Module | Below center console. |
| Thermal Oil Level Sensor (TOENS) Control Module | Behind glove box. |
| Transmission Control Module (EGS) | On right rear side of engine compartment, in E-box. |
| Wiper/Washer Module | Behind glove box. |
