61 13 ... Crimping Micro Quadlock System contacts (MQS)

NOTE: For Special Tools identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

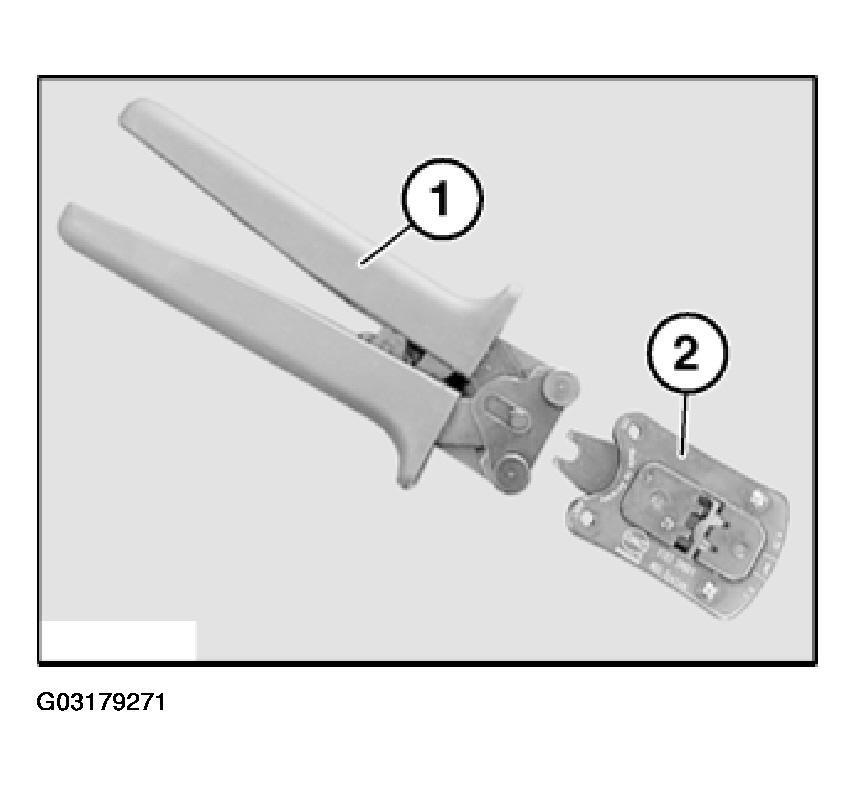

To crimp MQS contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

Fig 1: Crimping MQS Contacts Using Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

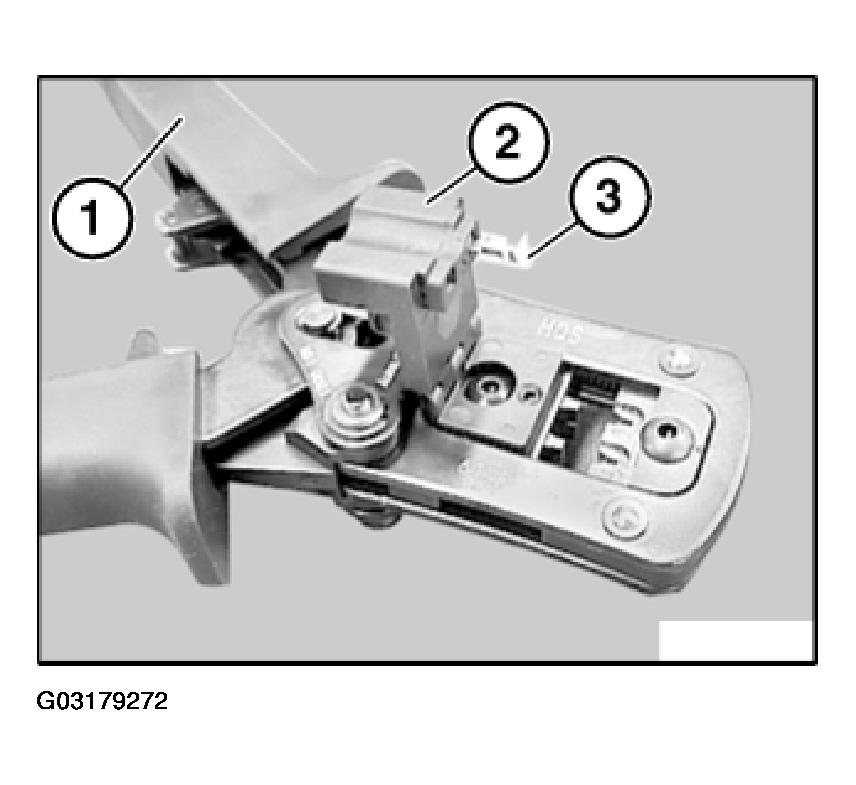

Open pliers (1).

Fold up contact carrier (2).

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

Fig 2: Inserting MQS Contact In Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables.

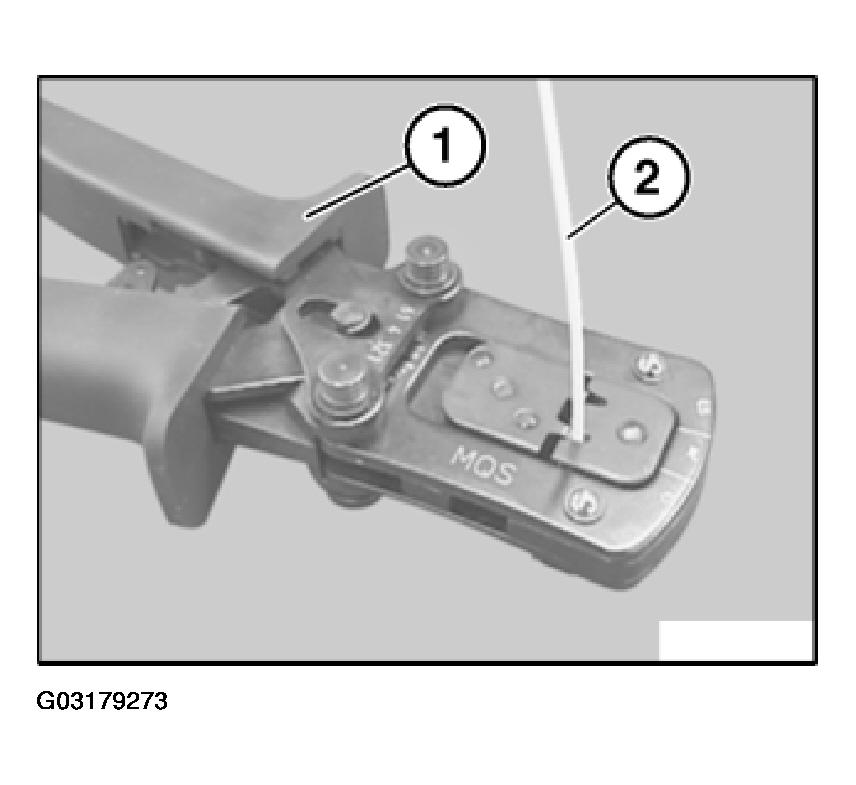

Close pliers (1) one notch.

Insert stripped cable (2).

Close pliers (1) fully.

Fig 3: Inserting Stripped Cable

Courtesy of BMW OF NORTH AMERICA, INC.

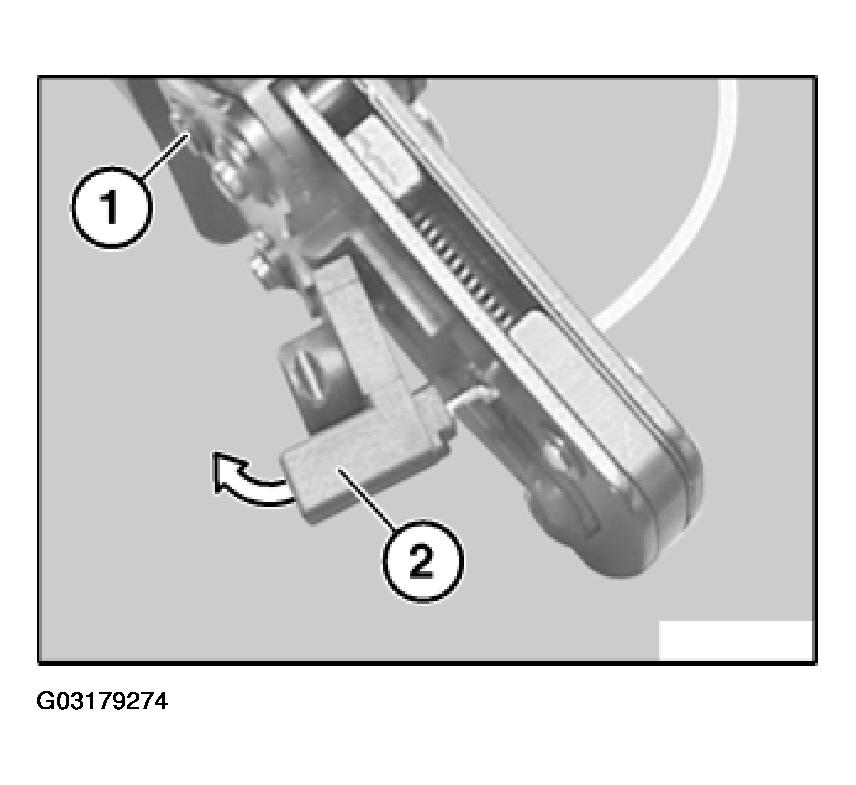

Open pliers (1).

Open contact carrier (2) gently and carefully remove MQS contact.

NOTE: Check contact for correct crimping.

Fig 4: Opening Contact Carrier Gently And Removing MQS Contact

Courtesy of BMW OF NORTH AMERICA, INC.
