General Electrical System - Repair Instructions
>>
Auxiliary Cable
>>
61 12 ... ABS Wiring Diagram
61 12 ... ABS Wiring Diagram

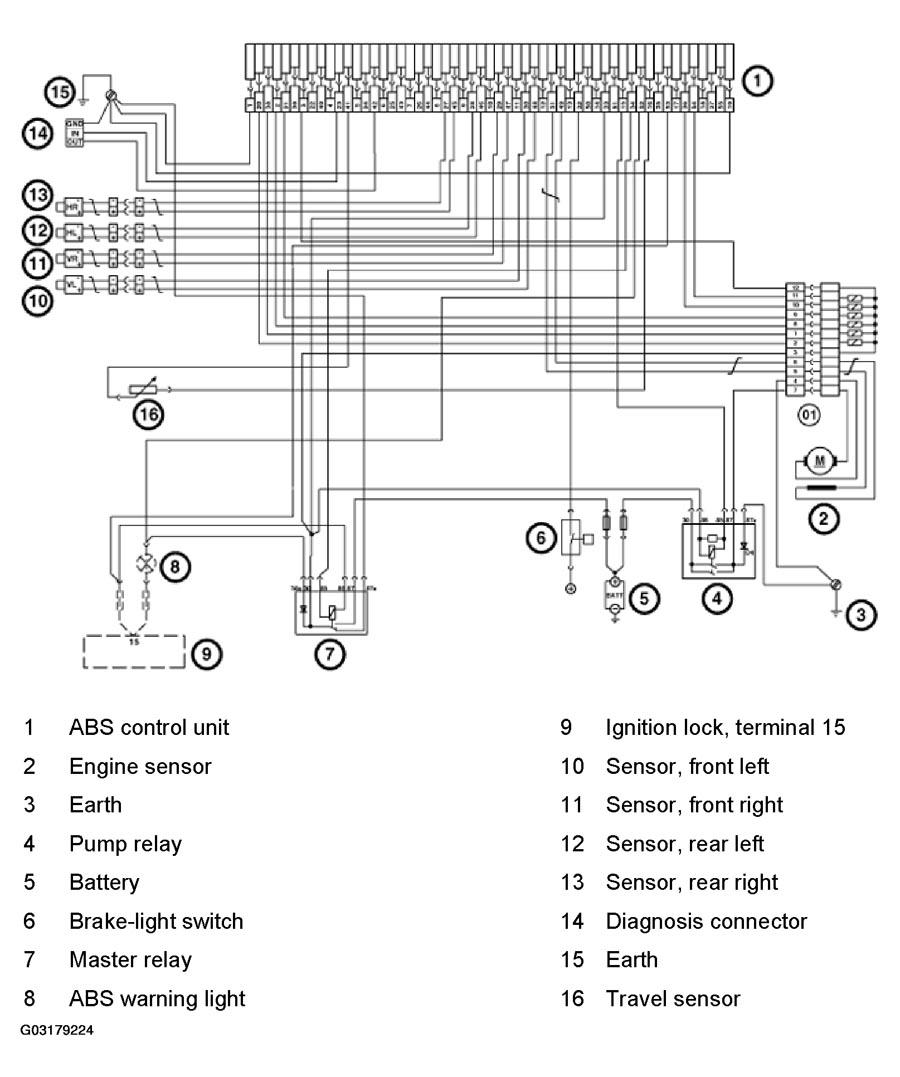

Fig 1: Wiring Diagram - ABS
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
For troubleshooting pin assignment, refer to
INTRODUCTION
in Pin Voltage Charts.
