Removal & Installation (V12)

Turn ignition off. Press down retaining ring. Disconnect electrical connector. Unclip and remove temperature sensor. See Fig 1. To install, reverse removal procedure.

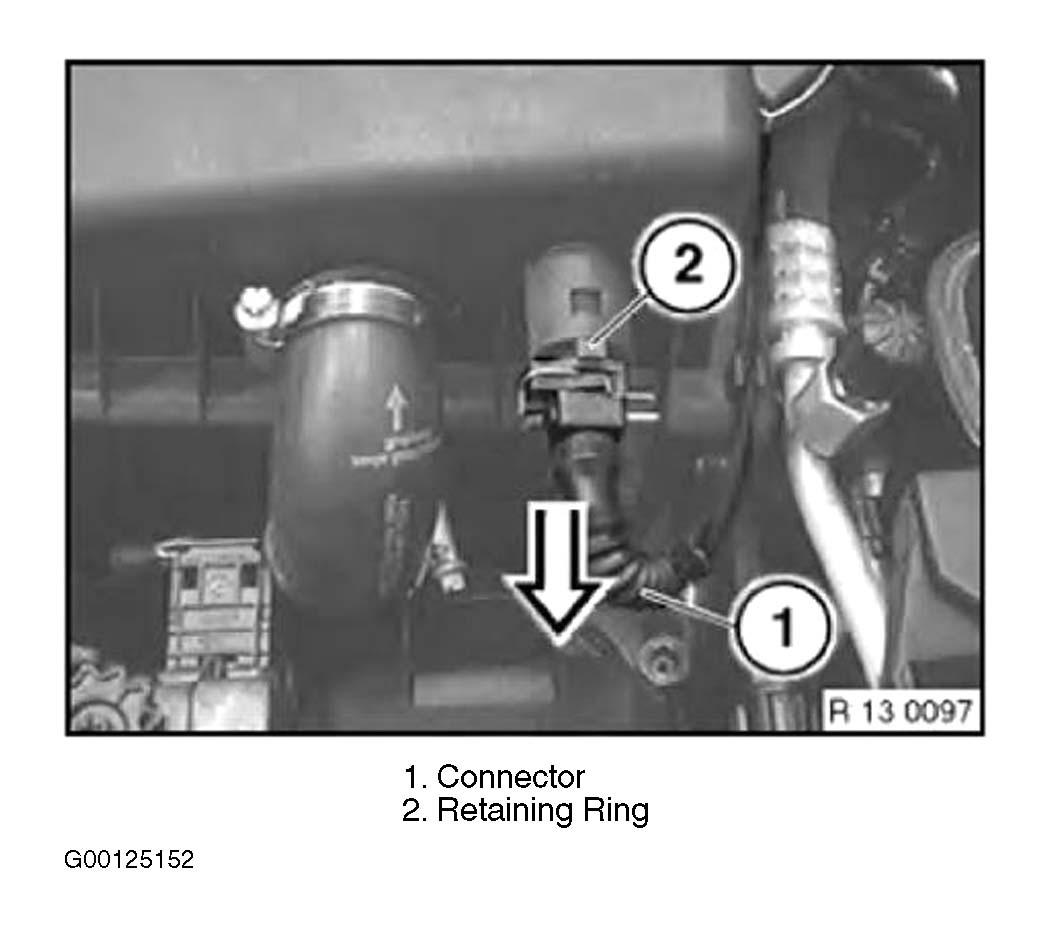

Fig 1: Removing Intake Air Temperature Sensor (V12)

Courtesy of BMW OF NORTH AMERICA, INC.
