How The Battery Works: Discharging
Batteries don't store electrical energy, they store chemical energy and convert it to electrical energy during the discharging process.

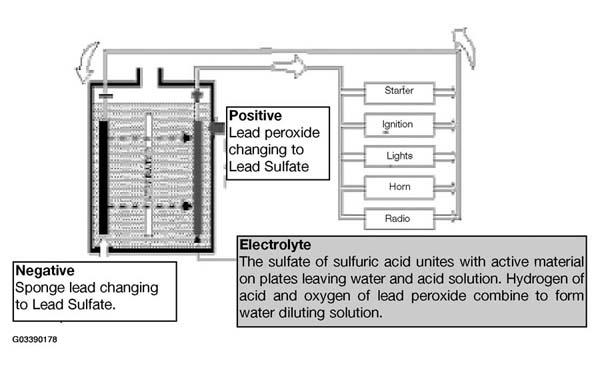

Each cell of a battery contains positive and negative plates (grids). The positive plate is made of lead dioxide, the negative plate of a spongy lead. The negative plate combines with the sulfuric acid to create lead sulfate and one extra electron. The positive plate produces hydrogen ions and sulfuric acid ions (positive ions, atoms missing one electron).
The extra electrons from the negative plate are passed from the negative battery terminal and through the electrical consumer, back to the positive battery terminal. Once back at the battery, the free electrons combine with the positive ions at the positive battery terminal producing lead sulfate and water.
It is important to remember that the system is closed. For every electron generated at the negative terminal, there is an electron consumed at the positive terminal.
As the process continues, the active materials (lead and lead dioxide plates and the electrolyte) become depleted and the reactions slow down until the battery is no longer capable of supplying electrons. At this point the battery is discharged.
The discharge process changes the ratio of sulfuric acid to water in the electrolyte, as more water is produced in the discharge process. By measuring the volume of acid in the water, the state of charge of the battery is discovered.
