61 71 100 Removing And Installing/Replacing Windshield Washer Pump (M3)

Remove cover on right. Refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (M3, M3 CSL) .

Detach hose (1) in direction of arrow from windshield washer pump (3)

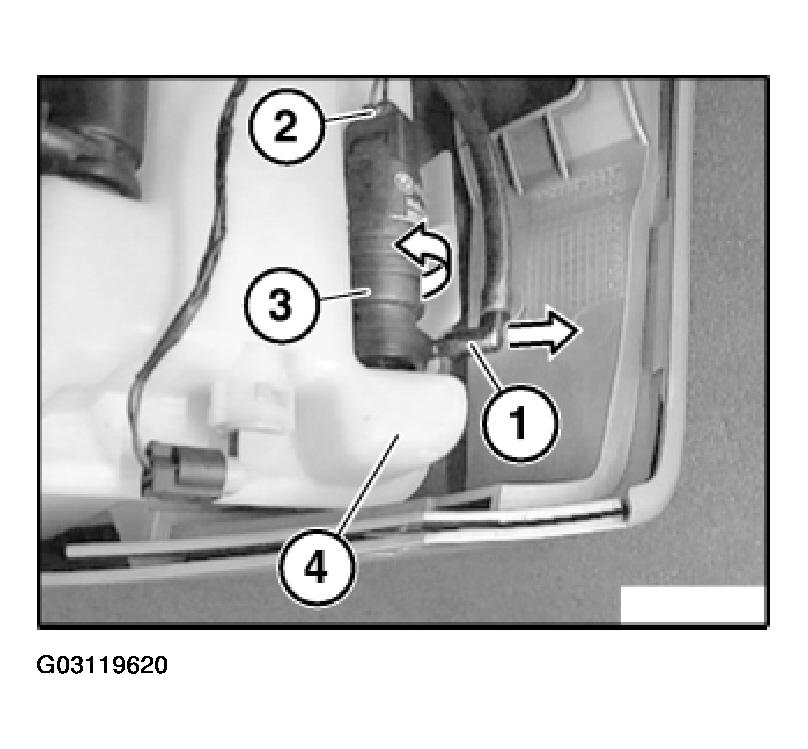

Fig 1: Detaching Hose From Windshield Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2)

Turn windshield washer pump (3) in direction of arrow, lift out of water reservation for windshield washer system (4)

Installation:

Replace sealing ring/strainer of washer pump.

Coat sealing ring of washer pump with antiseize agent.

Ensure hose is laid without kinks.

Fill fluid tank for windshield washer system.
