35 00... Pedal Assembly

Inspection dimensions for gaps beside pedal:

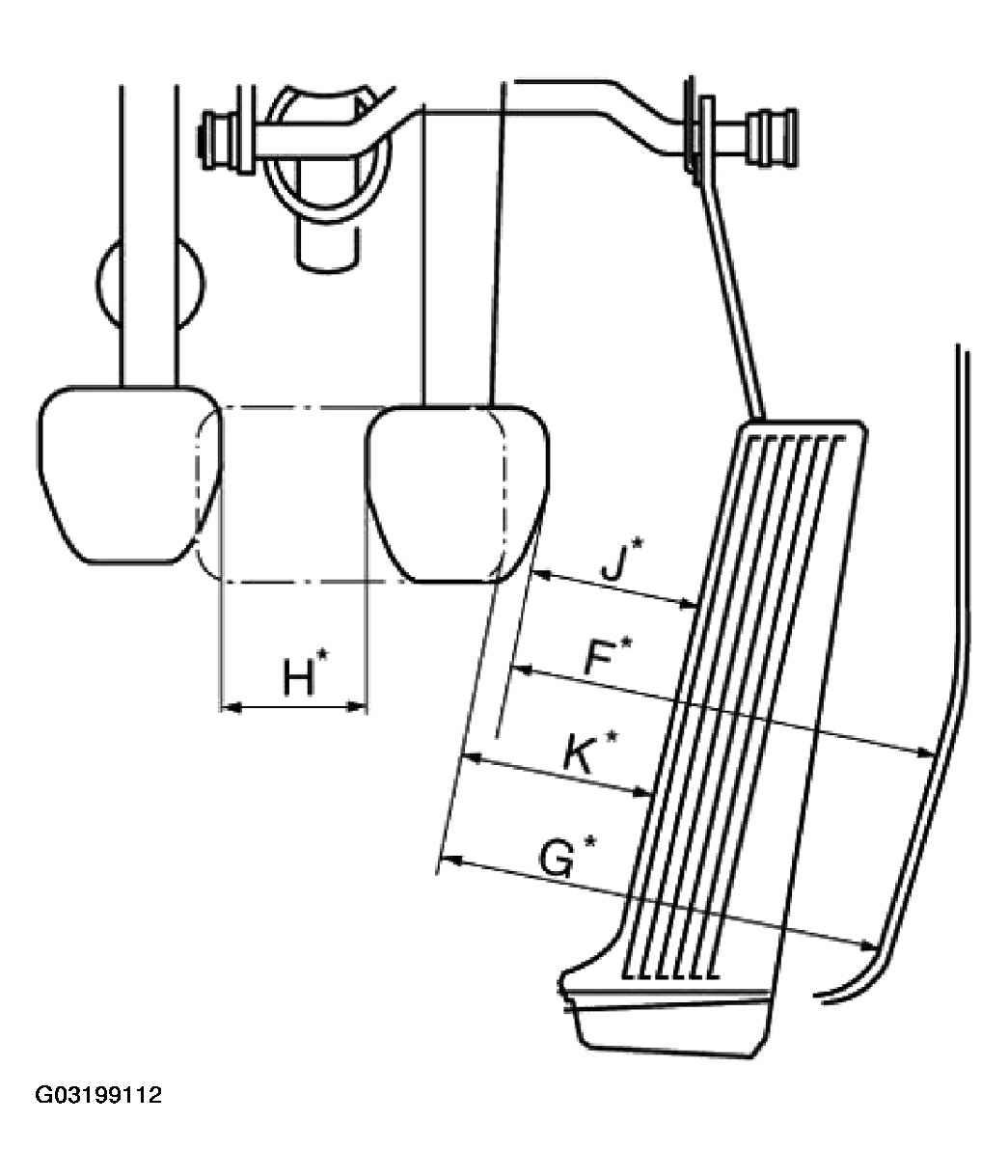

Fig 1: Locating Dimensions H, J, K, F, G

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension H, J, K, F, G, refer to Dimension H, J, K, F, G

Dimension H, J, K, F, G

Spacing Between Accelerator Pedal & Brake Pedal
Manual Transmission J	50 mm
Automatic Transmission K	60 mm
Distance Tunnel To Brake Pedal
Manual Transmission F	130-140 mm
Automatic Transmission G	140-145 mm
Spacing H Between Brake Pedal & Clutch Pedal	50 mm
Specified distances are reference values only and do not account for installation tolerances. Distances are without consideration for carpets.

Inspection dimension (B) from underside of pedal to face wall for:

Clutch pedal (dimension B) is 225 + 10 mm.

Brake pedal (dimension B) is 225 + 10 mm.

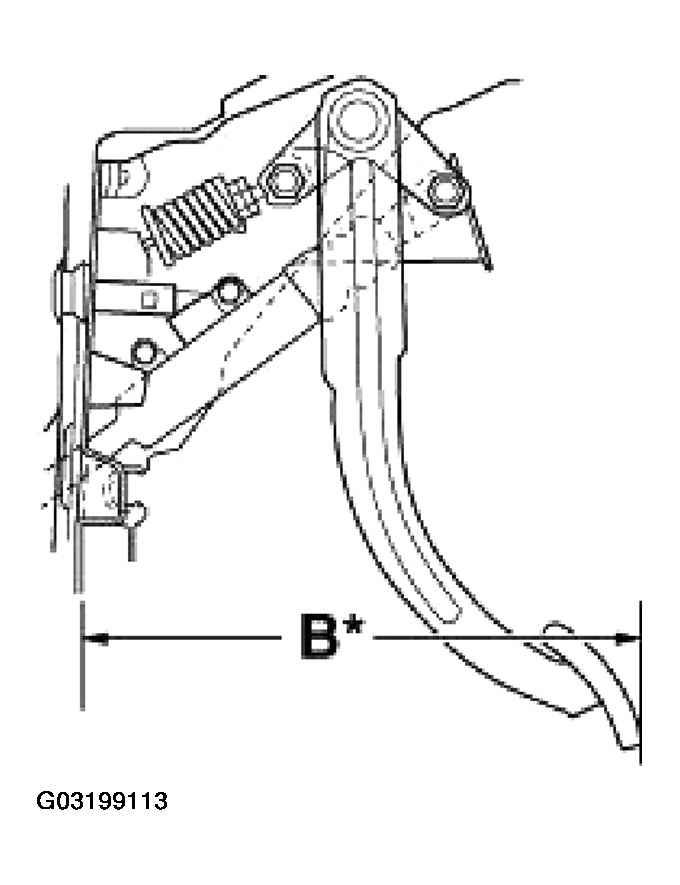

Fig 2: Identifying Dimension B

Courtesy of BMW OF NORTH AMERICA, INC.

Inspection dimension (C) for accelerator pedal:

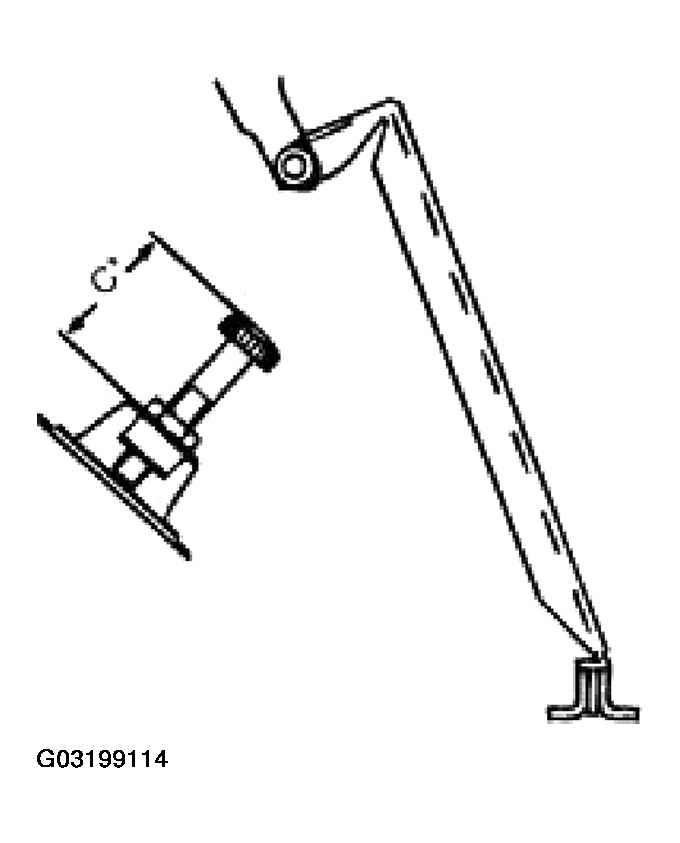

Fig 3: Identifying Dimension C

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension C

Thread Adjustment Dimension C At Full Throttle Stop
Manual Transmission	62 mm
Automatic Transmission	54 mm
EH Transmission	51 mm
Lubricant For Bearings: Renocal FN 745 Fa. Fuchs Manheim
Specified distances are reference values only and do not account for installation tolerances. Distances are without consideration for carpets.
