General Electrical System - Repair Instructions
>>
Auxiliary Cable
>>
61 12... ABS Wiring Diagram
61 12... ABS Wiring Diagram

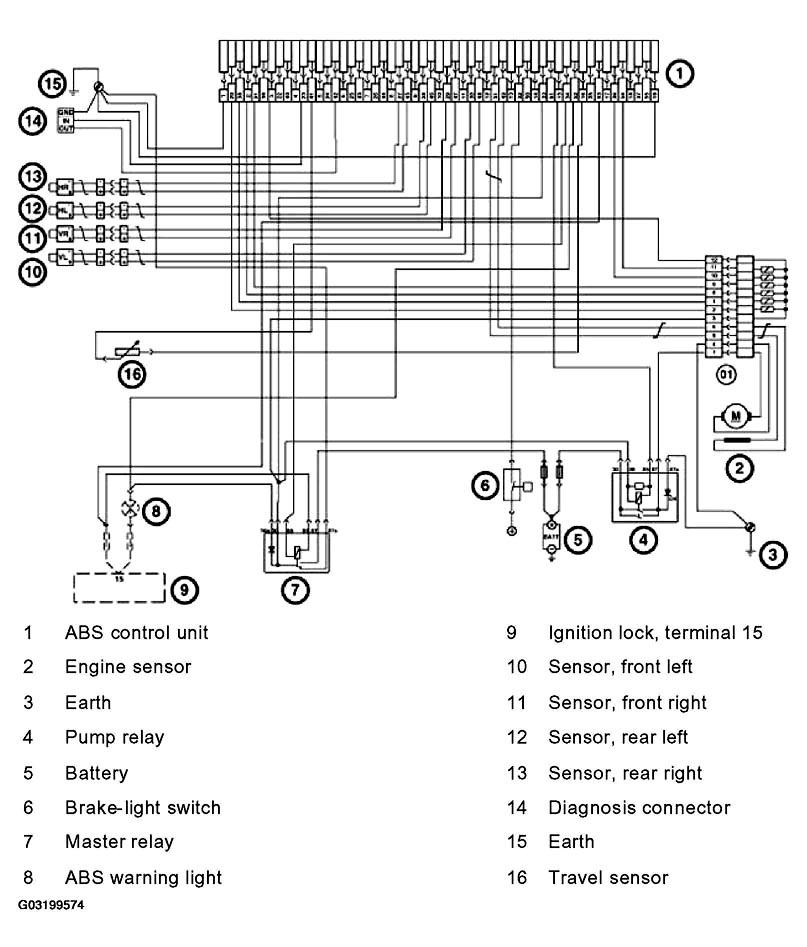

Fig 1: ABS Wiring Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
For troubleshooting pin assignment, refer to Vehicle Electric/Electronic Test Plan.
Courtesy of BMW OF NORTH AMERICA, INC.
