Front End

The front end is joined together from over 100 individual parts by shielded-arc and spot weld bonding.

The vehicle identification number is located on the right front strut tower.

The strut tower provides elongated holes for a further 0.5 degree of camber adjustment.

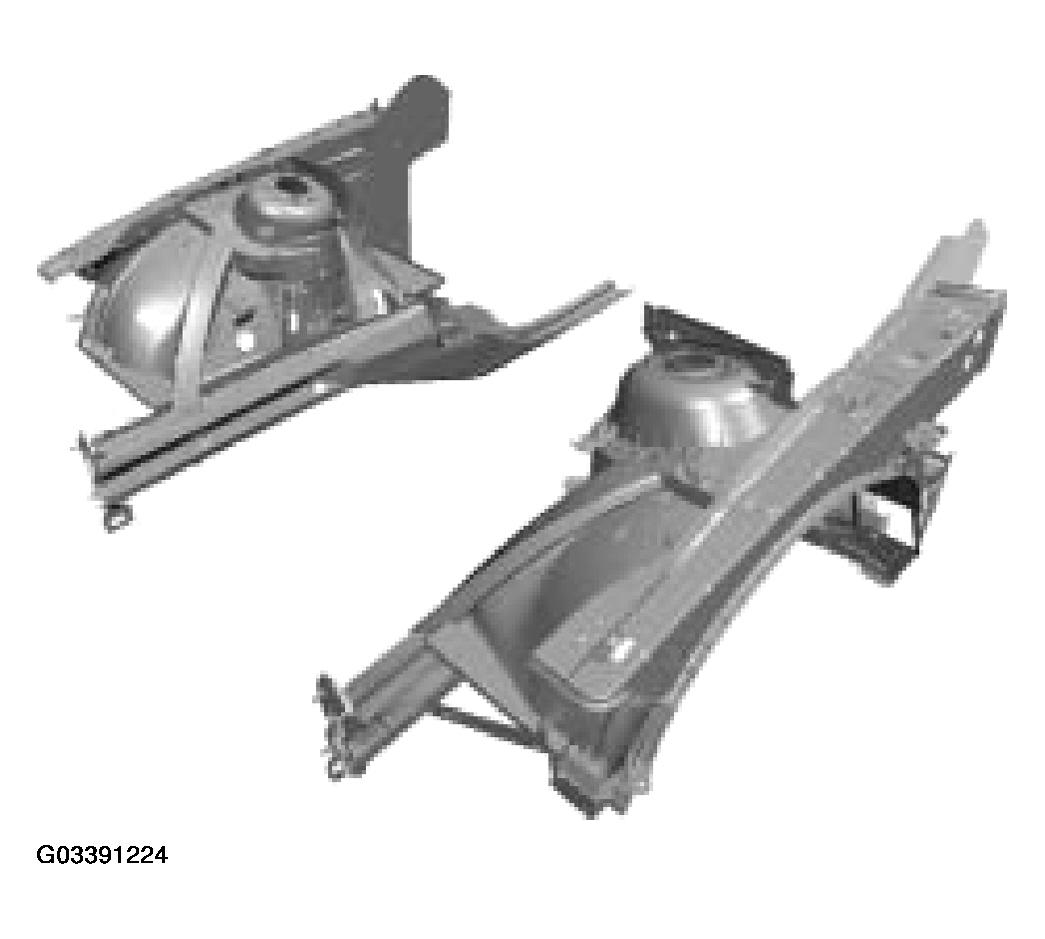

Fig 1: Identifying Strut Towers
G03391224Courtesy of BMW OF NORTH AMERICA, INC.
