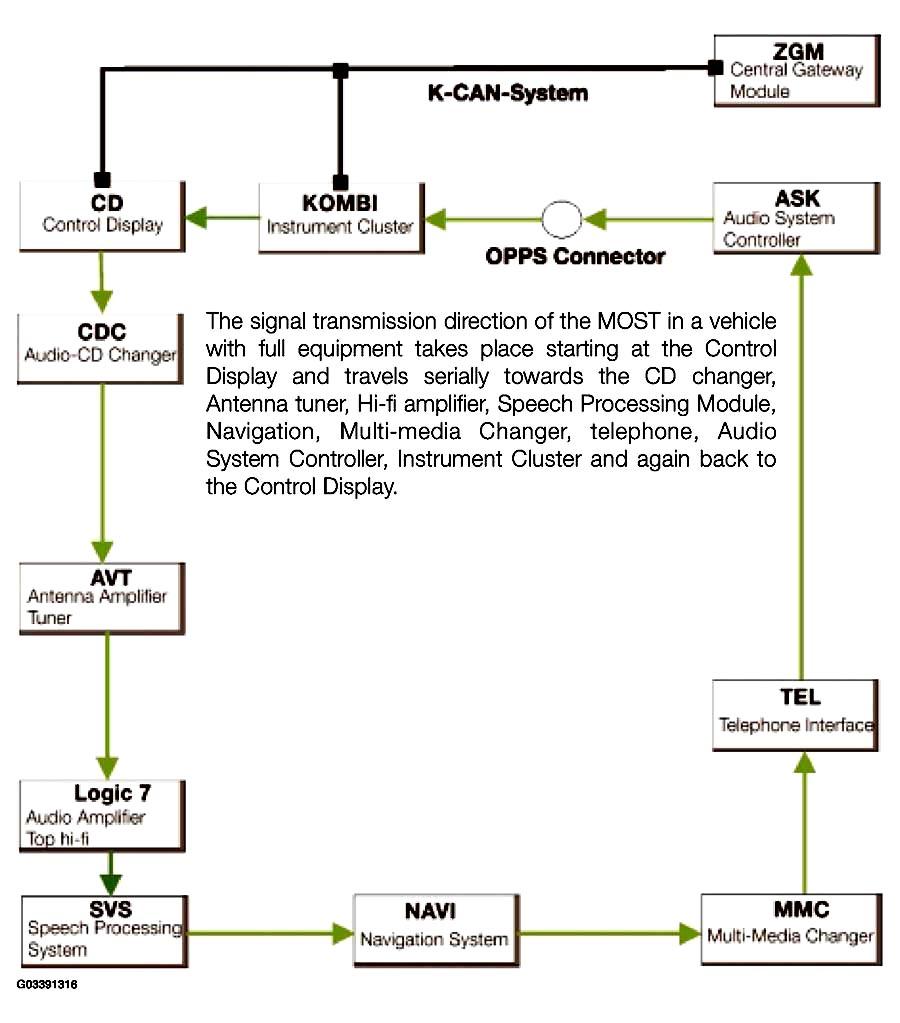

Communication Direction In MOST structure: Notes
Courtesy of BMW OF NORTH AMERICA, INC.
Important!!! The component sequence of the MOST controllers in the ETM is incorrect when it comes to signal transmission direction. The correct sequence is indicated above!
