E65 Sub-Bus Systems: BSD

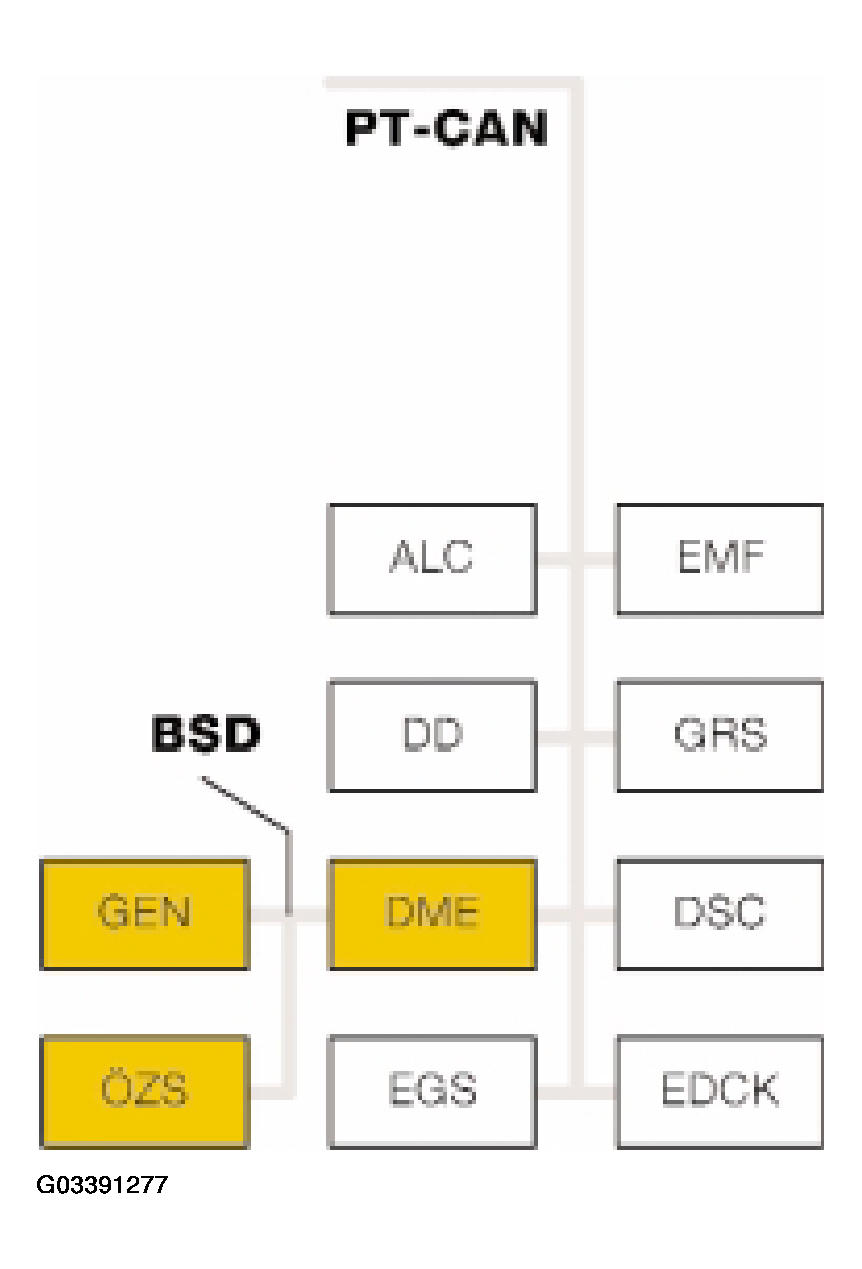

Fig 1: Identifying E65 Bus System Diagram (BSD)

Courtesy of BMW OF NORTH AMERICA, INC.

Communication via the BSD enables adjustment of the battery charging voltage, and communication between the DME and oil quality sensor for example.
