12 90 100 Replacing fan for electronics box (N62)

NOTE: Read and print out fault memory with MoDiC or BMW DIS.

Switch off ignition.

Follow instructions for disconnecting and connecting battery. Refer to 12 00... Instructions for disconnecting and connecting battery .

Disconnect battery.

CAUTION: Follow instructions for removing and installing electronic control units. Refer to 12 00... Instructions for removing and installing electronic control units .

Release screw and remove holder (1).

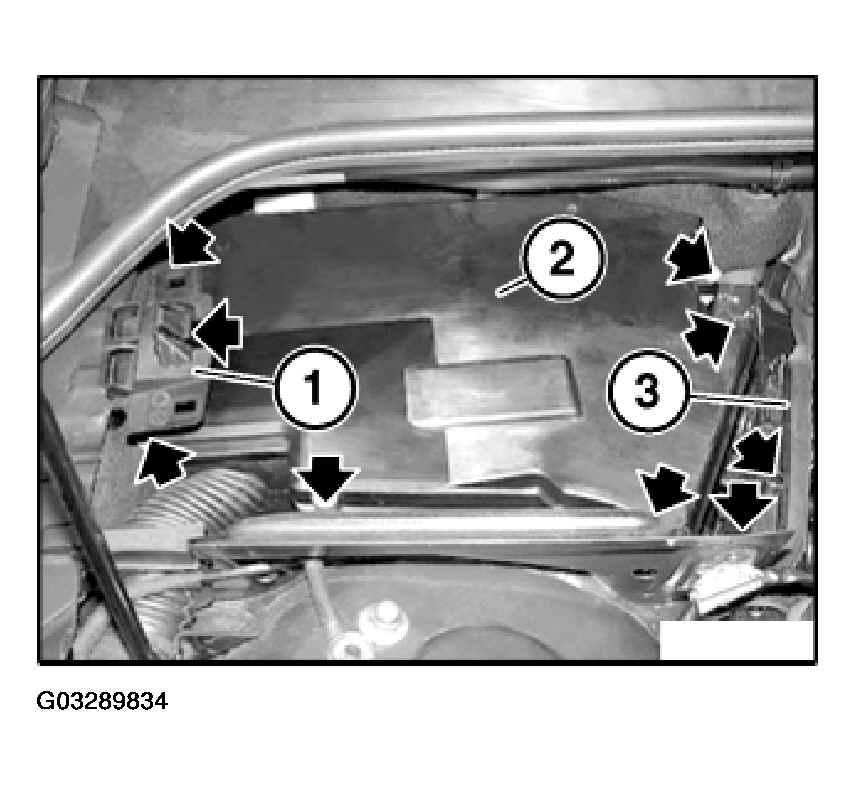

Fig 1: Removing Cover From Control Unit Box

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove cover (2) from control unit box.

NOTE: Release screws on seal (3) only when removing wiring harness.

Installation:

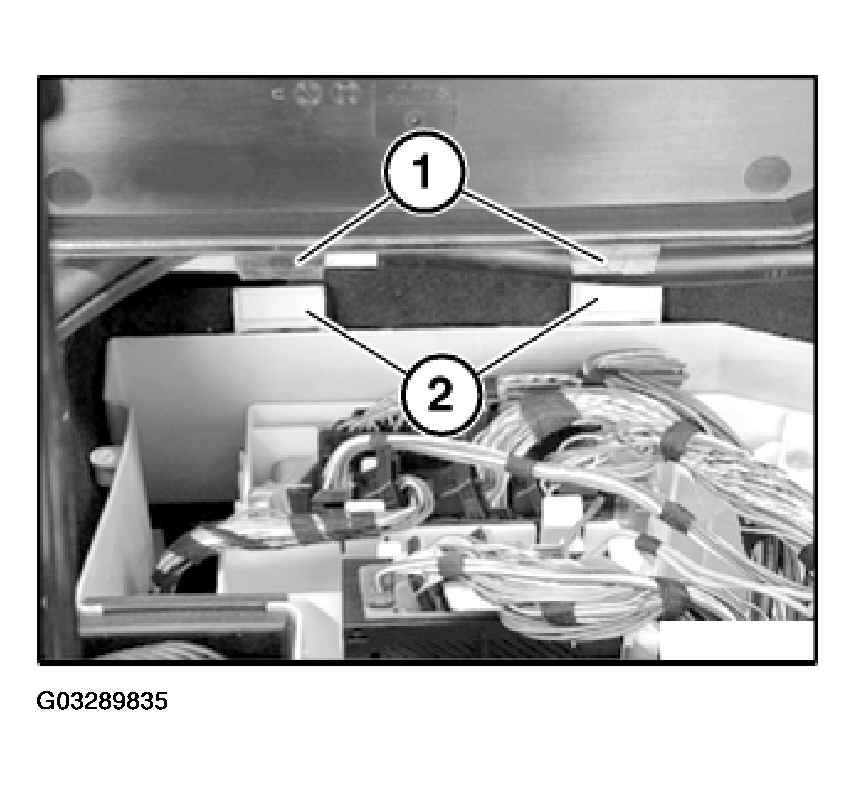

Insert tabs (1) in openings (2) and close cover.

Fig 2: Inserting Tabs In Openings

Courtesy of BMW OF NORTH AMERICA, INC.

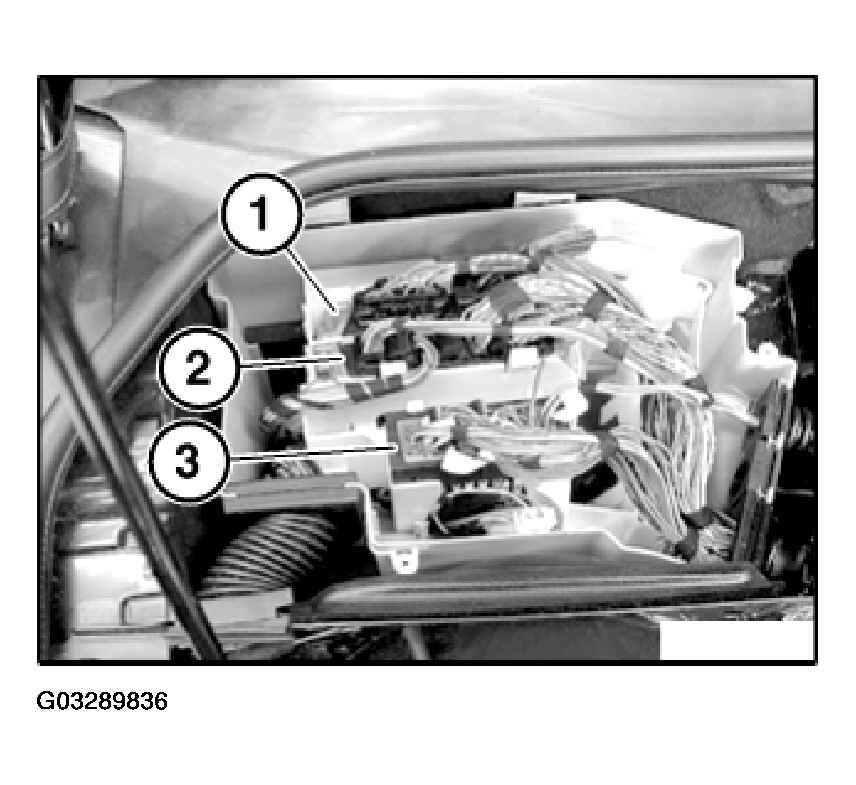

Unlock plug connections on Valvetronic control unit (1), DME control unit (2) and integrated supply module (3) and detach.

Fig 3: Removing Valvetronic Control Unit, DME Control Unit And Integrated Supply Module

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Valvetronic control unit (1), DME control unit (2) and integrated supply module (3).

Unlock plug connection on fan for electronics box and detach. Release both screws on control unit carrier and remove towards top.

Unfasten screws.

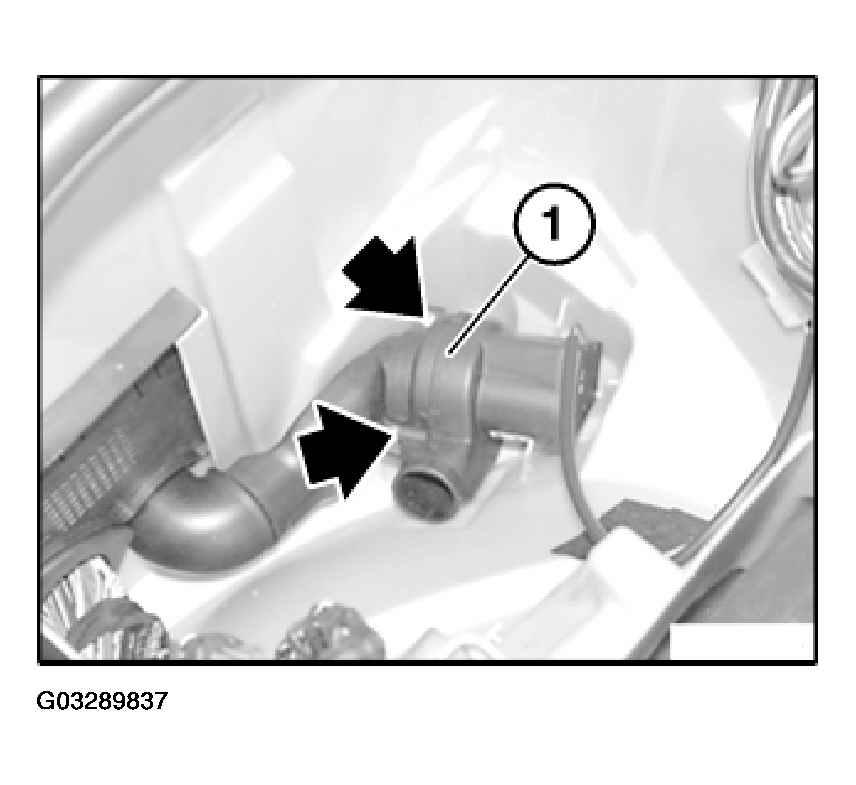

Fig 4: Removing Electronics Box Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) for electronics box.

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
