Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

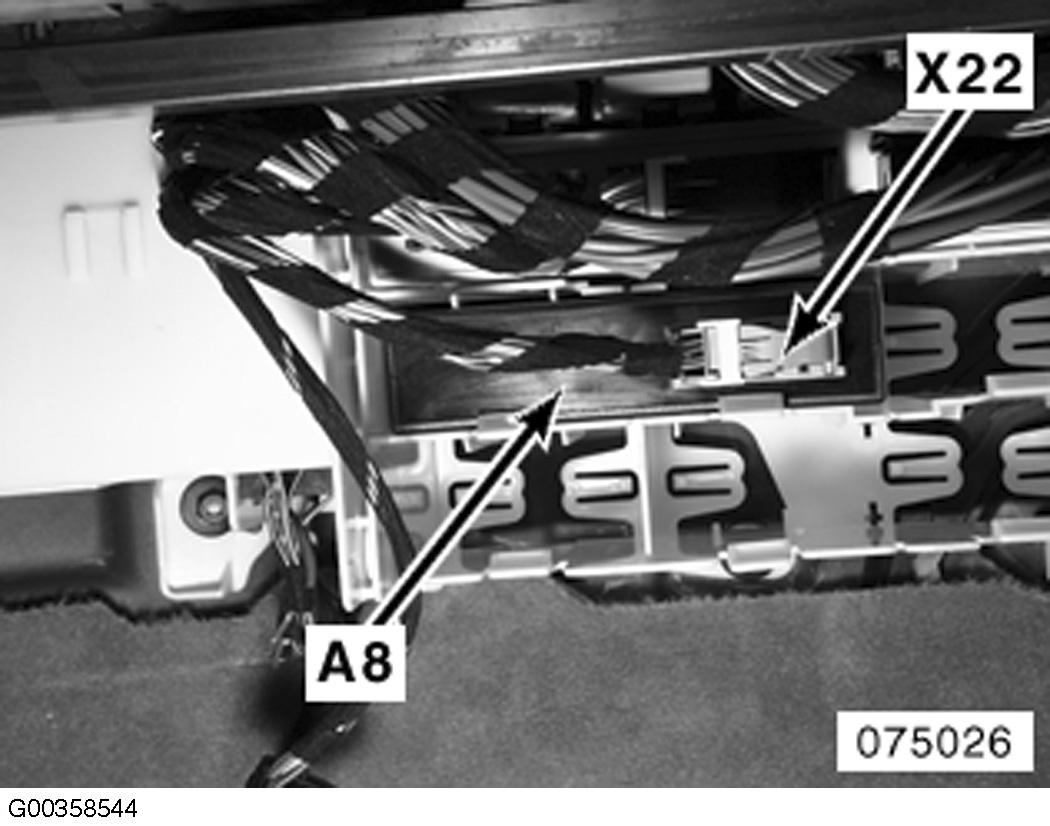

Fig 1: Behind Glove Box

G00358544

Courtesy of BMW OF NORTH AMERICA, INC.

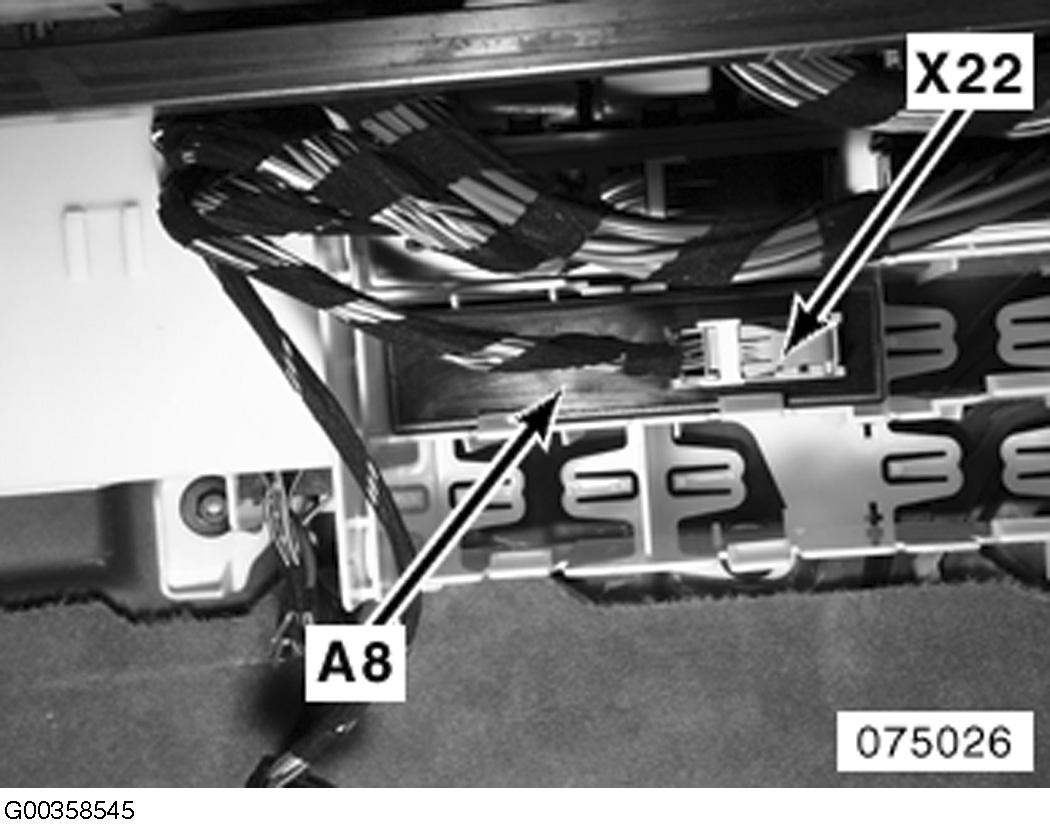

Fig 2: Behind Glove Box

G00358545

Courtesy of BMW OF NORTH AMERICA, INC.

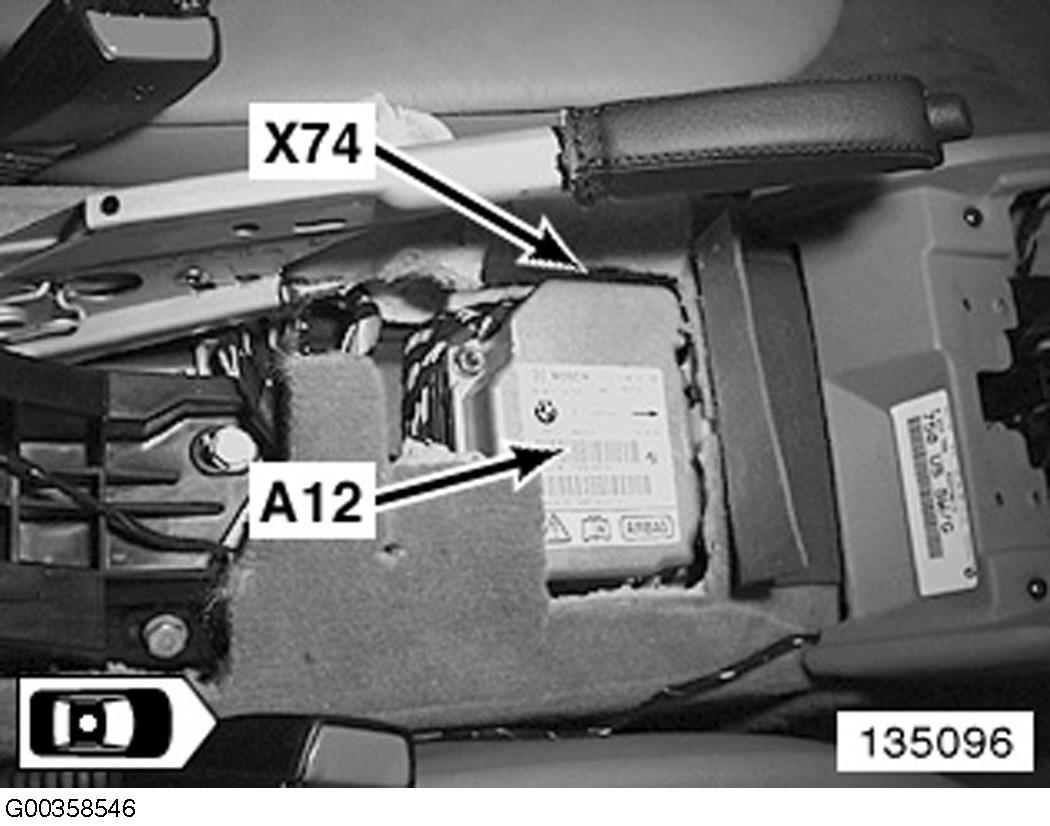

Fig 3: Under Center Console

G00358546

Courtesy of BMW OF NORTH AMERICA, INC.

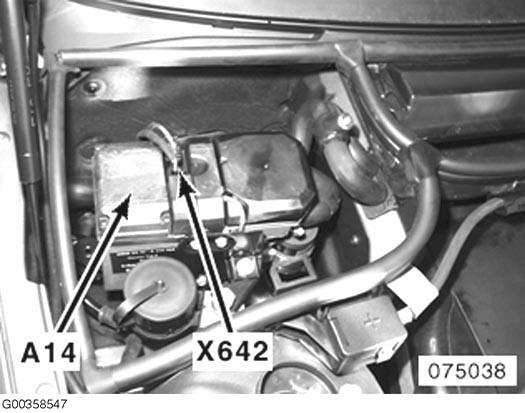

Fig 4: Right Rear Of Engine Compartment

G00358547

Courtesy of BMW OF NORTH AMERICA, INC.

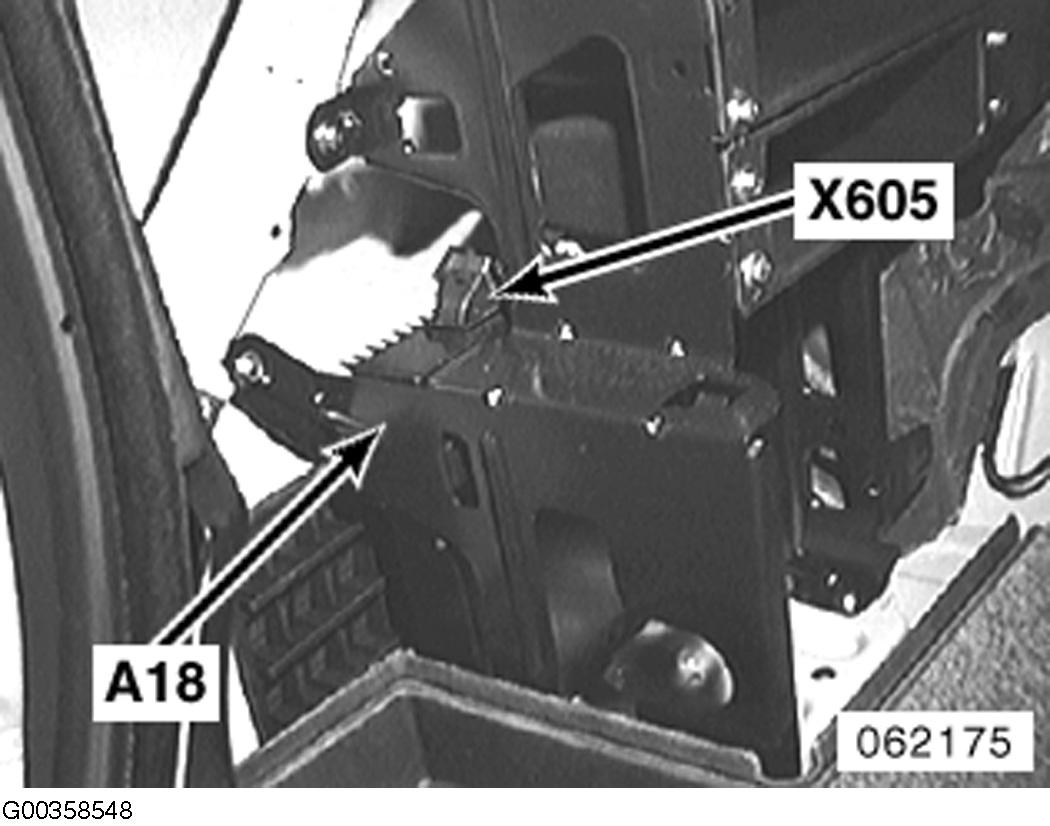

Fig 5: Left Side Of Luggage Compartment

G00358548

Courtesy of BMW OF NORTH AMERICA, INC.

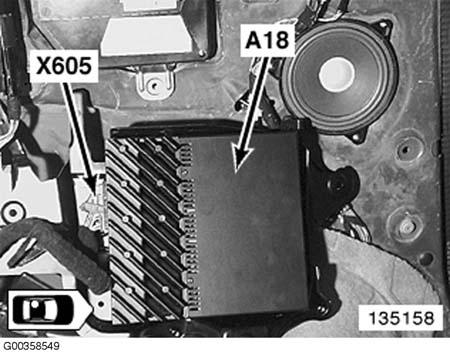

Fig 6: Left Rear Of Passenger Compartment

G00358549

Courtesy of BMW OF NORTH AMERICA, INC.

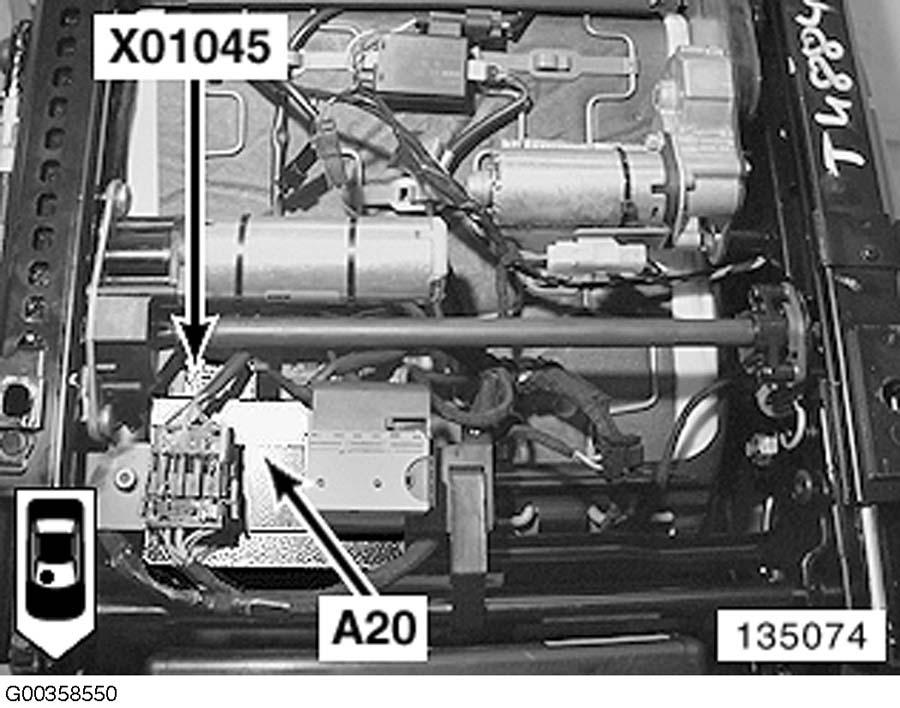

Fig 7: Under Passenger's Seat

G00358550

Courtesy of BMW OF NORTH AMERICA, INC.

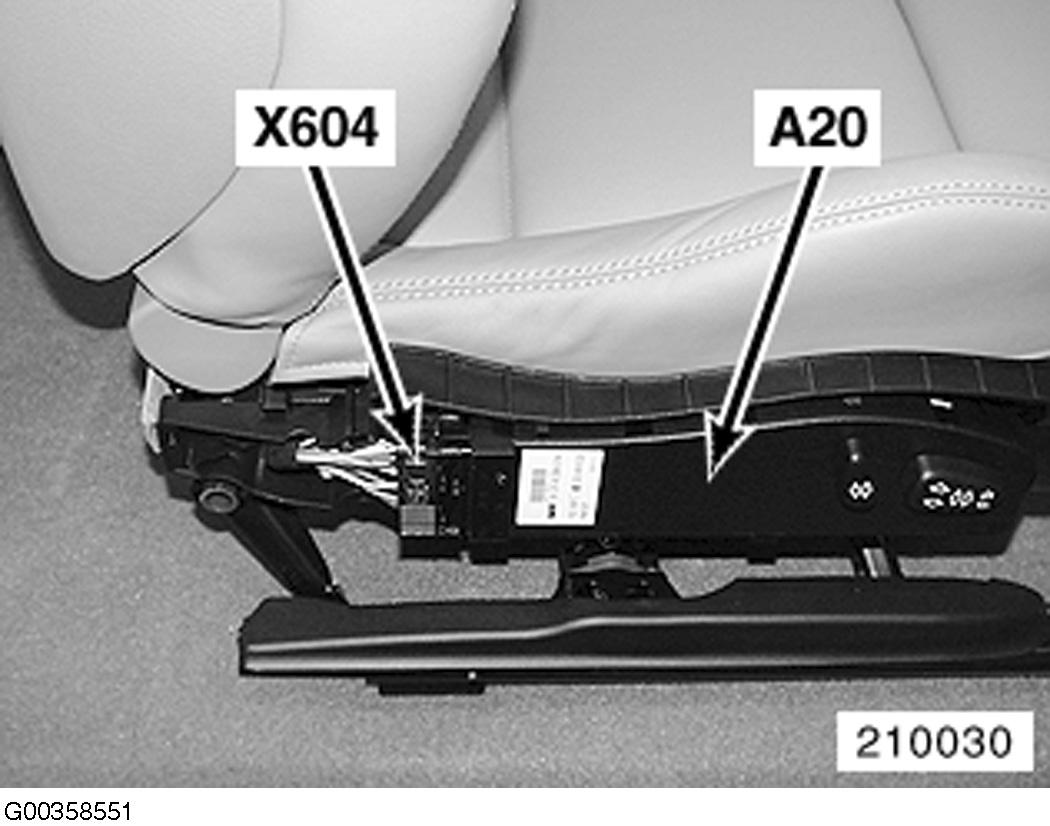

Fig 8: Passenger's Seat

G00358551

Courtesy of BMW OF NORTH AMERICA, INC.

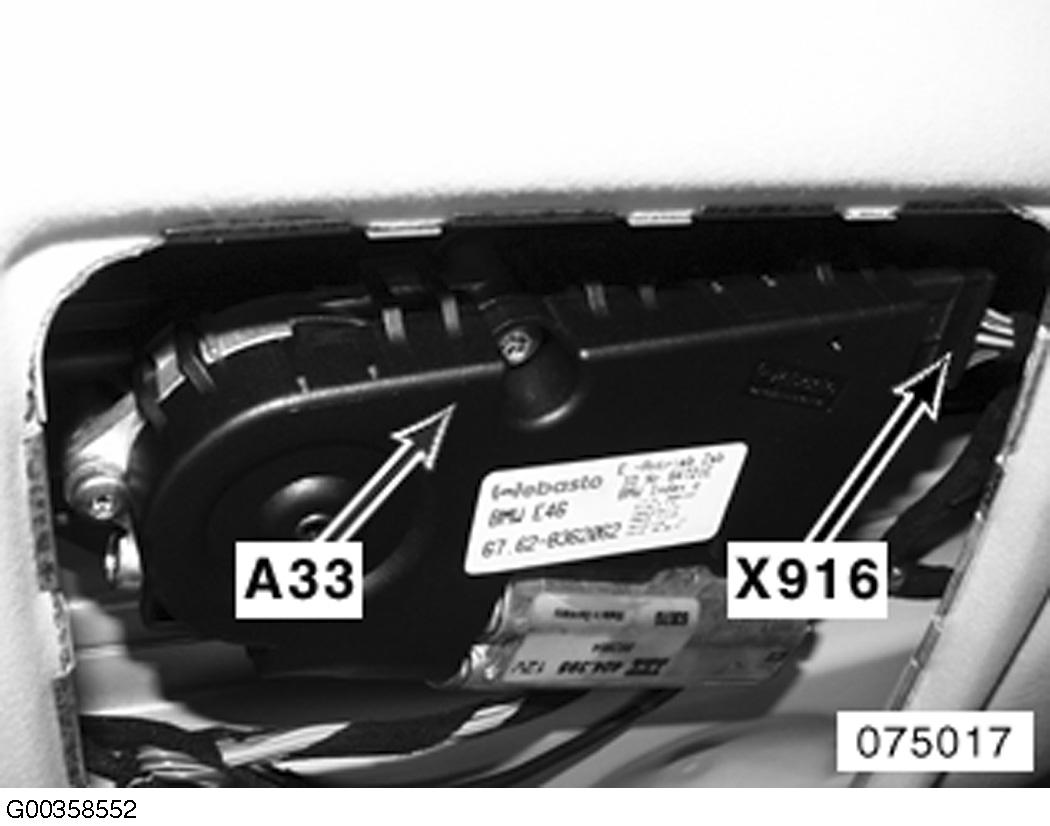

Fig 9: Front Headliner

G00358552

Courtesy of BMW OF NORTH AMERICA, INC.

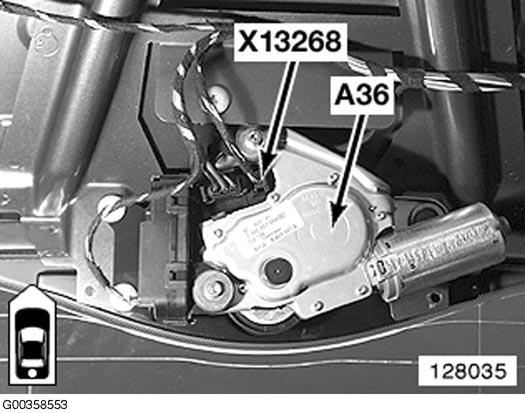

Fig 10: Liftgate

G00358553

Courtesy of BMW OF NORTH AMERICA, INC.

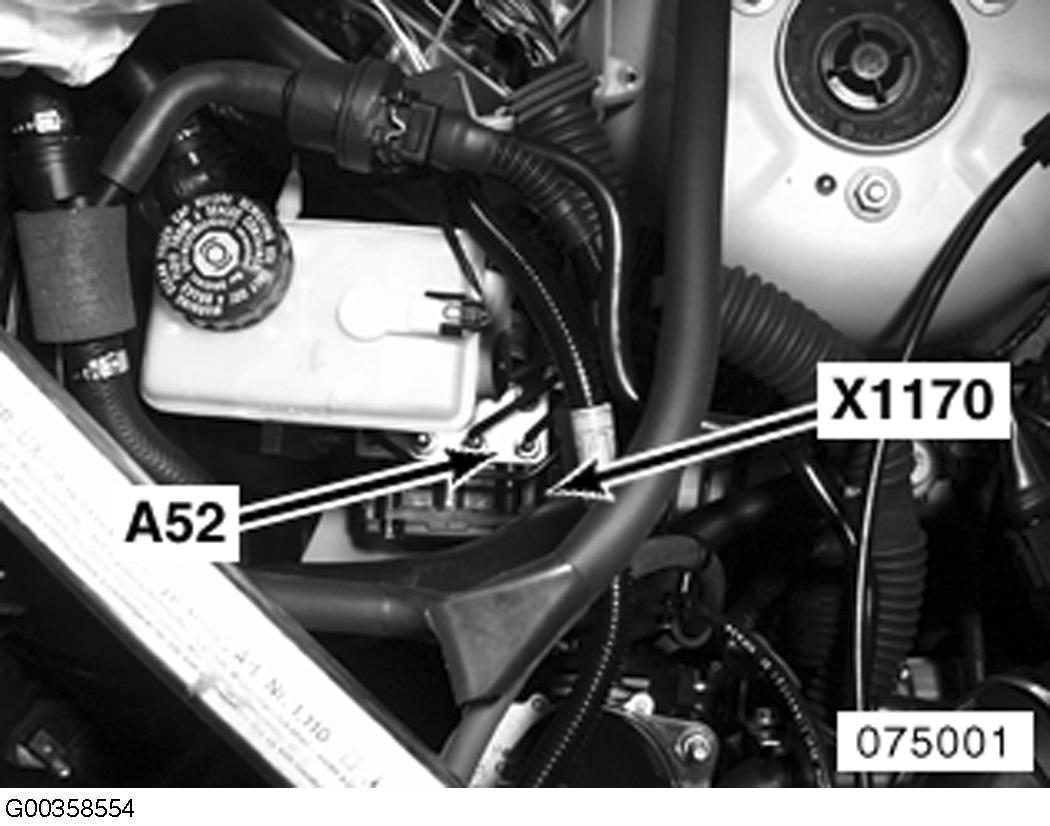

Fig 11: Left Rear Of Engine Compartment

G00358554

Courtesy of BMW OF NORTH AMERICA, INC.

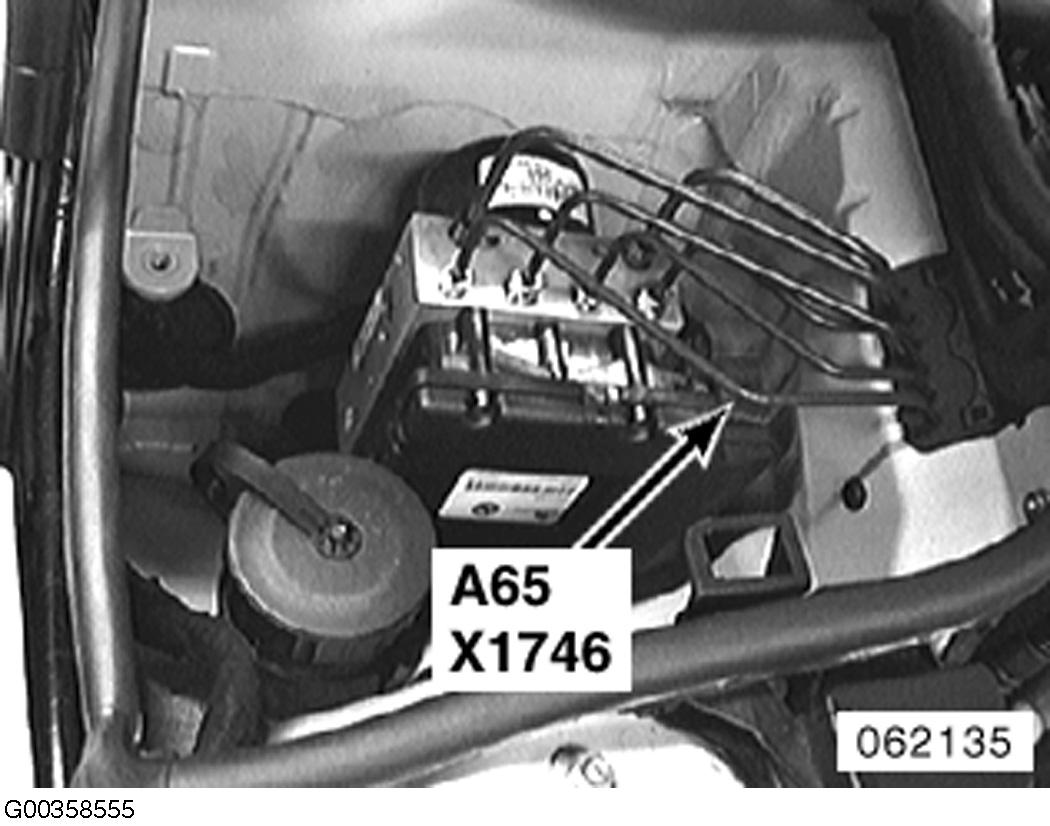

Fig 12: Right Rear Of Engine Compartment

G00358555

Courtesy of BMW OF NORTH AMERICA, INC.

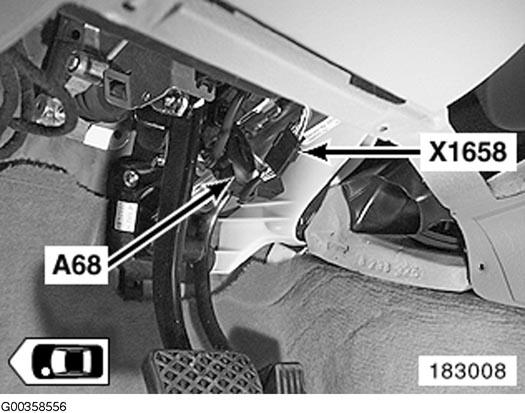

Fig 13: Lower Steering Column

G00358556

Courtesy of BMW OF NORTH AMERICA, INC.

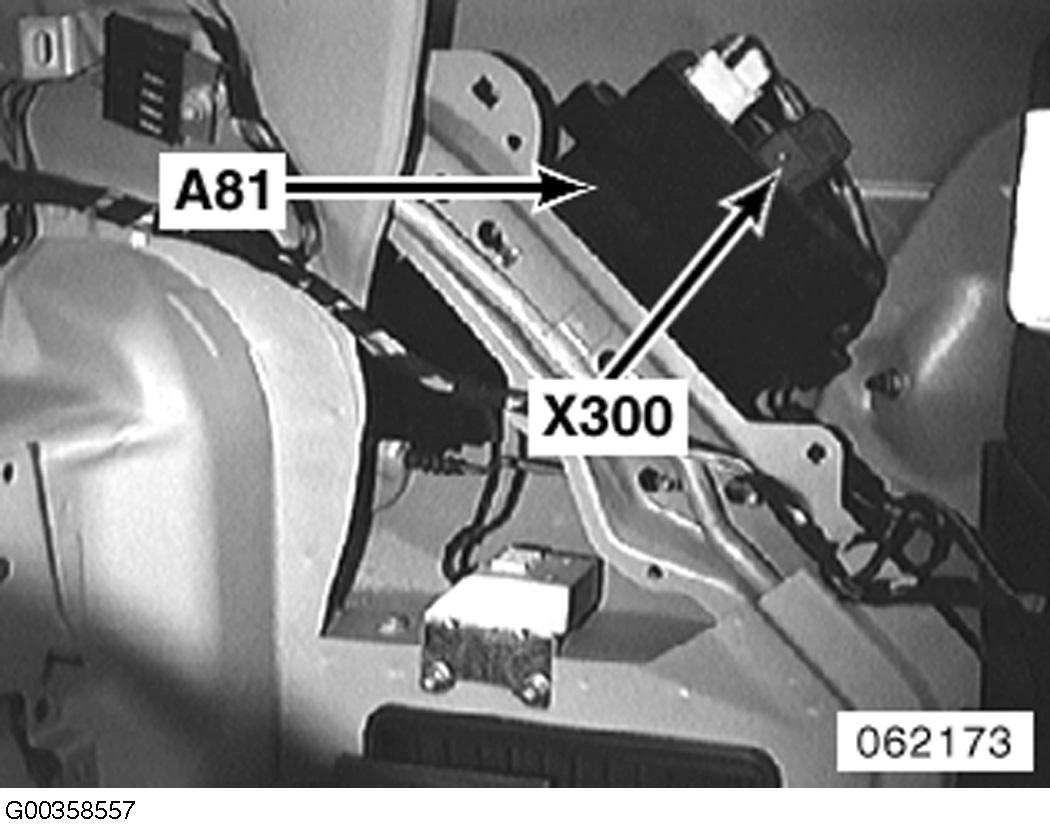

Fig 14: Right Side Of Luggage Compartment

G00358557

Courtesy of BMW OF NORTH AMERICA, INC.

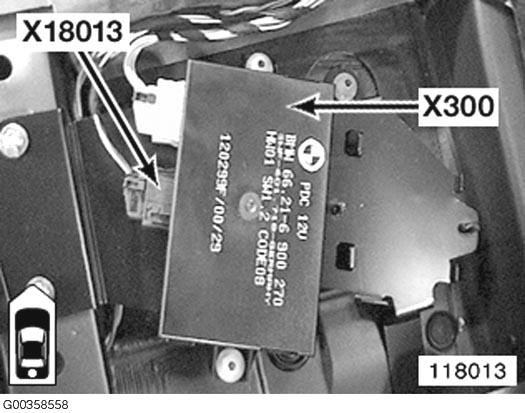

Fig 15: Behind Rear Seat Backrest, In Luggage Compartment

G00358558

Courtesy of BMW OF NORTH AMERICA, INC.

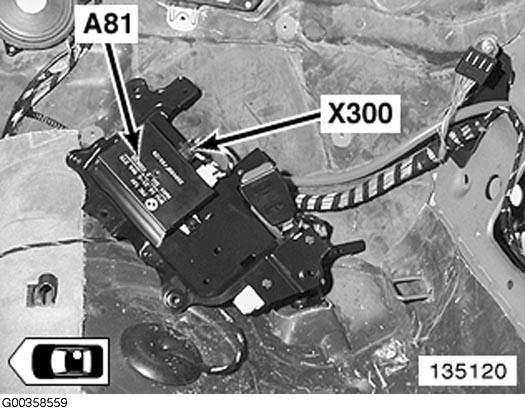

Fig 16: Right Rear Of Passenger Compartment

G00358559

Courtesy of BMW OF NORTH AMERICA, INC.

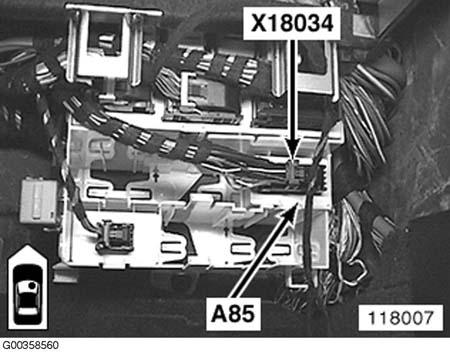

Fig 17: Behind Glove Box

G00358560

Courtesy of BMW OF NORTH AMERICA, INC.

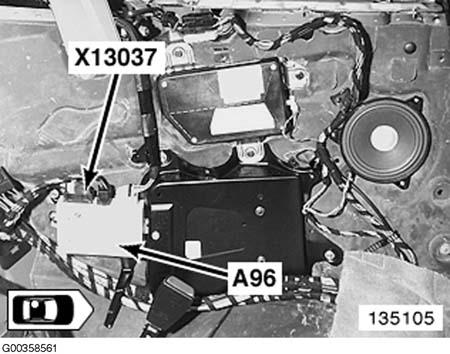

Fig 18: Left Rear Of Passenger Compartment

G00358561

Courtesy of BMW OF NORTH AMERICA, INC.

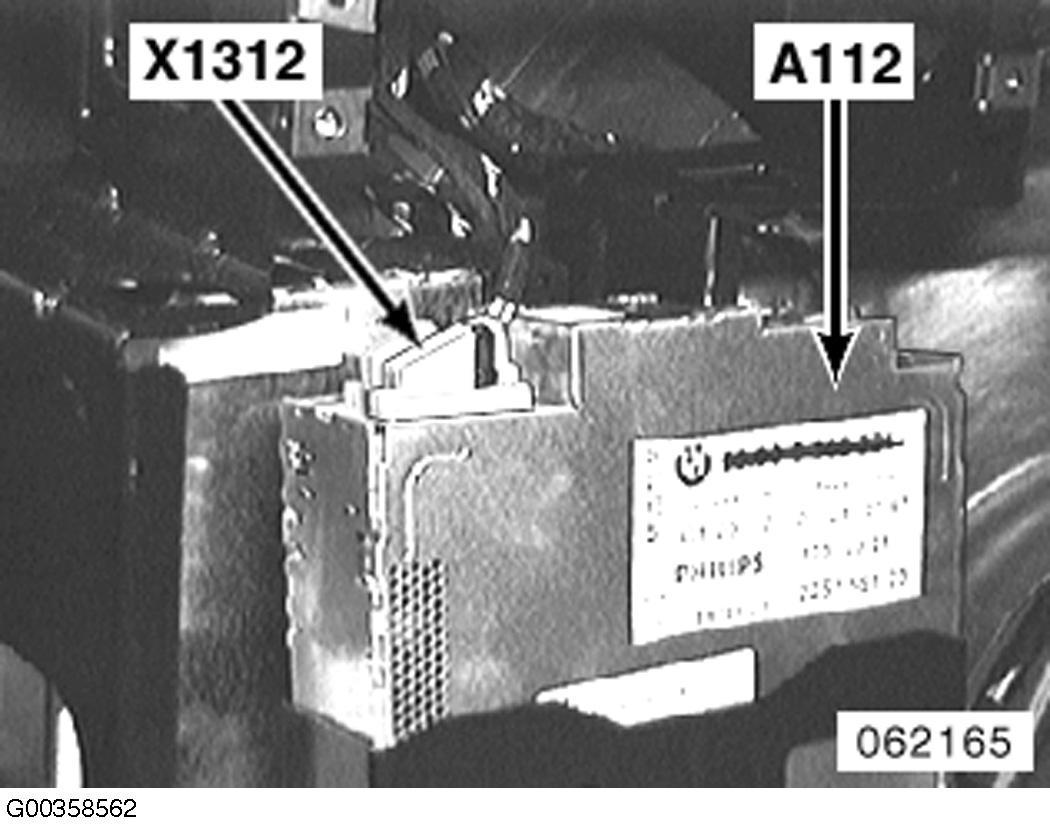

Fig 19: Left Side Of Luggage Compartment

G00358562

Courtesy of BMW OF NORTH AMERICA, INC.

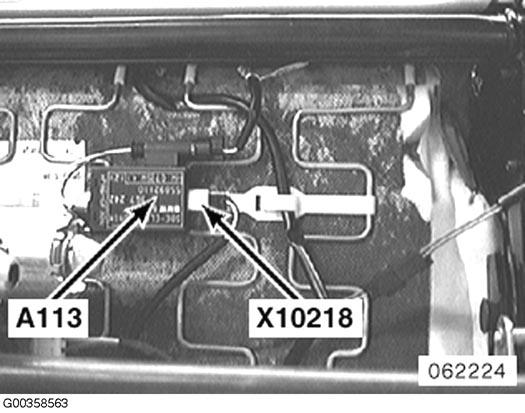

Fig 20: Under Passenger's Seat

G00358563

Courtesy of BMW OF NORTH AMERICA, INC.

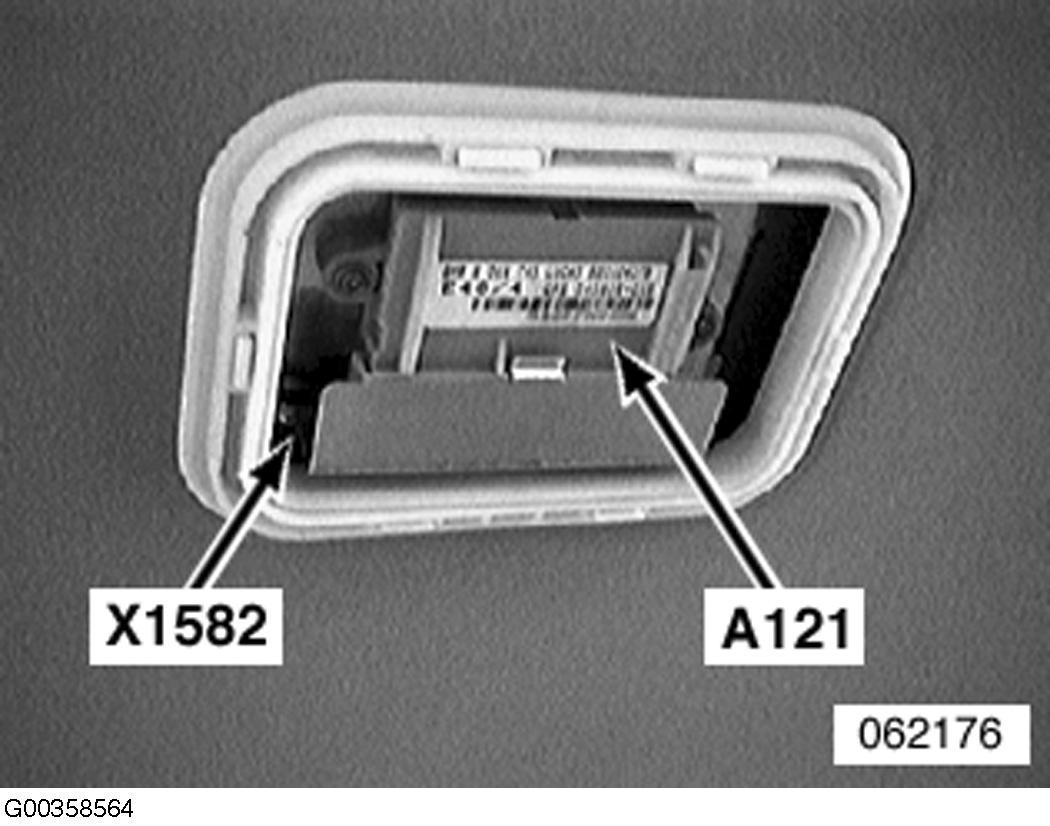

Fig 21: Headliner

G00358564

Courtesy of BMW OF NORTH AMERICA, INC.

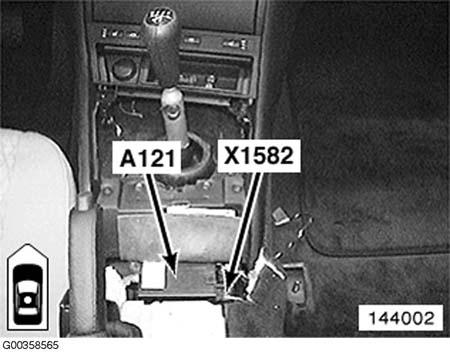

Fig 22: Under Center Console

G00358565

Courtesy of BMW OF NORTH AMERICA, INC.

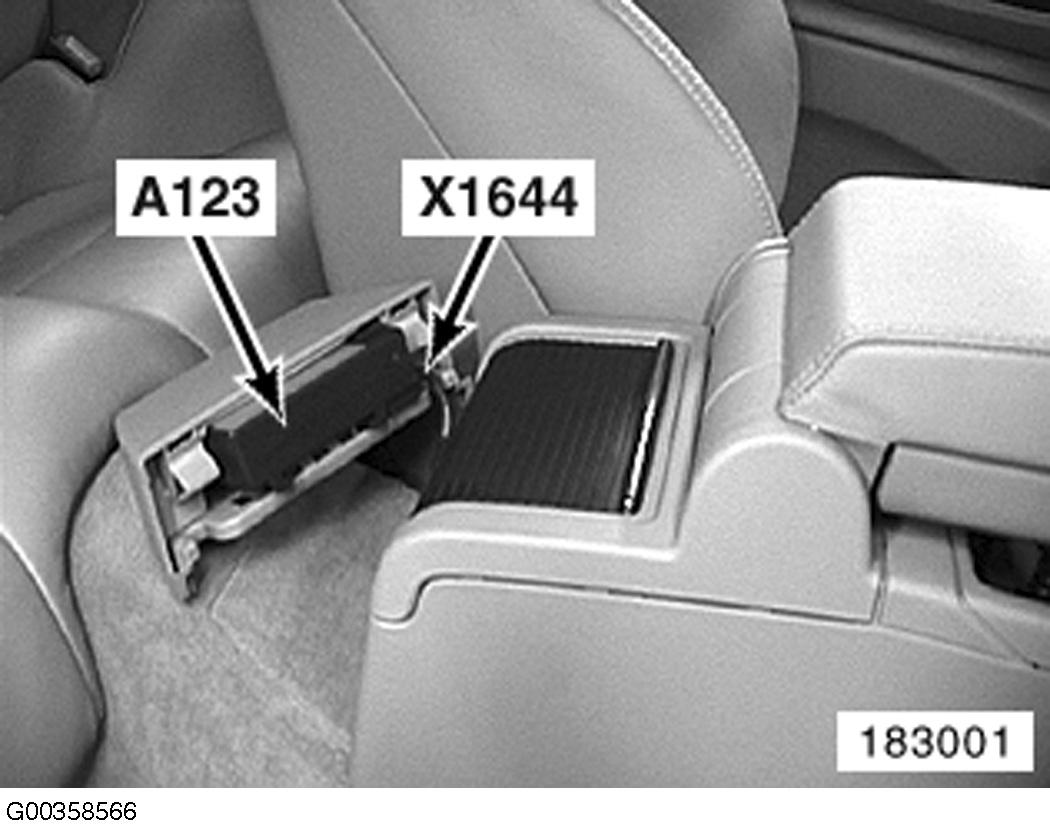

Fig 23: Center Console

G00358566

Courtesy of BMW OF NORTH AMERICA, INC.

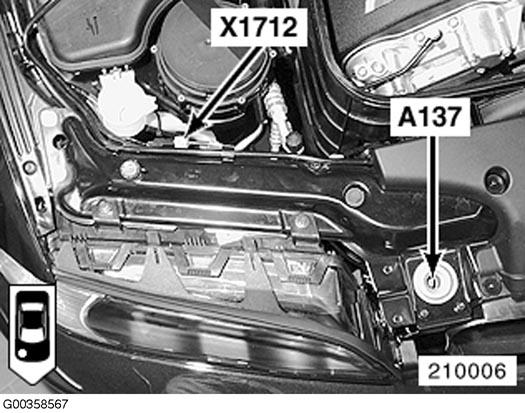

Fig 24: Right Front Lock Carrier

G00358567

Courtesy of BMW OF NORTH AMERICA, INC.

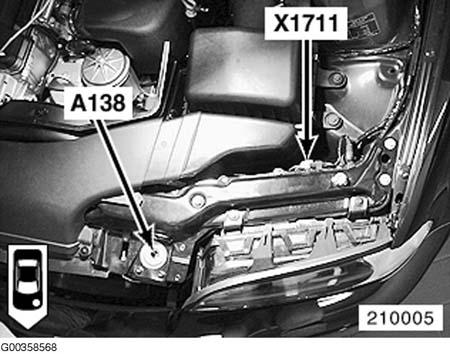

Fig 25: Left Front Lock Carrier

G00358568

Courtesy of BMW OF NORTH AMERICA, INC.

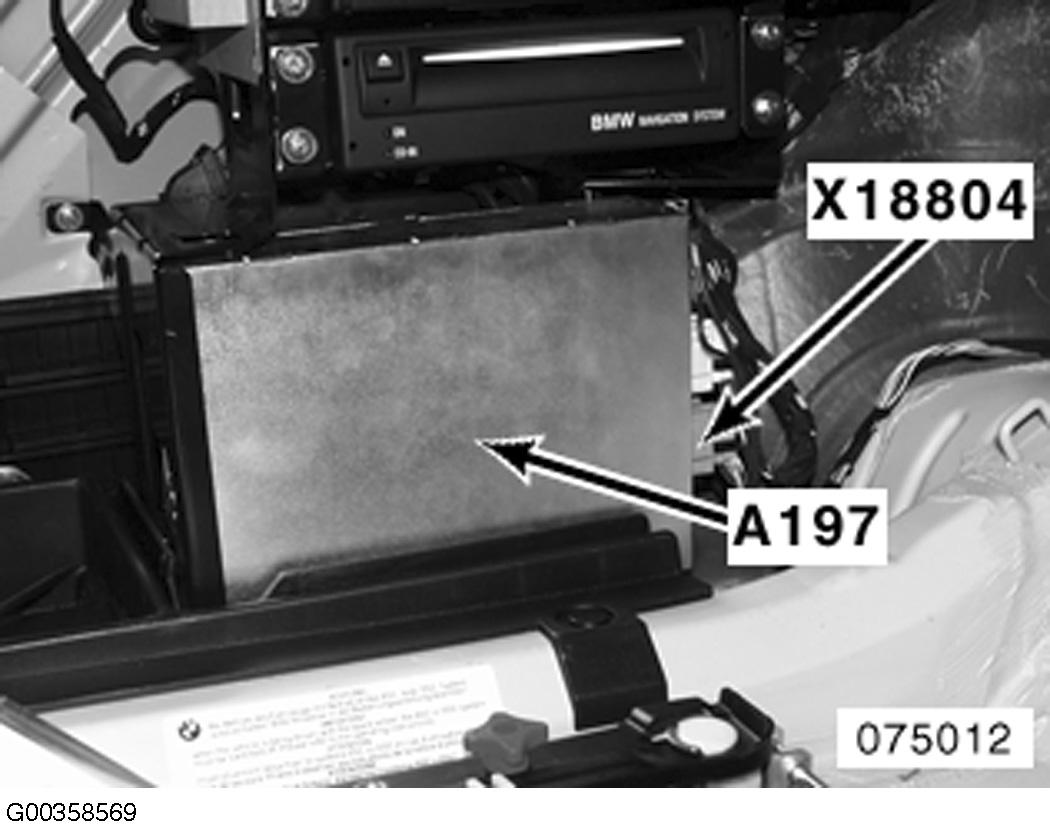

Fig 26: Left Side Of Luggage Compartment

G00358569

Courtesy of BMW OF NORTH AMERICA, INC.

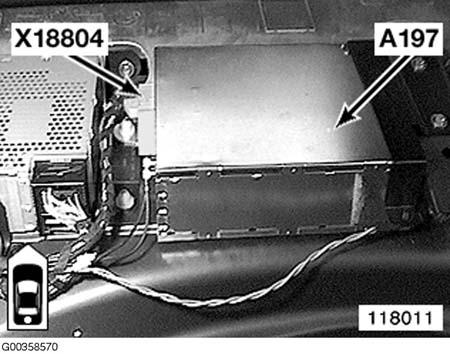

Fig 27: Behind Rear Seat, In Luggage Compartment

G00358570

Courtesy of BMW OF NORTH AMERICA, INC.

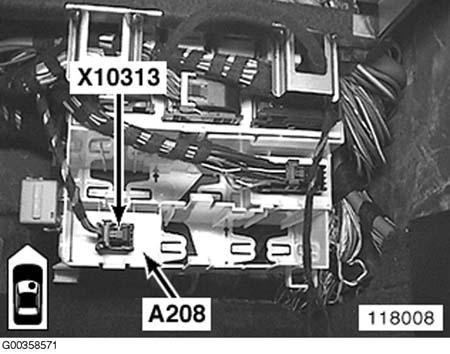

Fig 28: Behind Glove Box

G00358571

Courtesy of BMW OF NORTH AMERICA, INC.

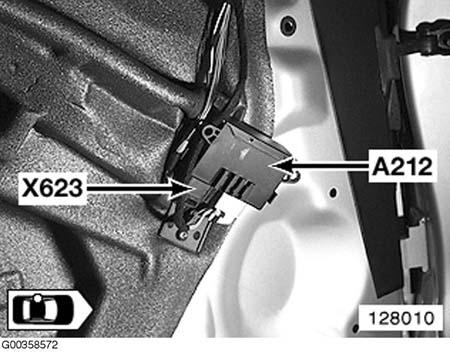

Fig 29: Driver's Door

G00358572

Courtesy of BMW OF NORTH AMERICA, INC.

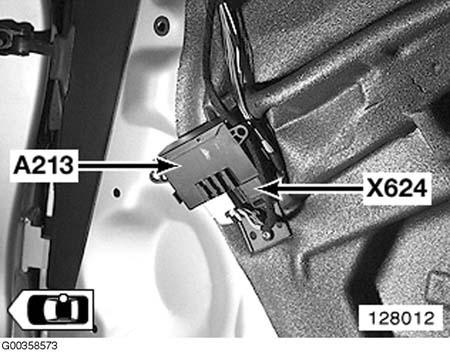

Fig 30: Passenger's Door

G00358573

Courtesy of BMW OF NORTH AMERICA, INC.

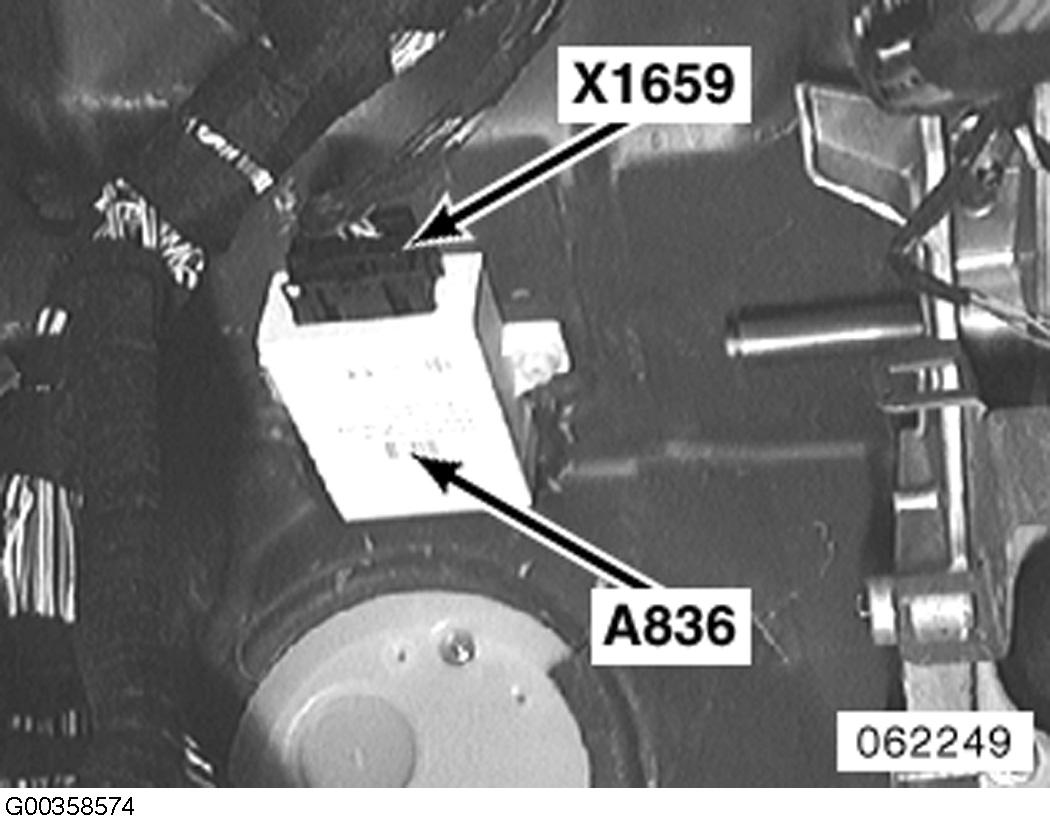

Fig 31: Under Left Side Of Dash

G00358574

Courtesy of BMW OF NORTH AMERICA, INC.

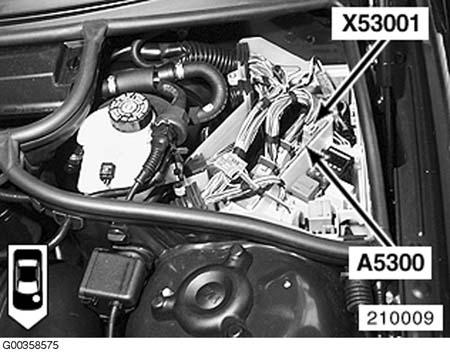

Fig 32: Left Rear Of Engine Compartment

G00358575

Courtesy of BMW OF NORTH AMERICA, INC.

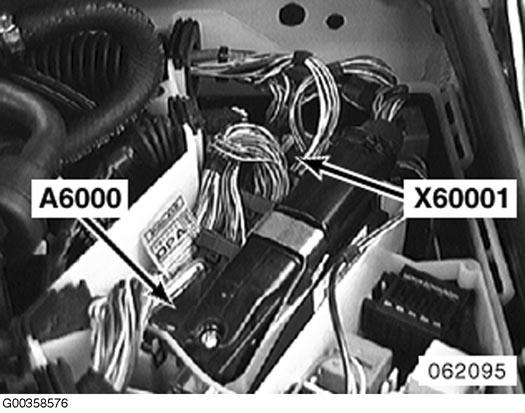

Fig 33: Left Rear Of Engine Compartment

G00358576

Courtesy of BMW OF NORTH AMERICA, INC.

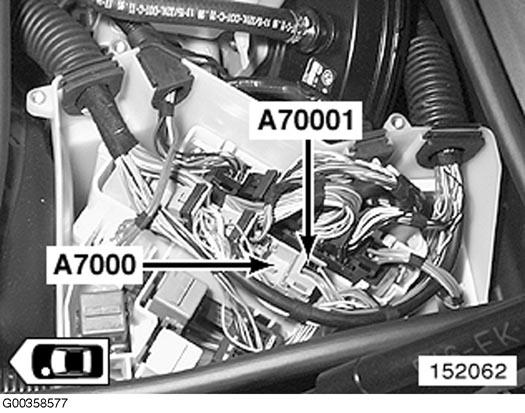

Fig 34: Left Rear Of Engine Compartment

G00358577

Courtesy of BMW OF NORTH AMERICA, INC.

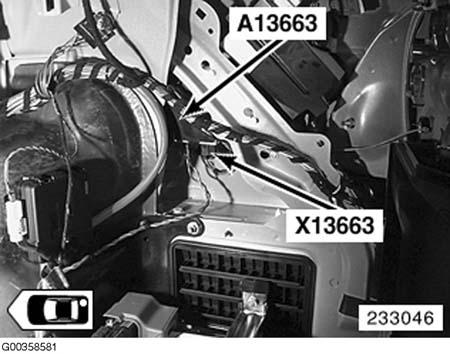

Fig 35: Right Rear Side Of Luggage Compartment

G00358581

Courtesy of BMW OF NORTH AMERICA, INC.

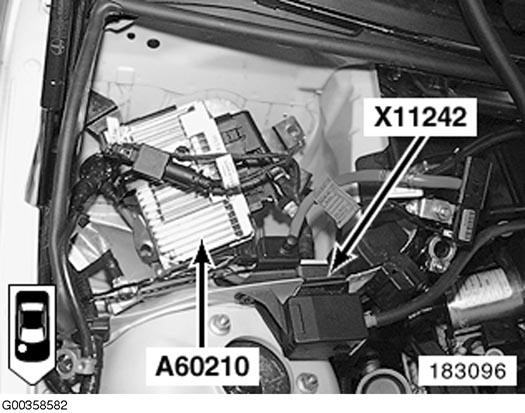

Fig 36: Right Rear Of Engine Compartment

G00358582

Courtesy of BMW OF NORTH AMERICA, INC.

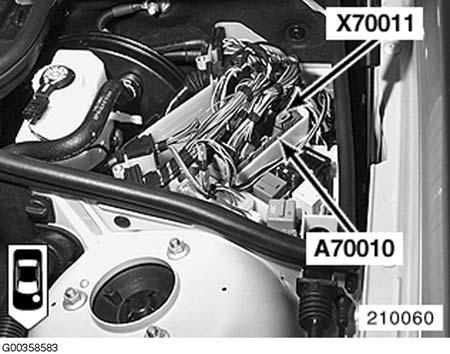

Fig 37: Left Rear Of Engine Compartment

G00358583

Courtesy of BMW OF NORTH AMERICA, INC.

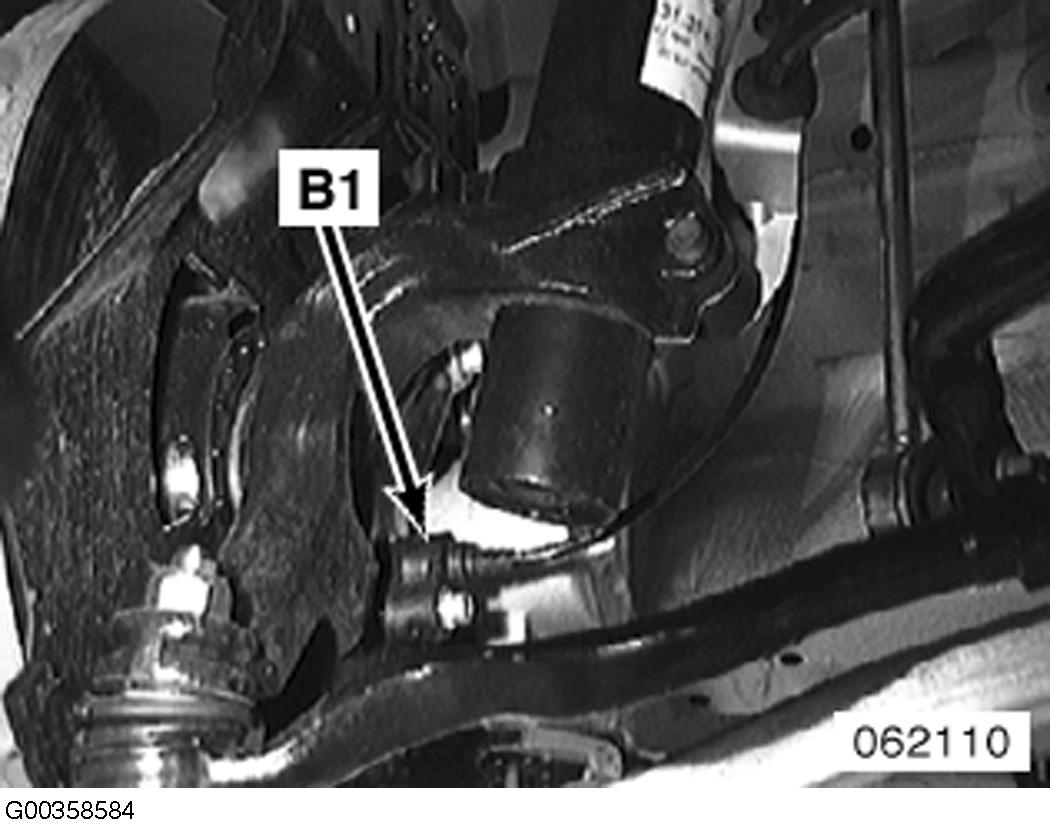

Fig 38: Right Front Wheel Hub

G00358584

Courtesy of BMW OF NORTH AMERICA, INC.

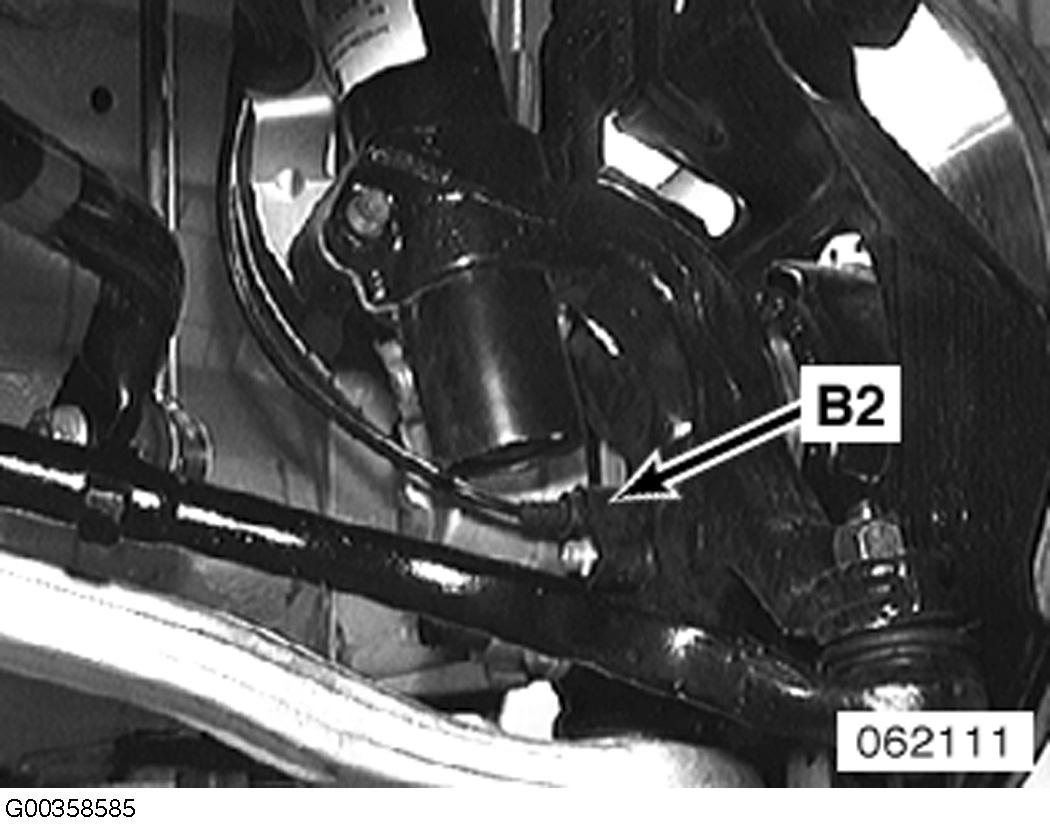

Fig 39: Left Front Wheel Hub

G00358585

Courtesy of BMW OF NORTH AMERICA, INC.

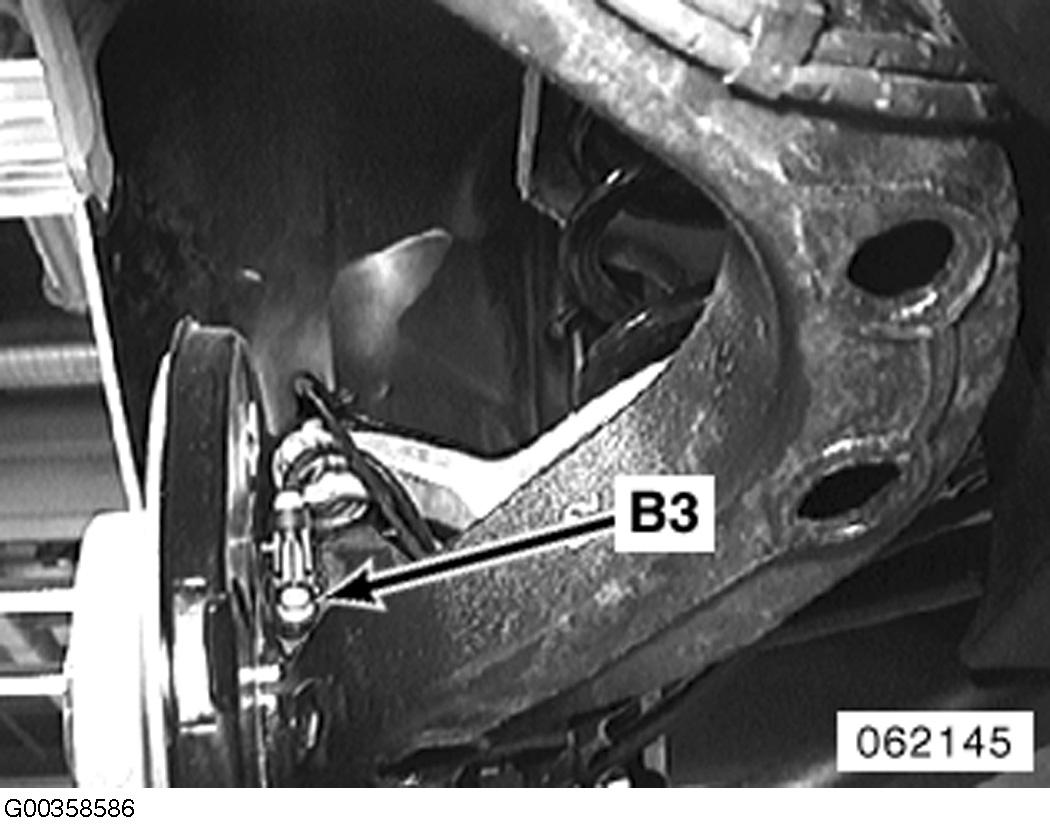

Fig 40: Right Rear Wheel Hub

G00358586

Courtesy of BMW OF NORTH AMERICA, INC.

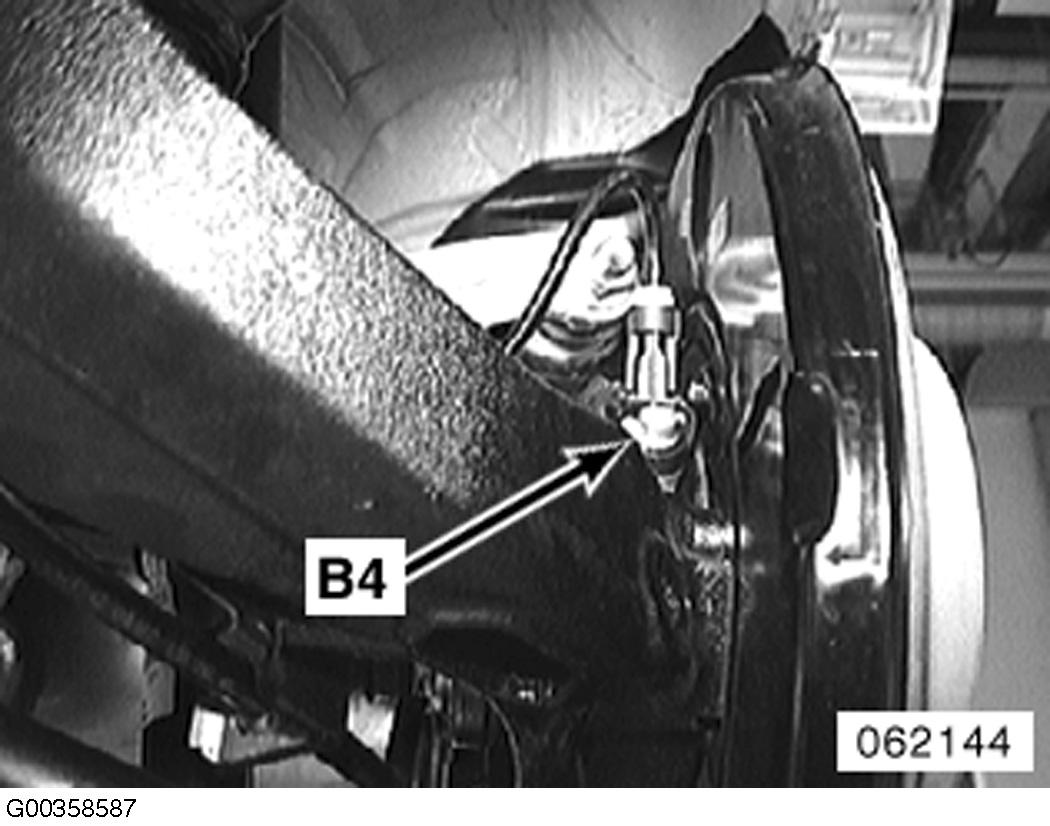

Fig 41: Left Rear Wheel Hub

G00358587

Courtesy of BMW OF NORTH AMERICA, INC.

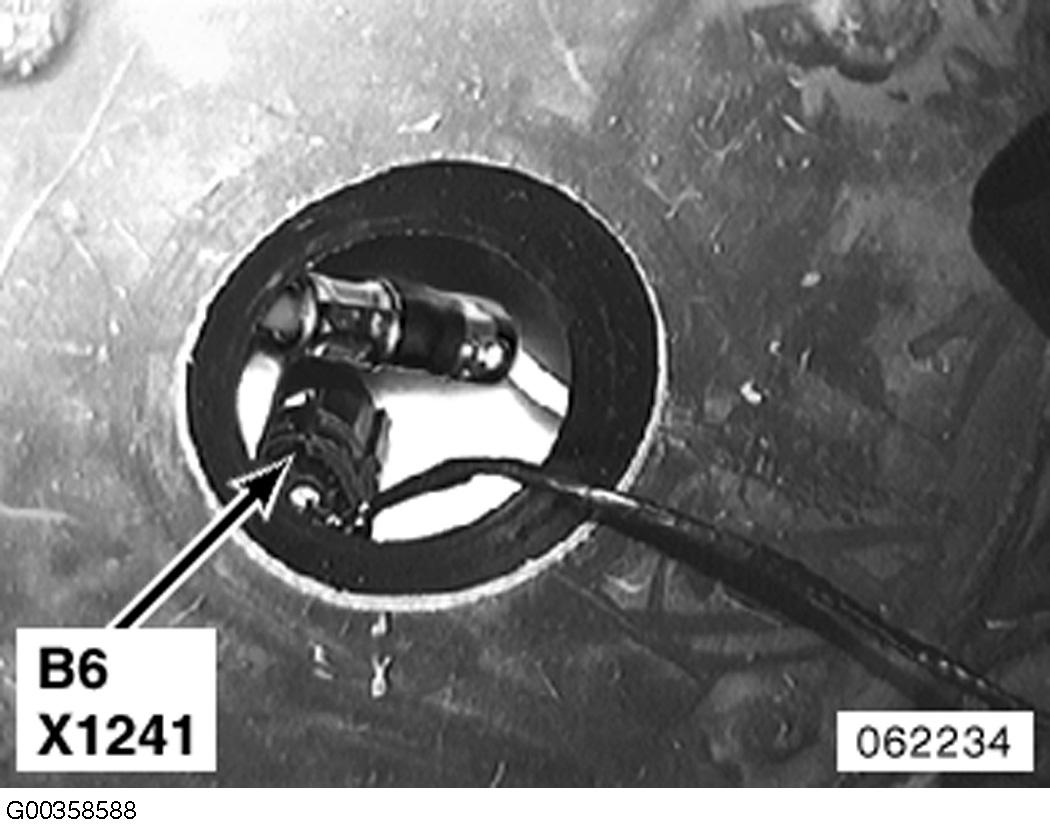

Fig 42: Under Left Side Of Rear Seat

G00358588

Courtesy of BMW OF NORTH AMERICA, INC.

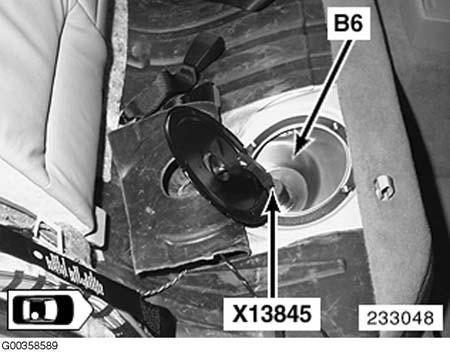

Fig 43: Right Rear Of Luggage Compartment

G00358589

Courtesy of BMW OF NORTH AMERICA, INC.

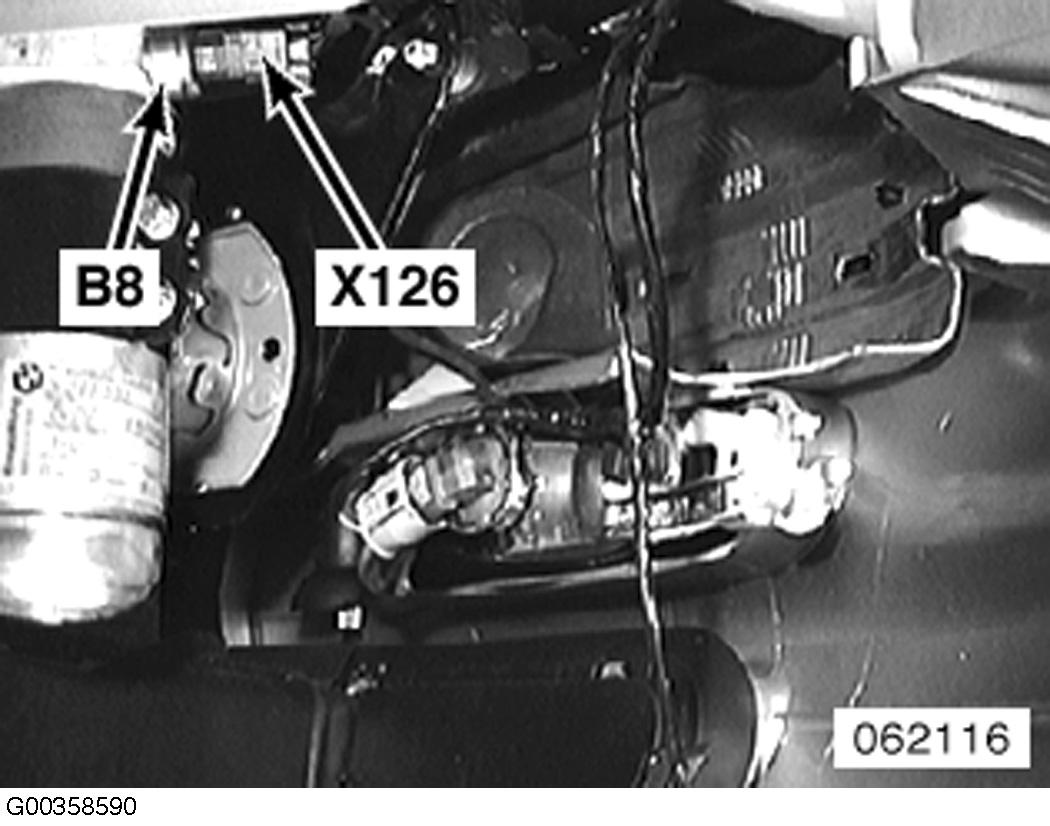

Fig 44: Right Front Wheelwell

G00358590

Courtesy of BMW OF NORTH AMERICA, INC.

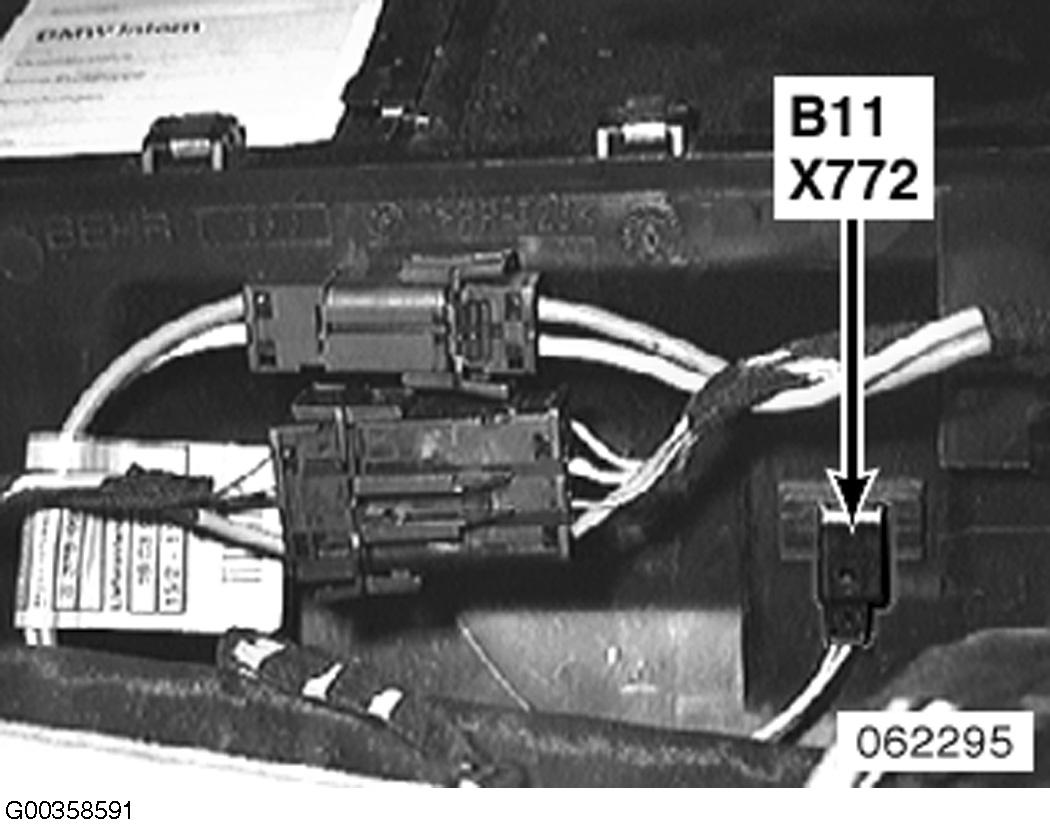

Fig 45: Behind Center Console

G00358591

Courtesy of BMW OF NORTH AMERICA, INC.

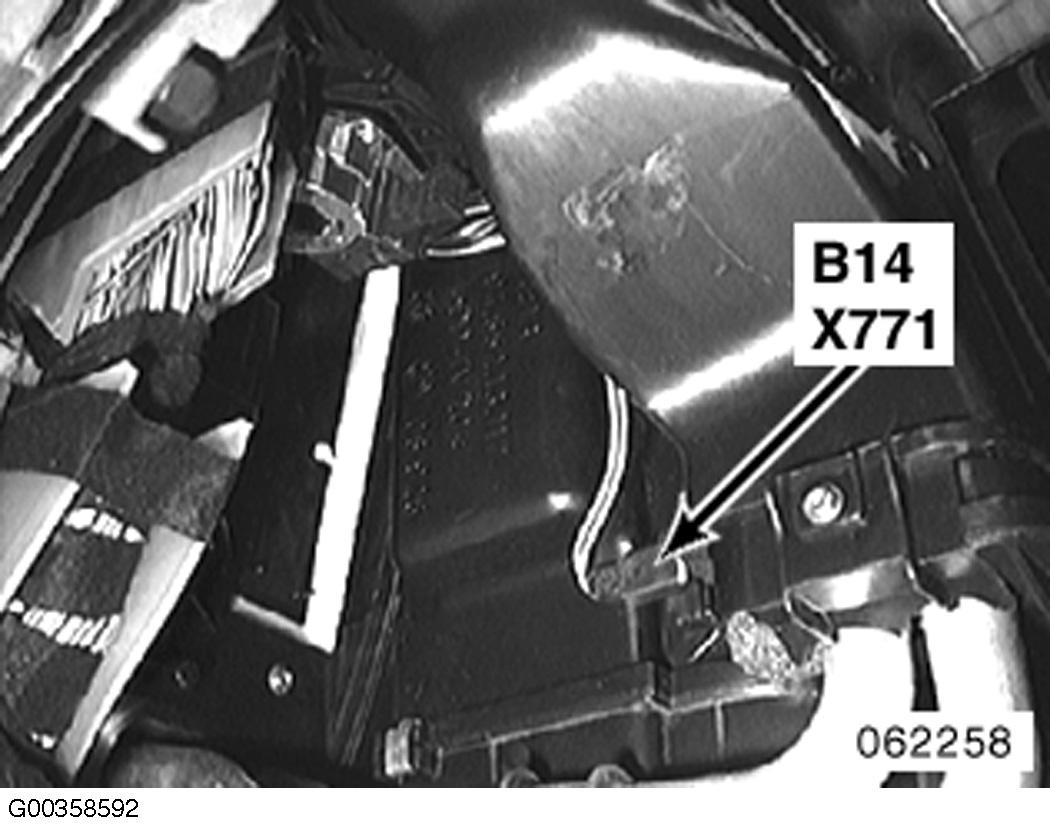

Fig 46: Right Side Of Left Footwell

G00358592

Courtesy of BMW OF NORTH AMERICA, INC.

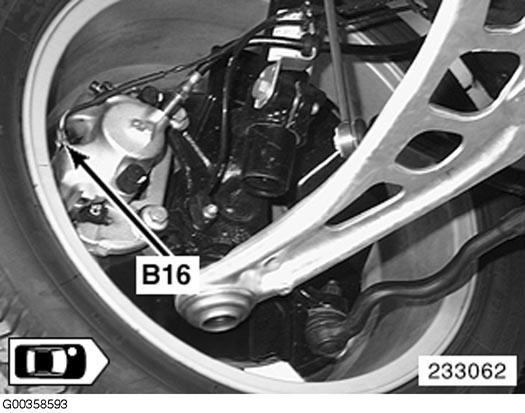

Fig 47: Left Front Wheel Brake

G00358593

Courtesy of BMW OF NORTH AMERICA, INC.

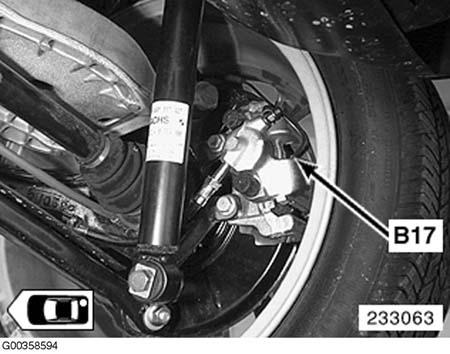

Fig 48: Right Rear Wheel Brake

G00358594

Courtesy of BMW OF NORTH AMERICA, INC.

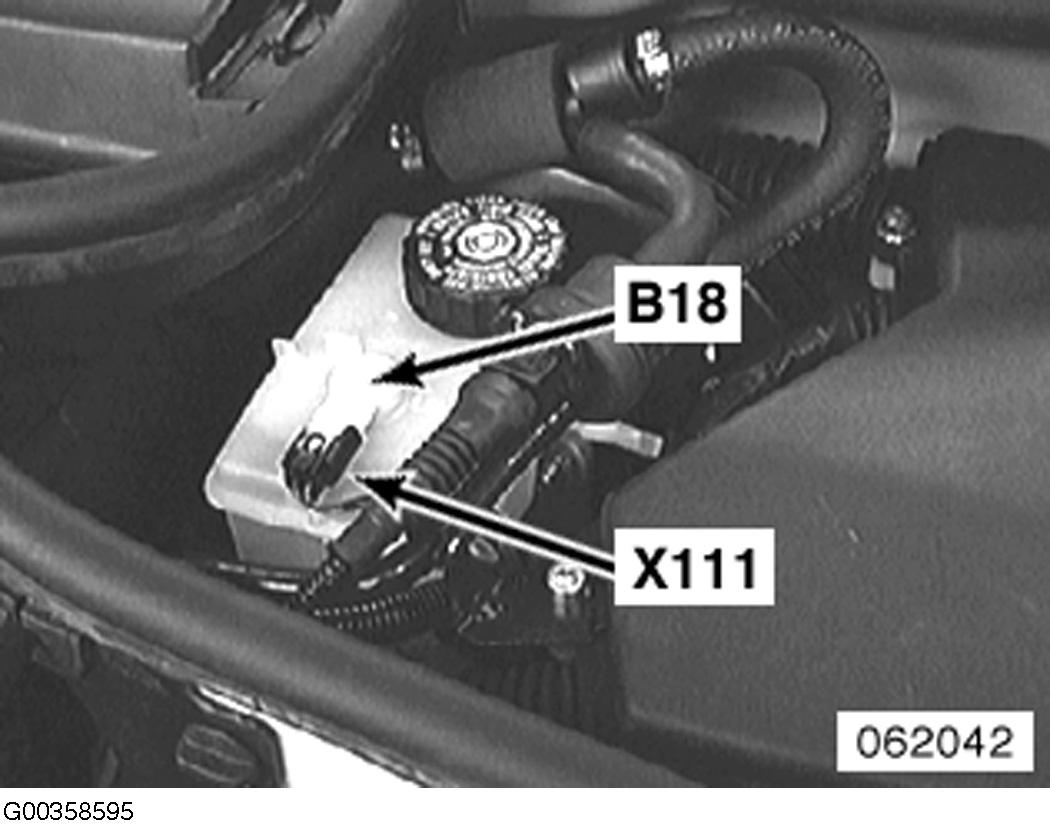

Fig 49: Left Rear Of Engine Compartment

G00358595

Courtesy of BMW OF NORTH AMERICA, INC.

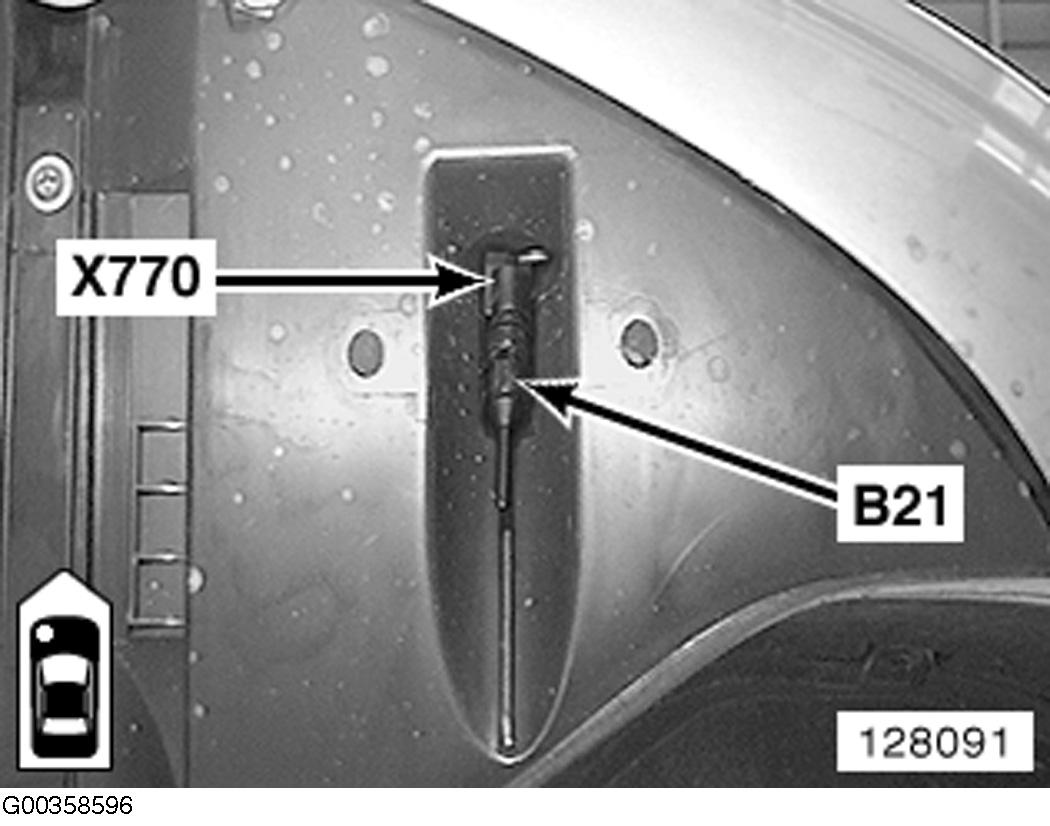

Fig 50: Under Left Front Of Vehicle

G00358596

Courtesy of BMW OF NORTH AMERICA, INC.

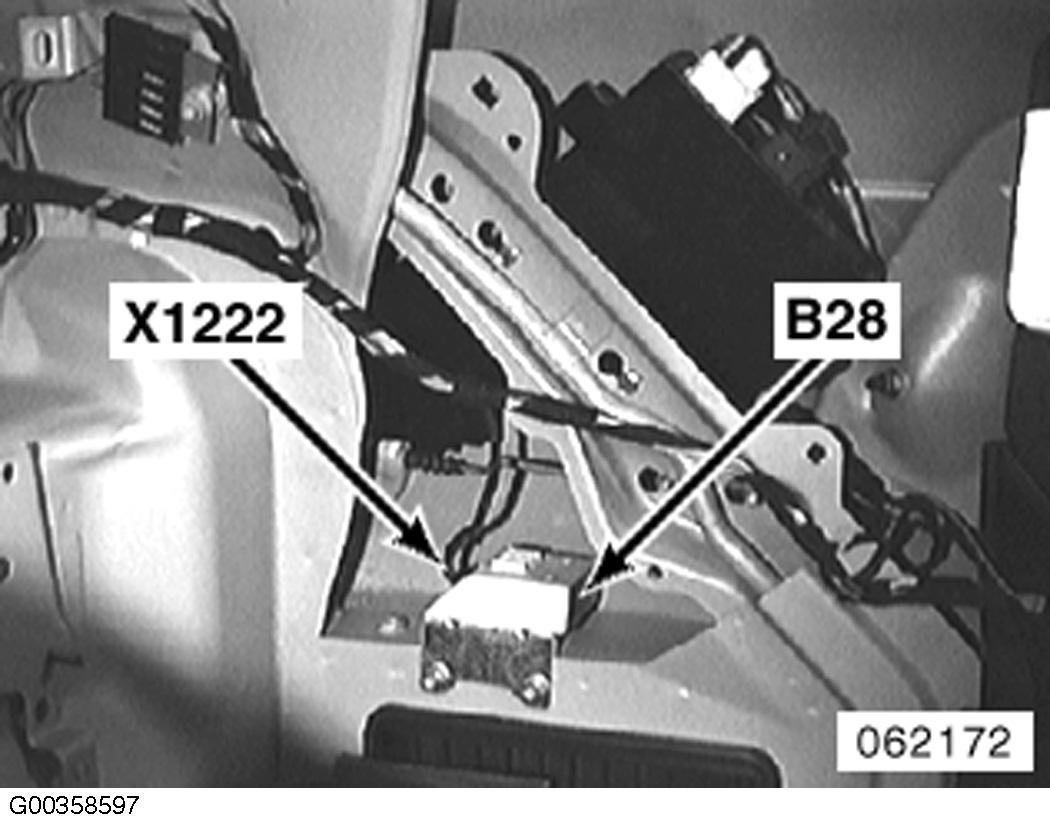

Fig 51: Right Side Of Luggage Compartment

G00358597

Courtesy of BMW OF NORTH AMERICA, INC.

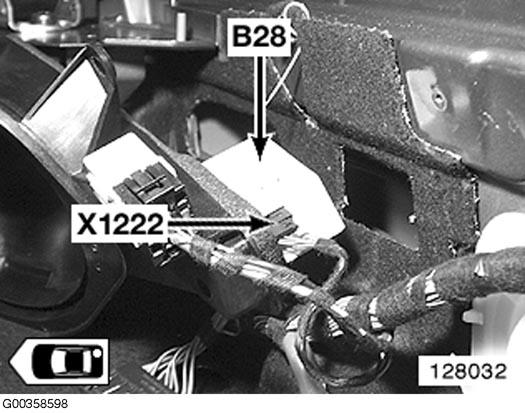

Fig 52: Right Side Of Luggage Compartment

G00358598

Courtesy of BMW OF NORTH AMERICA, INC.

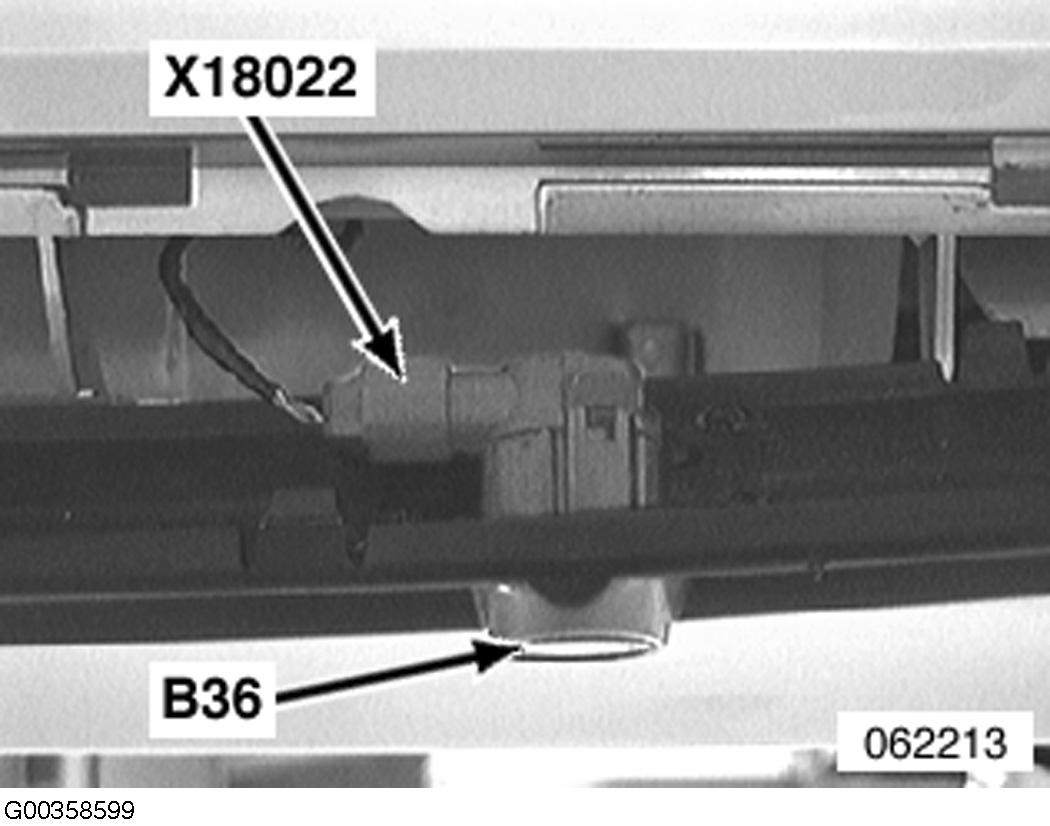

Fig 53: Under Right Center Of Rear Bumper

G00358599

Courtesy of BMW OF NORTH AMERICA, INC.

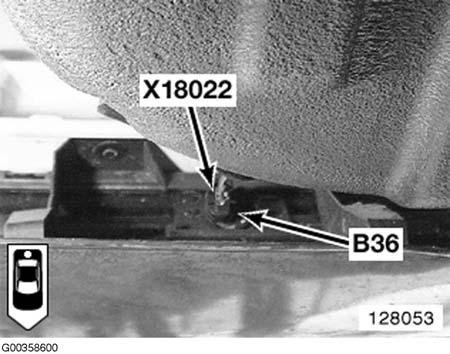

Fig 54: Under Center Of Rear Bumper

G00358600

Courtesy of BMW OF NORTH AMERICA, INC.

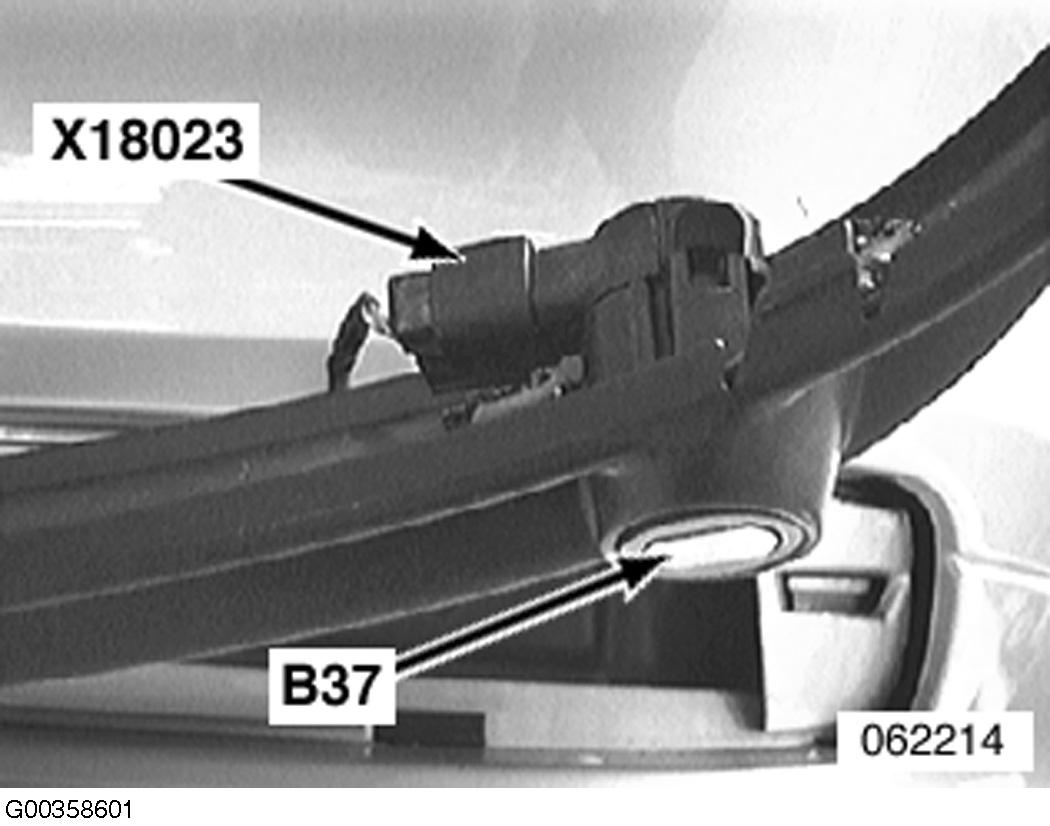

Fig 55: Under Right Rear Bumper

G00358601

Courtesy of BMW OF NORTH AMERICA, INC.

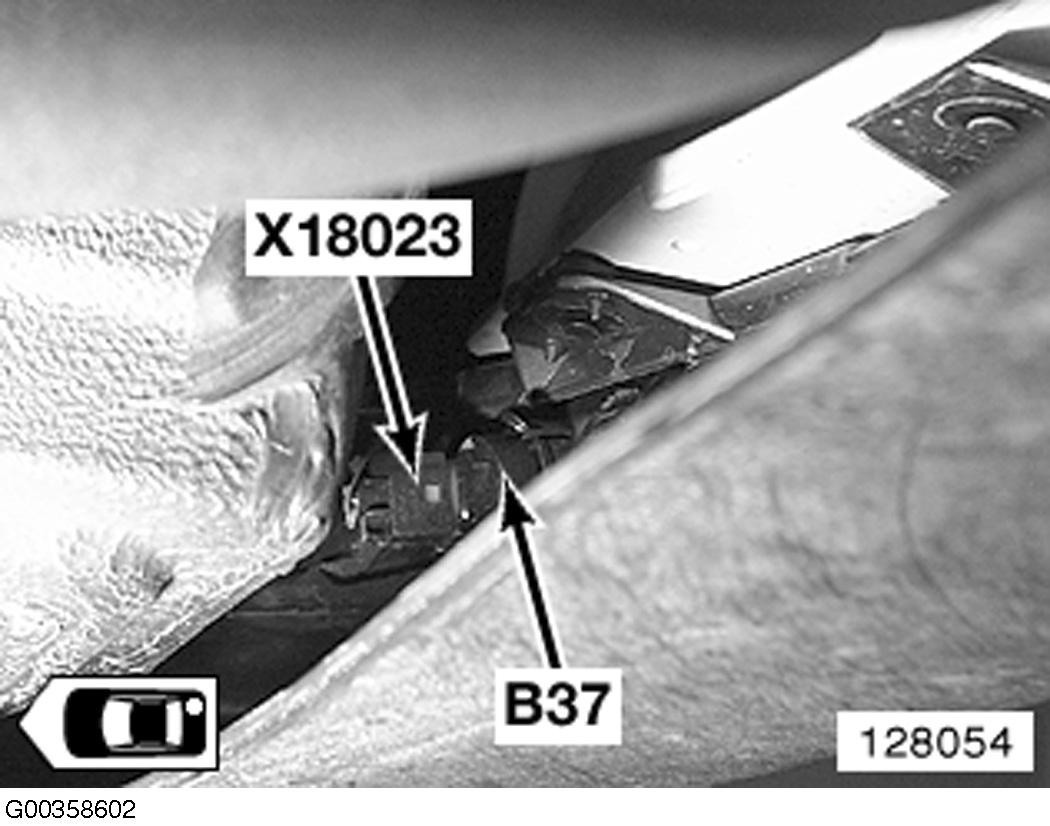

Fig 56: Under Right Rear Bumper

G00358602

Courtesy of BMW OF NORTH AMERICA, INC.

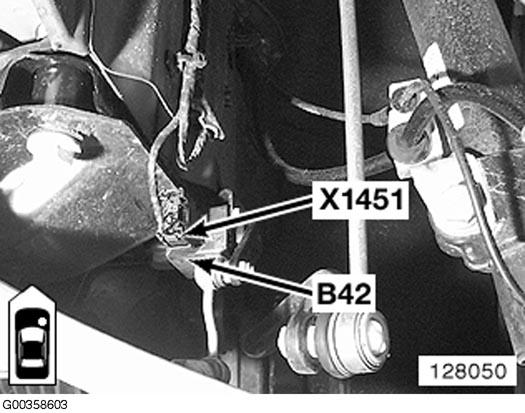

Fig 57: Right Front Axle

G00358603

Courtesy of BMW OF NORTH AMERICA, INC.

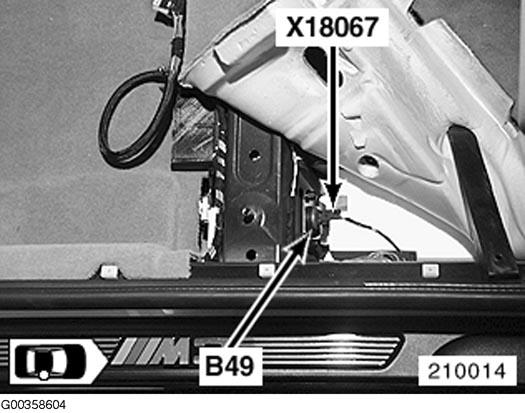

Fig 58: Under Passenger's Seat

G00358604

Courtesy of BMW OF NORTH AMERICA, INC.

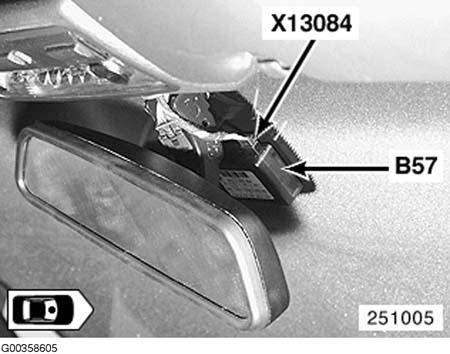

Fig 59: Interior Rearview Mirror

G00358605

Courtesy of BMW OF NORTH AMERICA, INC.

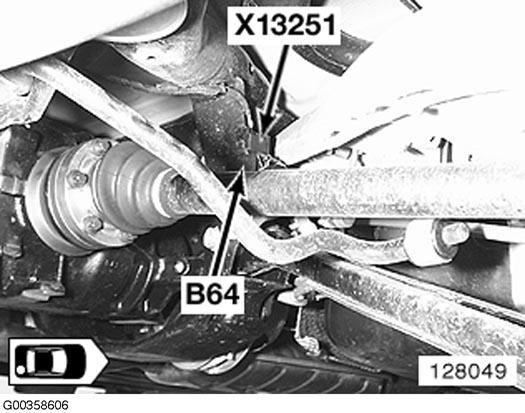

Fig 60: Right Rear Axle

G00358606

Courtesy of BMW OF NORTH AMERICA, INC.

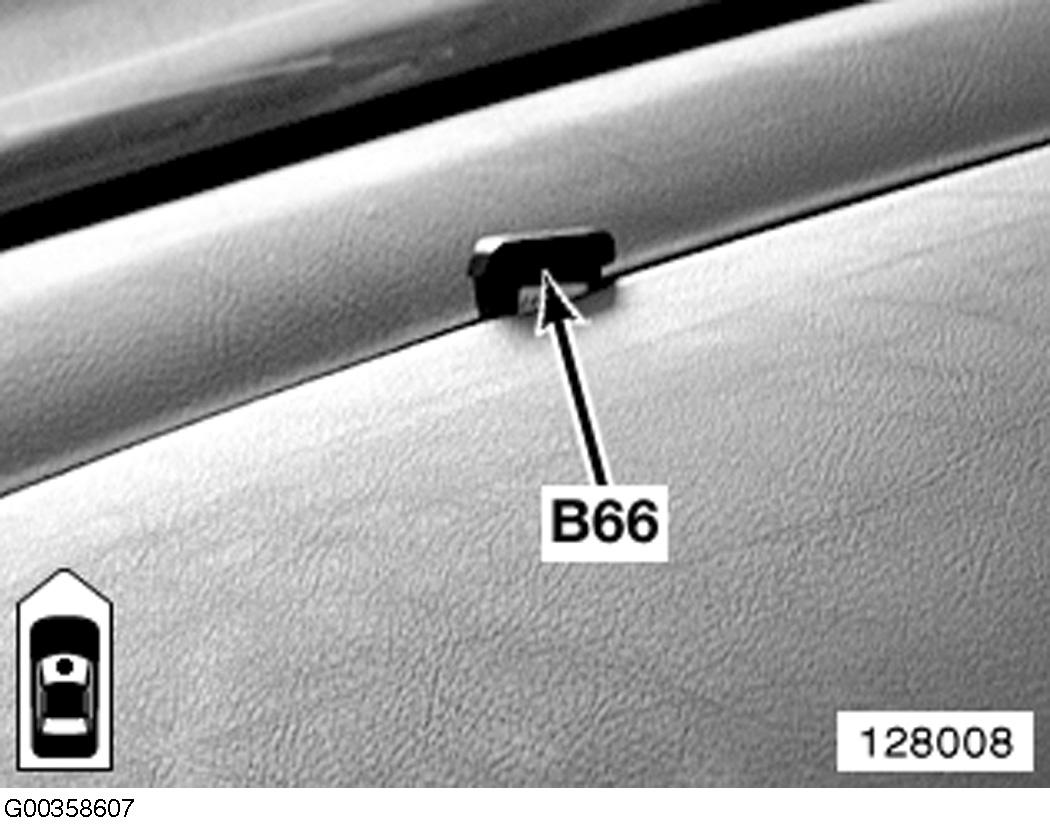

Fig 61: Center Top Of Dash

G00358607

Courtesy of BMW OF NORTH AMERICA, INC.

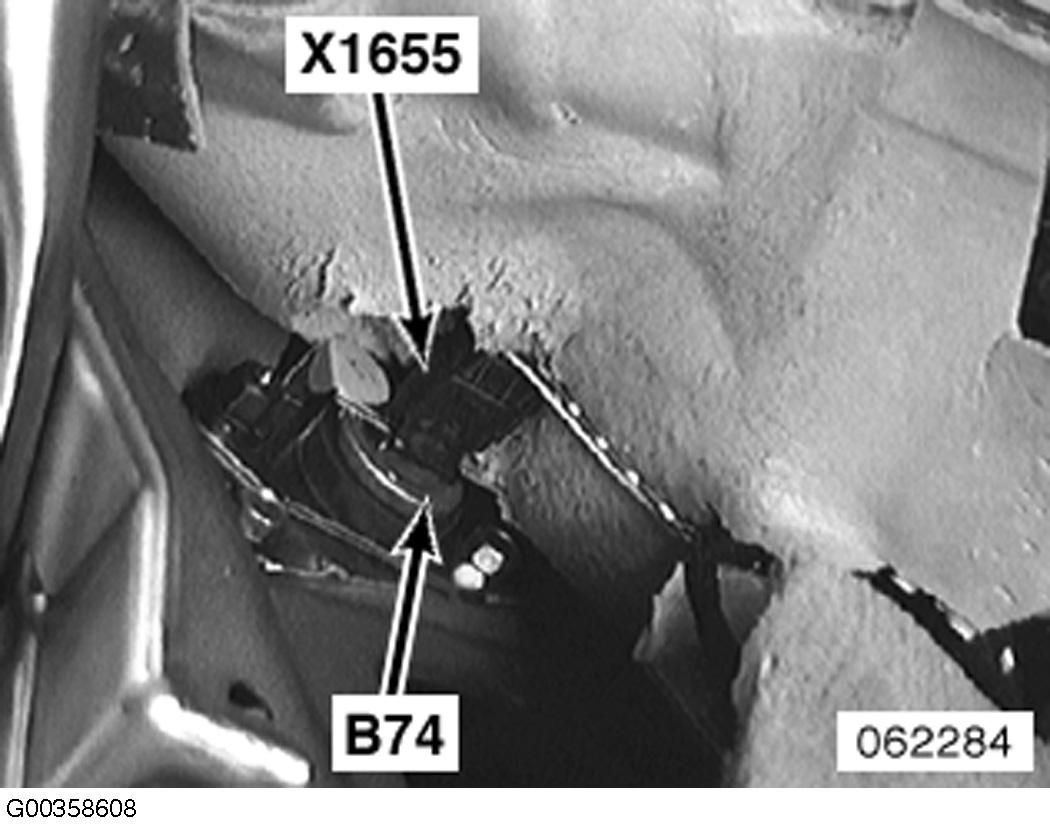

Fig 62: Under Left Side Of Dash

G00358608

Courtesy of BMW OF NORTH AMERICA, INC.

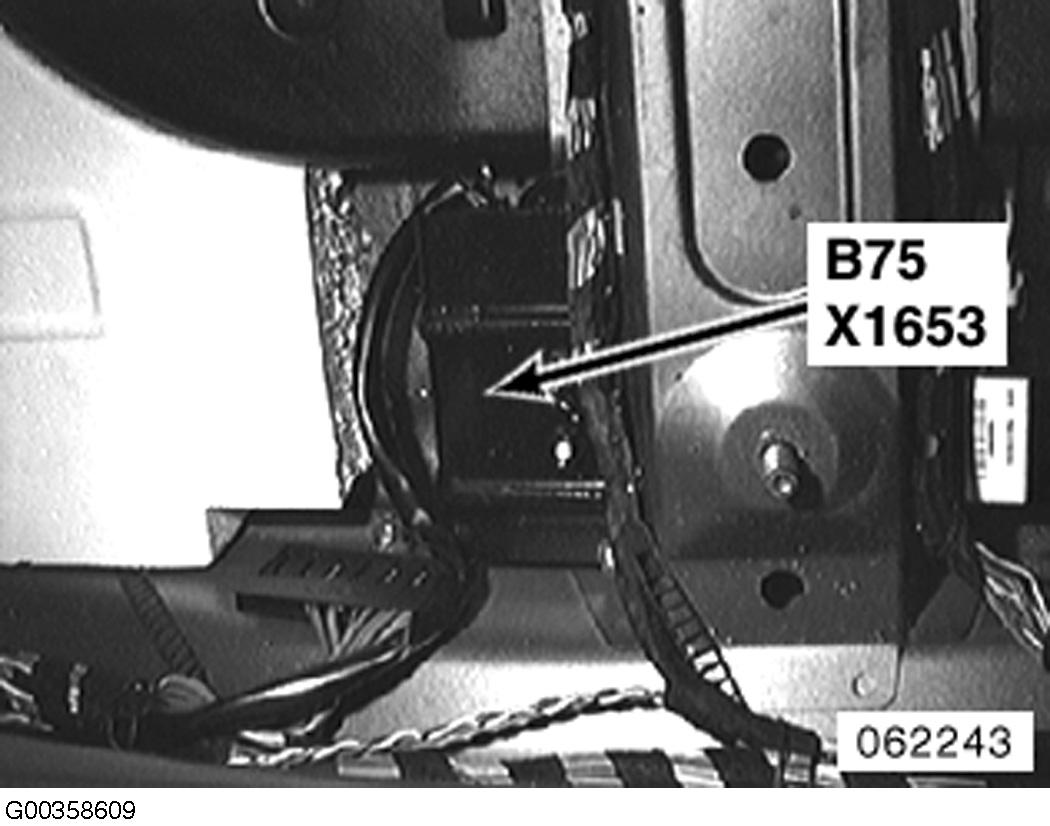

Fig 63: Under Driver's Seat

G00358609

Courtesy of BMW OF NORTH AMERICA, INC.

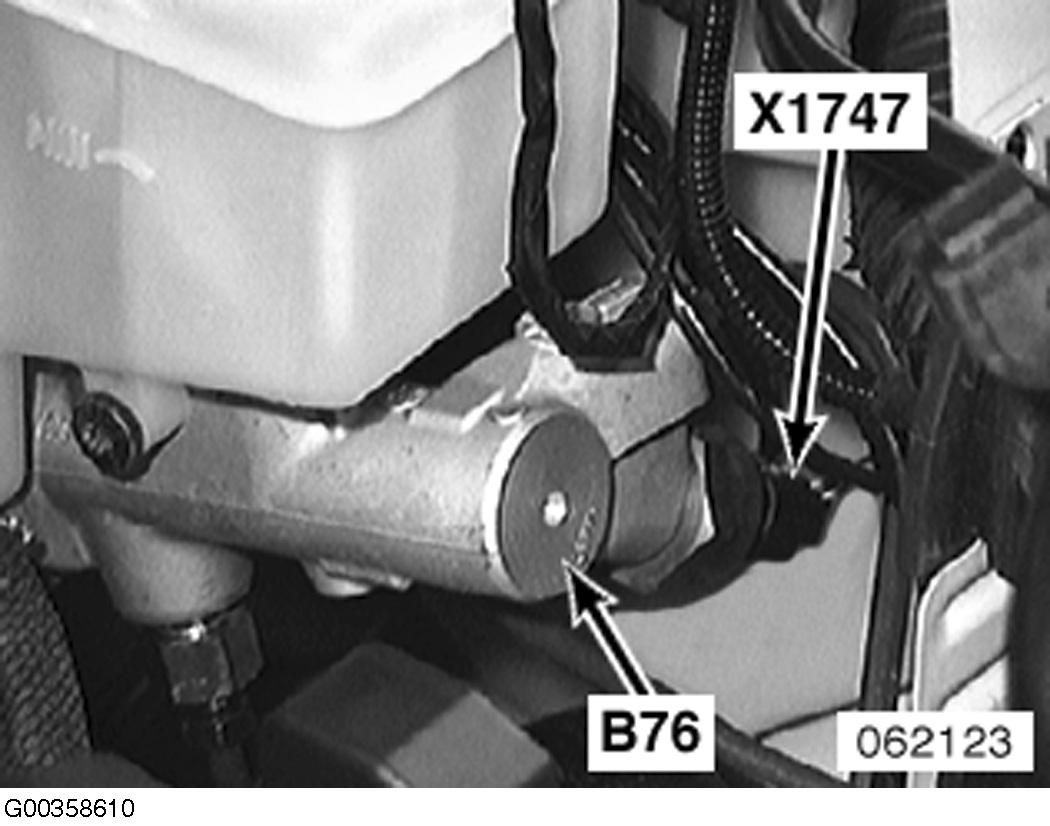

Fig 64: Left Rear Side Of Engine Compartment

G00358610

Courtesy of BMW OF NORTH AMERICA, INC.

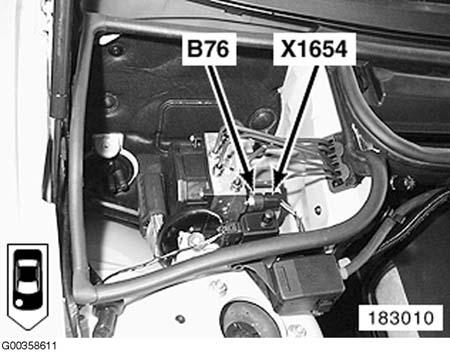

Fig 65: Right Rear Of Engine Compartment

G00358611

Courtesy of BMW OF NORTH AMERICA, INC.

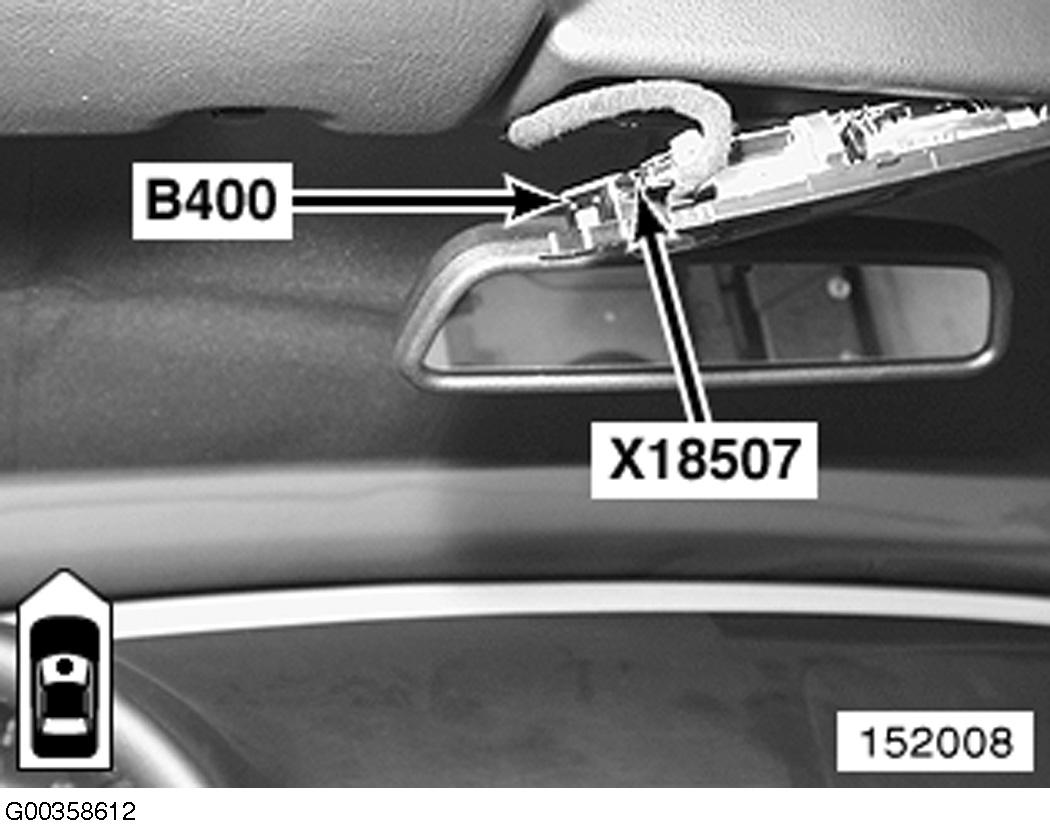

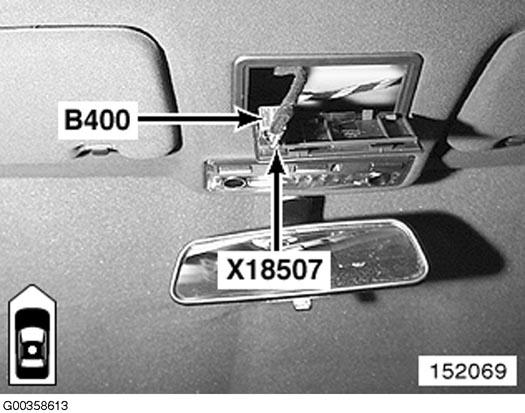

Fig 66: Front Headliner

G00358612

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 67: Front Headliner

G00358613

Courtesy of BMW OF NORTH AMERICA, INC.

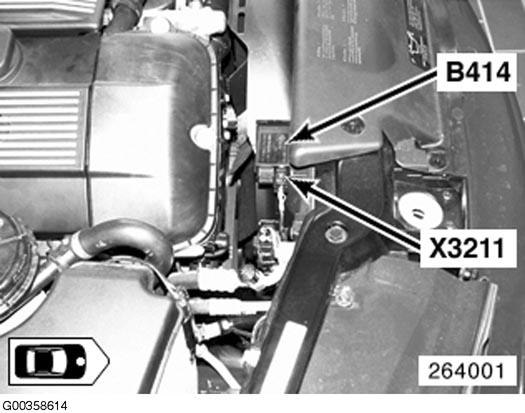

Fig 68: Front Of Engine Compartment

G00358614

Courtesy of BMW OF NORTH AMERICA, INC.

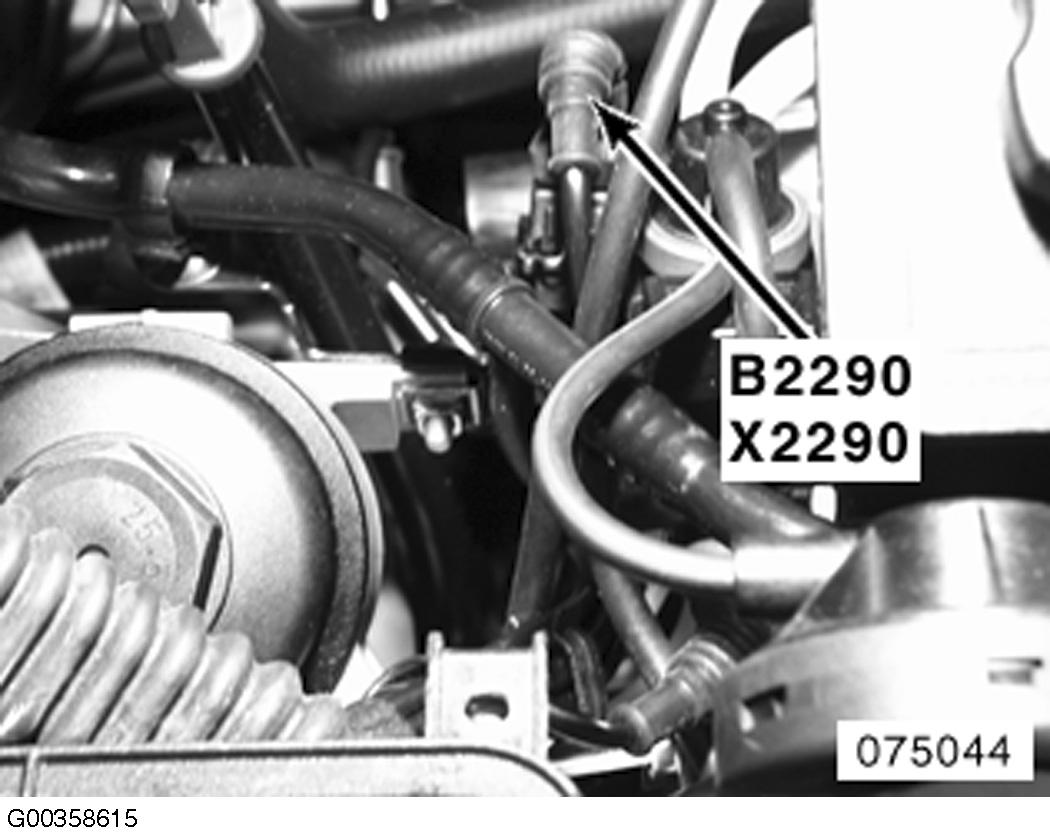

Fig 69: Left Side Of Engine

G00358615

Courtesy of BMW OF NORTH AMERICA, INC.

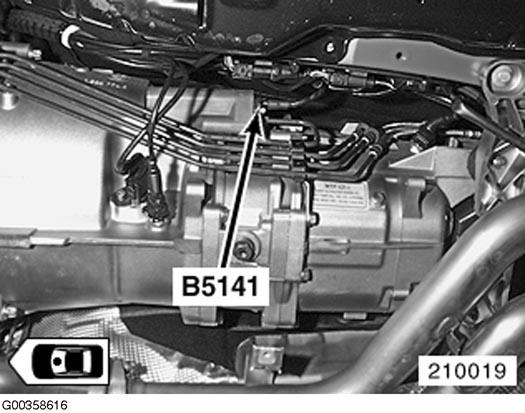

Fig 70: Left Side Of Transmission

G00358616

Courtesy of BMW OF NORTH AMERICA, INC.

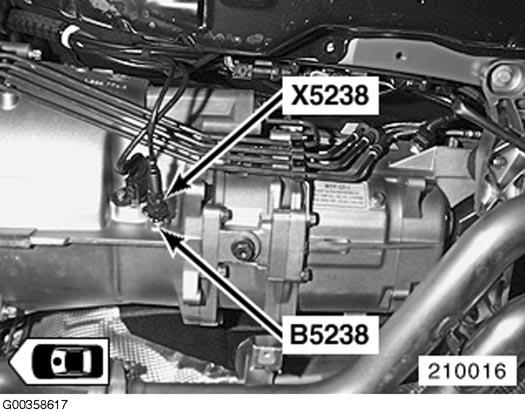

Fig 71: Left Side Of Transmission

G00358617

Courtesy of BMW OF NORTH AMERICA, INC.

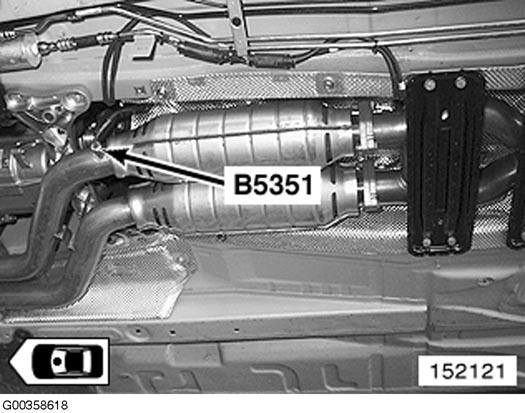

Fig 72: Under Vehicle, On Exhaust

G00358618

Courtesy of BMW OF NORTH AMERICA, INC.

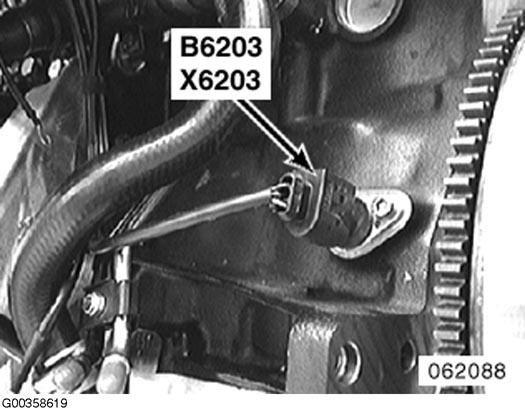

Fig 73: Left Side Of Engine

G00358619

Courtesy of BMW OF NORTH AMERICA, INC.

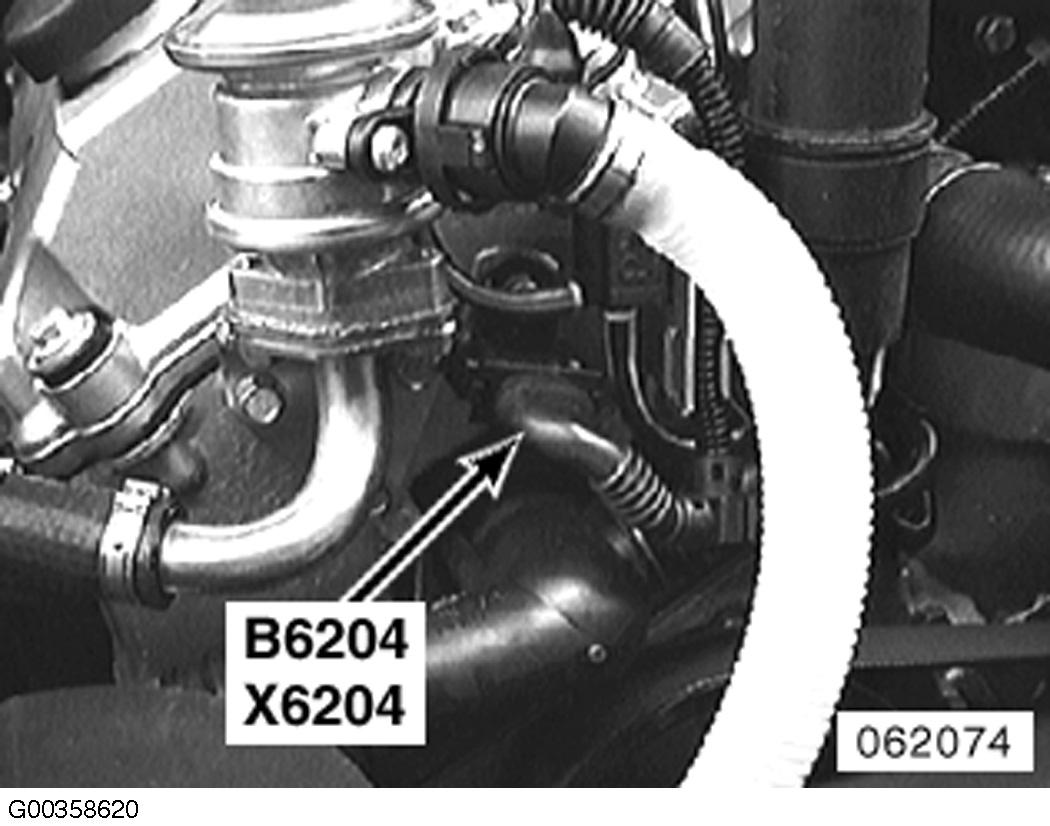

Fig 74: Front Of Engine

G00358620

Courtesy of BMW OF NORTH AMERICA, INC.

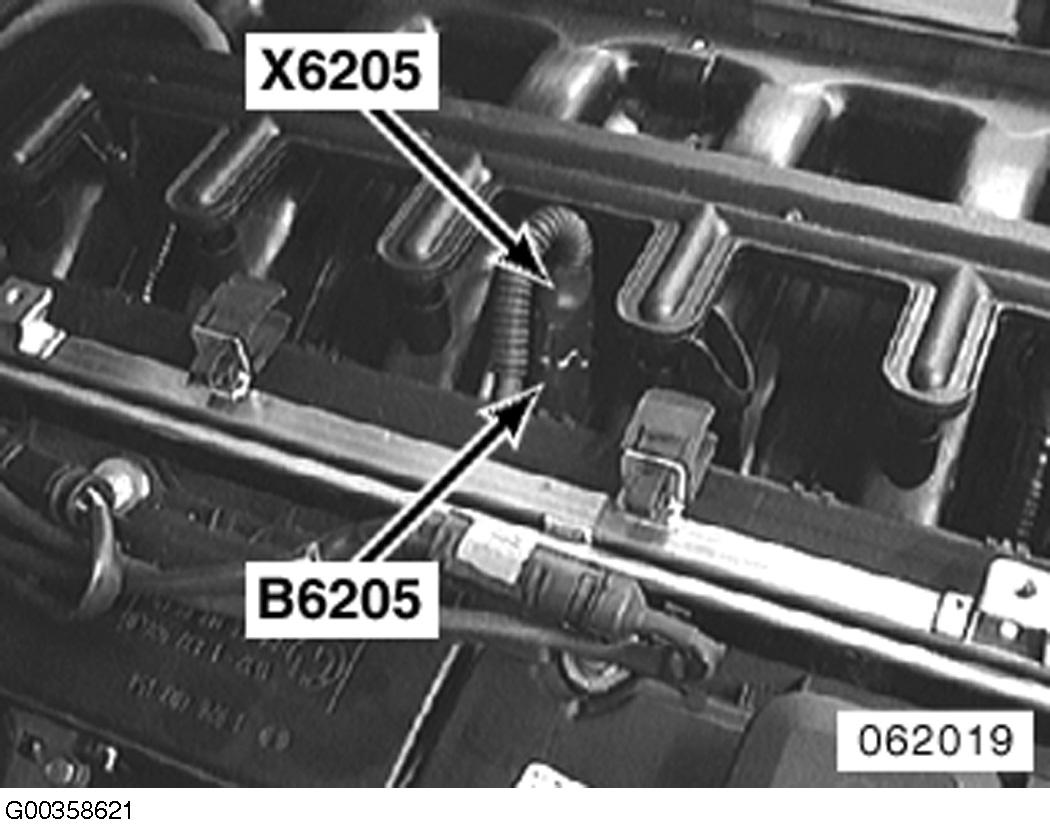

Fig 75: Top Center Of Engine

G00358621

Courtesy of BMW OF NORTH AMERICA, INC.

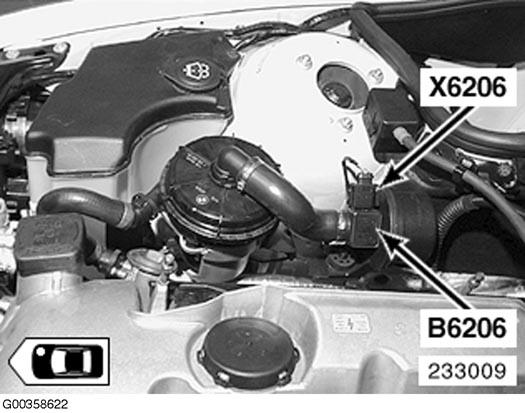

Fig 76: Right Side Of Engine Compartment

G00358622

Courtesy of BMW OF NORTH AMERICA, INC.

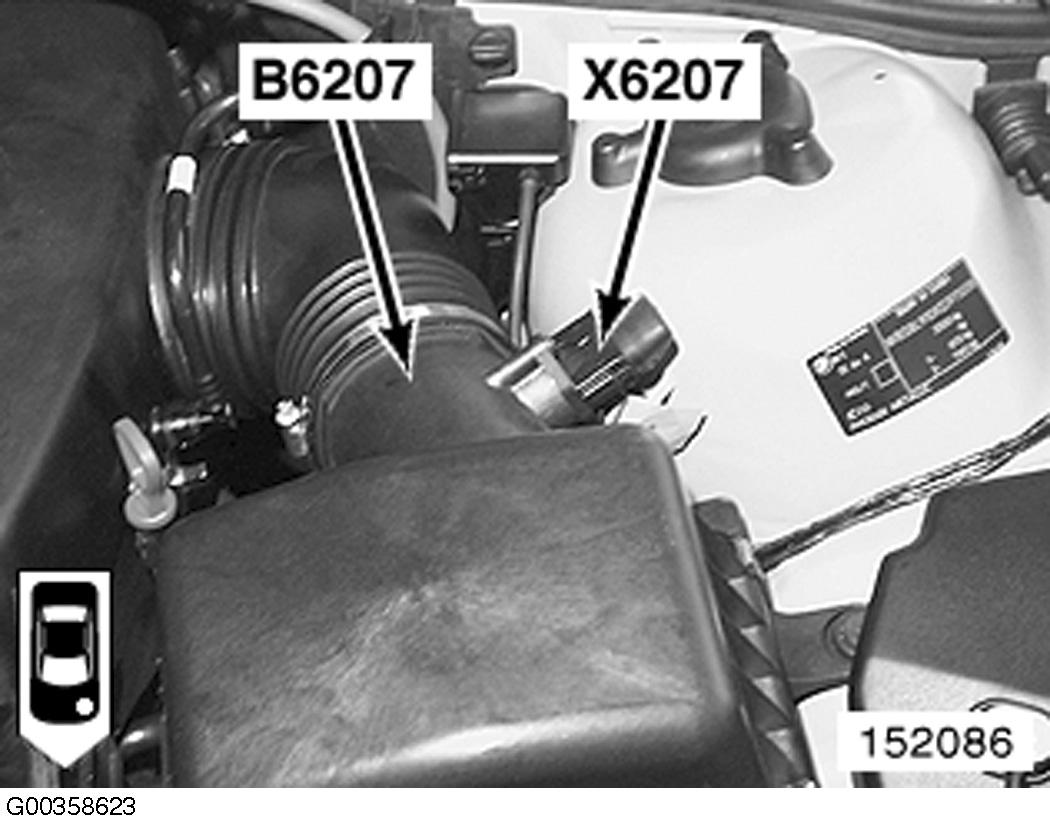

Fig 77: Left Side Of Engine Compartment

G00358623

Courtesy of BMW OF NORTH AMERICA, INC.

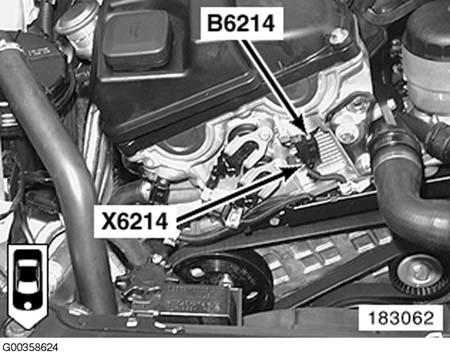

Fig 78: Front Of Engine

G00358624

Courtesy of BMW OF NORTH AMERICA, INC.

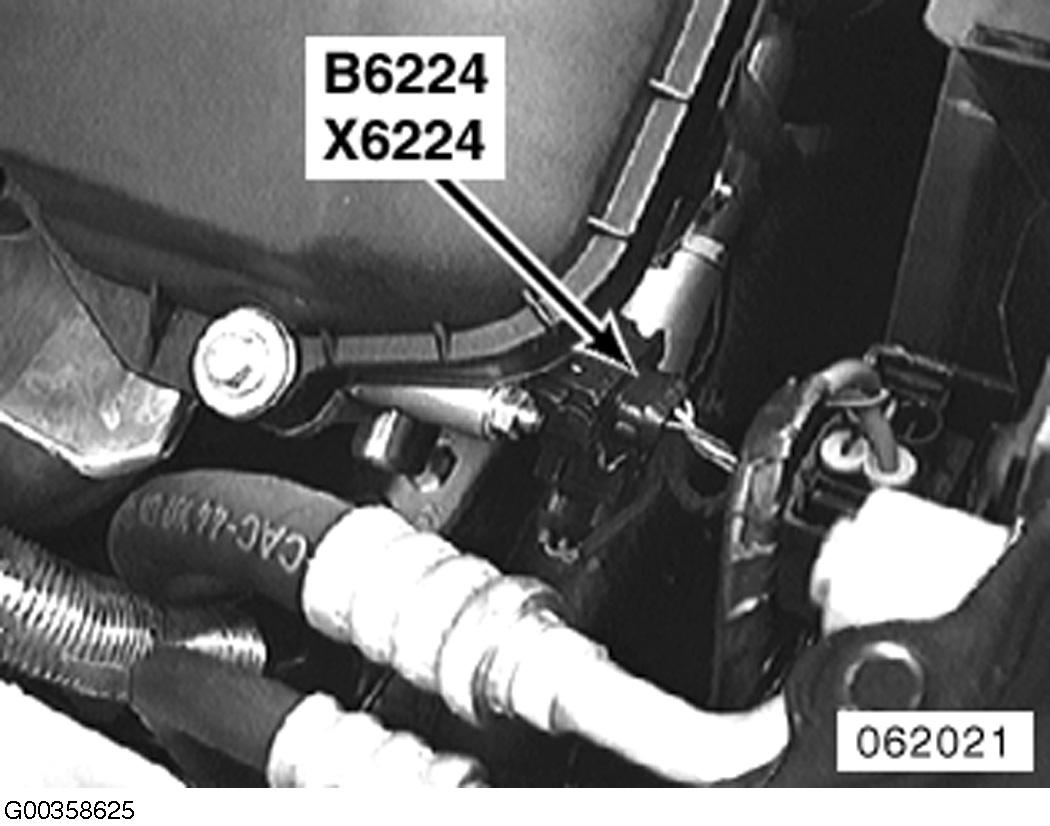

Fig 79: Right Front Of Engine

G00358625

Courtesy of BMW OF NORTH AMERICA, INC.

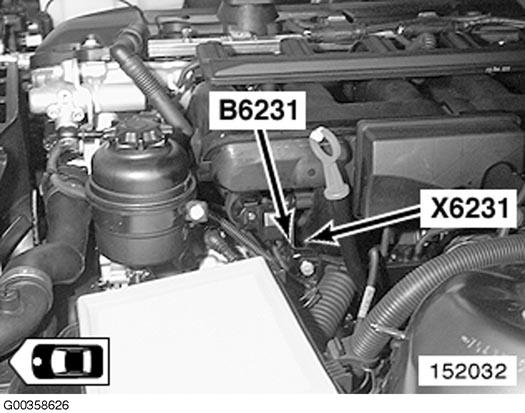

Fig 80: Left Side Of Engine, Under Intake Pipe

G00358626

Courtesy of BMW OF NORTH AMERICA, INC.

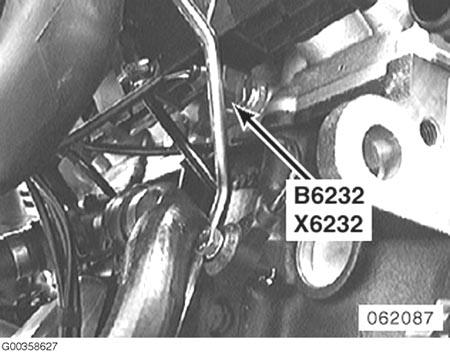

Fig 81: Left Side Of Engine

G00358627

Courtesy of BMW OF NORTH AMERICA, INC.

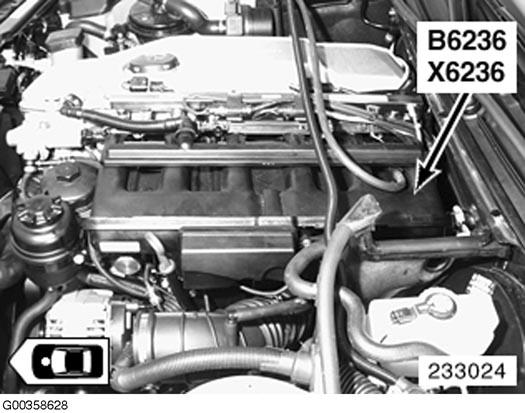

Fig 82: Rear Of Engine, Under Intake Pipe

G00358628

Courtesy of BMW OF NORTH AMERICA, INC.

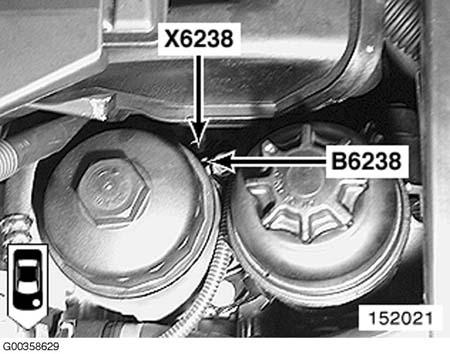

Fig 83: Front Of Engine, Under Intake Pipe

G00358629

Courtesy of BMW OF NORTH AMERICA, INC.

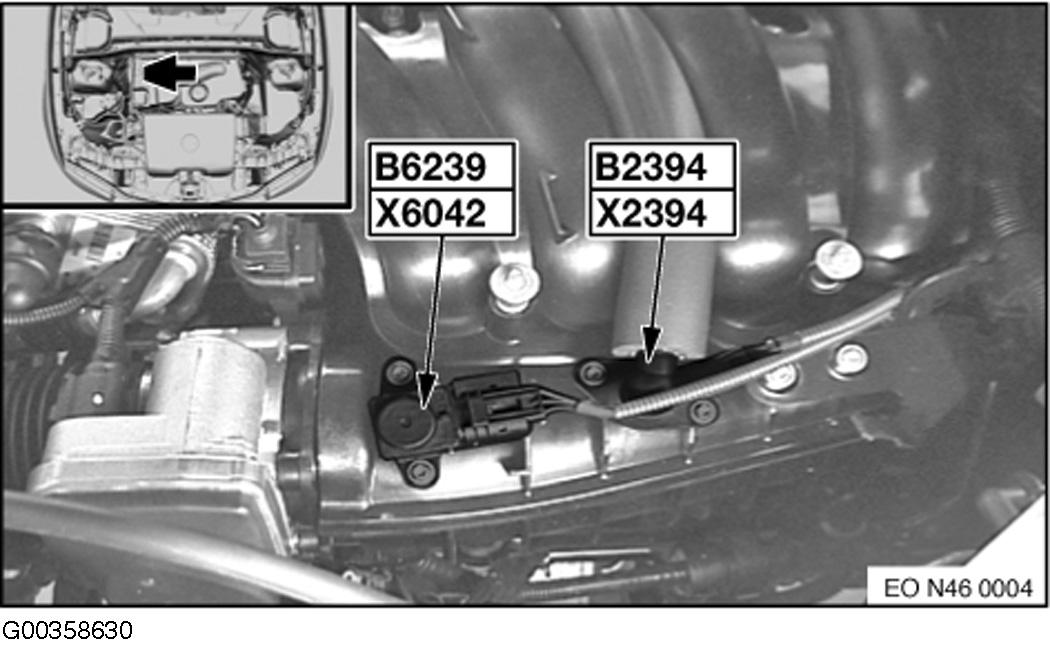

Fig 84: Right Side Of Engine Compartment

G00358630

Courtesy of BMW OF NORTH AMERICA, INC.

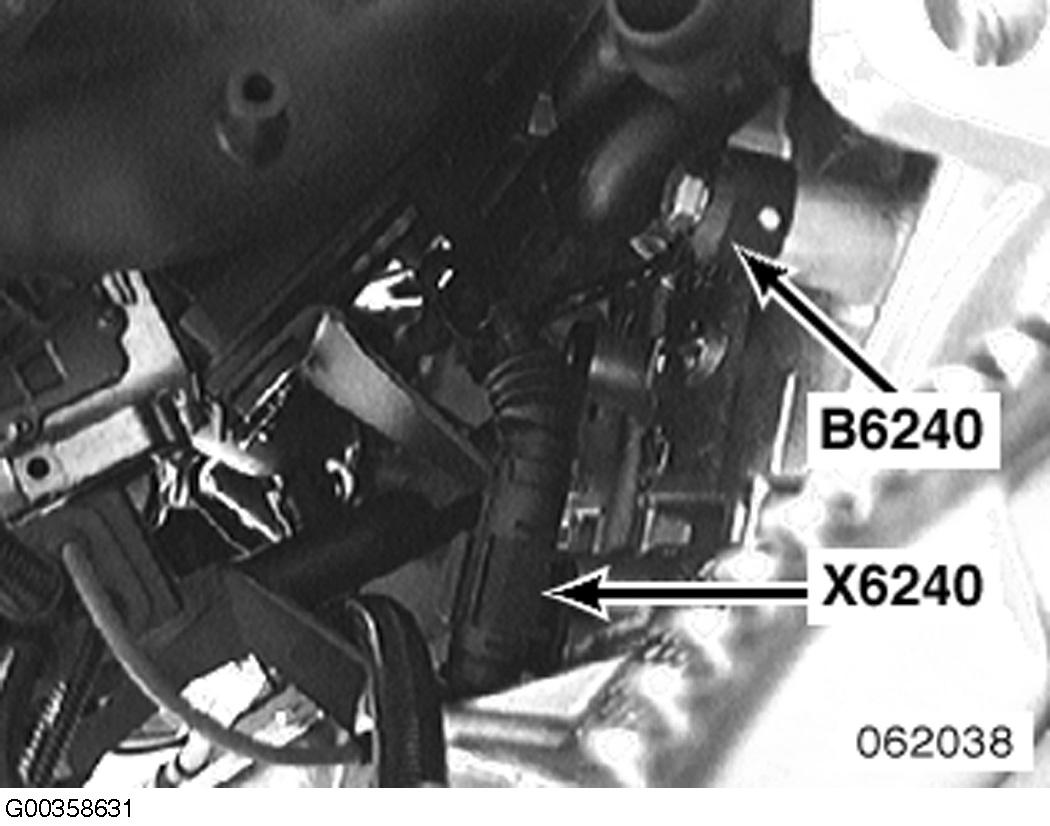

Fig 85: Rear Of Engine, Under Intake Manifold

G00358631

Courtesy of BMW OF NORTH AMERICA, INC.

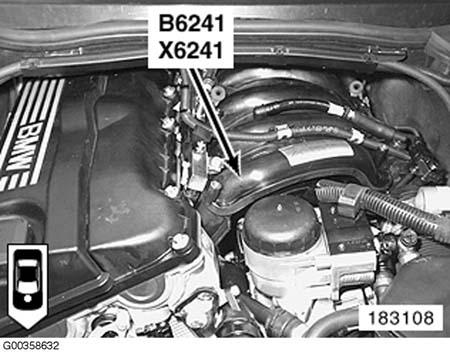

Fig 86: Left Side Of Engine, Under Intake Pipe

G00358632

Courtesy of BMW OF NORTH AMERICA, INC.

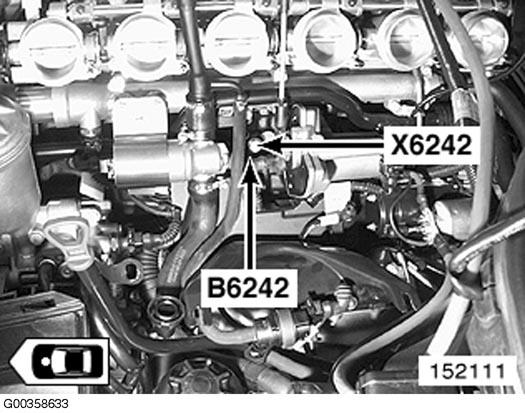

Fig 87: Left Side Of Engine, Under Intake Pipe

G00358633

Courtesy of BMW OF NORTH AMERICA, INC.

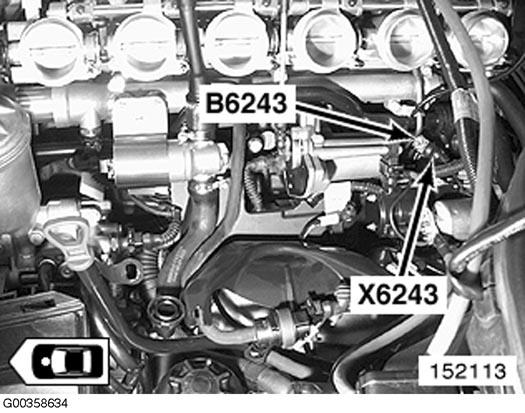

Fig 88: Left Side Of Engine, Under Intake Pipe

G00358634

Courtesy of BMW OF NORTH AMERICA, INC.

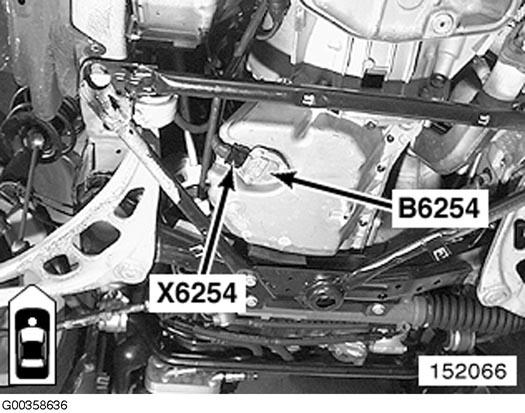

Fig 89: Underside Of Oil Pan

G00358636

Courtesy of BMW OF NORTH AMERICA, INC.

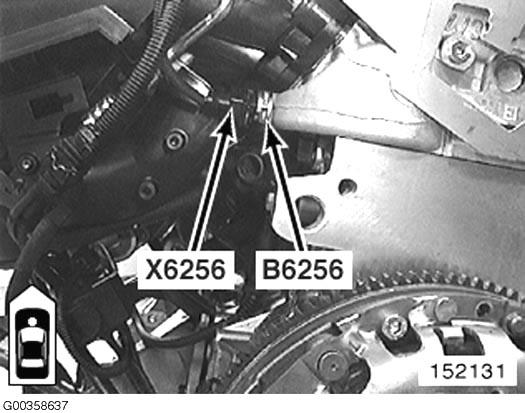

Fig 90: Left Rear Of Engine

G00358637

Courtesy of BMW OF NORTH AMERICA, INC.

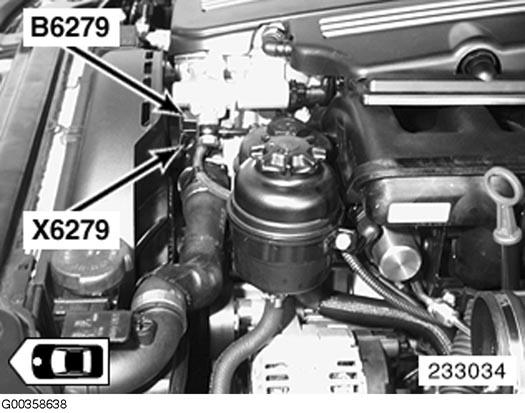

Fig 91: Front Of Engine

G00358638

Courtesy of BMW OF NORTH AMERICA, INC.

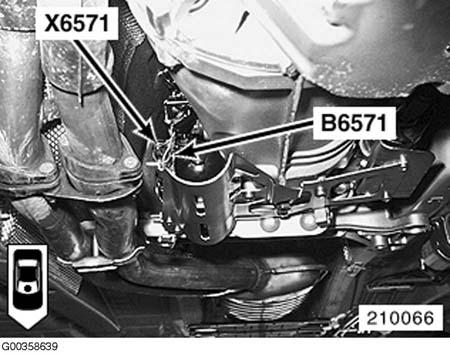

Fig 92: Right Side Of Transmission

G00358639

Courtesy of BMW OF NORTH AMERICA, INC.

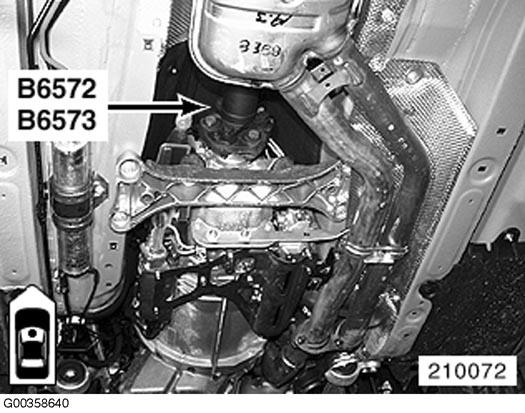

Fig 93: Top Of Transmission

G00358640

Courtesy of BMW OF NORTH AMERICA, INC.

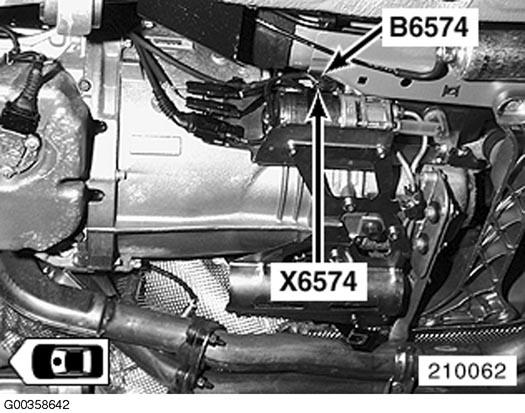

Fig 94: Left Side Of Transmission

G00358642

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 95: Right Rear Of Engine Compartment

G00358643

Courtesy of BMW OF NORTH AMERICA, INC.

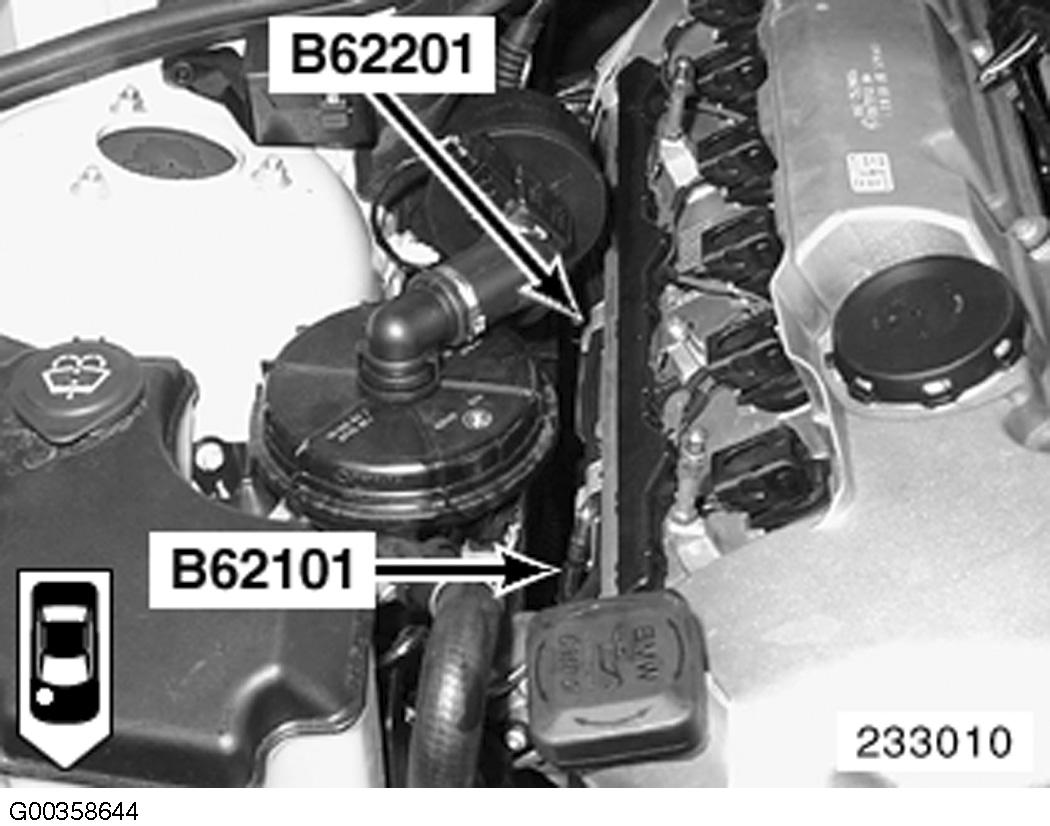

Fig 96: Right Side Of Engine

G00358644

Courtesy of BMW OF NORTH AMERICA, INC.

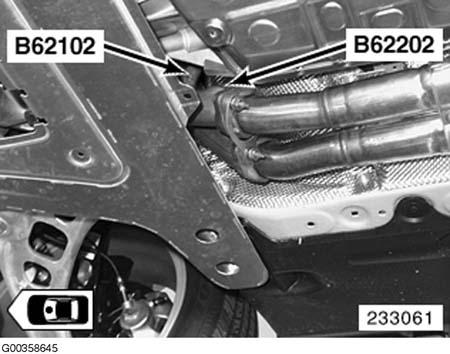

Fig 97: Front Exhaust Pipe

G00358645

Courtesy of BMW OF NORTH AMERICA, INC.

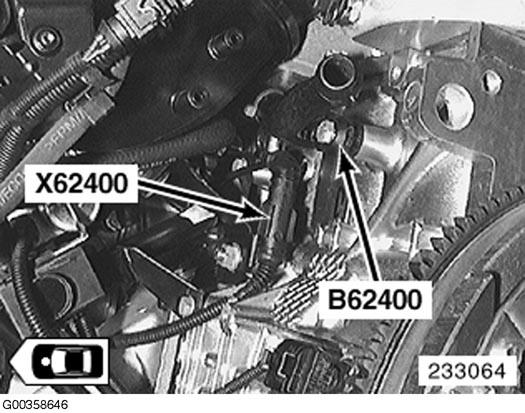

Fig 98: Left Rear Of Engine

G00358646

Courtesy of BMW OF NORTH AMERICA, INC.

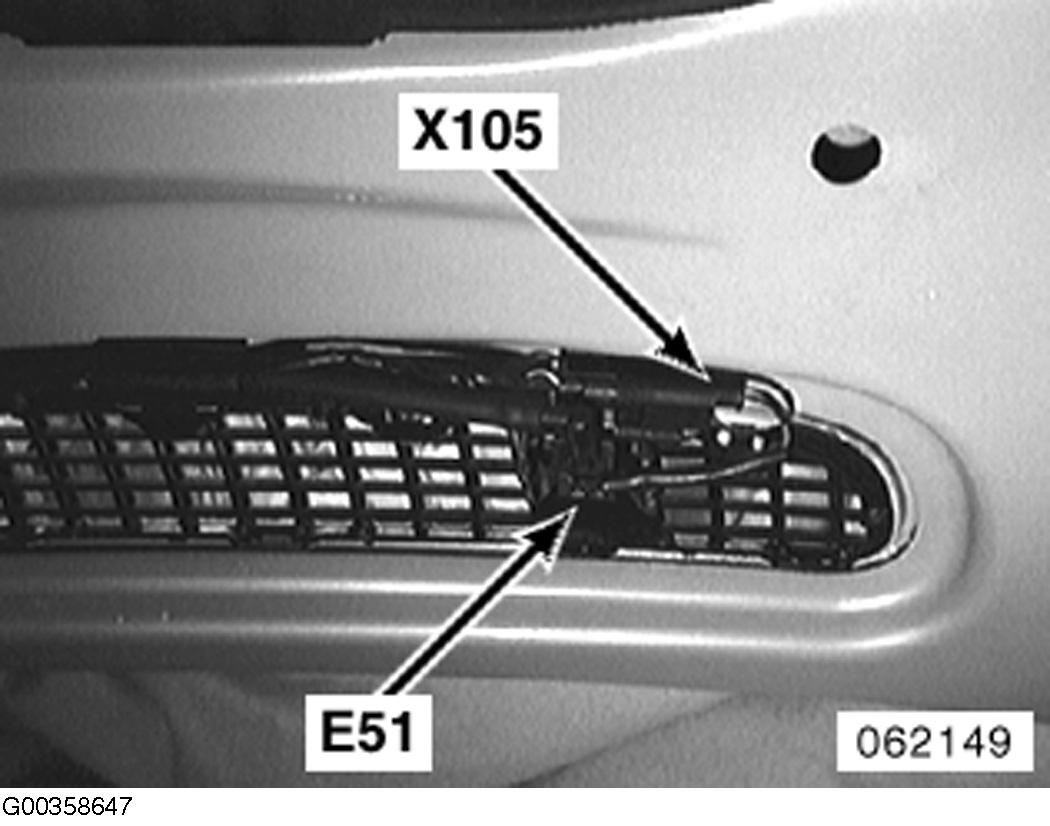

Fig 99: Engine Hood

G00358647

Courtesy of BMW OF NORTH AMERICA, INC.

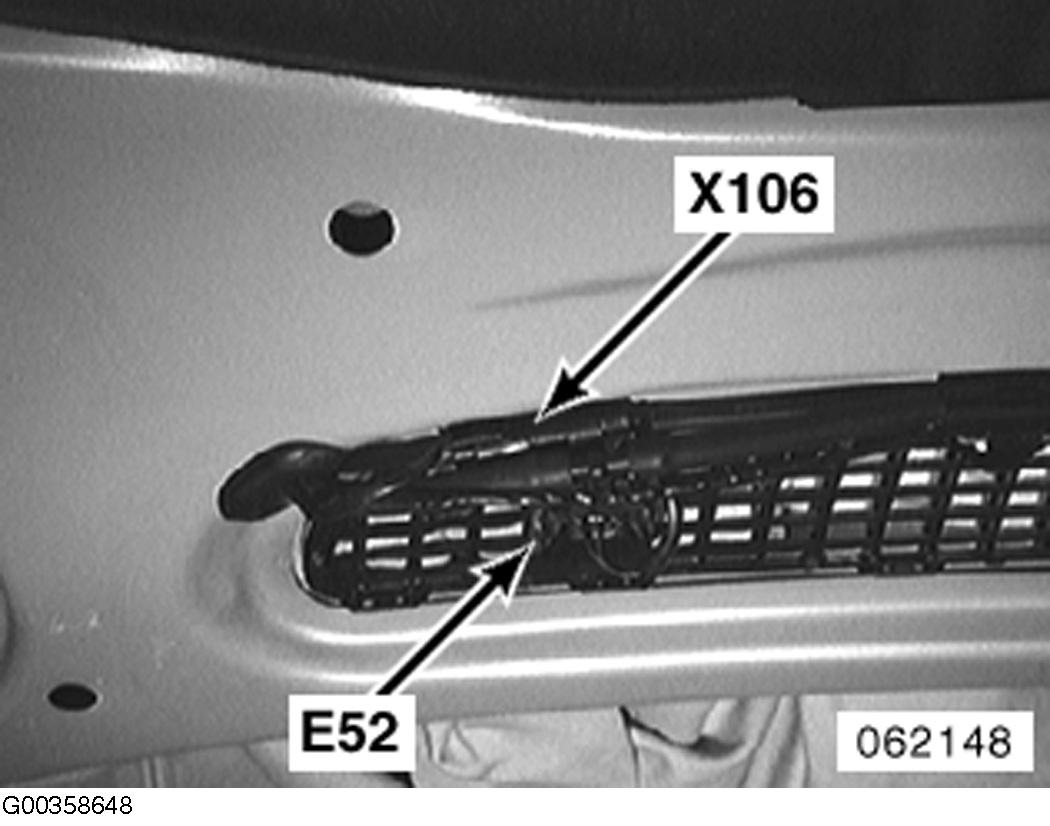

Fig 100: Engine Hood

G00358648

Courtesy of BMW OF NORTH AMERICA, INC.

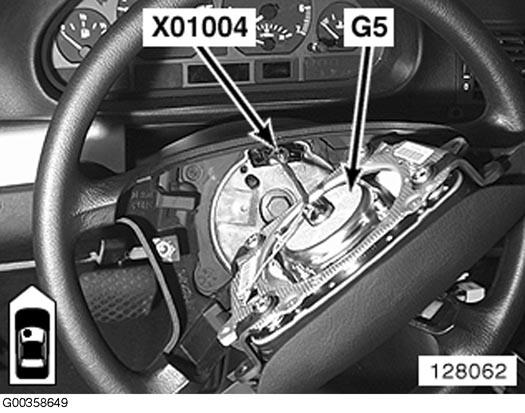

Fig 101: Steering Wheel

G00358649

Courtesy of BMW OF NORTH AMERICA, INC.

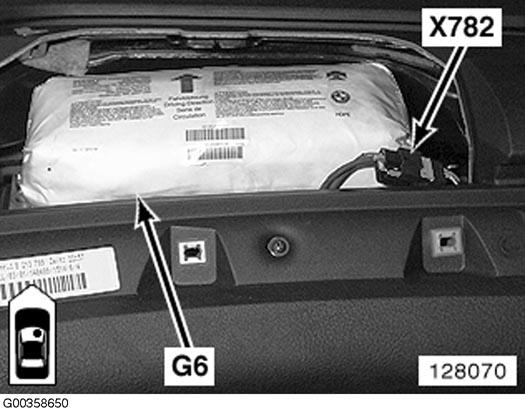

Fig 102: Right Side Of Dash

G00358650

Courtesy of BMW OF NORTH AMERICA, INC.

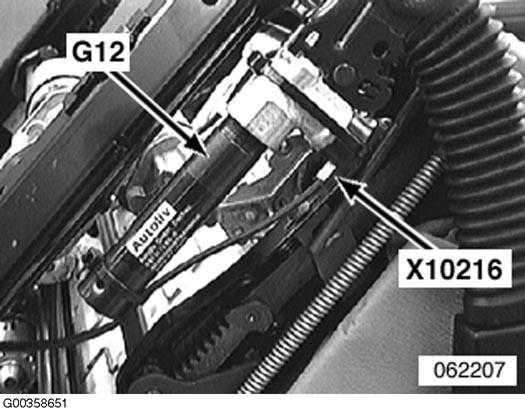

Fig 103: Right Side Of Driver's Seat

G00358651

Courtesy of BMW OF NORTH AMERICA, INC.

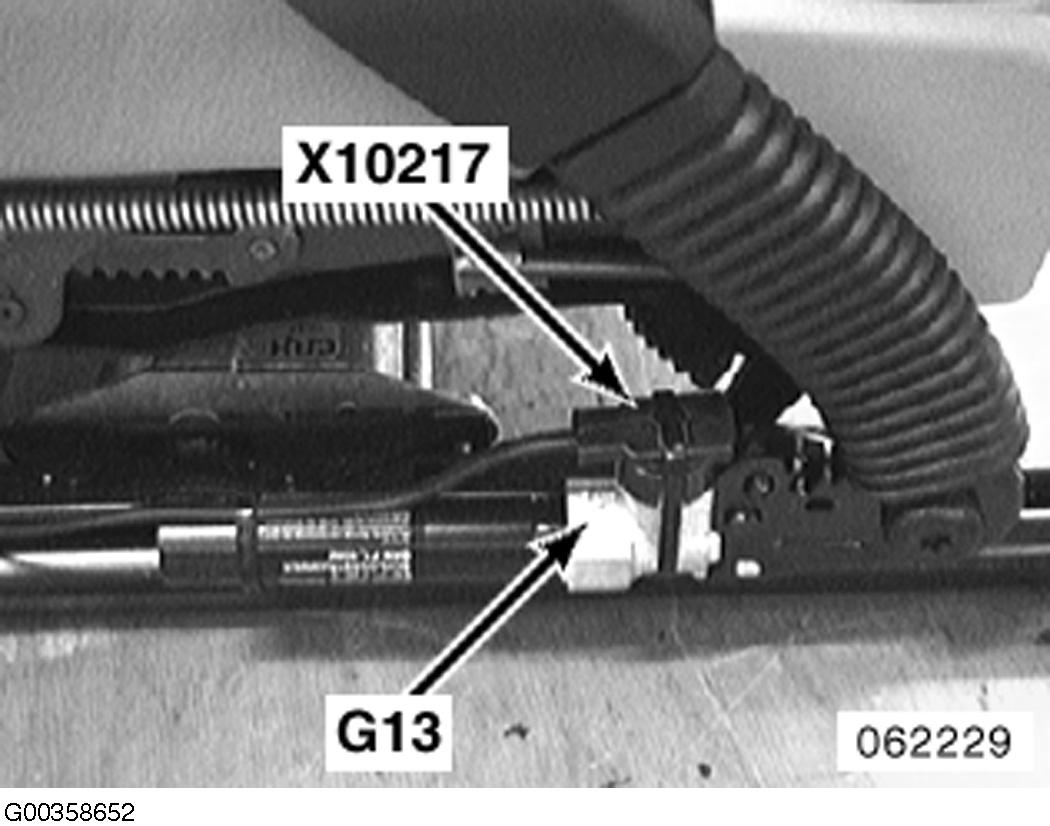

Fig 104: Left Side Of Passenger's Seat

G00358652

Courtesy of BMW OF NORTH AMERICA, INC.

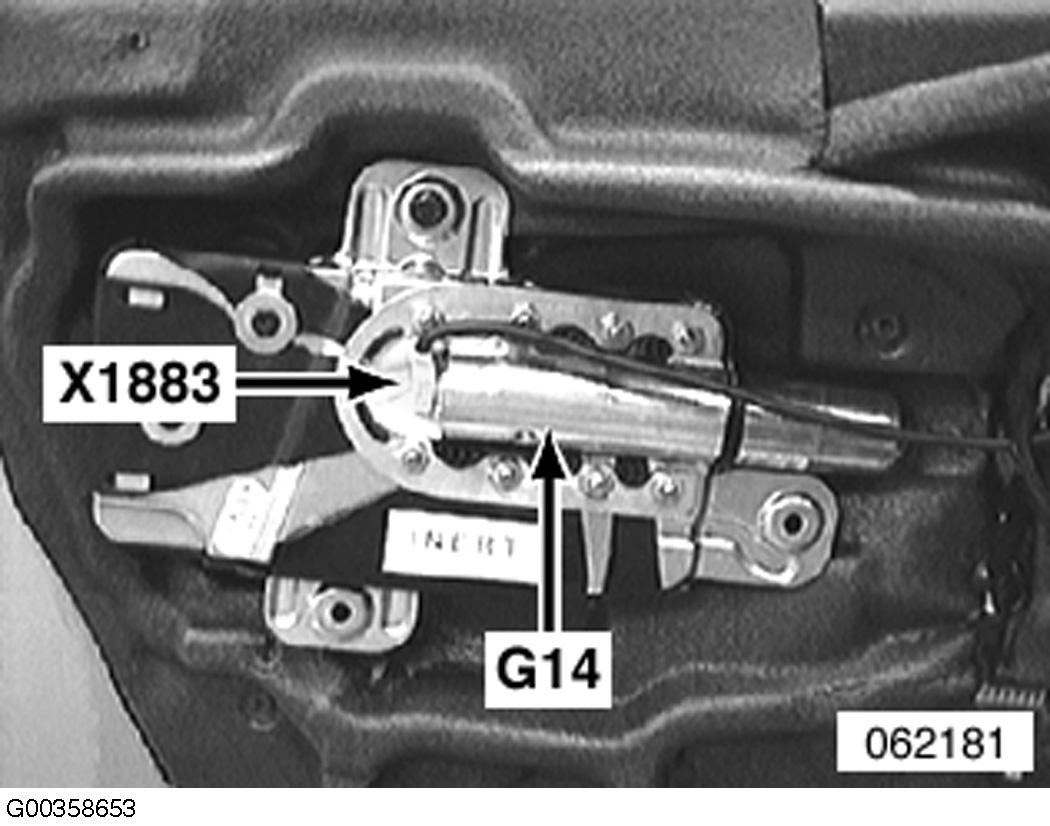

Fig 105: Driver's Door

G00358653

Courtesy of BMW OF NORTH AMERICA, INC.

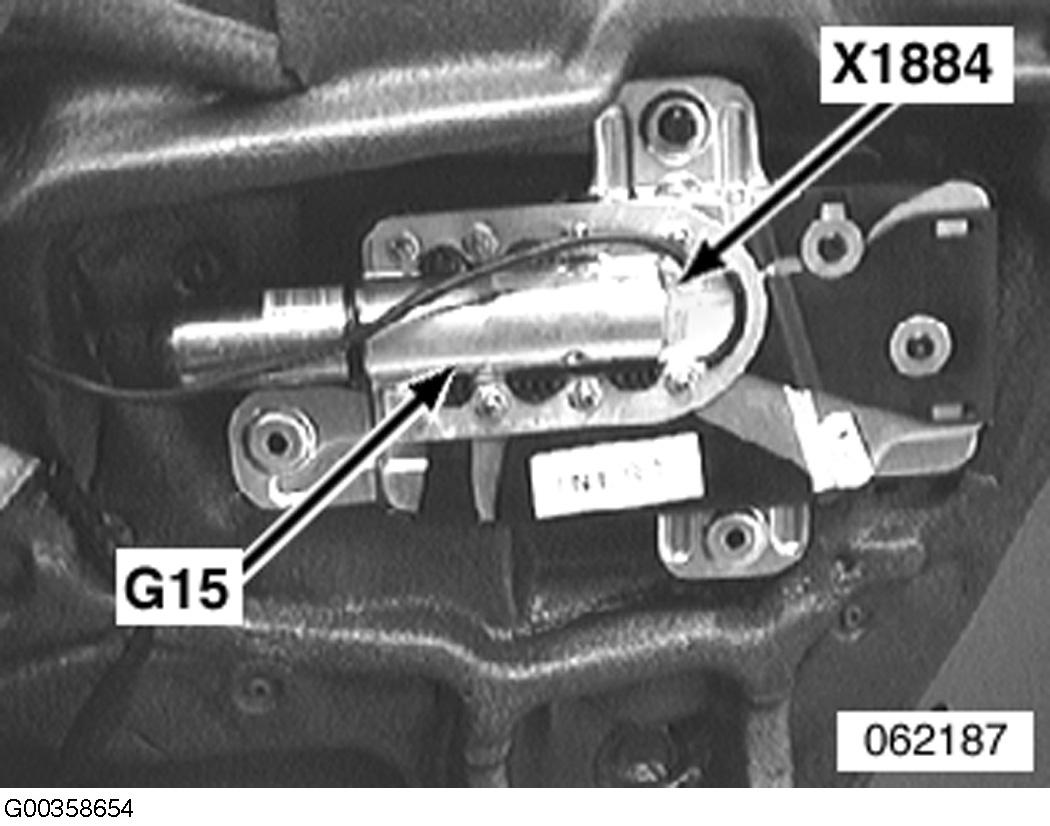

Fig 106: Passenger's Door

G00358654

Courtesy of BMW OF NORTH AMERICA, INC.

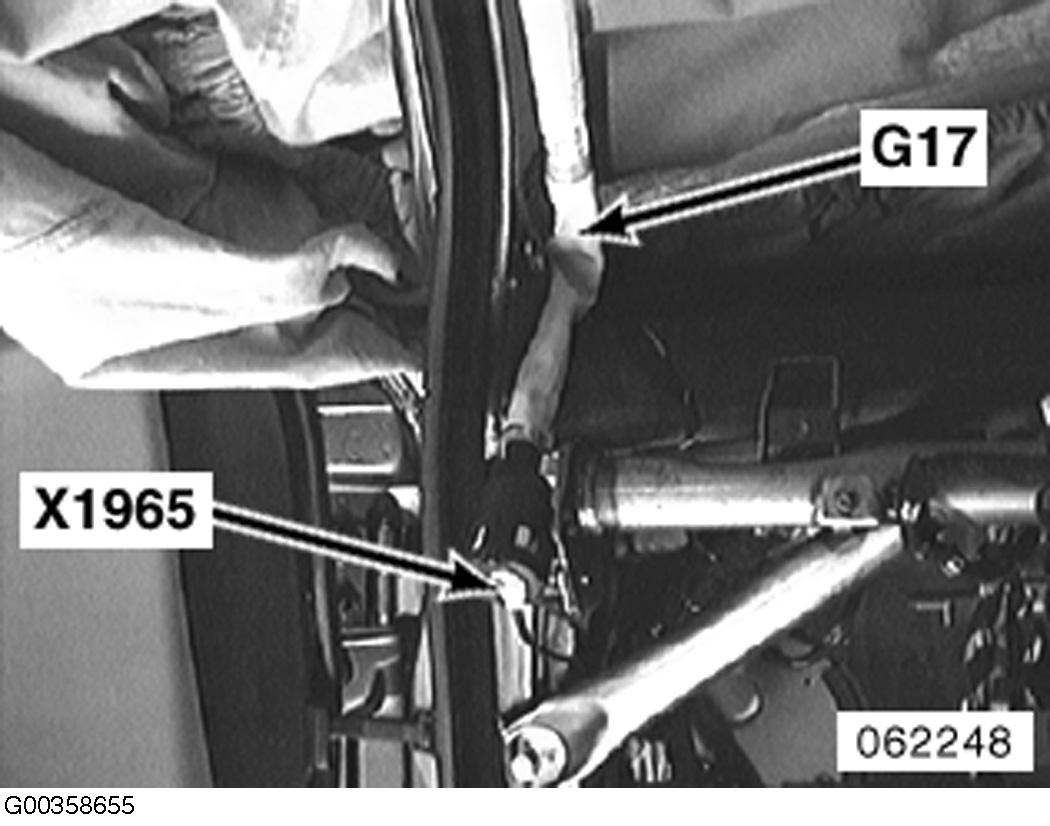

Fig 107: Behind Left Side Of Dash

G00358655

Courtesy of BMW OF NORTH AMERICA, INC.

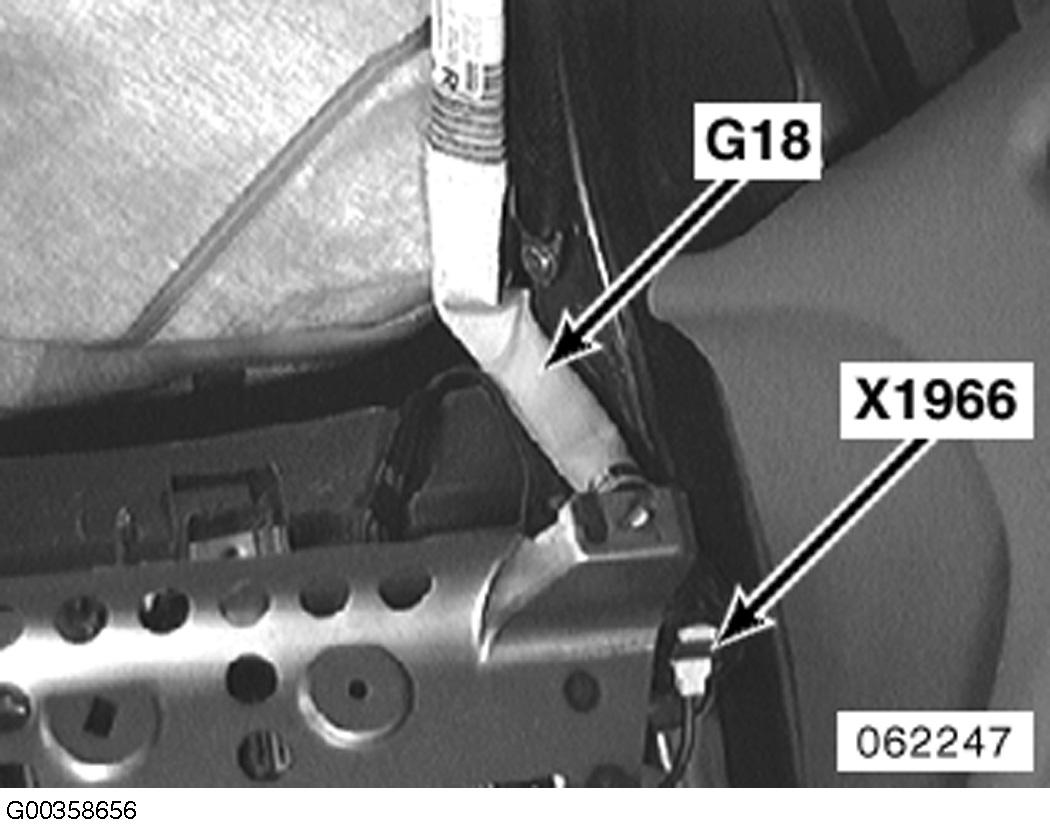

Fig 108: Behind Right Side Of Dash

G00358656

Courtesy of BMW OF NORTH AMERICA, INC.

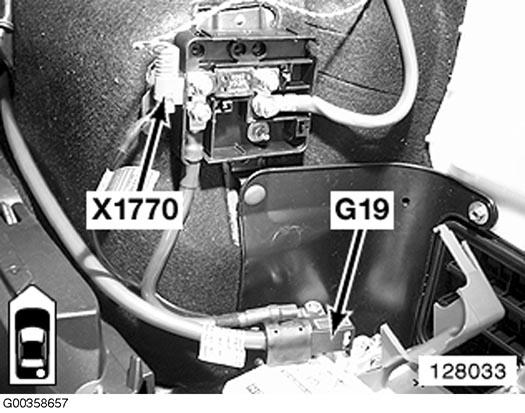

Fig 109: Right Rear Of Luggage Compartment

G00358657

Courtesy of BMW OF NORTH AMERICA, INC.

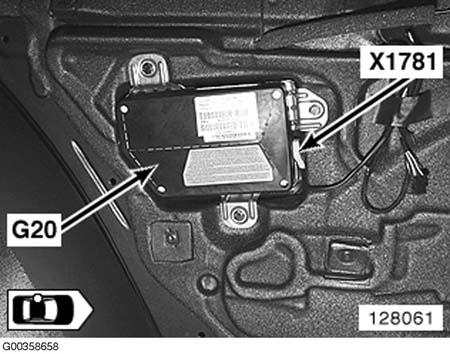

Fig 110: Left Rear Door

G00358658

Courtesy of BMW OF NORTH AMERICA, INC.

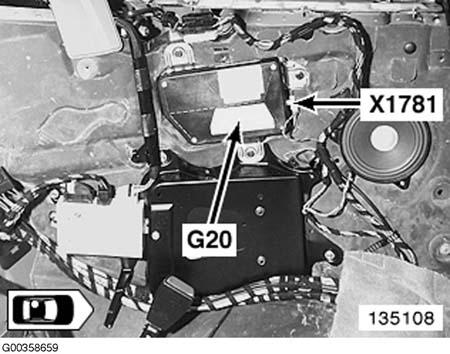

Fig 111: Left Rear Of Passenger Compartment

G00358659

Courtesy of BMW OF NORTH AMERICA, INC.

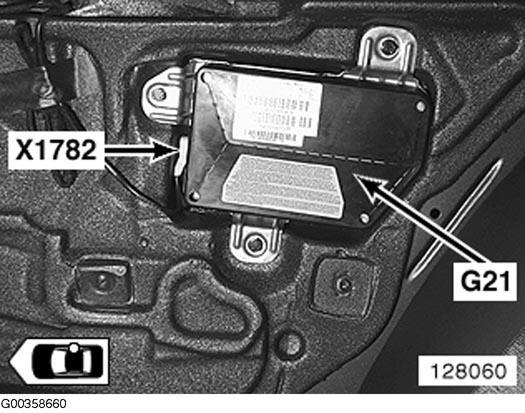

Fig 112: Right Rear Door

G00358660

Courtesy of BMW OF NORTH AMERICA, INC.

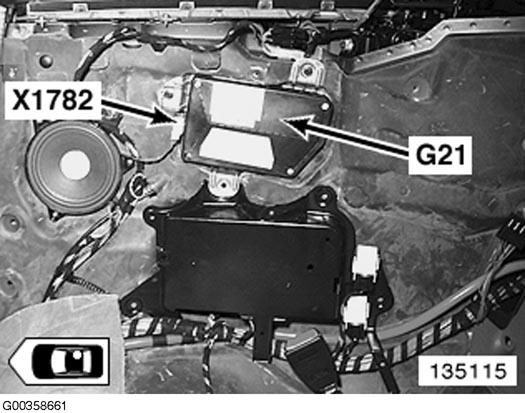

Fig 113: Right Rear Of Passenger Compartment

G00358661

Courtesy of BMW OF NORTH AMERICA, INC.

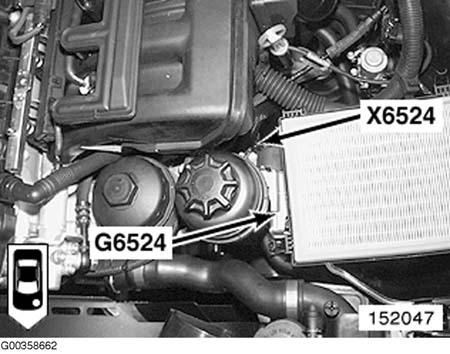

Fig 114: Left Side Of Engine Compartment, Under Intake Pipe

G00358662

Courtesy of BMW OF NORTH AMERICA, INC.

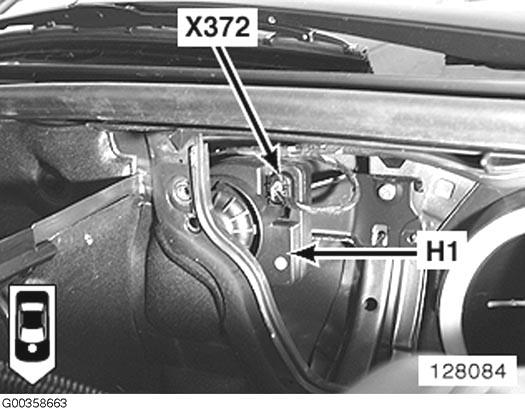

Fig 115: Rear Of Engine Compartment

G00358663

Courtesy of BMW OF NORTH AMERICA, INC.

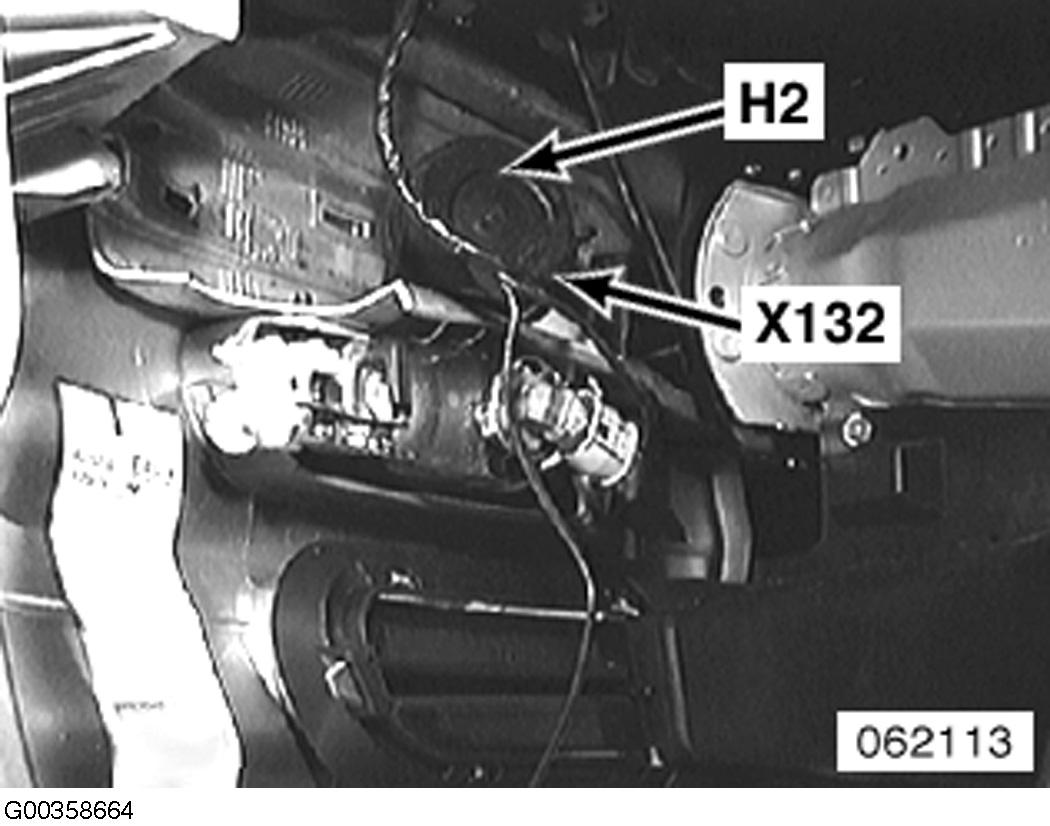

Fig 116: Left Front Wheelwell

G00358664

Courtesy of BMW OF NORTH AMERICA, INC.

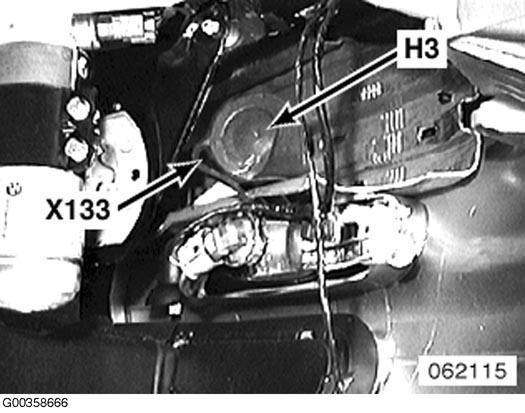

Fig 117: Right Front Wheelwell

G00358666

Courtesy of BMW OF NORTH AMERICA, INC.

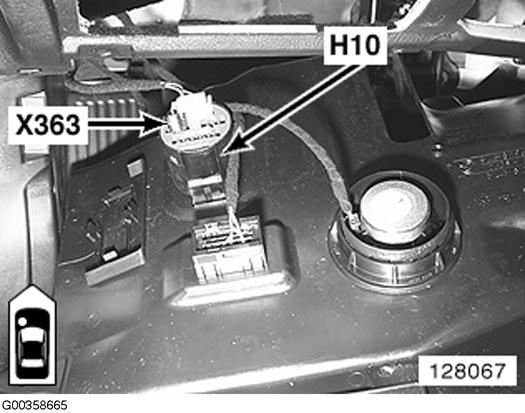

Fig 118: Left Footwell

G00358665

Courtesy of BMW OF NORTH AMERICA, INC.

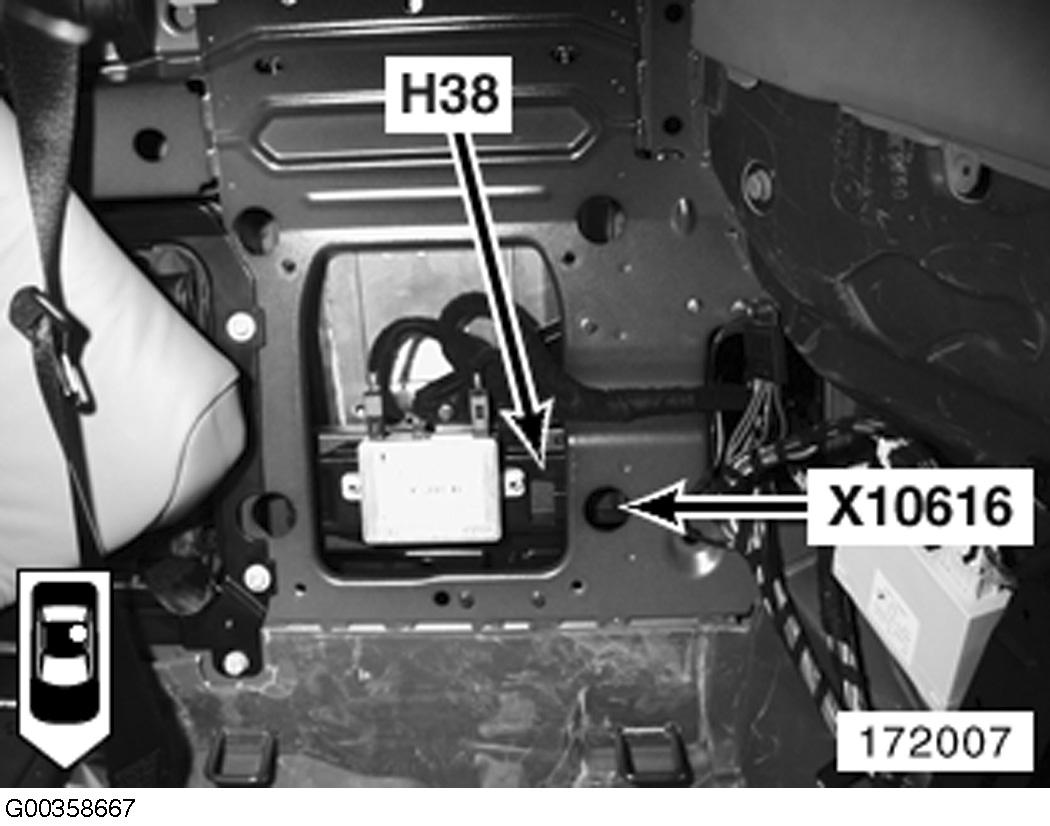

Fig 119: Behind Left Rear Seat

G00358667

Courtesy of BMW OF NORTH AMERICA, INC.

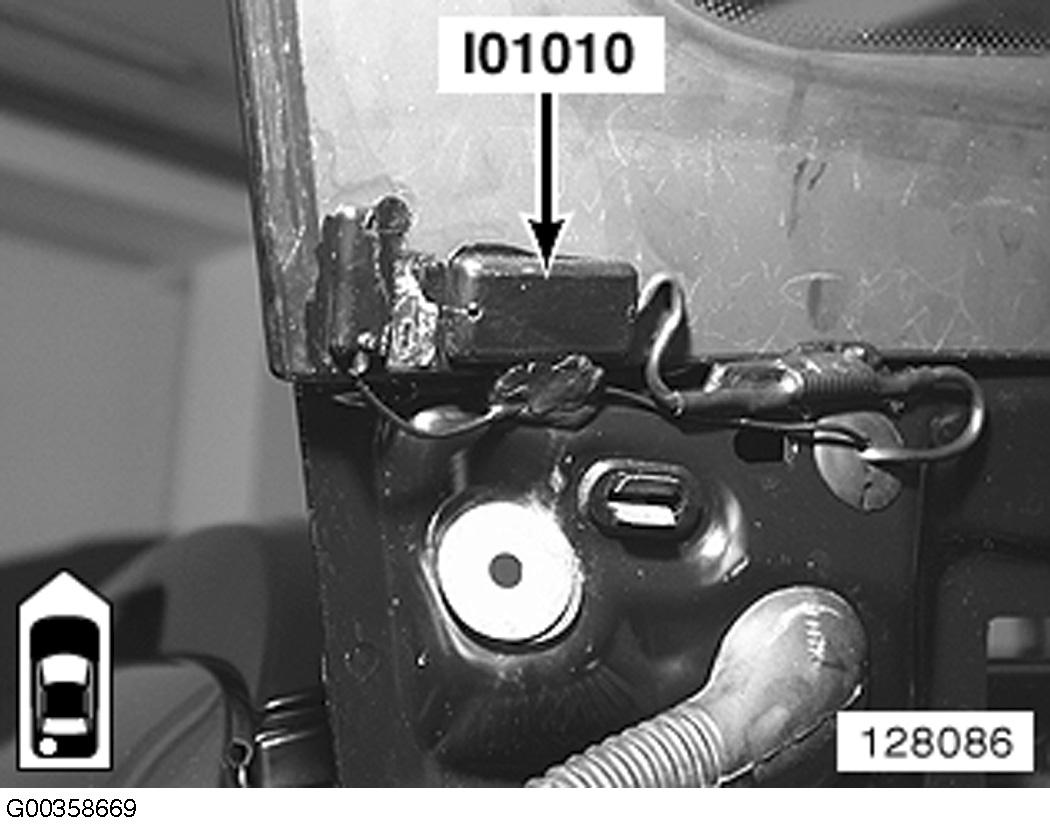

Fig 120: Left Rear Window

G00358669

Courtesy of BMW OF NORTH AMERICA, INC.

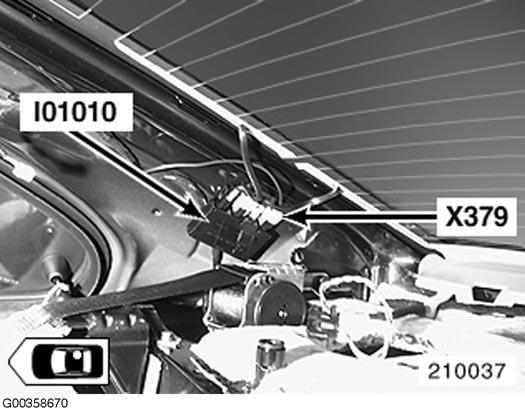

Fig 121: Right "C" Pillar

G00358670

Courtesy of BMW OF NORTH AMERICA, INC.

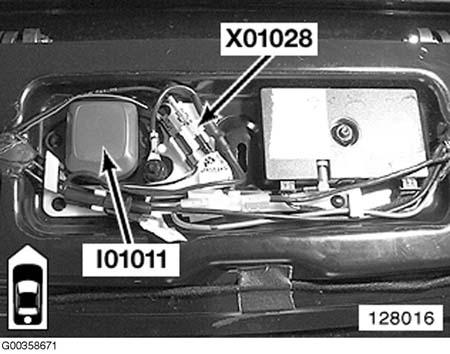

Fig 122: Roof Spoiler (Underneath)

G00358671

Courtesy of BMW OF NORTH AMERICA, INC.

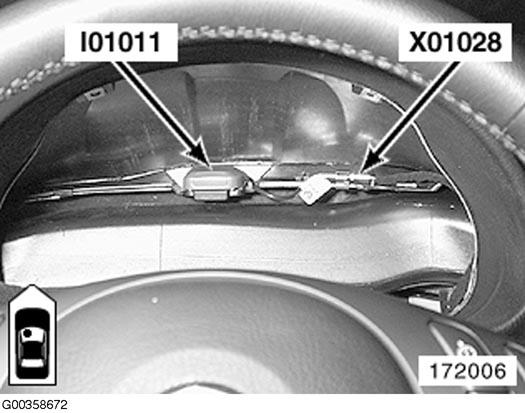

Fig 123: Under Left Side Of Dash

G00358672

Courtesy of BMW OF NORTH AMERICA, INC.

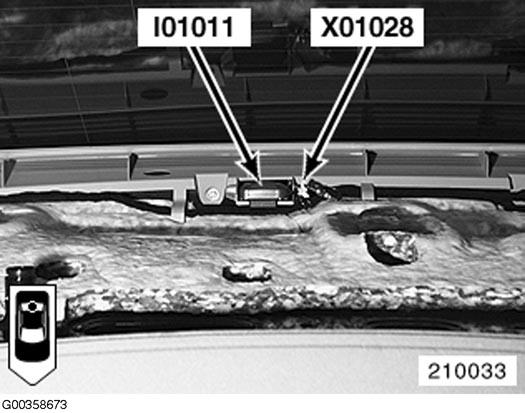

Fig 124: Under Rear Window Shelf

G00358673

Courtesy of BMW OF NORTH AMERICA, INC.

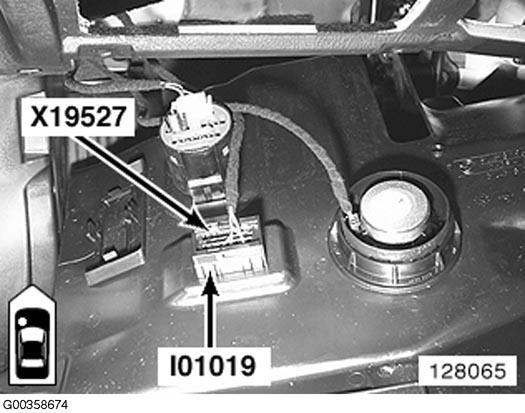

Fig 125: Left Footwell

G00358674

Courtesy of BMW OF NORTH AMERICA, INC.

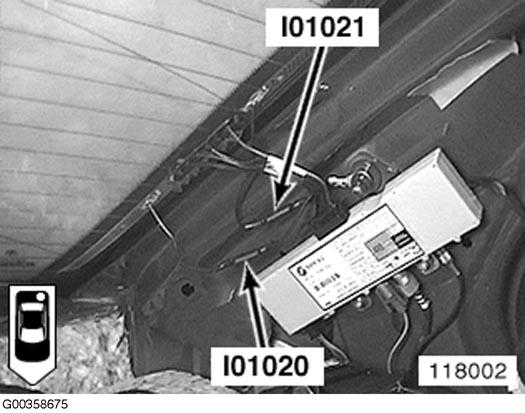

Fig 126: Left "C" Pillar

G00358675

Courtesy of BMW OF NORTH AMERICA, INC.

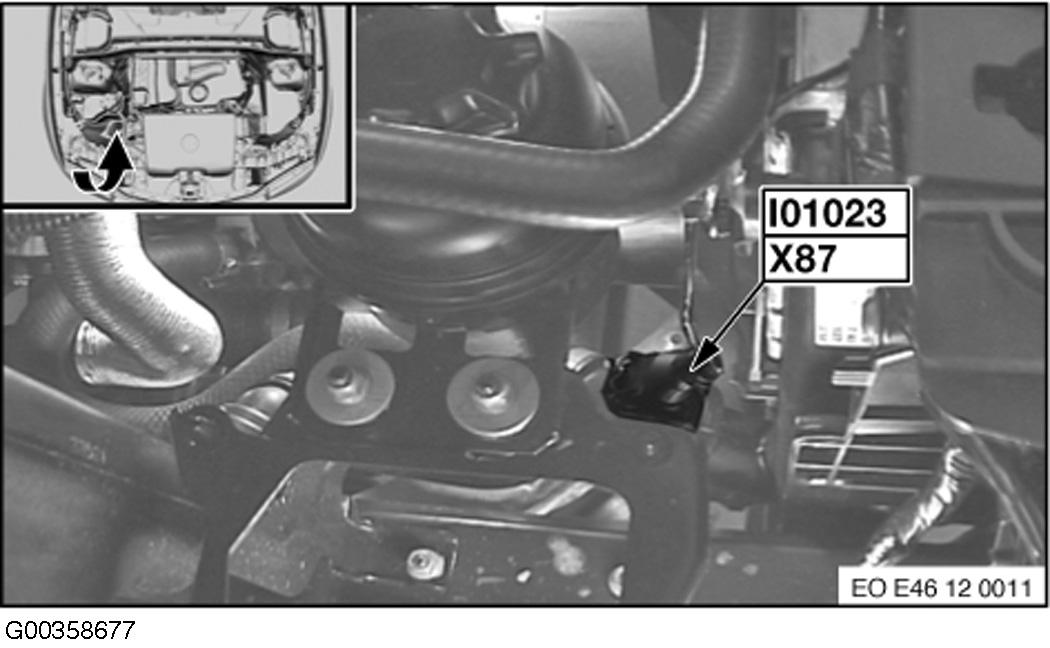

Fig 127: Right Side Of Engine Compartment

G00358677

Courtesy of BMW OF NORTH AMERICA, INC.

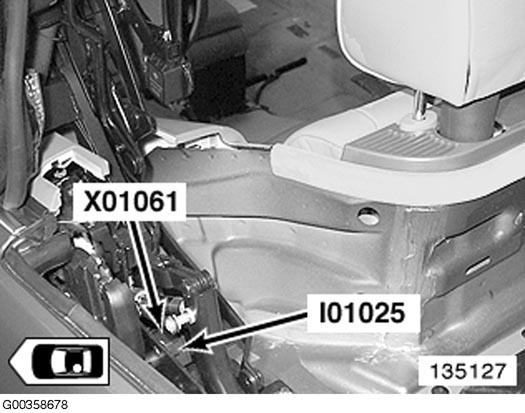

Fig 128: Left Rear Convertible Top Linkage

G00358678

Courtesy of BMW OF NORTH AMERICA, INC.

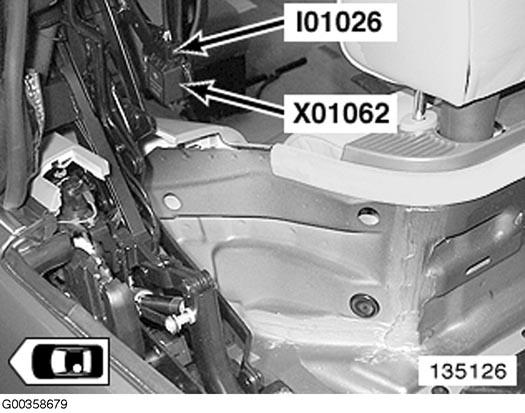

Fig 129: Left Rear Convertible Top Linkage

G00358679

Courtesy of BMW OF NORTH AMERICA, INC.

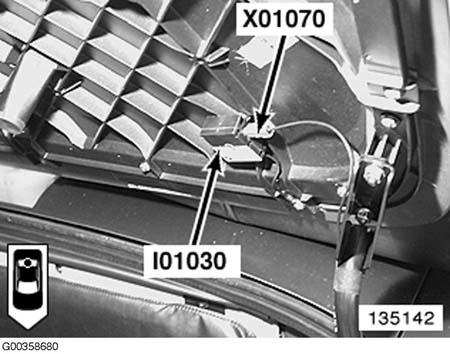

Fig 130: Left Convertible Top Cover

G00358680

Courtesy of BMW OF NORTH AMERICA, INC.

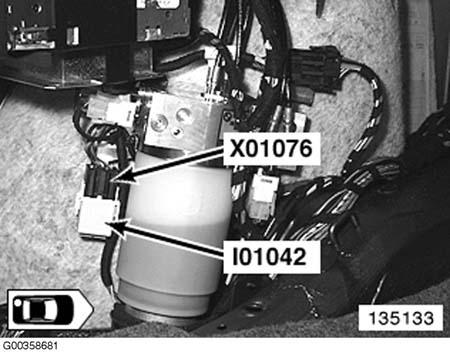

Fig 131: Left Rear Of Luggage Compartment

G00358681

Courtesy of BMW OF NORTH AMERICA, INC.

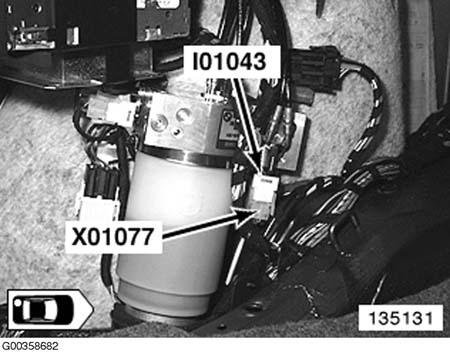

Fig 132: Left Rear Of Luggage Compartment

G00358682

Courtesy of BMW OF NORTH AMERICA, INC.

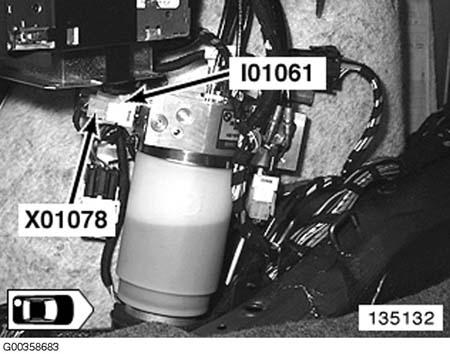

Fig 133: Left Rear Of Luggage Compartment

G00358683

Courtesy of BMW OF NORTH AMERICA, INC.

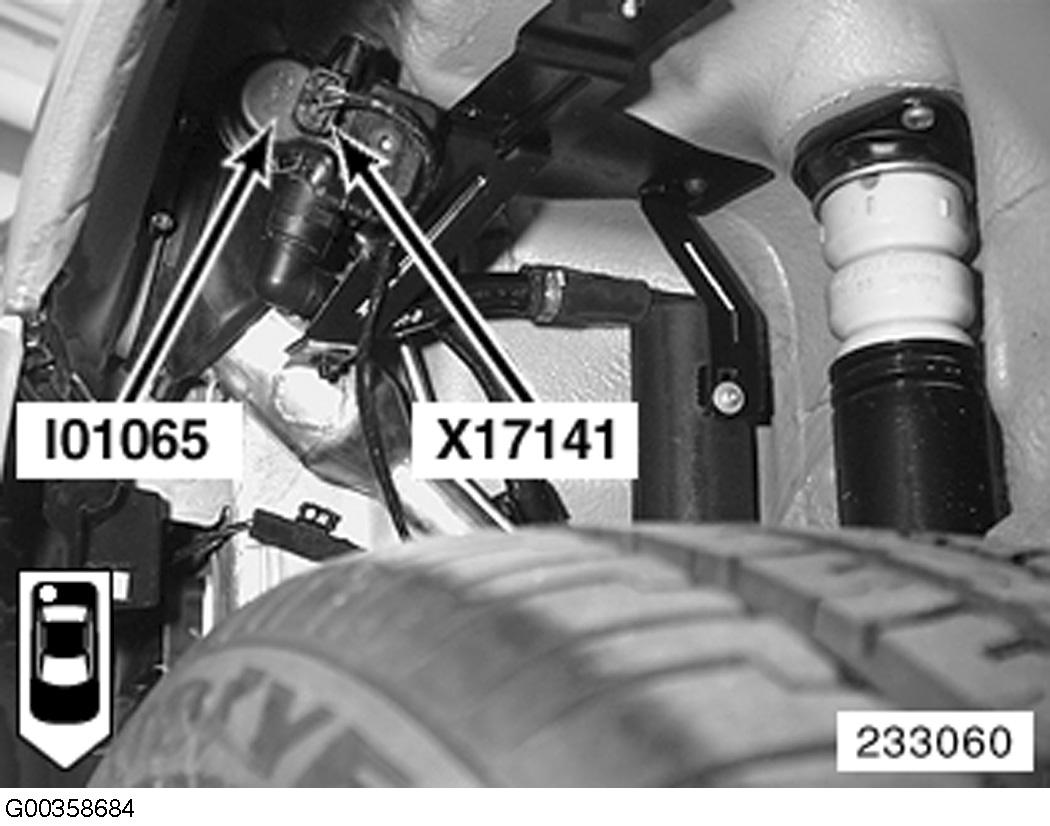

Fig 134: Right Rear Wheelwell

G00358684

Courtesy of BMW OF NORTH AMERICA, INC.

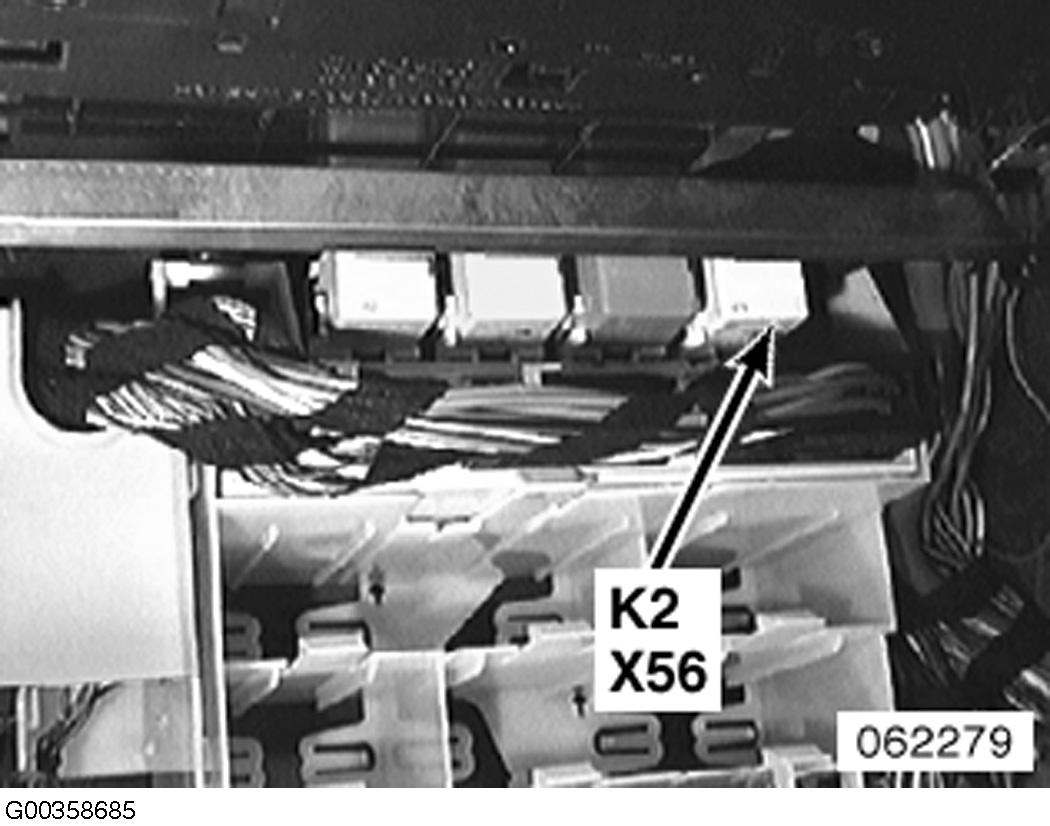

Fig 135: Behind Glove Box

G00358685

Courtesy of BMW OF NORTH AMERICA, INC.

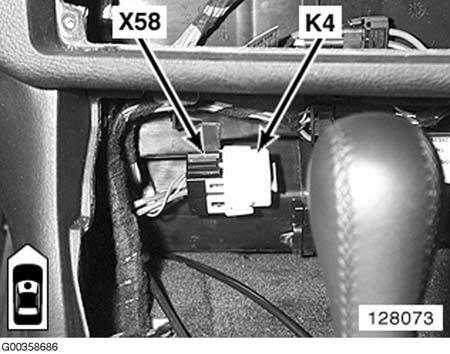

Fig 136: Behind Center Console

G00358686

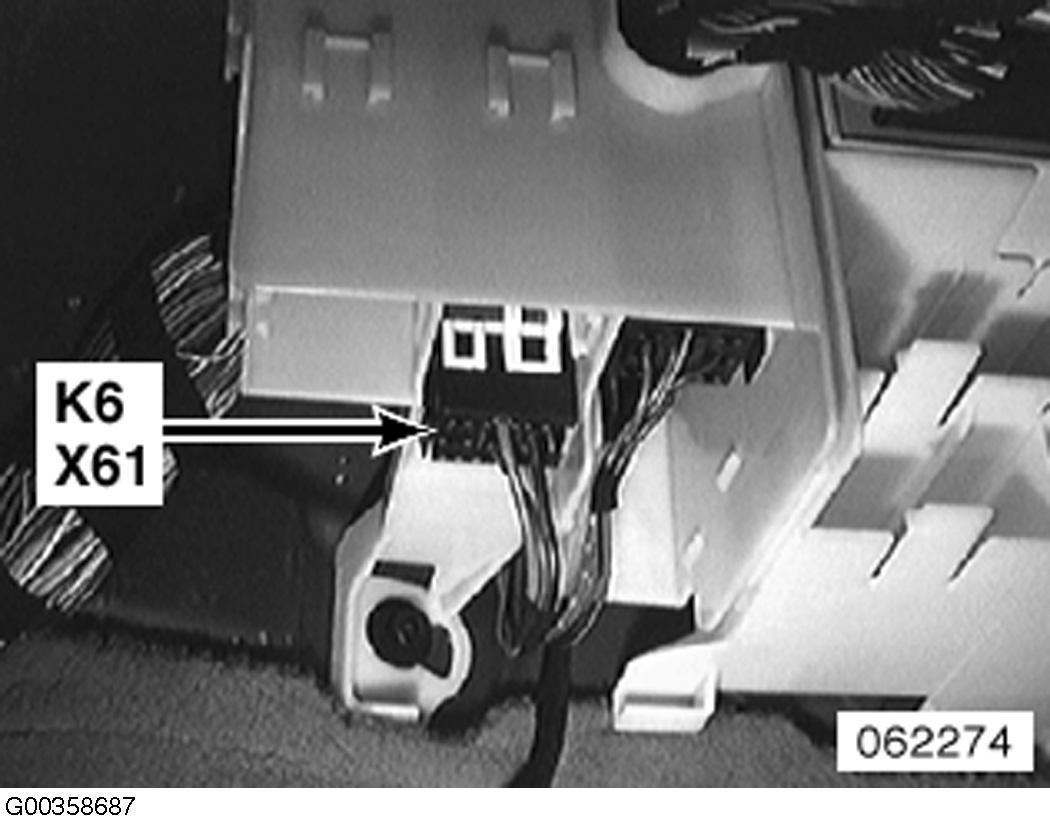

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 137: Behind Glove Box

G00358687

Courtesy of BMW OF NORTH AMERICA, INC.

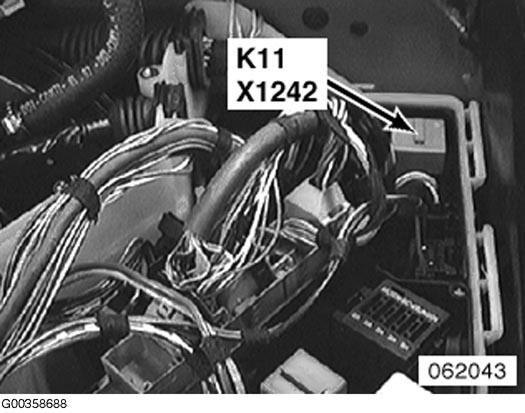

Fig 138: Left Rear Of Engine Compartment

G00358688

Courtesy of BMW OF NORTH AMERICA, INC.

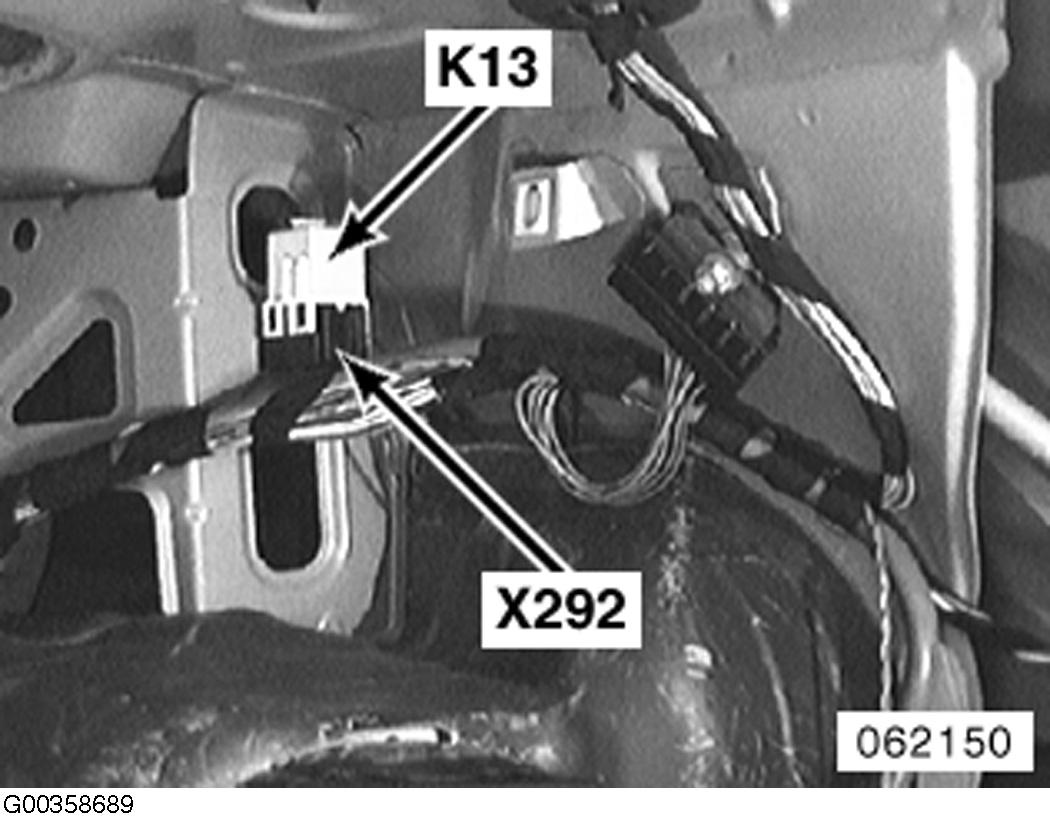

Fig 139: Right Side Of Luggage Compartment

G00358689

Courtesy of BMW OF NORTH AMERICA, INC.

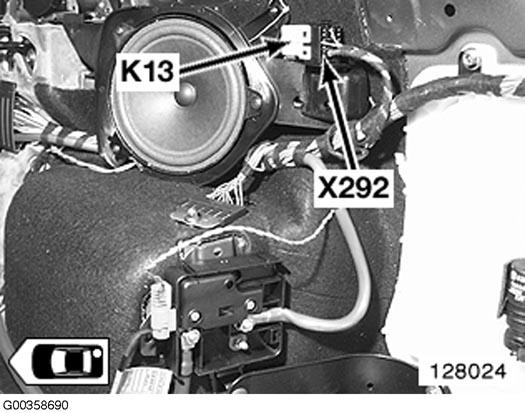

Fig 140: Right Side Of Luggage Compartment

G00358690

Courtesy of BMW OF NORTH AMERICA, INC.

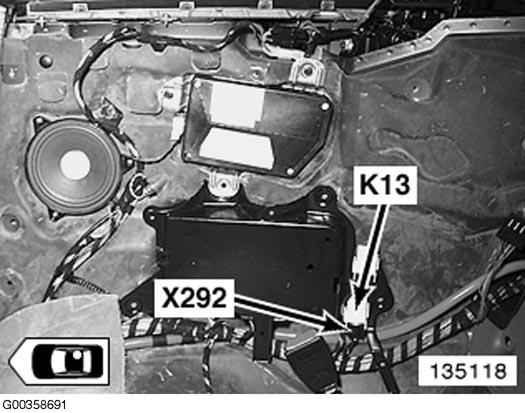

Fig 141: Right Rear Of Passenger Compartment

G00358691

Courtesy of BMW OF NORTH AMERICA, INC.

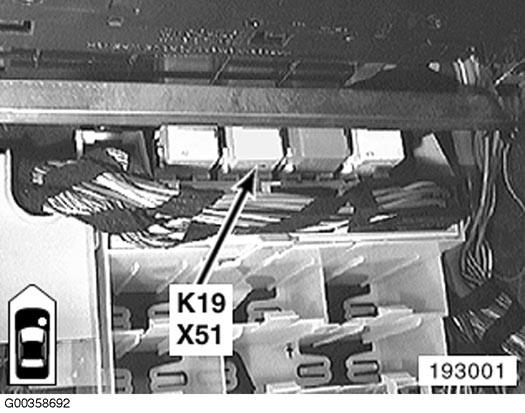

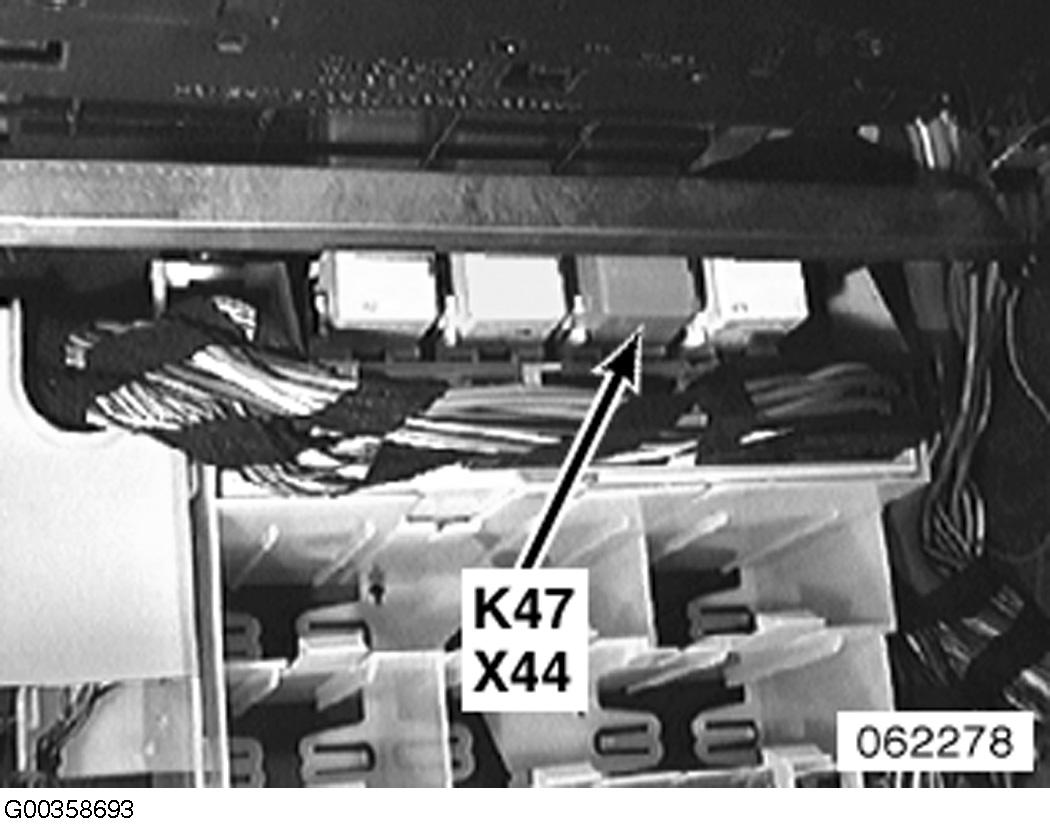

Fig 142: Behind Glove Box

G00358692

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 143: Behind Glove Box

G00358693

Courtesy of BMW OF NORTH AMERICA, INC.

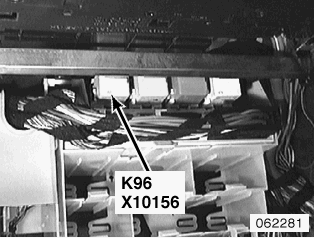

Fig 144: Behind Glove Box

G00532622

Courtesy of BMW OF NORTH AMERICA, INC.

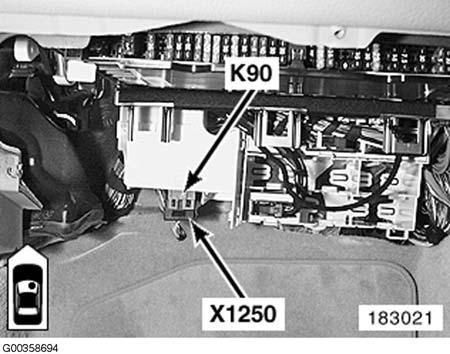

Fig 145: Right Footwell

G00358694

Courtesy of BMW OF NORTH AMERICA, INC.

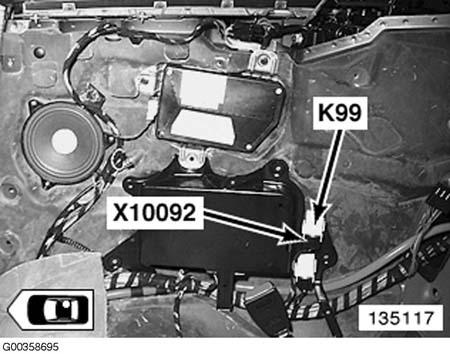

Fig 146: Right Rear Of Passenger Compartment

G00358695

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 147: Left Rear Of Engine Compartment

G00358696

Courtesy of BMW OF NORTH AMERICA, INC.

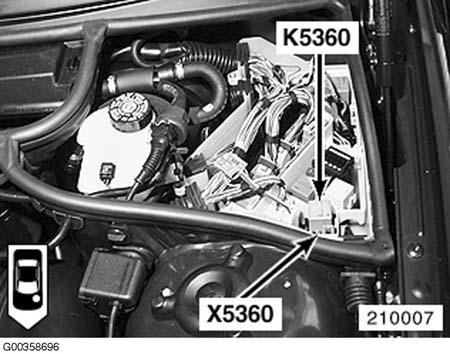

Fig 148: Left Rear Of Engine Compartment

G00358697

Courtesy of BMW OF NORTH AMERICA, INC.

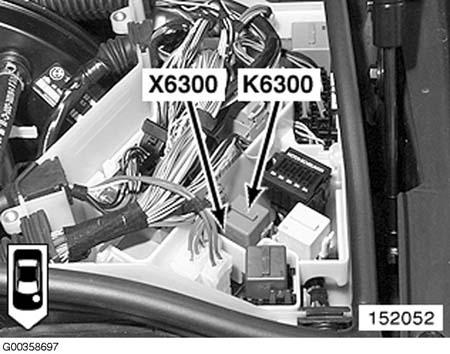

Fig 149: Right Footwell

G00358698

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 150: Left Rear Of Engine Compartment

G00358699

Courtesy of BMW OF NORTH AMERICA, INC.

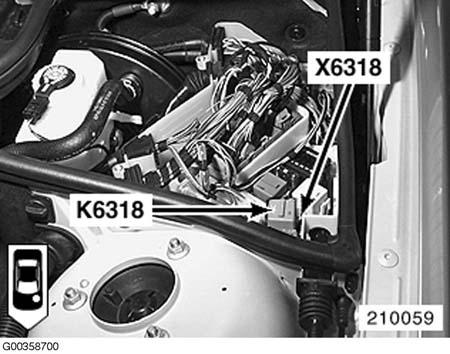

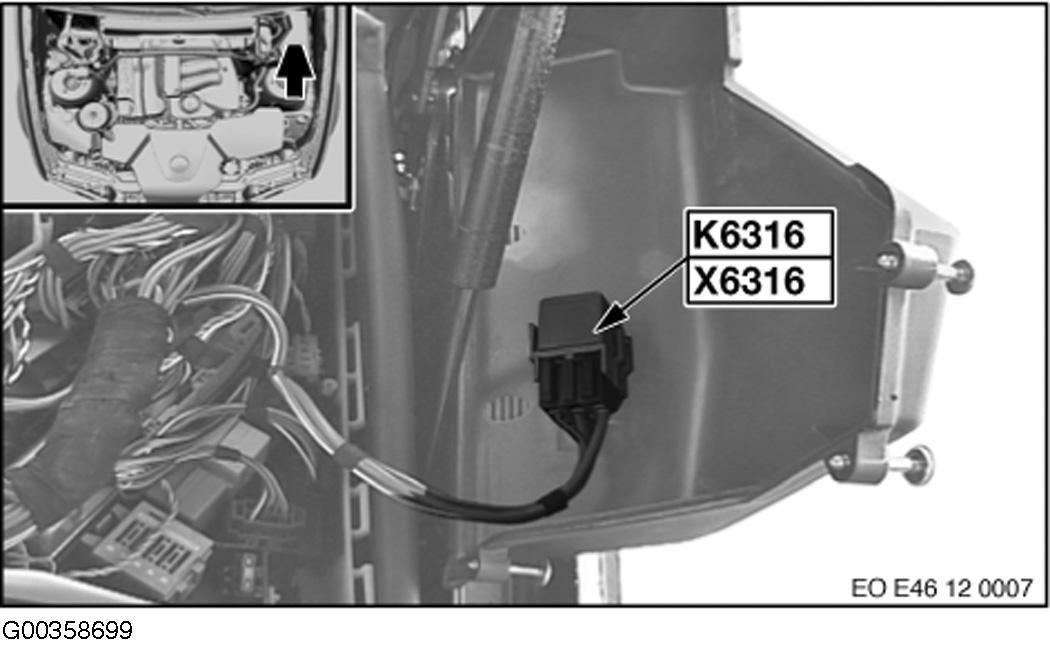

Fig 151: Left Rear Of Engine Compartment

G00358700

Courtesy of BMW OF NORTH AMERICA, INC.

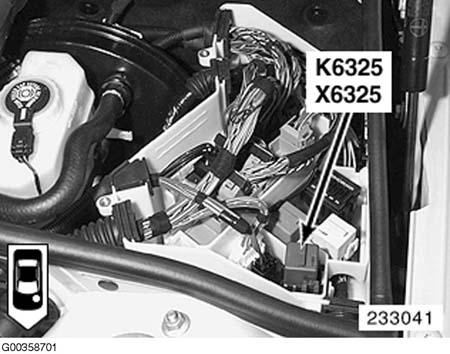

Fig 152: Left Rear Of Engine Compartment

G00358701

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 153: Left Rear Of Engine Compartment

G00358703

Courtesy of BMW OF NORTH AMERICA, INC.

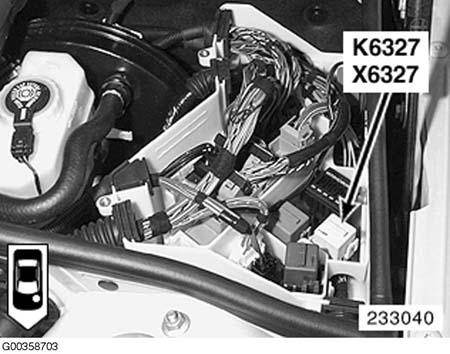

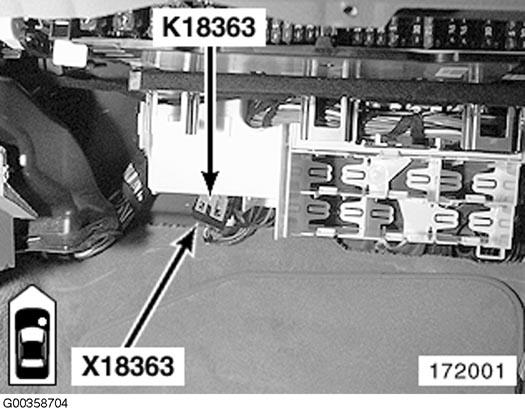

Fig 154: Behind Glove Box

G00358704

Courtesy of BMW OF NORTH AMERICA, INC.

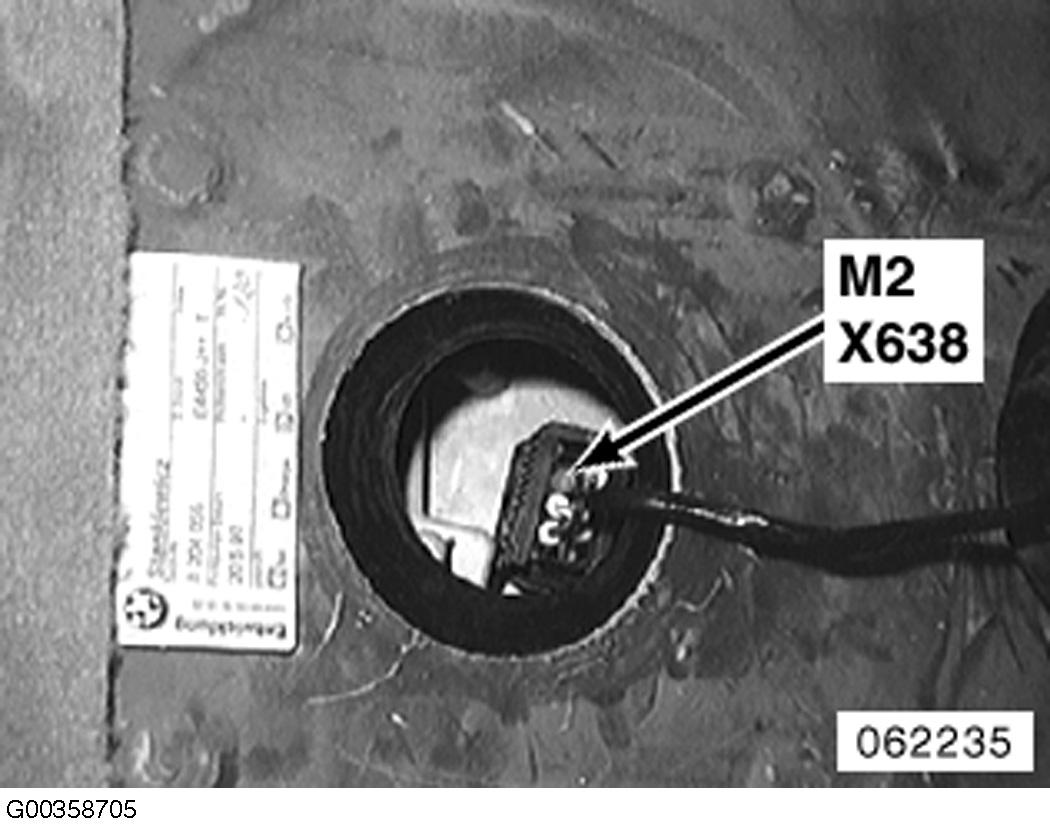

Fig 155: Under Right Side Of Rear Seat

G00358705

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 156: Left Rear Of Engine Compartment

G00358706

Courtesy of BMW OF NORTH AMERICA, INC.

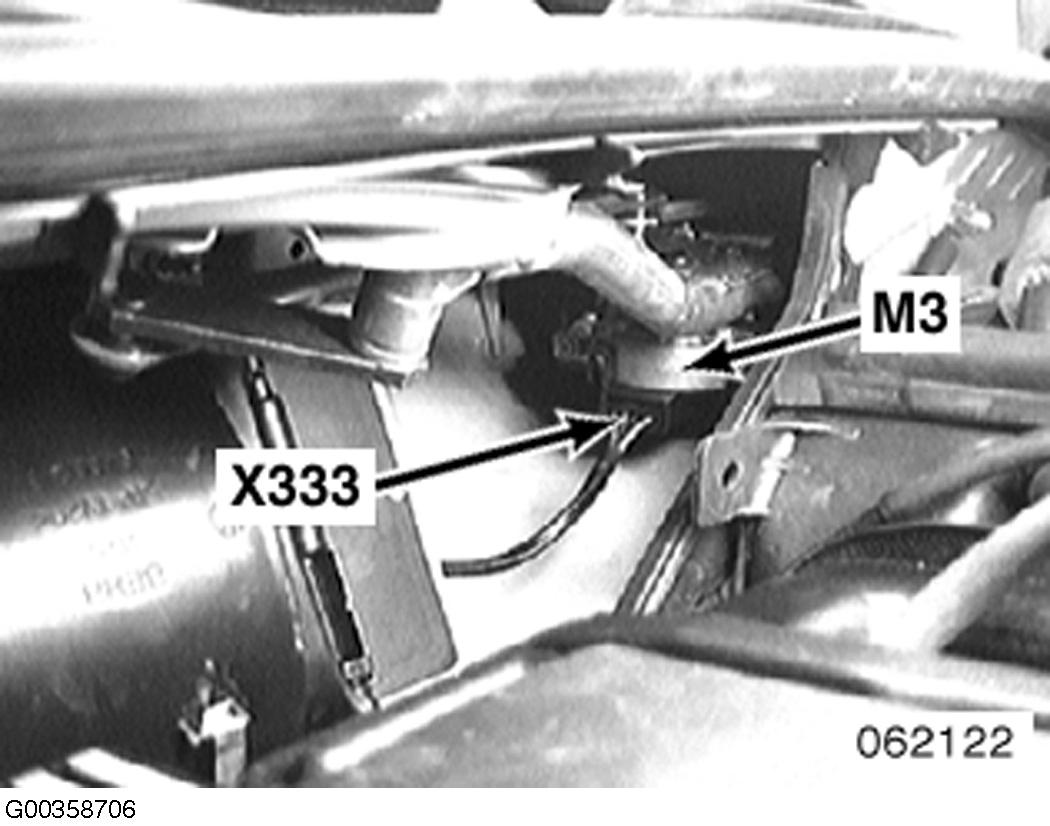

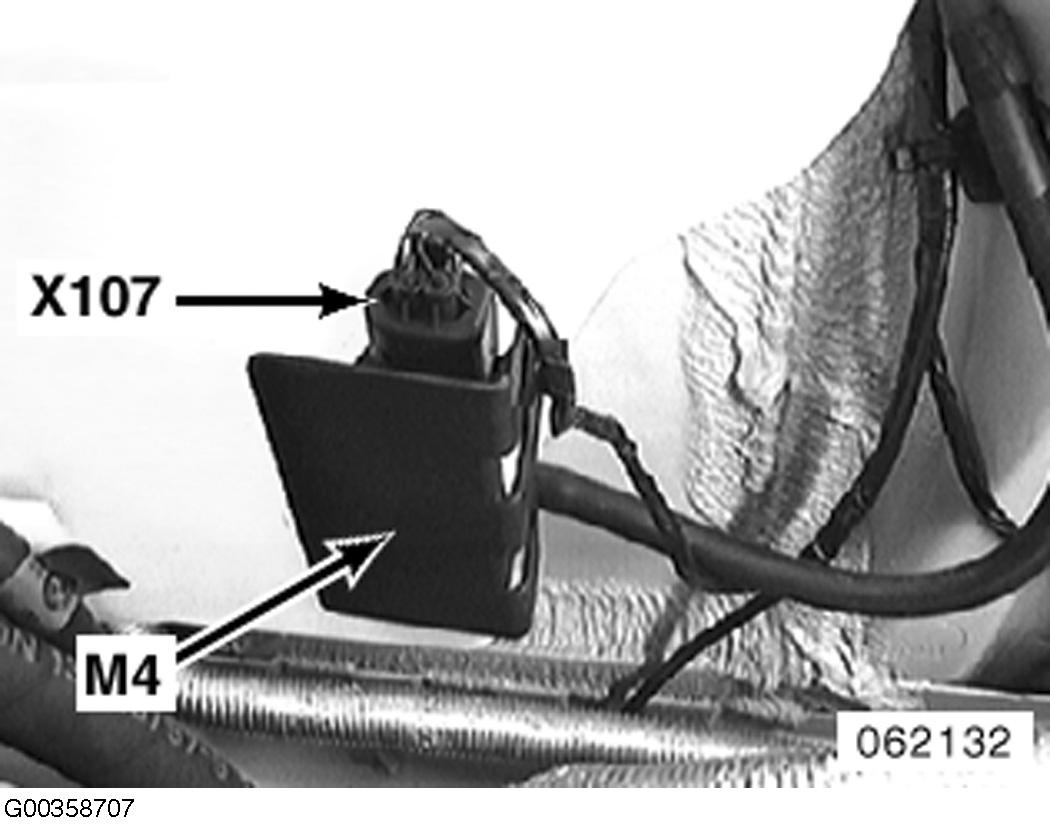

Fig 157: Right Front Of Engine Compartment

G00358707

Courtesy of BMW OF NORTH AMERICA, INC.

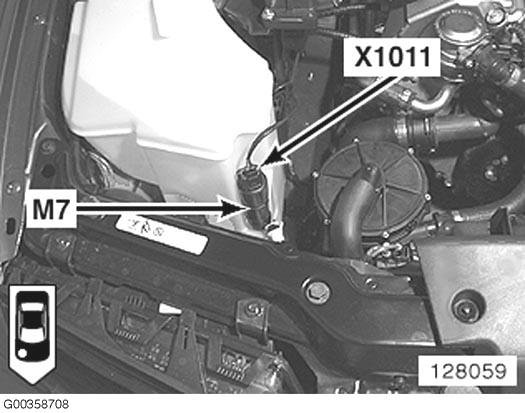

Fig 158: Right Front Of Engine Compartment

G00358708

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 159: Front Of Engine Compartment

G00358709

Courtesy of BMW OF NORTH AMERICA, INC.

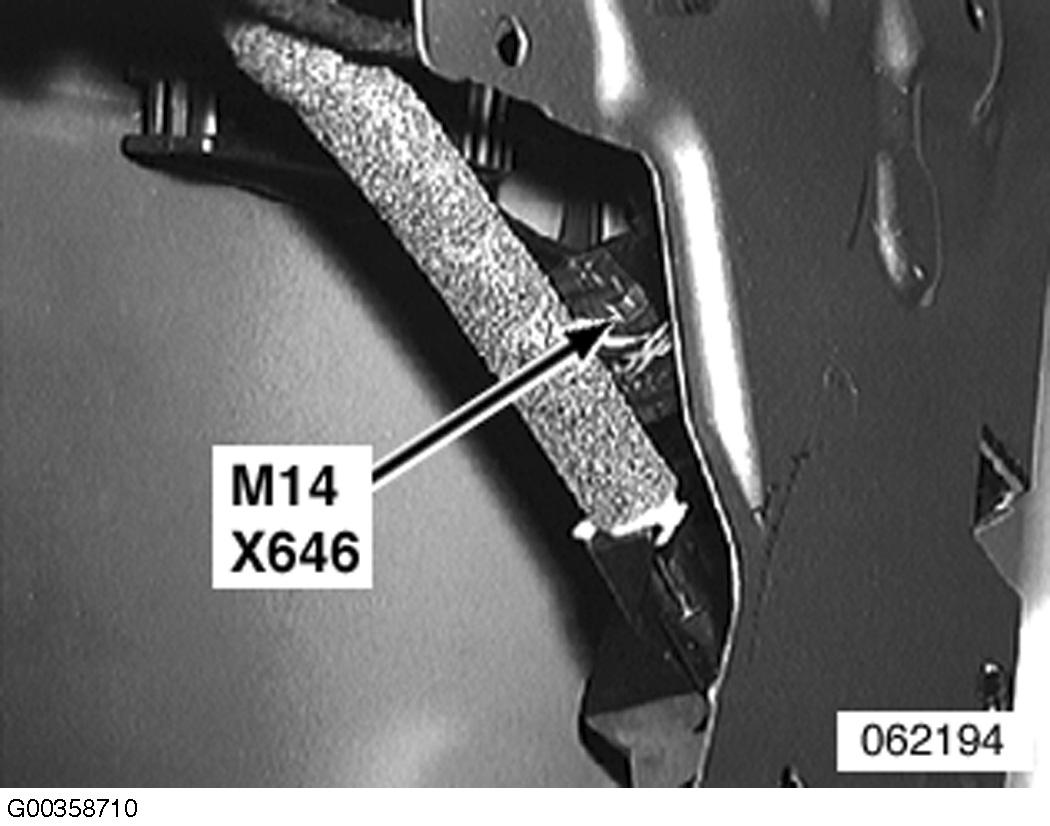

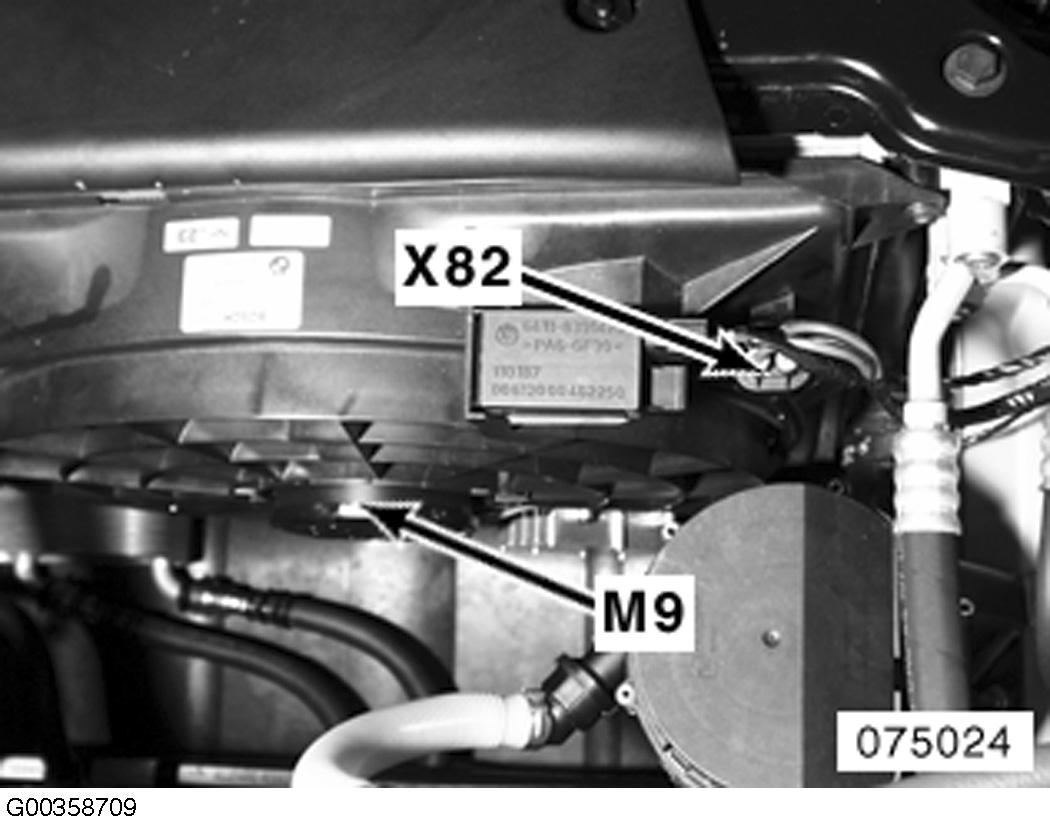

Fig 160: Right Rear Door

G00358710

Courtesy of BMW OF NORTH AMERICA, INC.

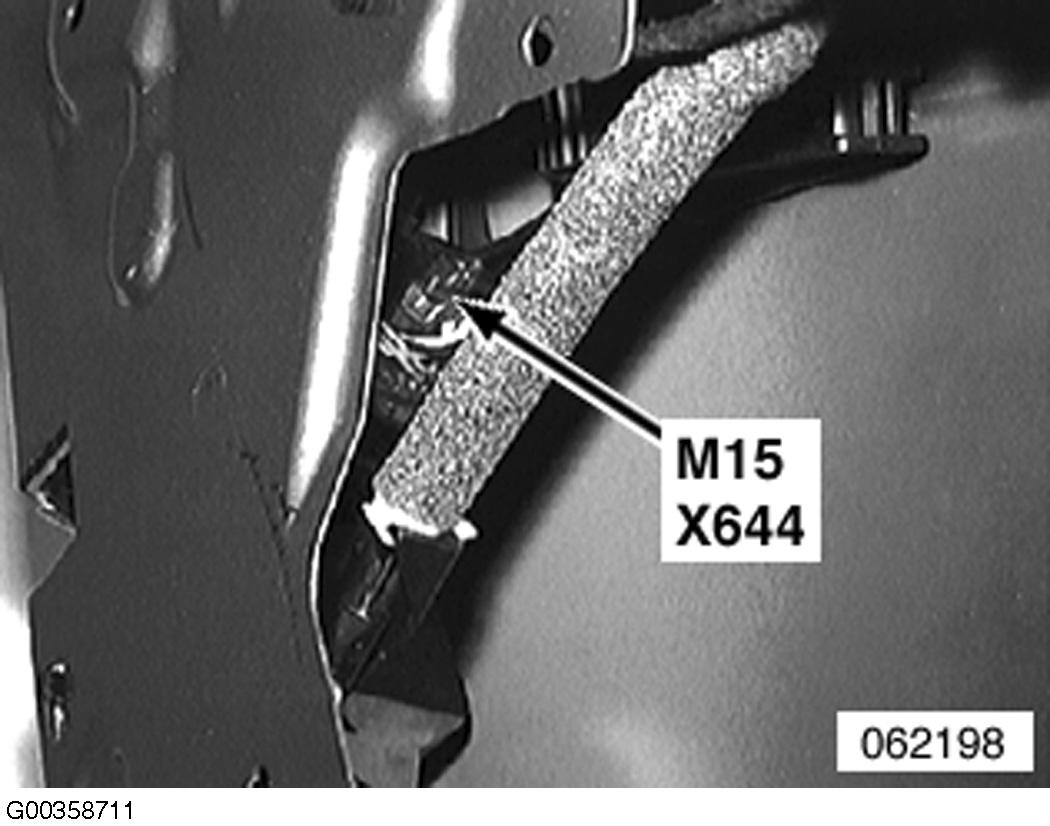

Fig 161: Left Rear Door

G00358711

Courtesy of BMW OF NORTH AMERICA, INC.

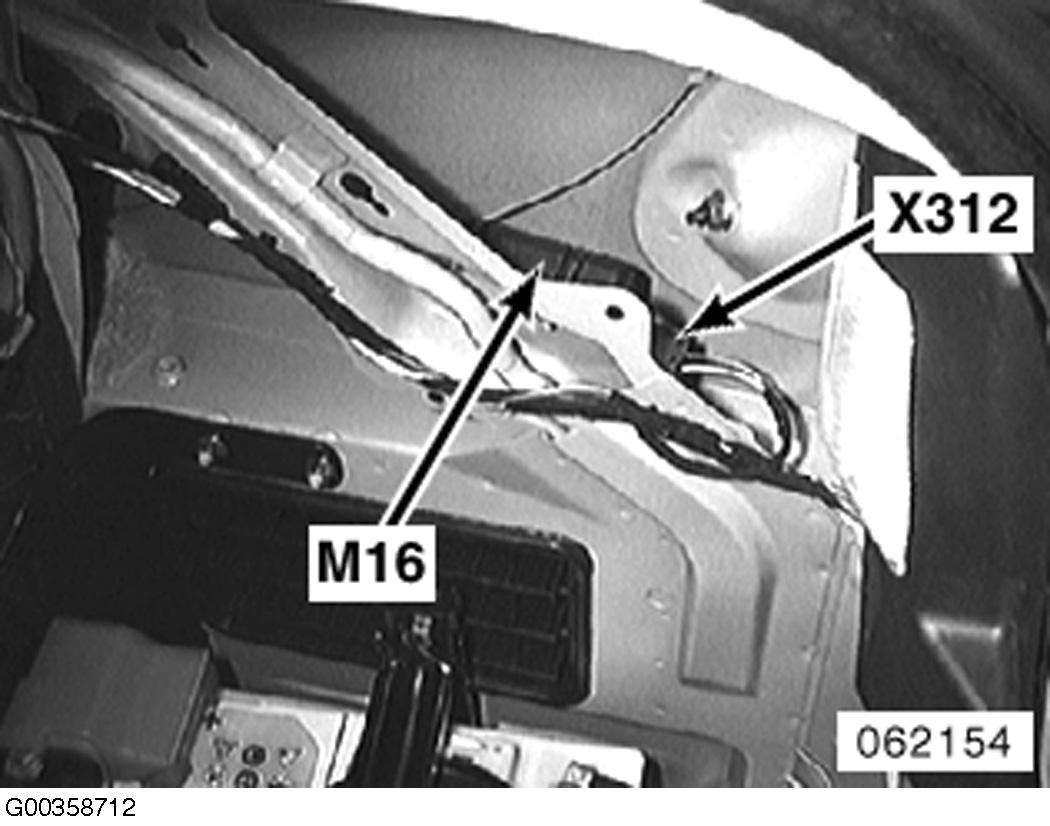

Fig 162: Right Side Of Luggage Compartment

G00358712

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 163: Right Side Of Luggage Compartment

G00358713

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 164: Rear Of Luggage Compartment

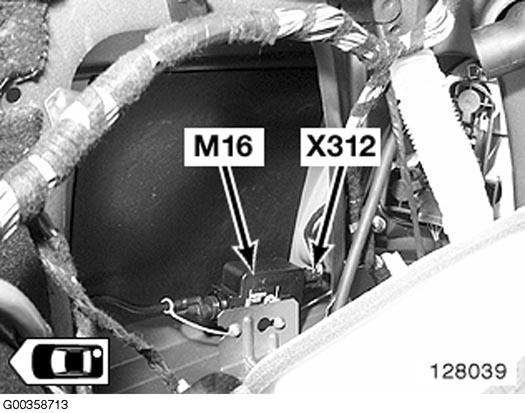

G00358714

Courtesy of BMW OF NORTH AMERICA, INC.

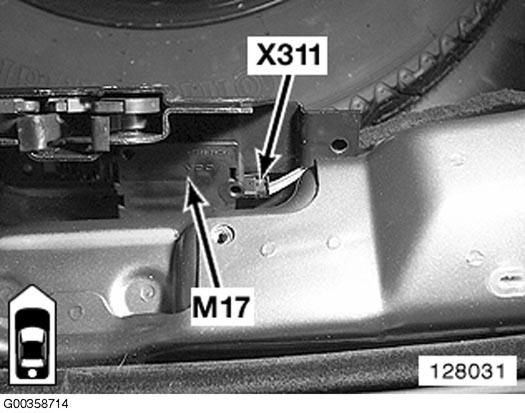

Fig 165: Left Rear Door

G00358715

Courtesy of BMW OF NORTH AMERICA, INC.

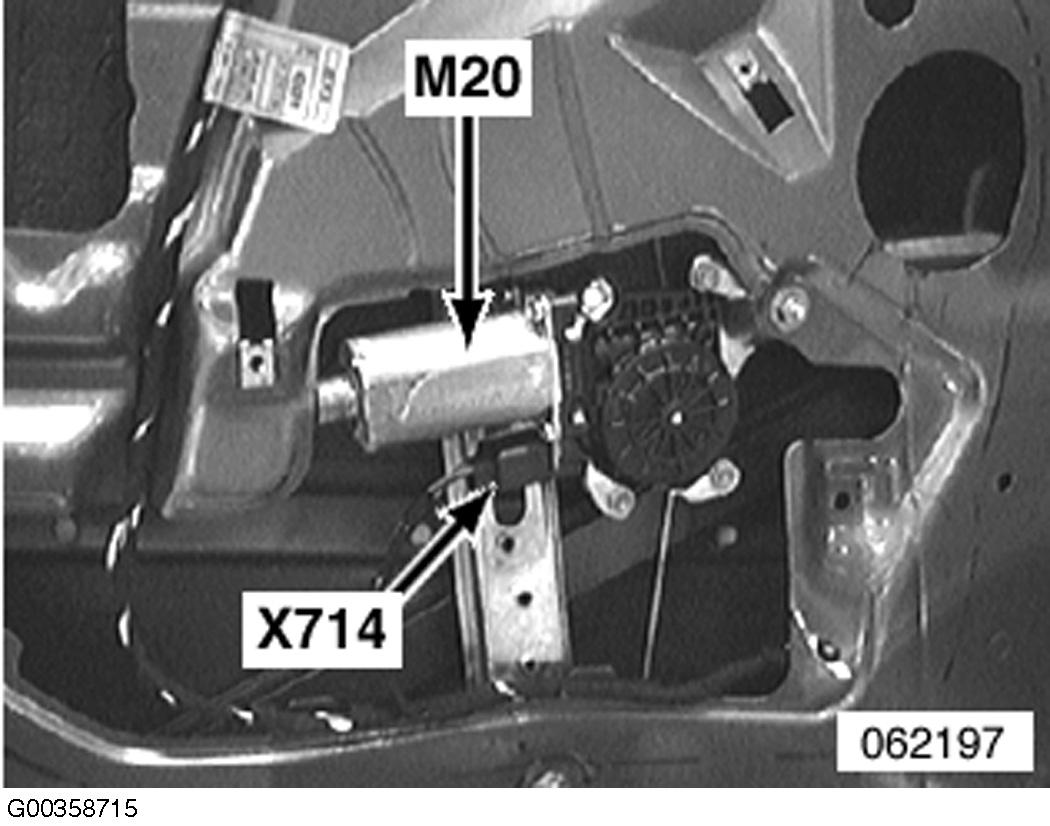

Fig 166: Driver's Door

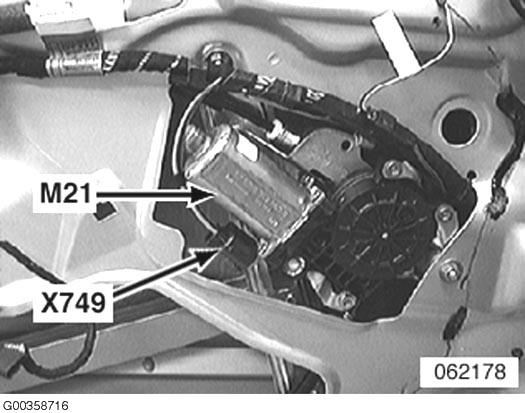

G00358716

Courtesy of BMW OF NORTH AMERICA, INC.

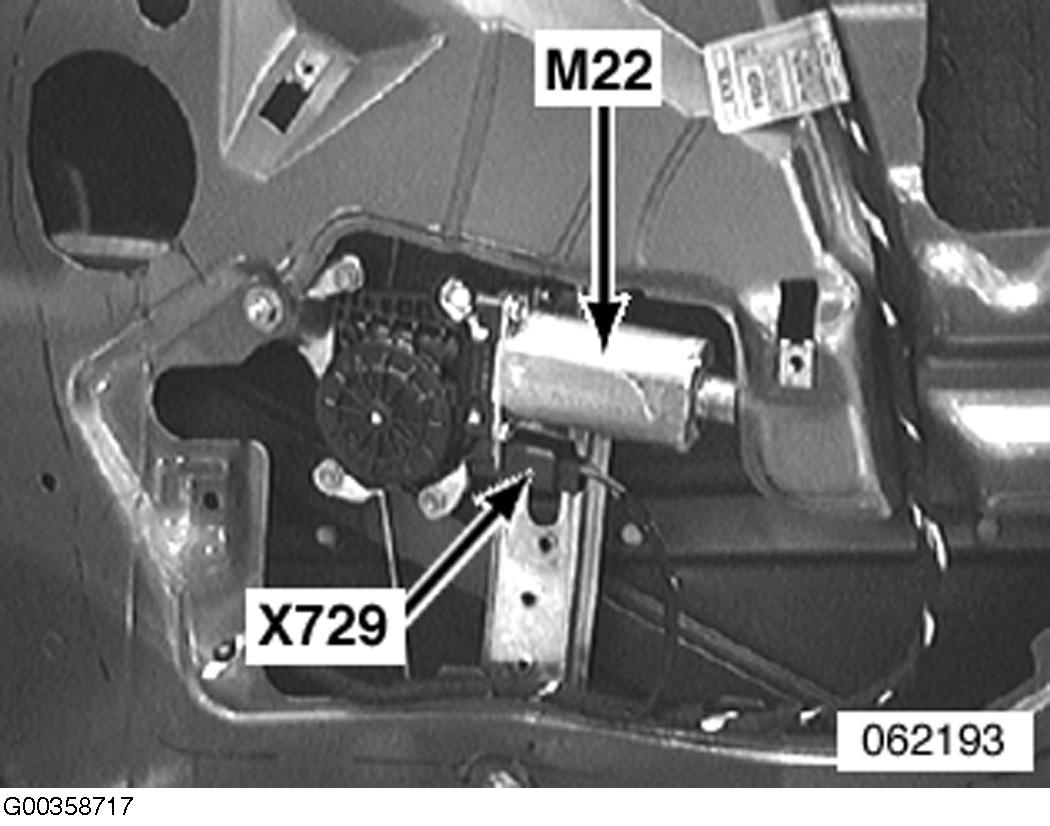

Fig 167: Right Rear Door

G00358717

Courtesy of BMW OF NORTH AMERICA, INC.

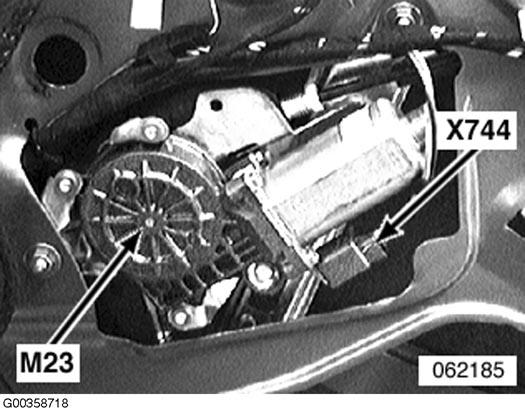

Fig 168: Passenger's Door

G00358718

Courtesy of BMW OF NORTH AMERICA, INC.

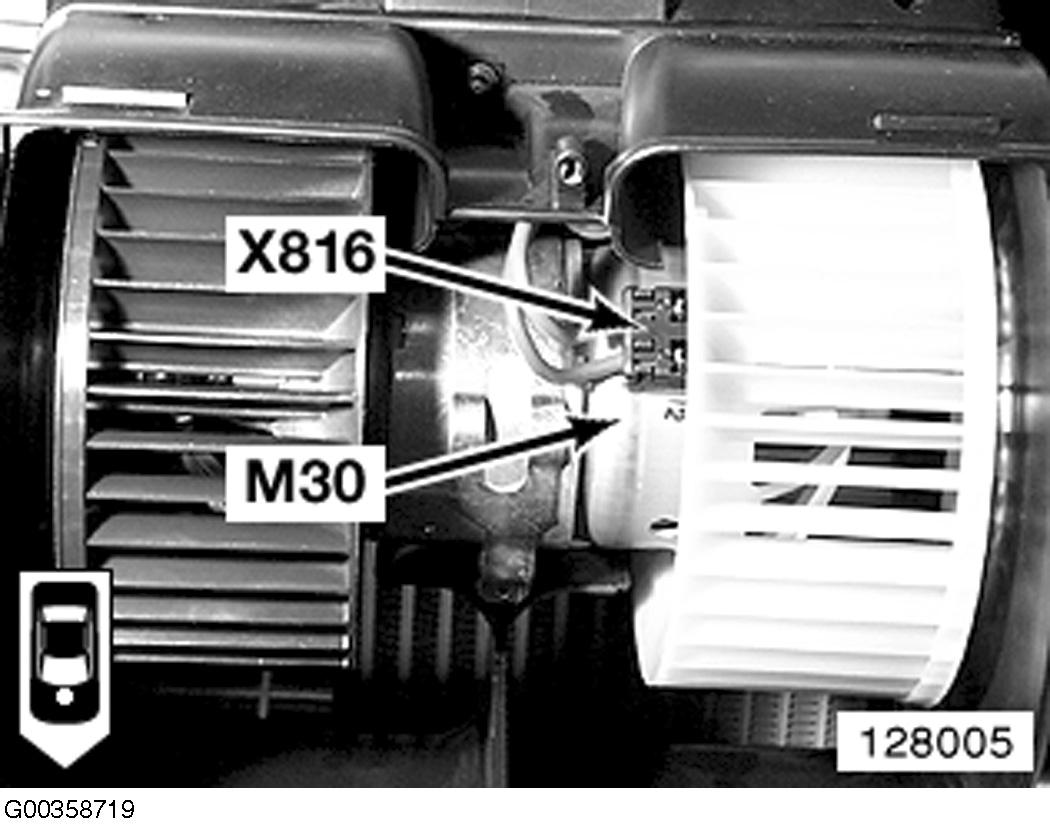

Fig 169: Air Conditioning Unit

G00358719

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 170: Left Side Of Right Footwell

G00358720

Courtesy of BMW OF NORTH AMERICA, INC.

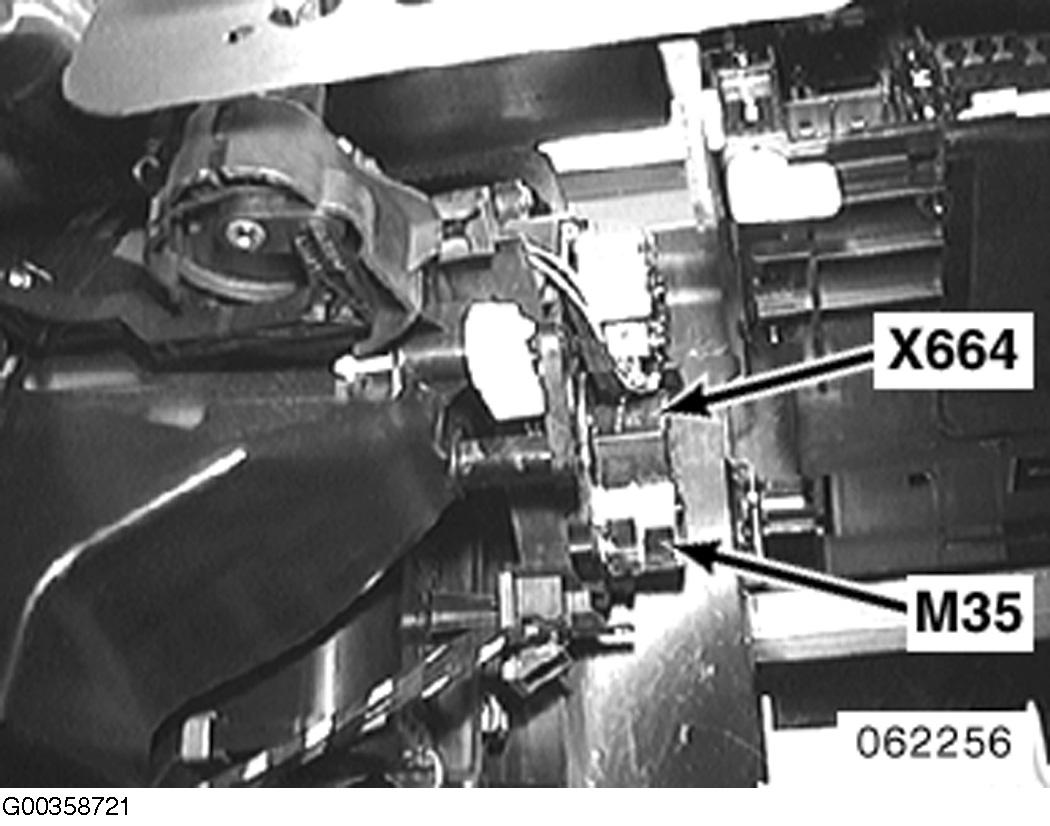

Fig 171: Left Side Of Right Footwell

G00358721

Courtesy of BMW OF NORTH AMERICA, INC.

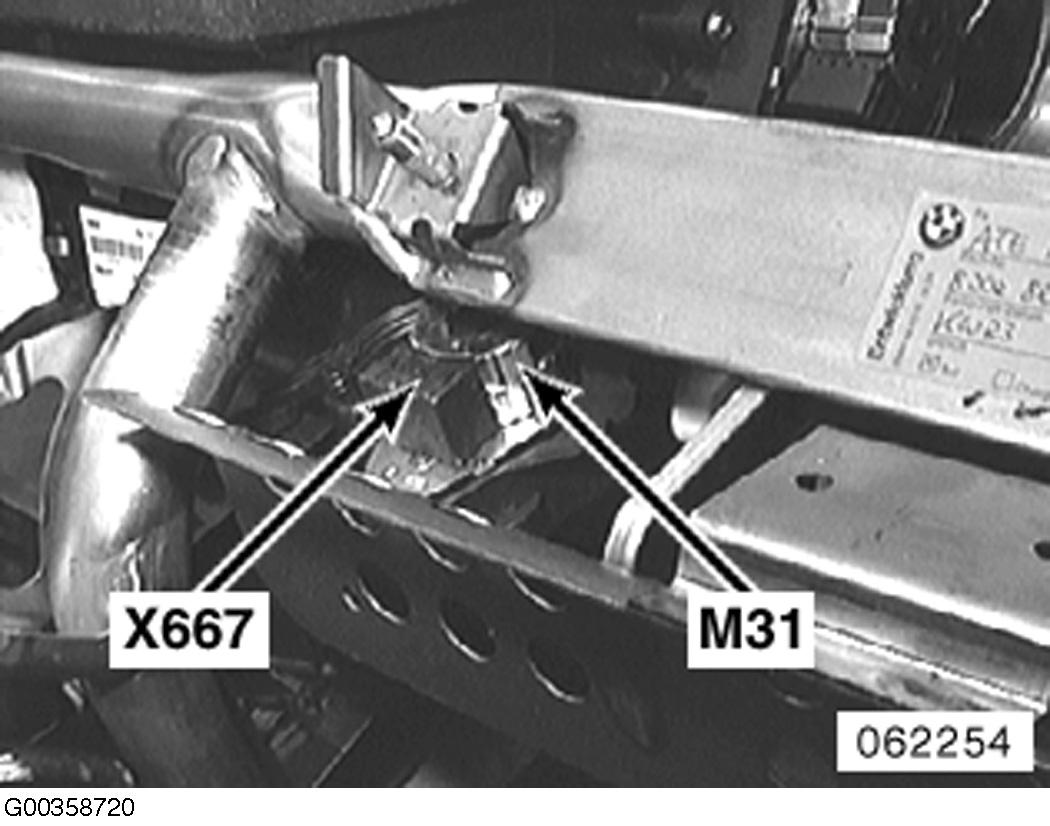

Fig 172: Left Side Of Right Footwell

G00358722

Courtesy of BMW OF NORTH AMERICA, INC.

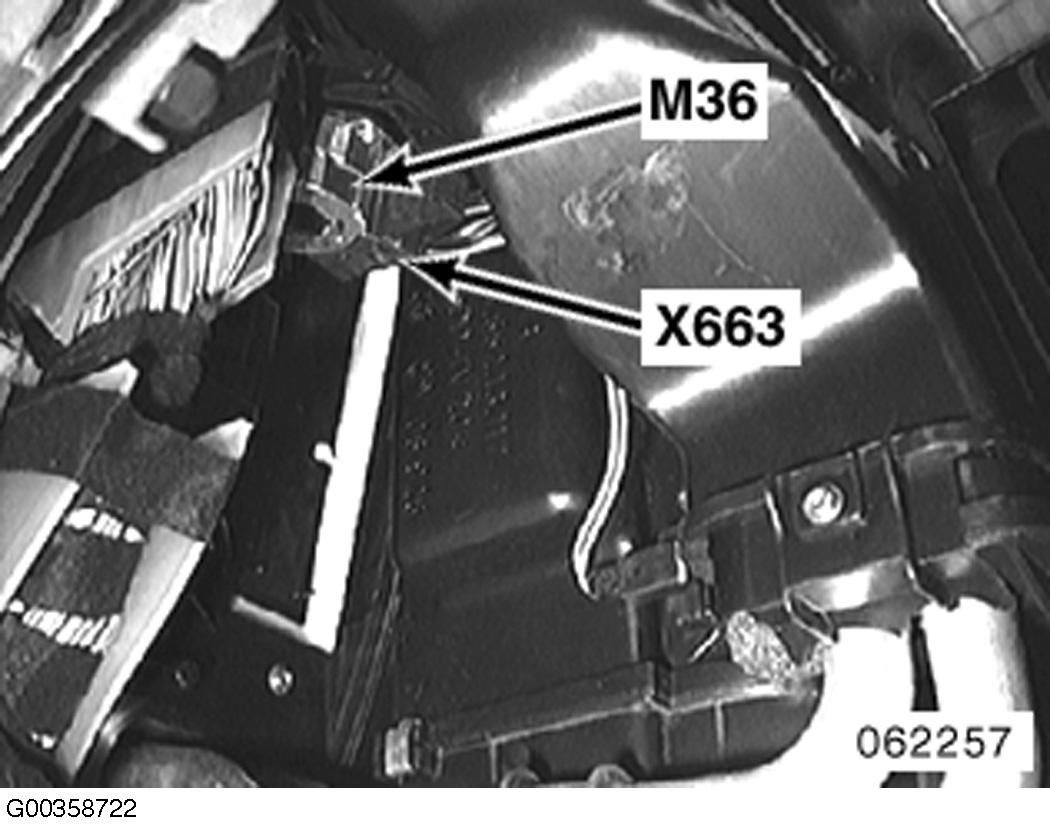

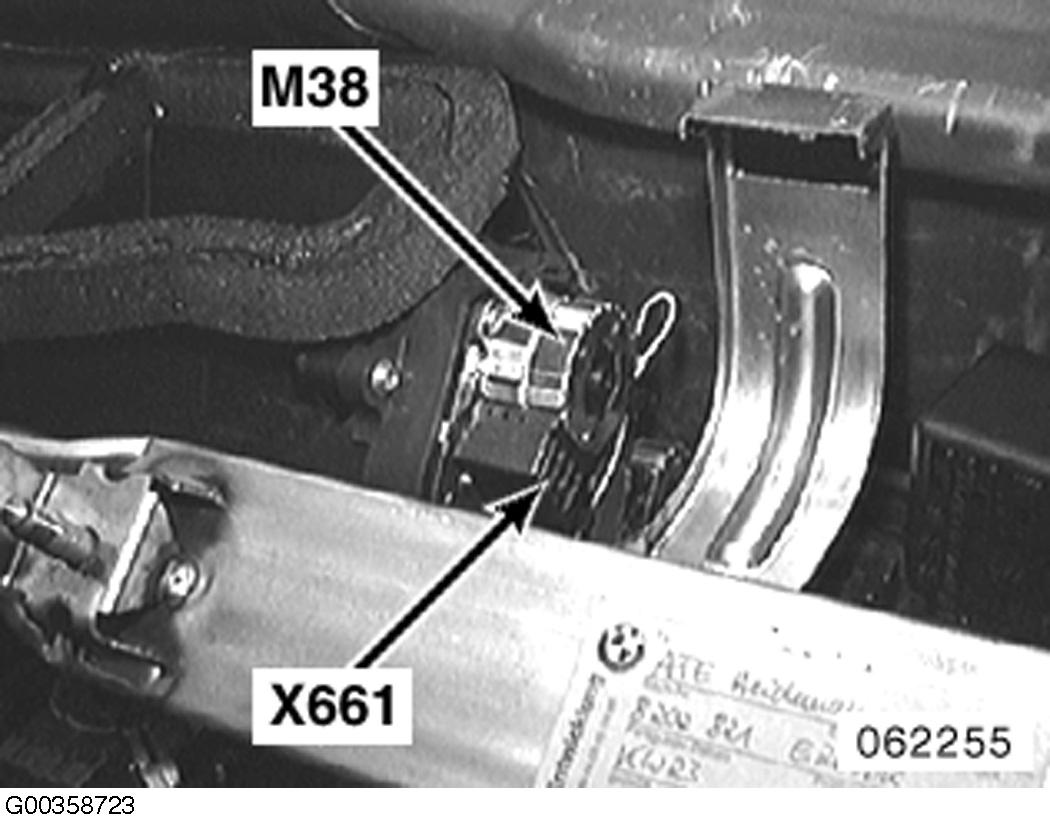

Fig 173: Left Side Of Right Footwell

G00358723

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 174: Left Side Of Right Footwell

G00358724

Courtesy of BMW OF NORTH AMERICA, INC.

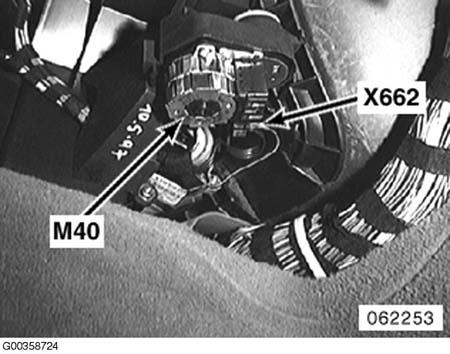

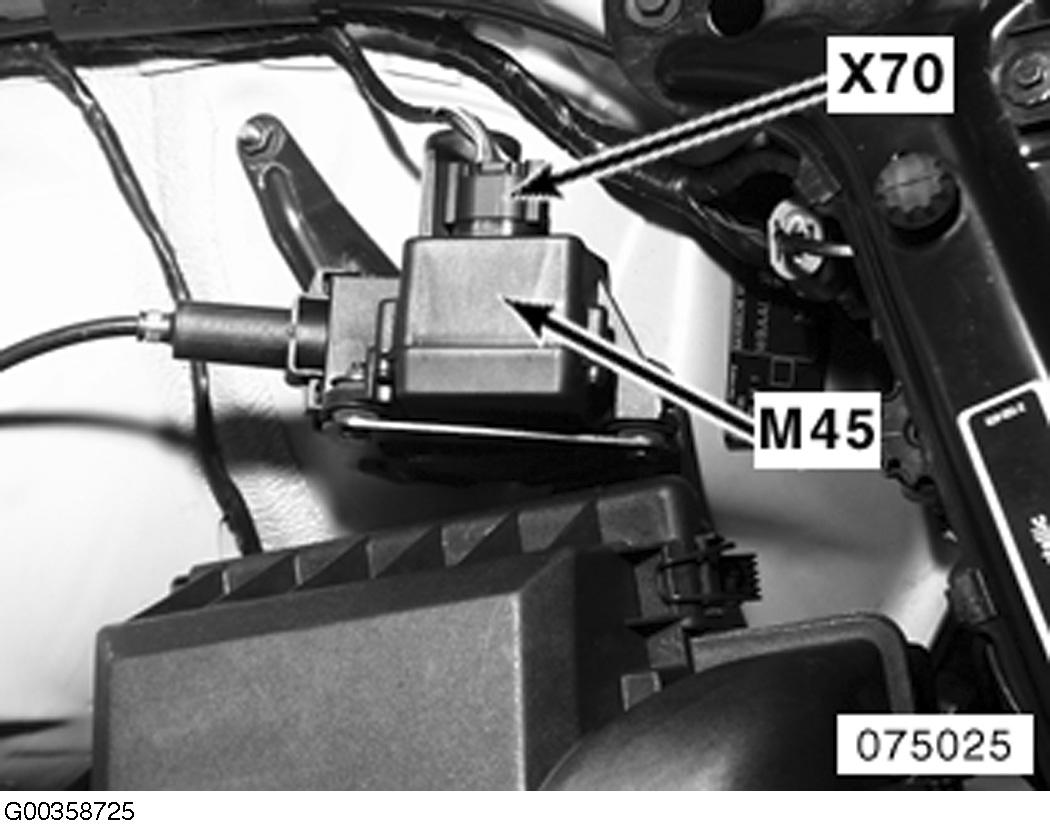

Fig 175: Left Side Of Engine Compartment

G00358725

Courtesy of BMW OF NORTH AMERICA, INC.

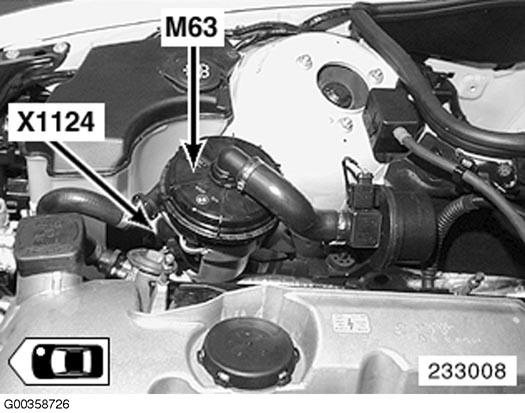

Fig 176: Right Side Of Engine Compartment

G00358726

Courtesy of BMW OF NORTH AMERICA, INC.

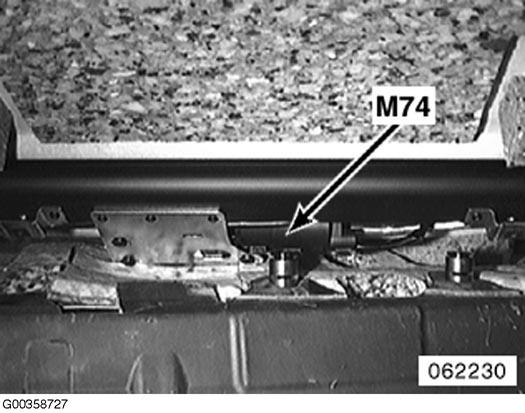

Fig 177: Under Rear Window Shelf

G00358727

Courtesy of BMW OF NORTH AMERICA, INC.

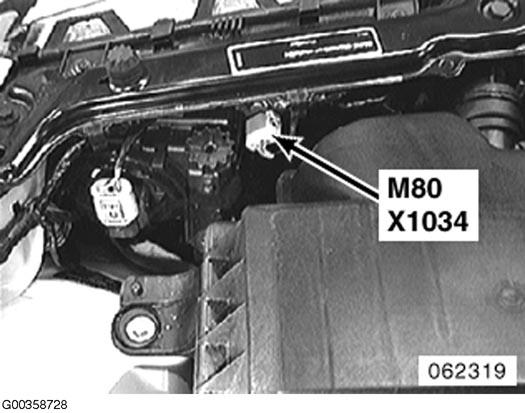

Fig 178: Left Front Of Engine Compartment

G00358728

Courtesy of BMW OF NORTH AMERICA, INC.

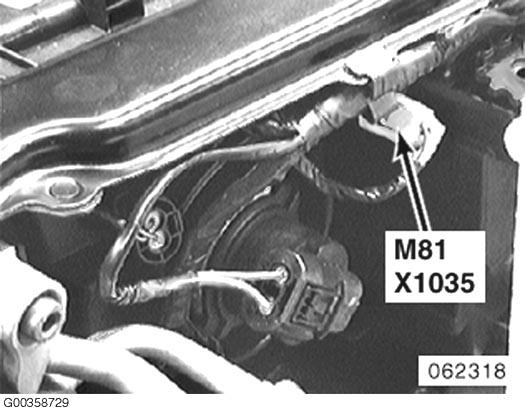

Fig 179: Right Front Of Engine Compartment

G00358729

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 180: Right Rear Of Luggage Compartment

G00358730

Courtesy of BMW OF NORTH AMERICA, INC.

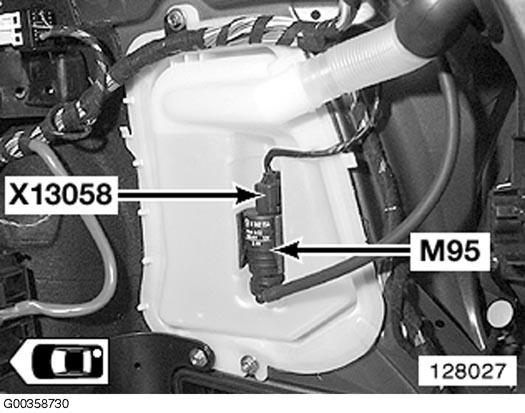

Fig 181: Left Rear Of Passenger Compartment

G00358731

Courtesy of BMW OF NORTH AMERICA, INC.

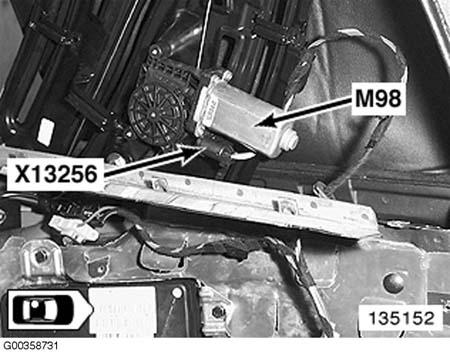

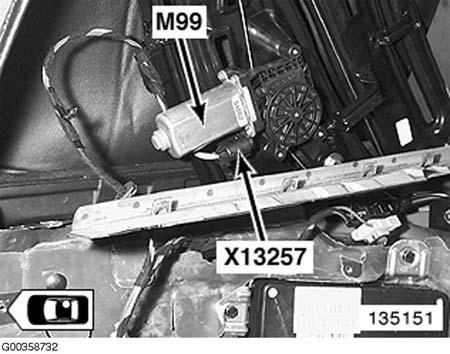

Fig 182: Right Rear Of Passenger Compartment

G00358732

Courtesy of BMW OF NORTH AMERICA, INC.

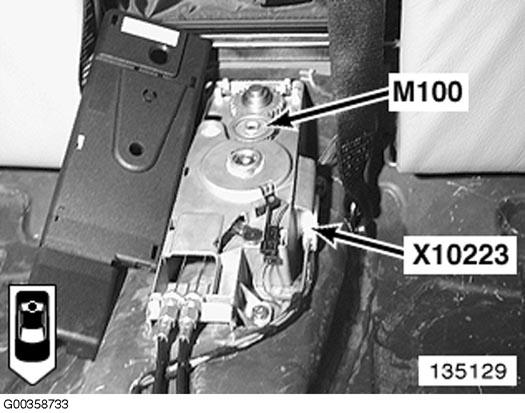

Fig 183: Under Center Of Rear Seat

G00358733

Courtesy of BMW OF NORTH AMERICA, INC.

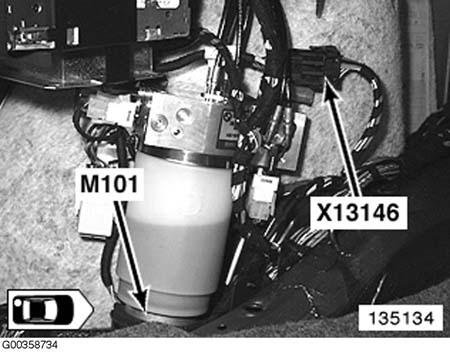

Fig 184: Left Rear Of Luggage Compartment

G00358734

Courtesy of BMW OF NORTH AMERICA, INC.

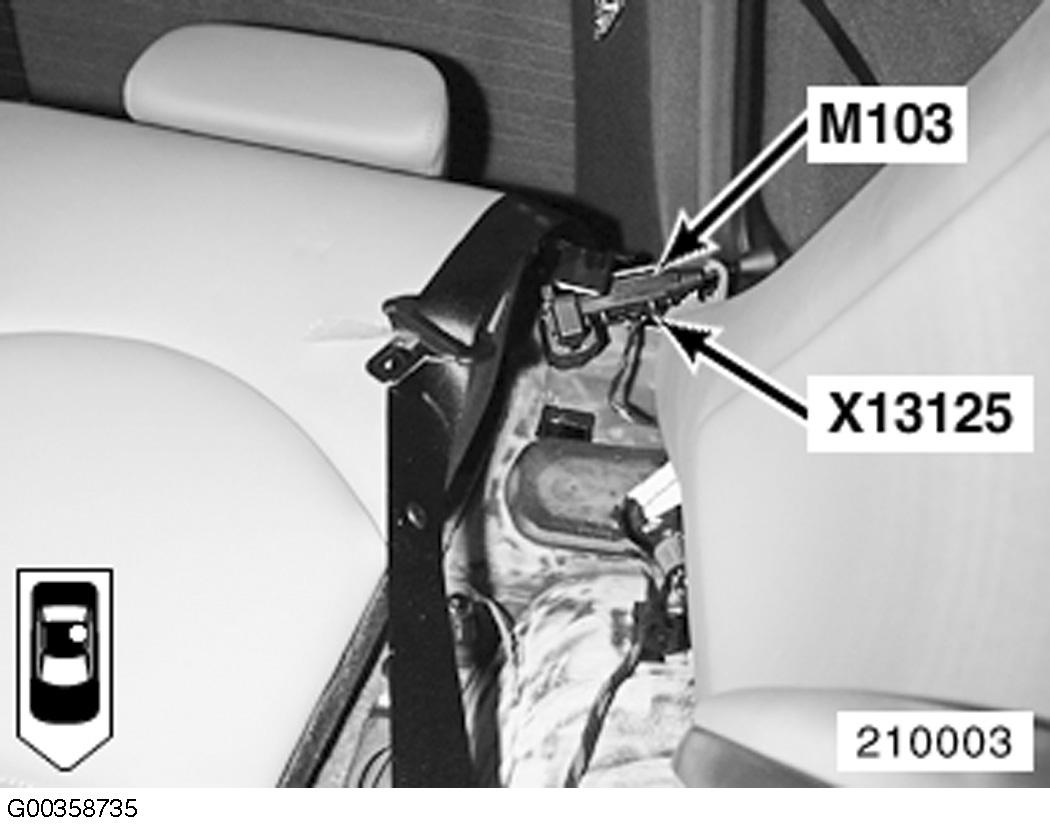

Fig 185: Left "C" Pillar

G00358735

Courtesy of BMW OF NORTH AMERICA, INC.

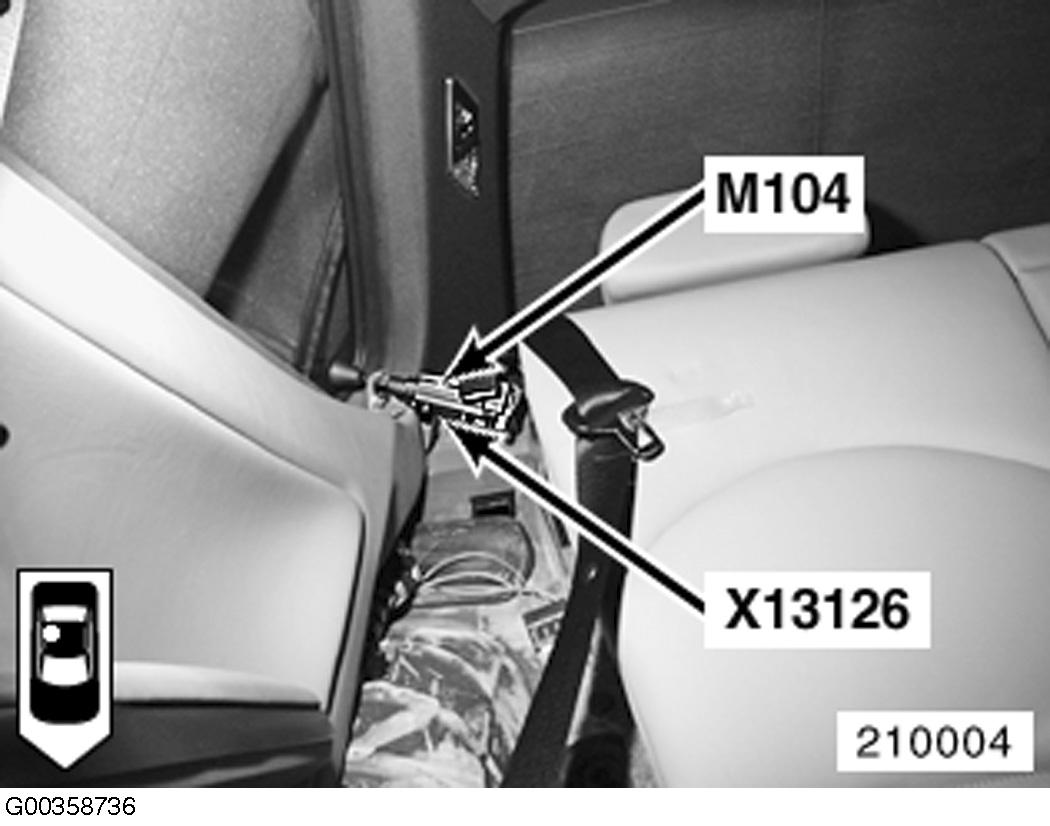

Fig 186: Right "C" Pillar

G00358736

Courtesy of BMW OF NORTH AMERICA, INC.

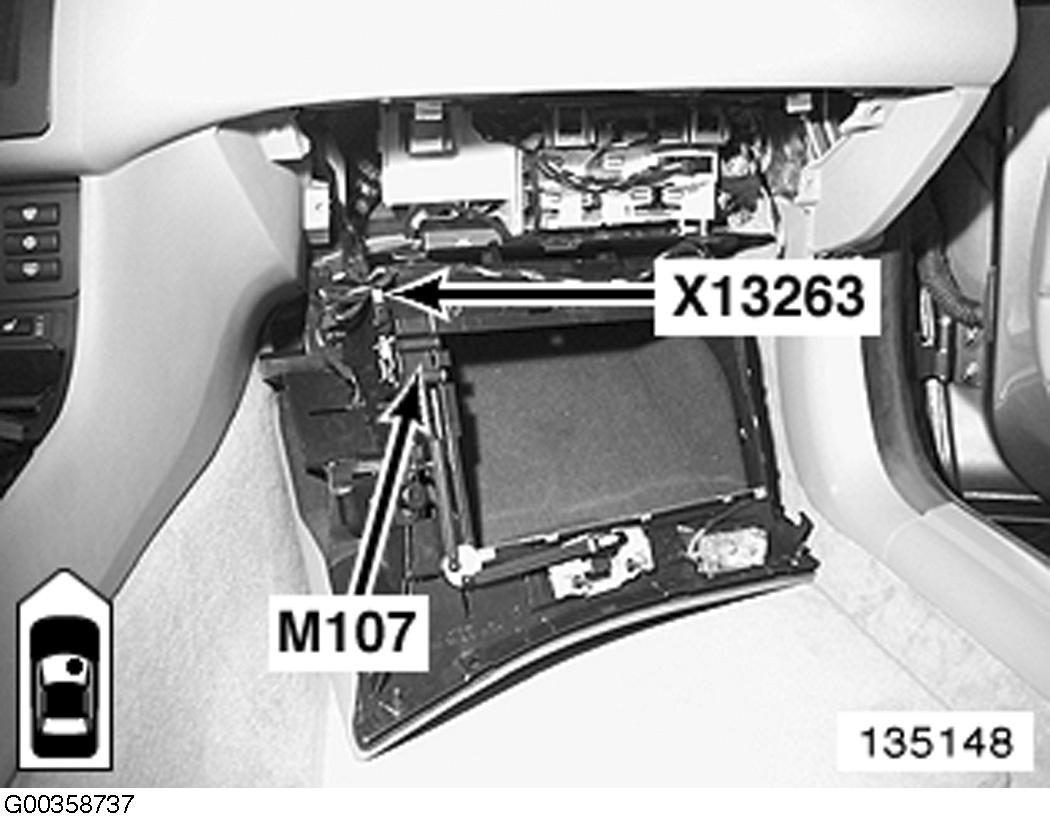

Fig 187: Inside Glove Box

G00358737

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 188: Lower Left Rear Of Engine Compartment

G00358738

Courtesy of BMW OF NORTH AMERICA, INC.

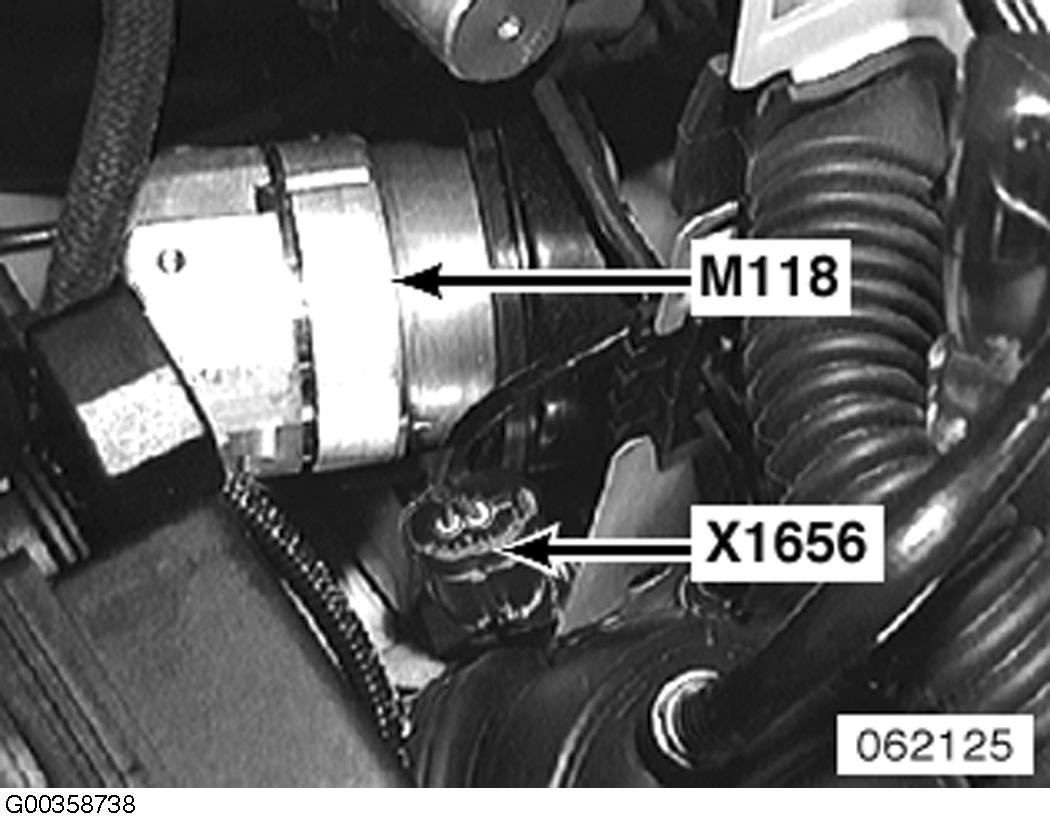

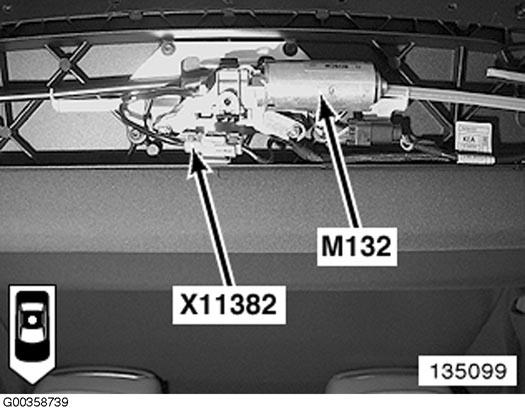

Fig 189: Convertible Top

G00358739

Courtesy of BMW OF NORTH AMERICA, INC.

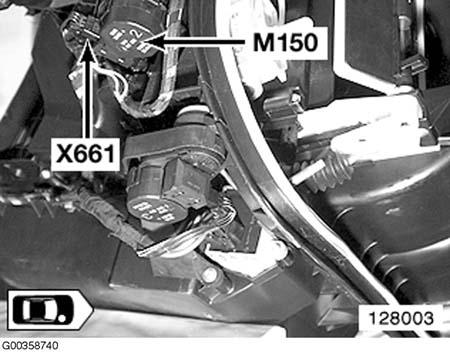

Fig 190: Air Conditioning Unit

G00358740

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 191: Left Rear Of Engine Compartment

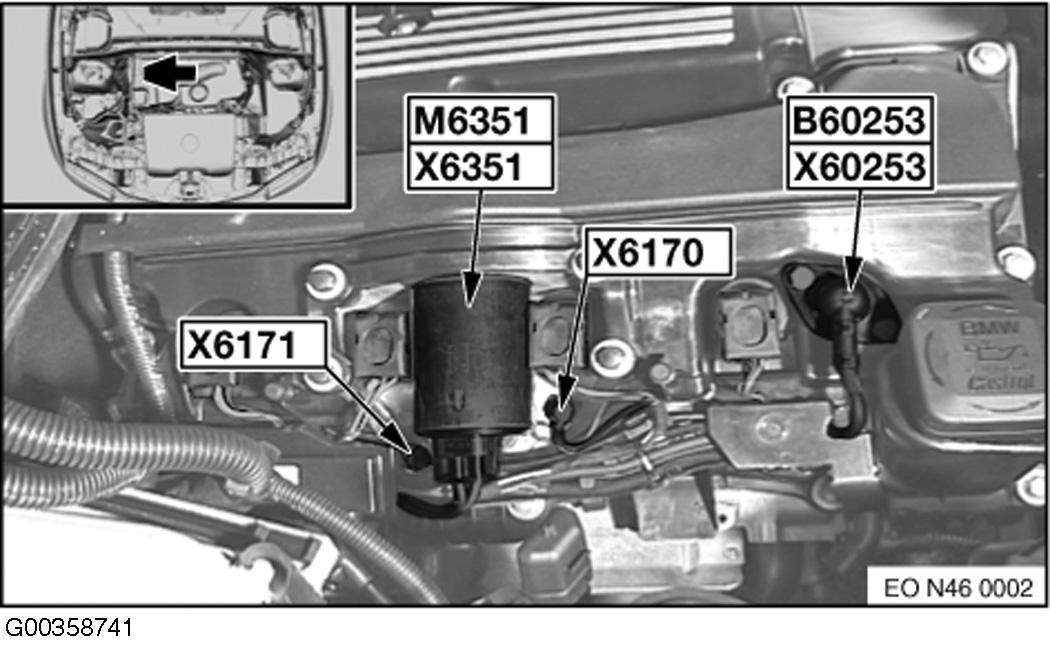

G00358741

Courtesy of BMW OF NORTH AMERICA, INC.

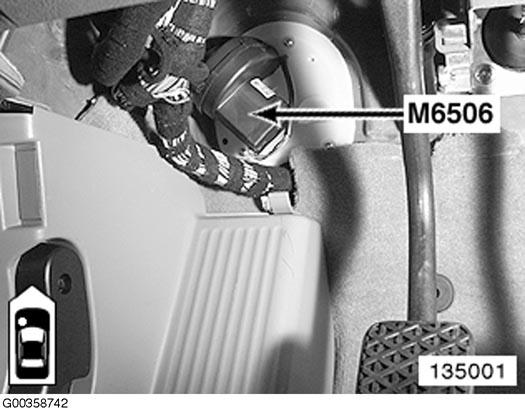

Fig 192: Left Side Of Left Front Footwell

G00358742

Courtesy of BMW OF NORTH AMERICA, INC.

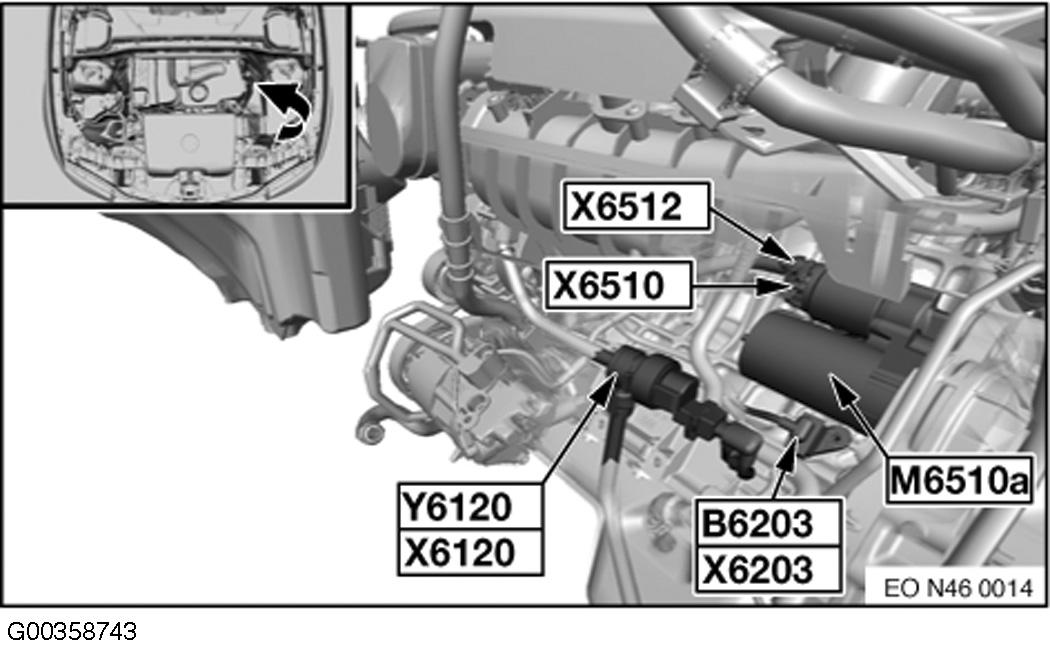

Fig 193: Left Side Of Engine

G00358743

Courtesy of BMW OF NORTH AMERICA, INC.

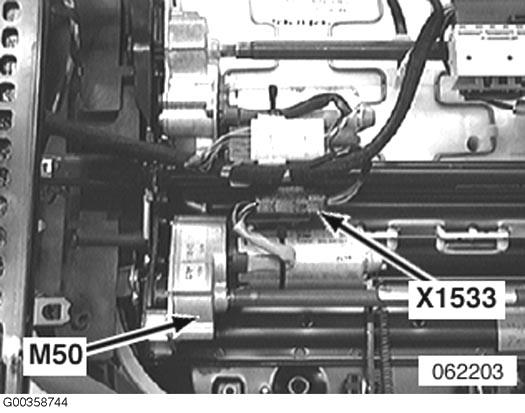

Fig 194: Under Driver's Seat

G00358744

Courtesy of BMW OF NORTH AMERICA, INC.

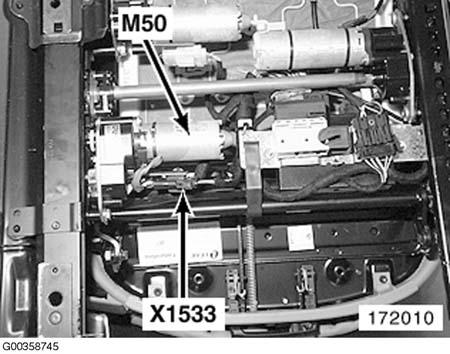

Fig 195: Under Driver's Seat

G00358745

Courtesy of BMW OF NORTH AMERICA, INC.

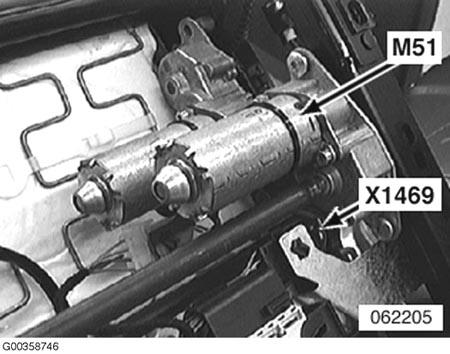

Fig 196: Under Driver's Seat

G00358746

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 197: Under Driver's Seat

G00358747

Courtesy of BMW OF NORTH AMERICA, INC.

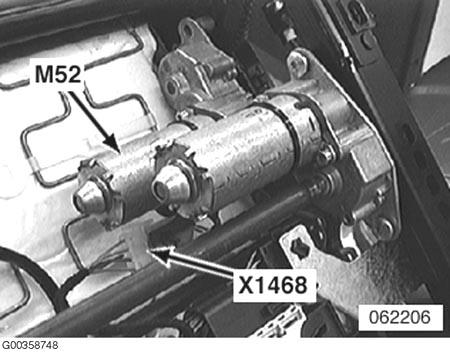

Fig 198: Under Driver's Seat

G00358748

Courtesy of BMW OF NORTH AMERICA, INC.

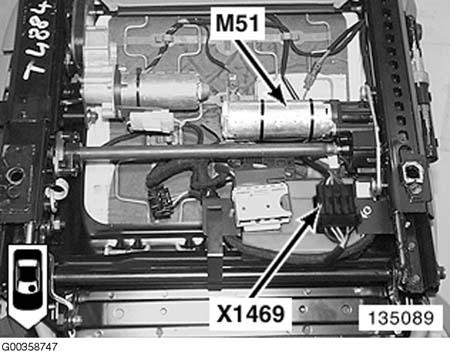

Fig 199: Under Driver's Seat

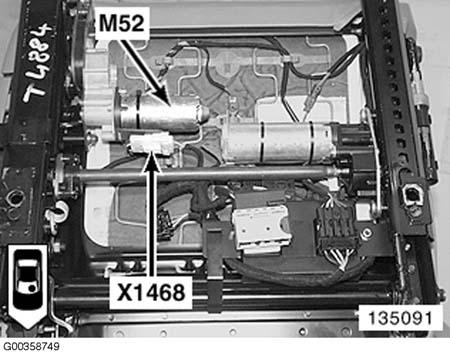

G00358749

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 200: Under Driver's Seat

G00358750

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 201: Driver's Backrest

G00358751

Courtesy of BMW OF NORTH AMERICA, INC.

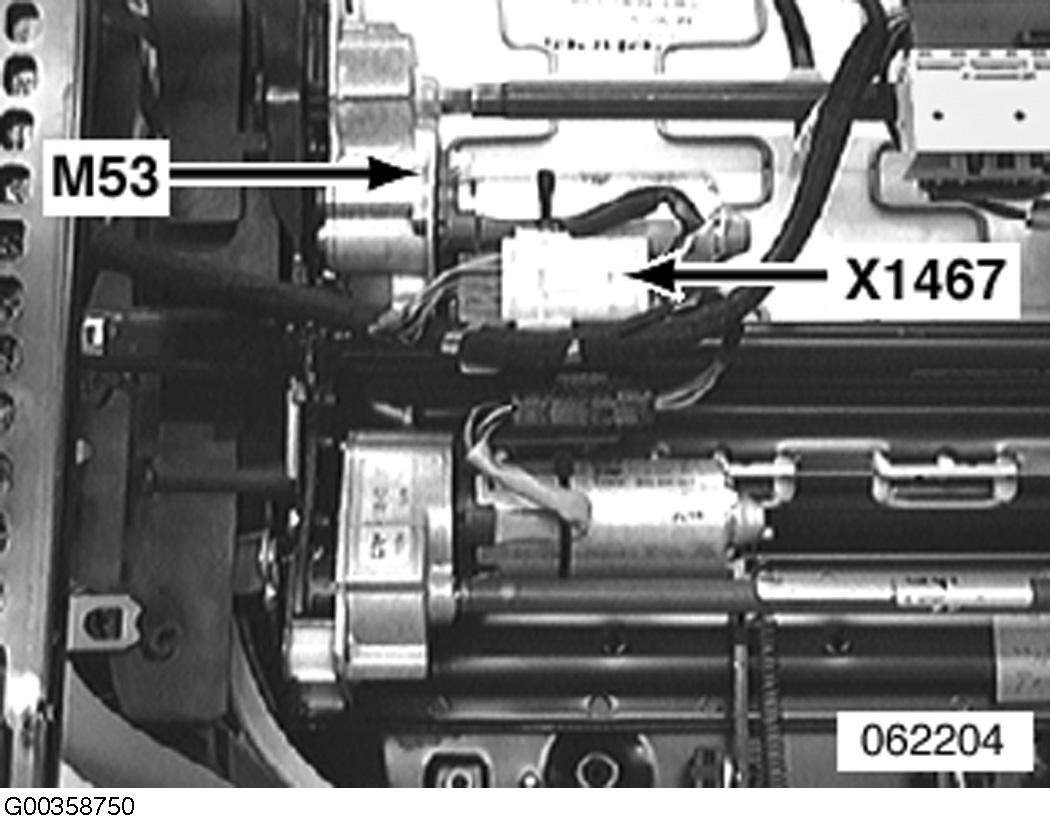

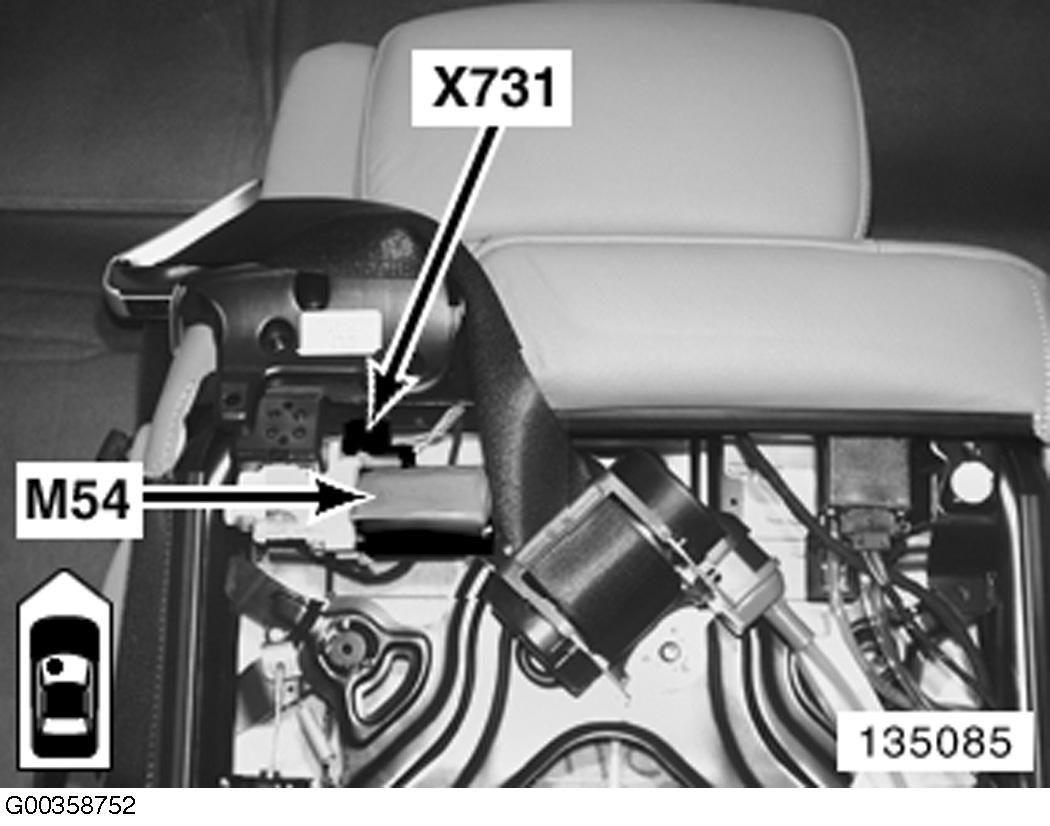

Fig 202: Driver's Backrest

G00358752

Courtesy of BMW OF NORTH AMERICA, INC.

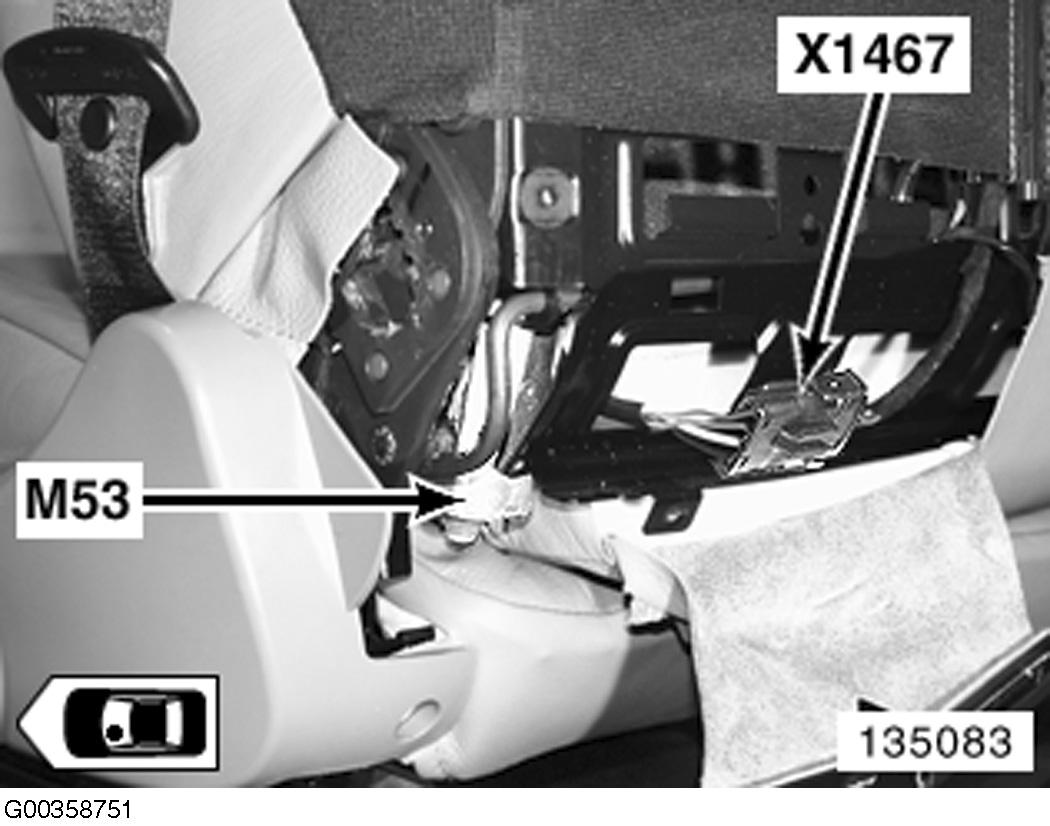

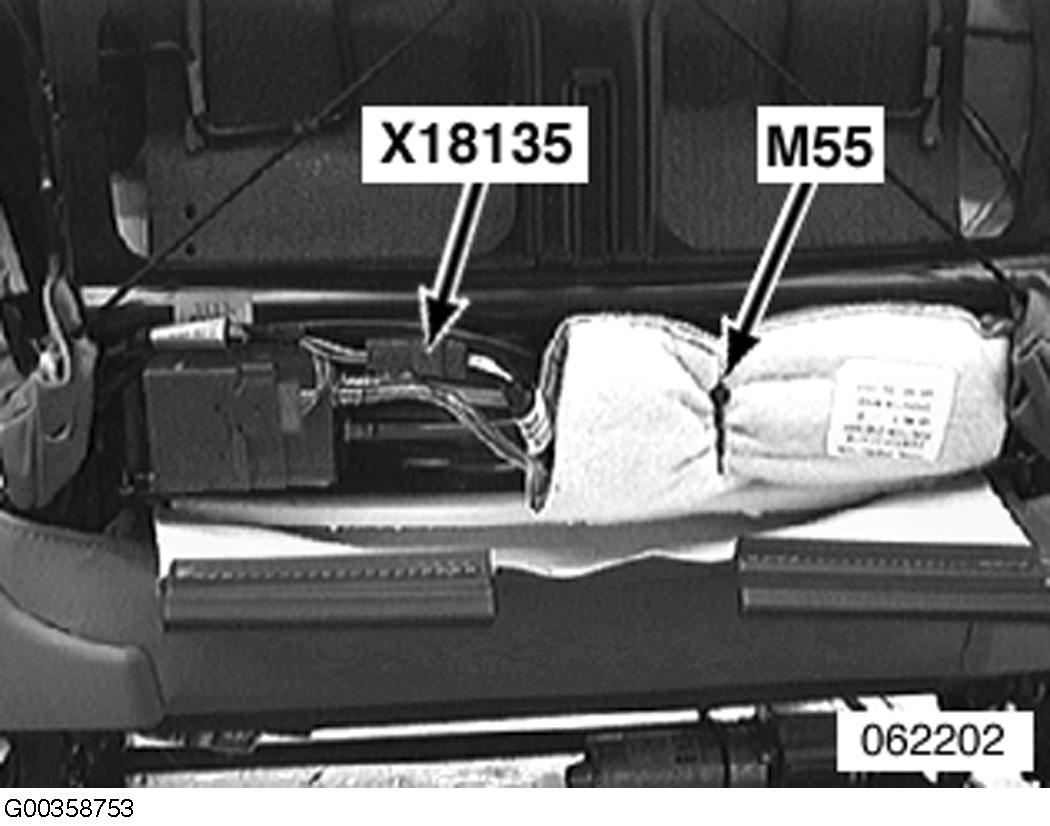

Fig 203: Driver's Backrest

G00358753

Courtesy of BMW OF NORTH AMERICA, INC.

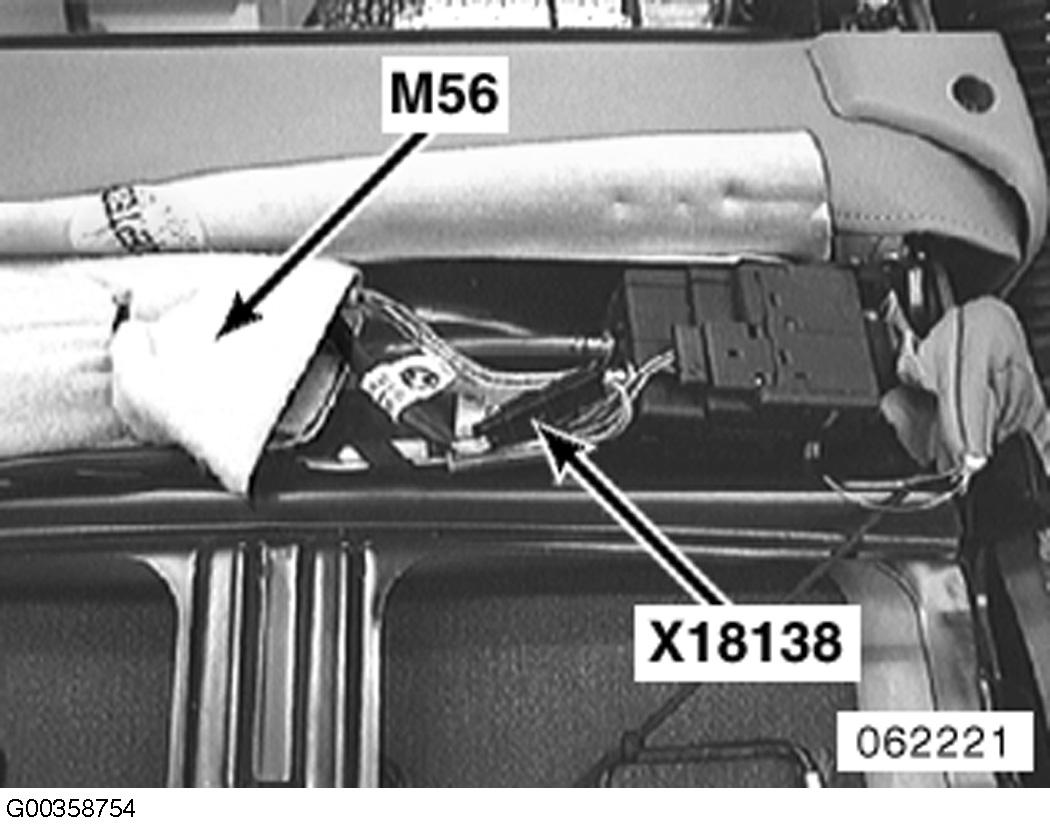

Fig 204: Passenger's Backrest

G00358754

Courtesy of BMW OF NORTH AMERICA, INC.

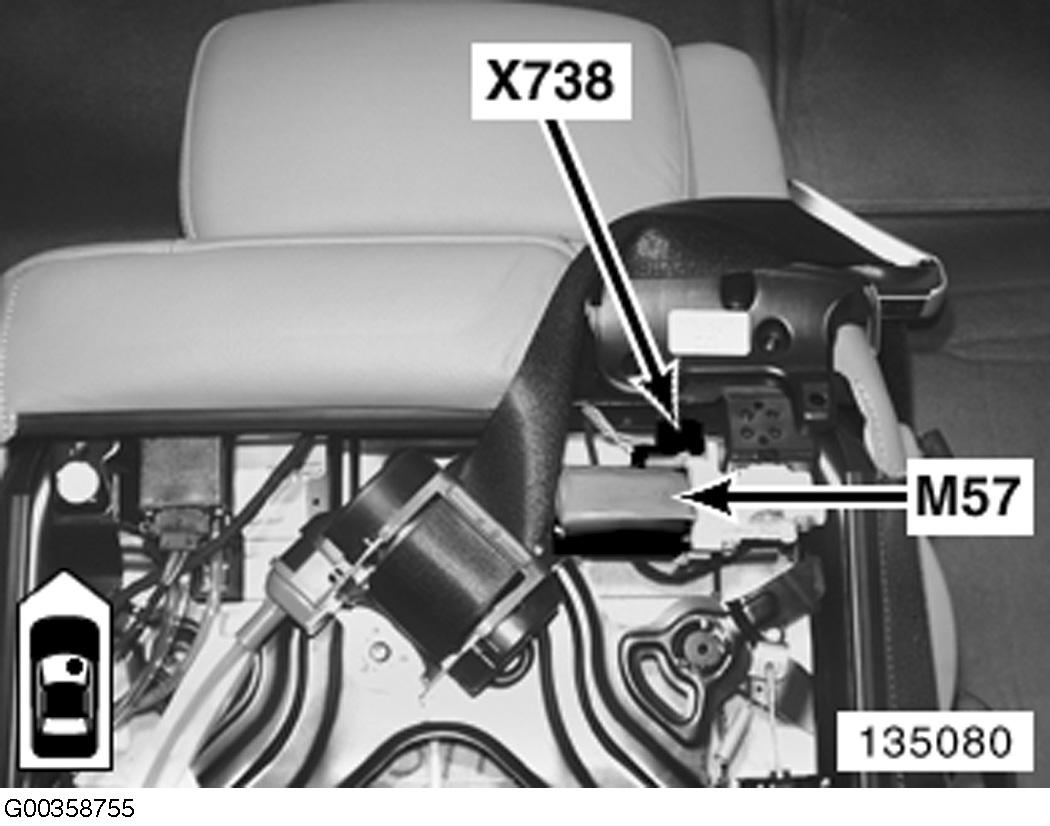

Fig 205: Passenger's Backrest

G00358755

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 206: Passenger's Backrest

G00358757

Courtesy of BMW OF NORTH AMERICA, INC.

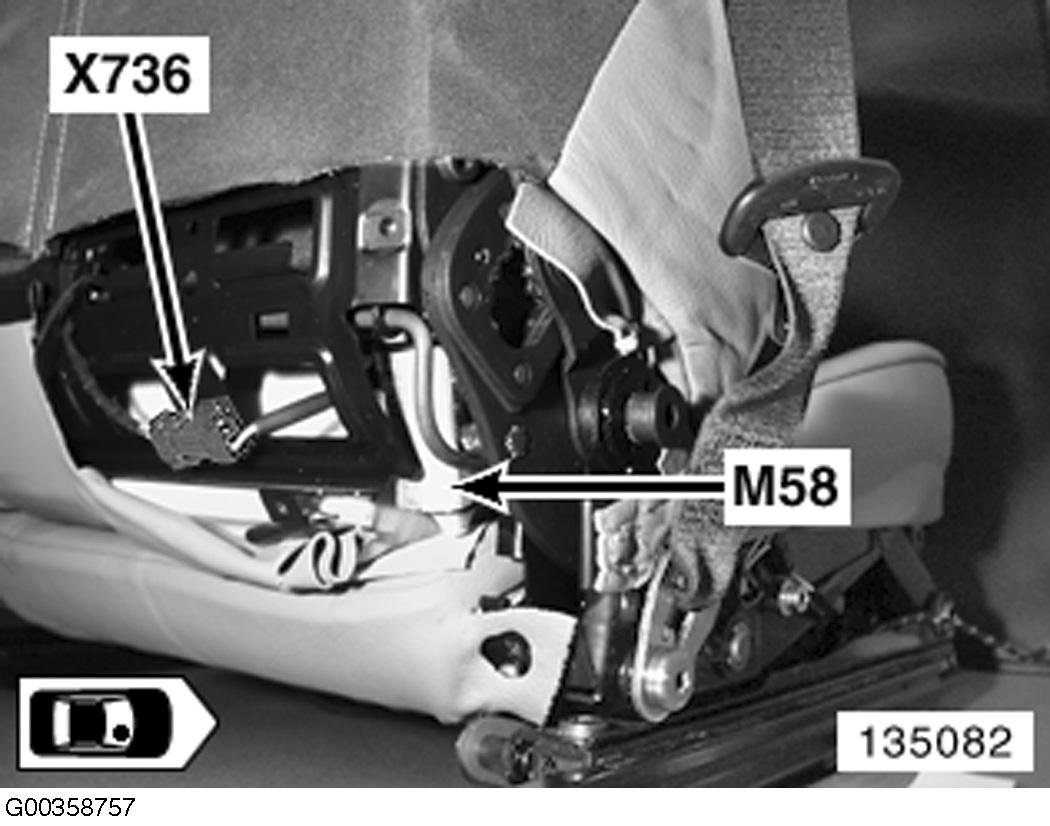

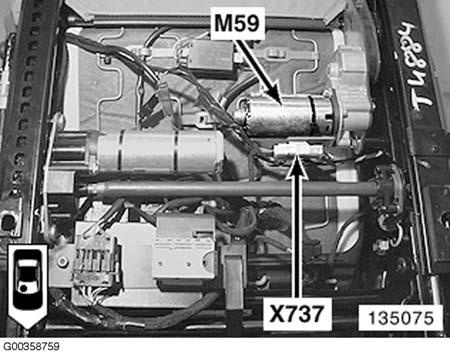

Fig 207: Under Passenger's Seat

G00358759

Courtesy of BMW OF NORTH AMERICA, INC.

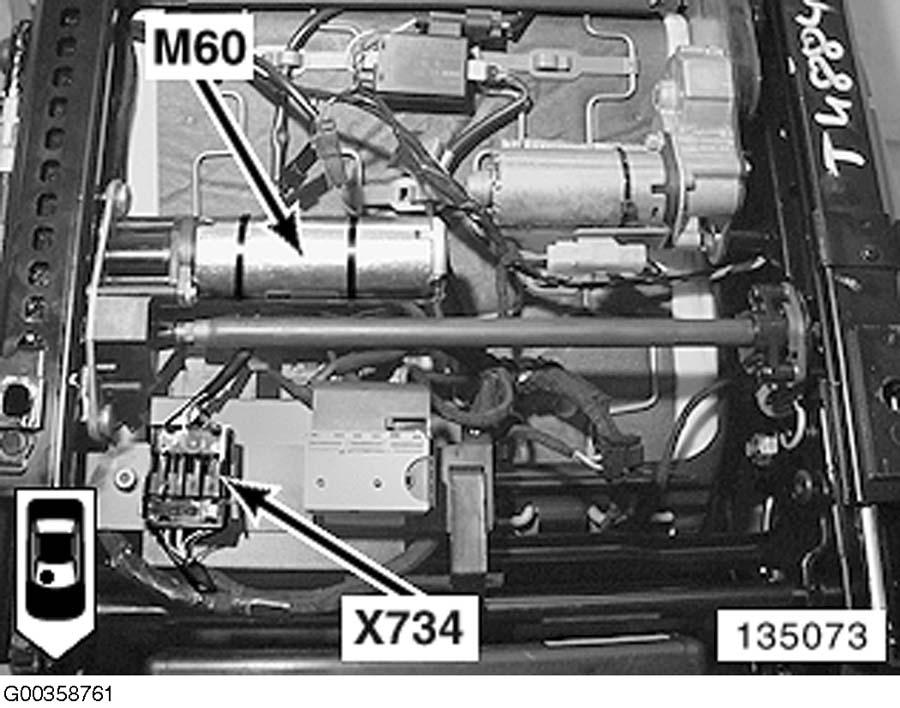

Fig 208: Under Passenger's Seat

G00358761

Courtesy of BMW OF NORTH AMERICA, INC.

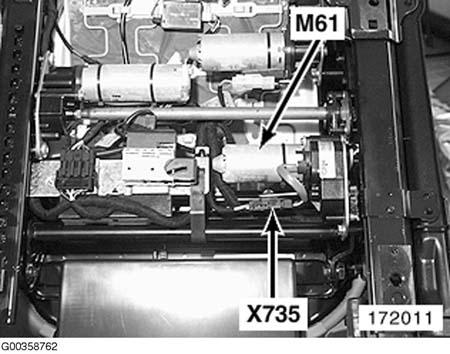

Fig 209: Passenger's Seat

G00358762

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 210: Left Side Of Right Footwell

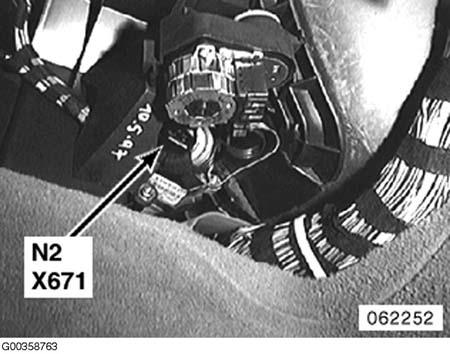

G00358763

Courtesy of BMW OF NORTH AMERICA, INC.

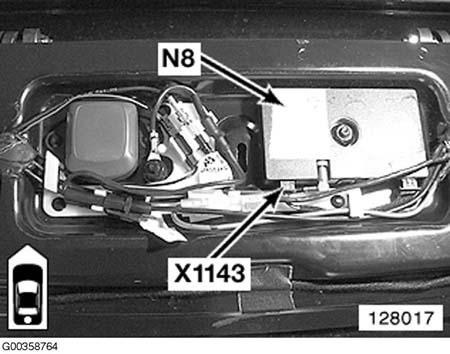

Fig 211: Roof Spoiler (Underneath)

G00358764

Courtesy of BMW OF NORTH AMERICA, INC.

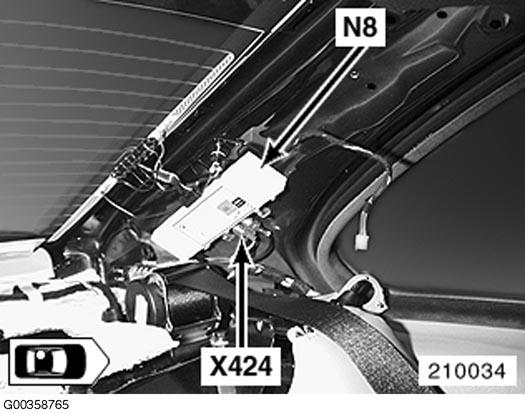

Fig 212: Left "C" Pillar

G00358765

Courtesy of BMW OF NORTH AMERICA, INC.

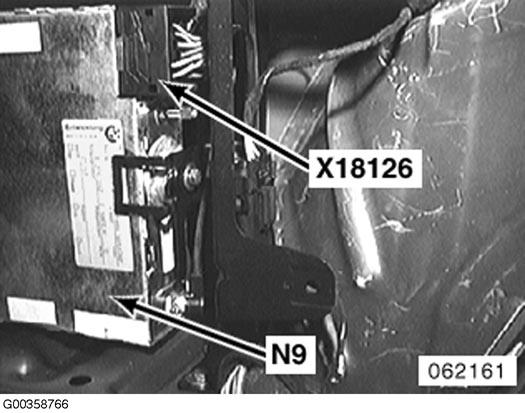

Fig 213: Left Side Of Luggage Compartment

G00358766

Courtesy of BMW OF NORTH AMERICA, INC.

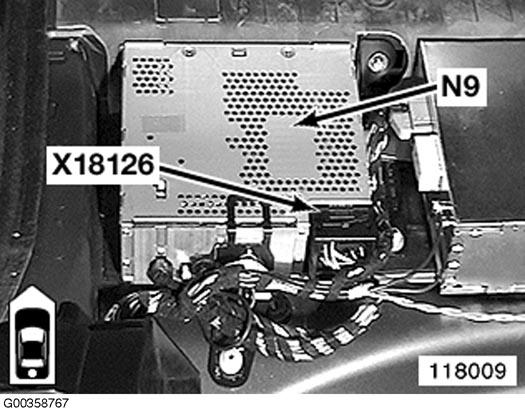

Fig 214: Behind Rear Seat Backrest, In Luggage Compartment

G00358767

Courtesy of BMW OF NORTH AMERICA, INC.

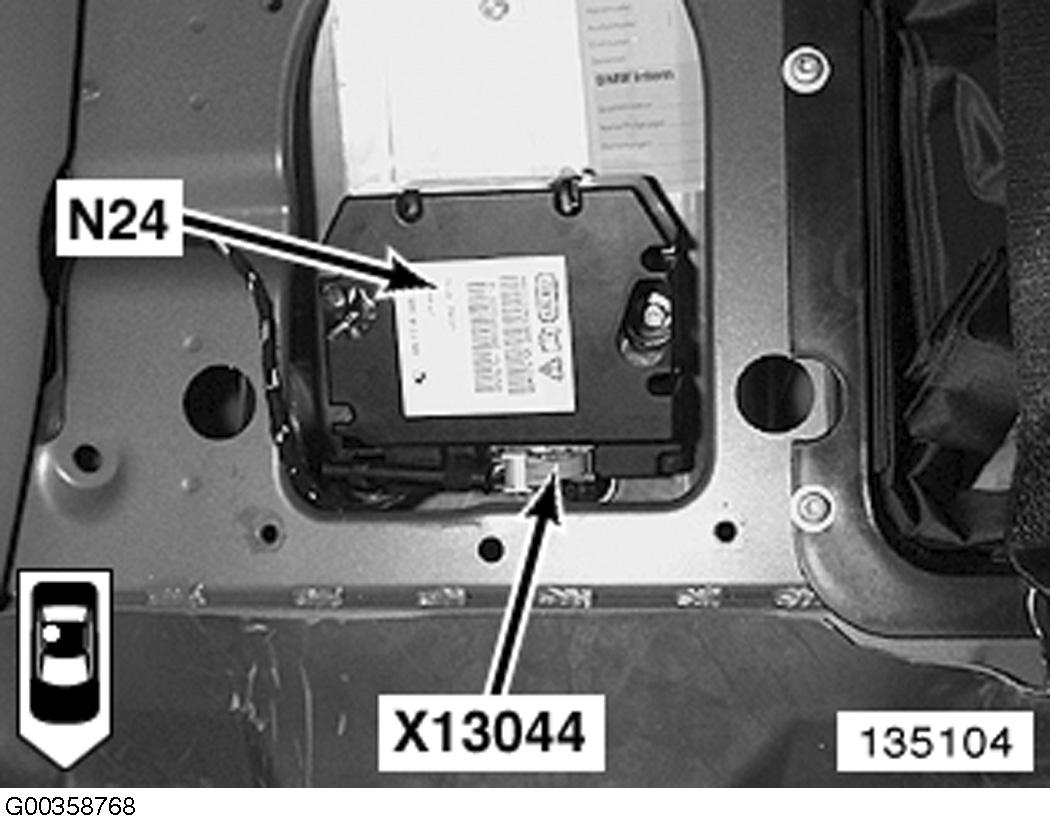

Fig 215: Behind Right Rear Seat

G00358768

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 216: Left Side Of Luggage Compartment

G00358770

Courtesy of BMW OF NORTH AMERICA, INC.

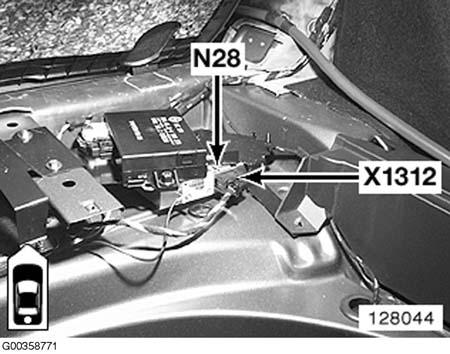

Fig 217: Luggage Compartment

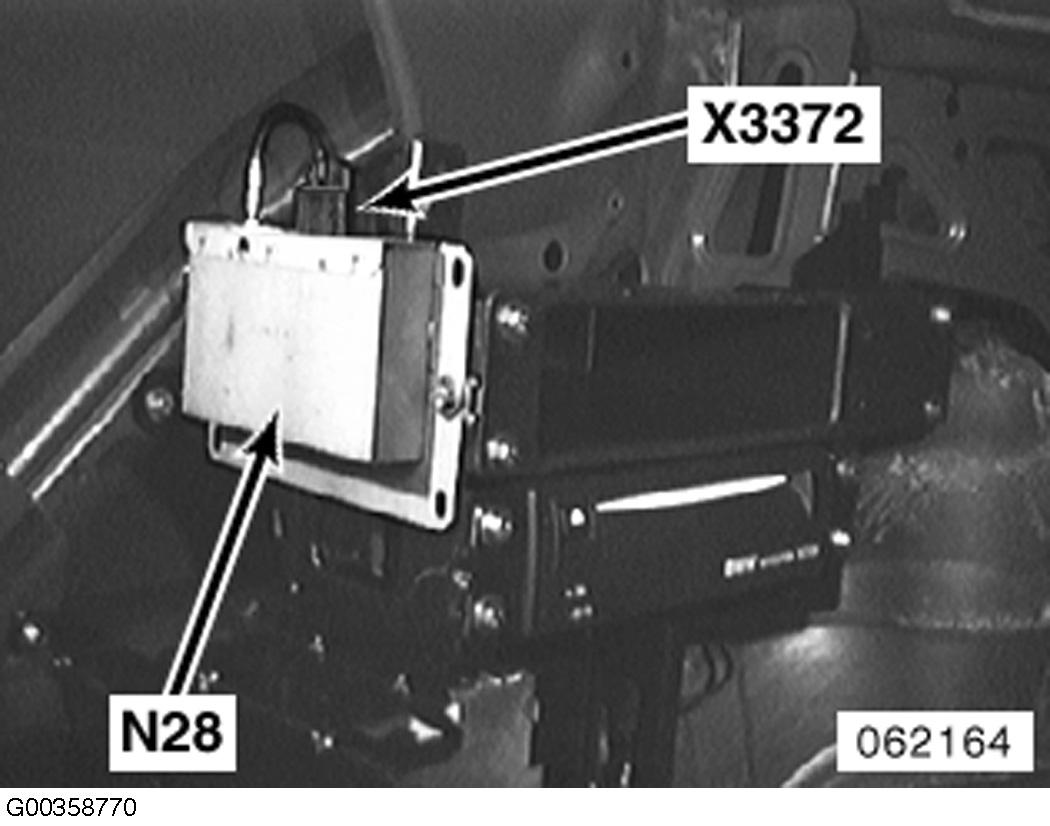

G00358771

Courtesy of BMW OF NORTH AMERICA, INC.

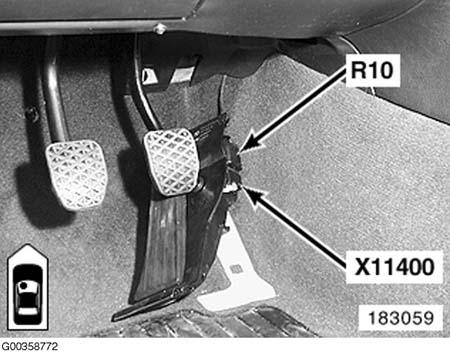

Fig 218: Under Accelerator Pedal

G00358772

Courtesy of BMW OF NORTH AMERICA, INC.

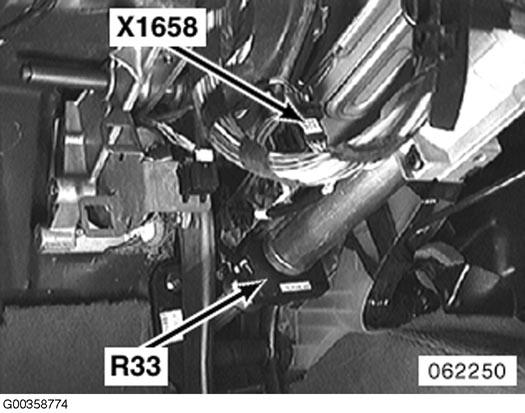

Fig 219: Steering Column

G00358774

Courtesy of BMW OF NORTH AMERICA, INC.

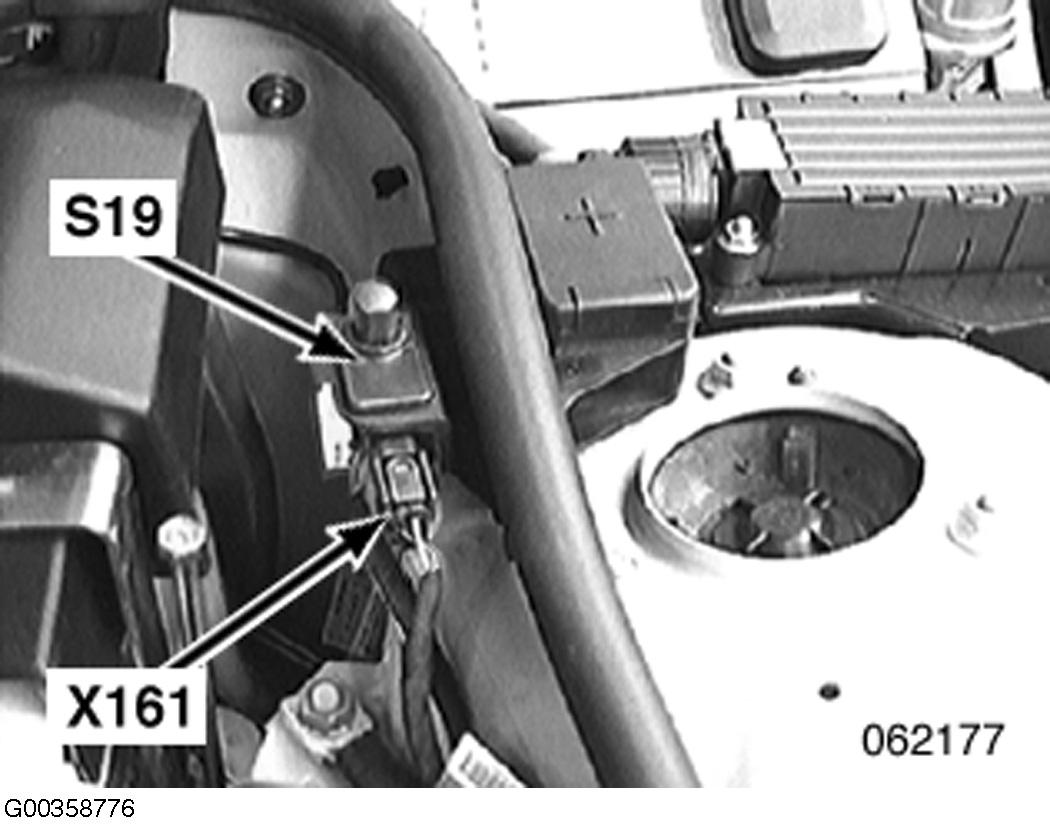

Fig 220: Right Rear Side Of Engine Compartment

G00358776

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 221: Near Steering Column

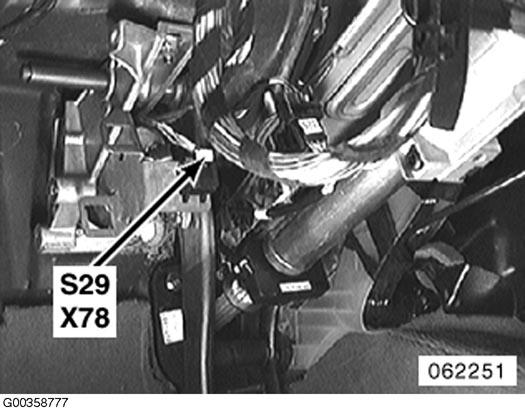

G00358777

Courtesy of BMW OF NORTH AMERICA, INC.

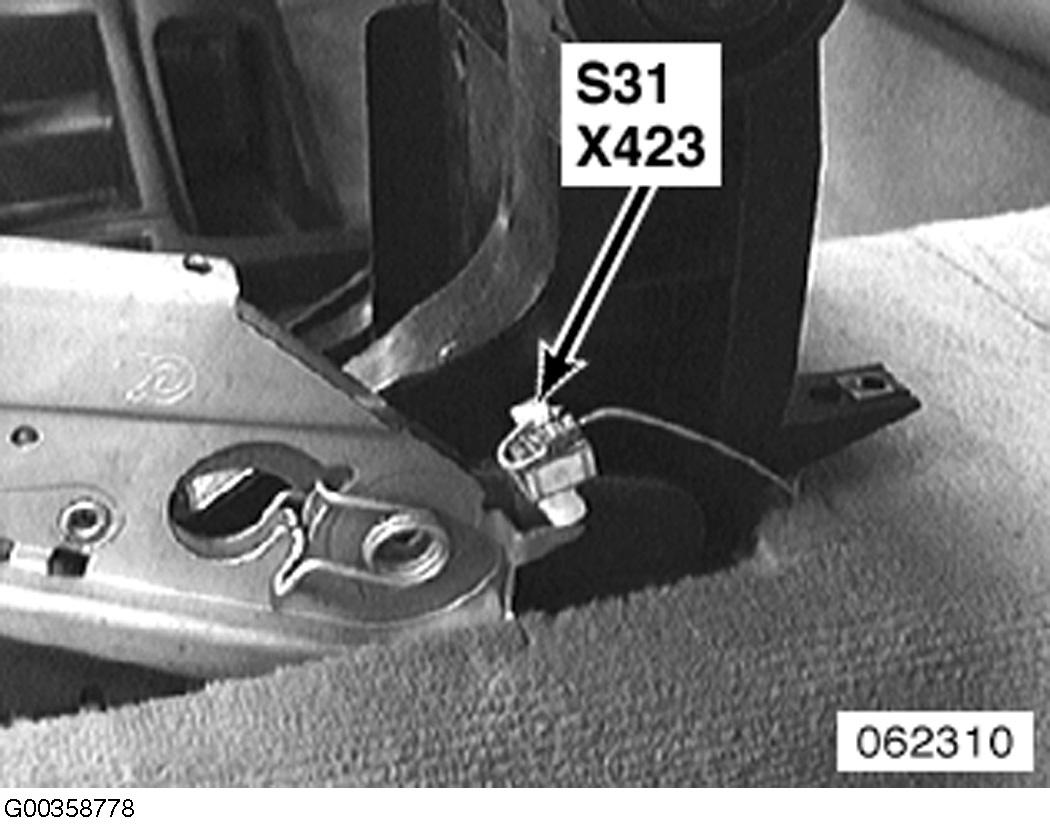

Fig 222: Under Rear Center Console

G00358778

Courtesy of BMW OF NORTH AMERICA, INC.

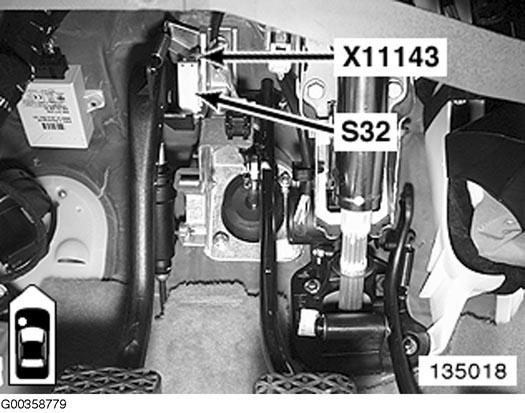

Fig 223: Left Footwell

G00358779

Courtesy of BMW OF NORTH AMERICA, INC.

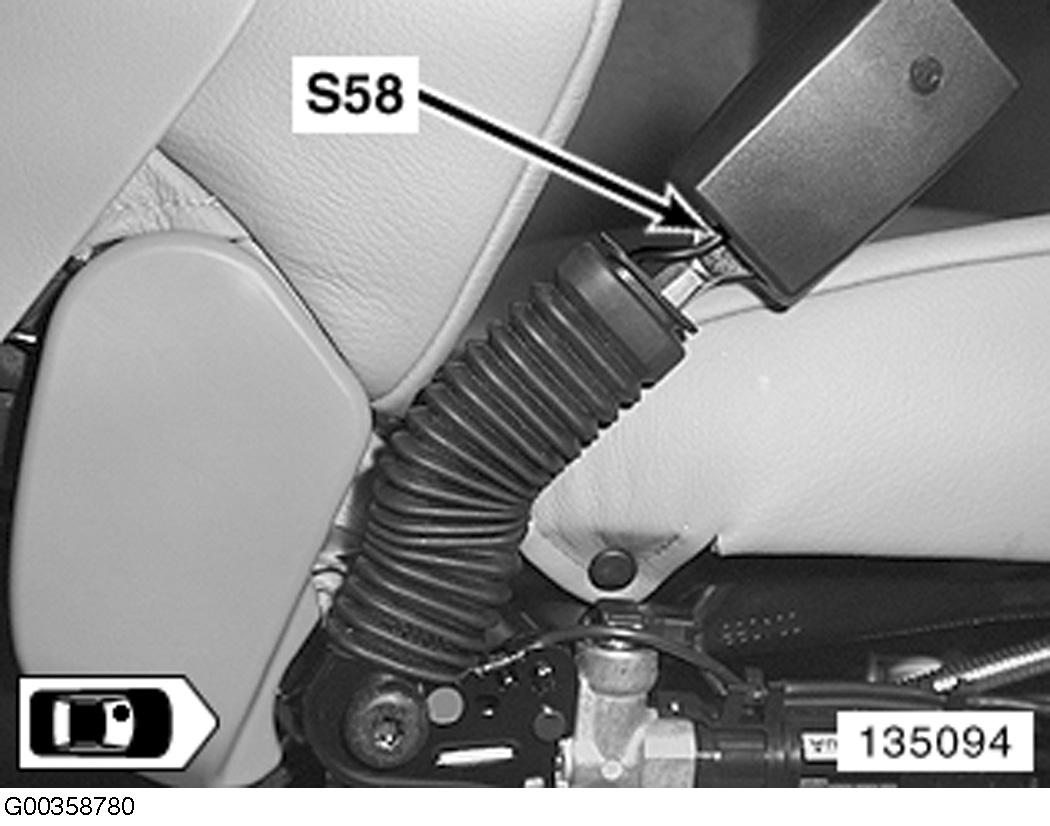

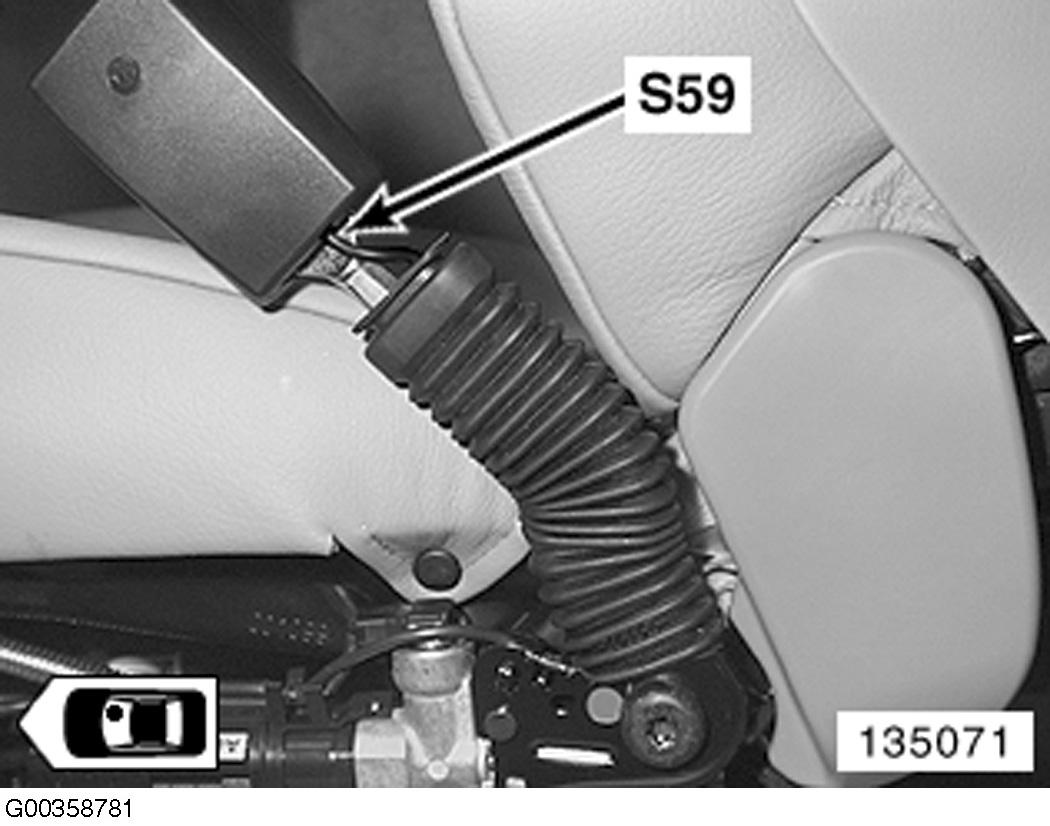

Fig 224: Driver's Seat

G00358780

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 225: Passenger's Seat

G00358781

Courtesy of BMW OF NORTH AMERICA, INC.

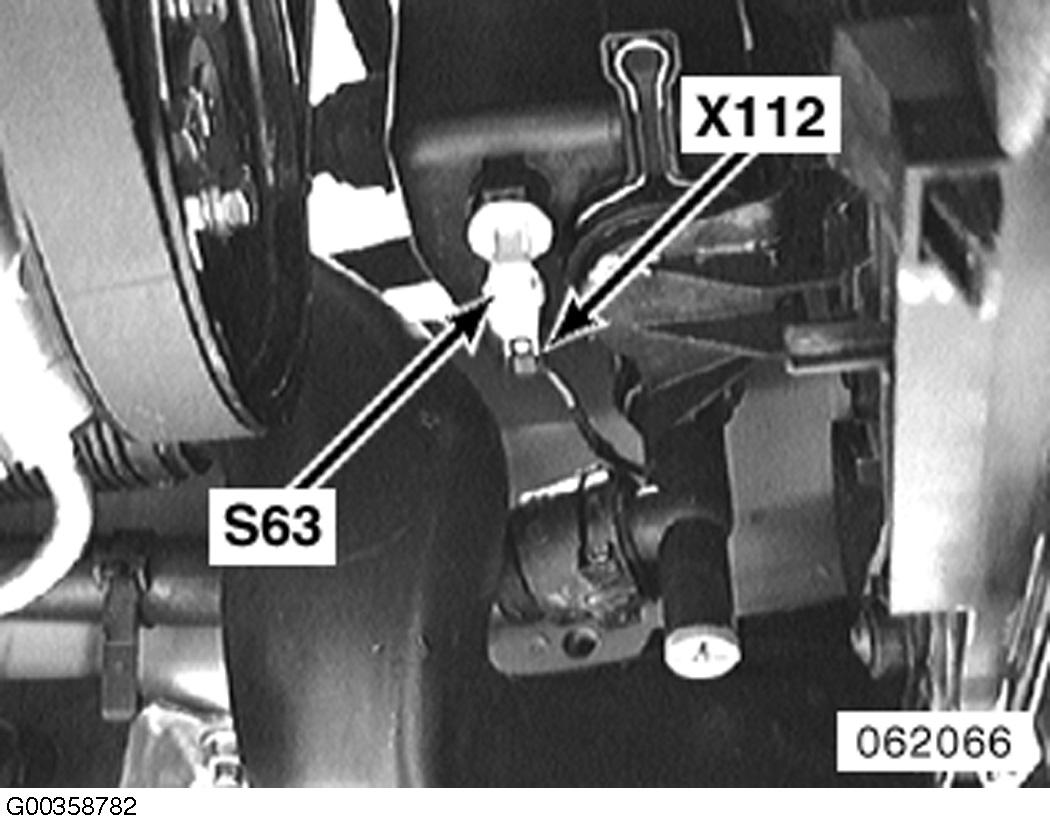

Fig 226: Lower Left Side Of Engine

G00358782

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 227: Under Driver's Seat

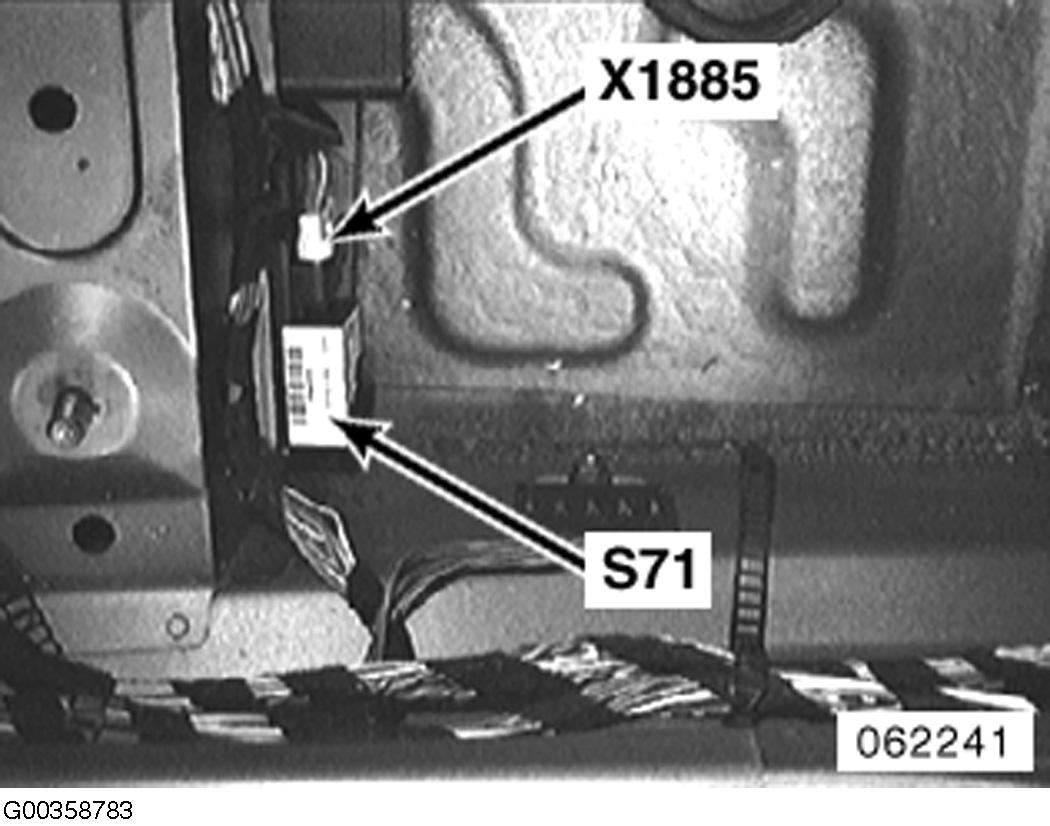

G00358783

Courtesy of BMW OF NORTH AMERICA, INC.

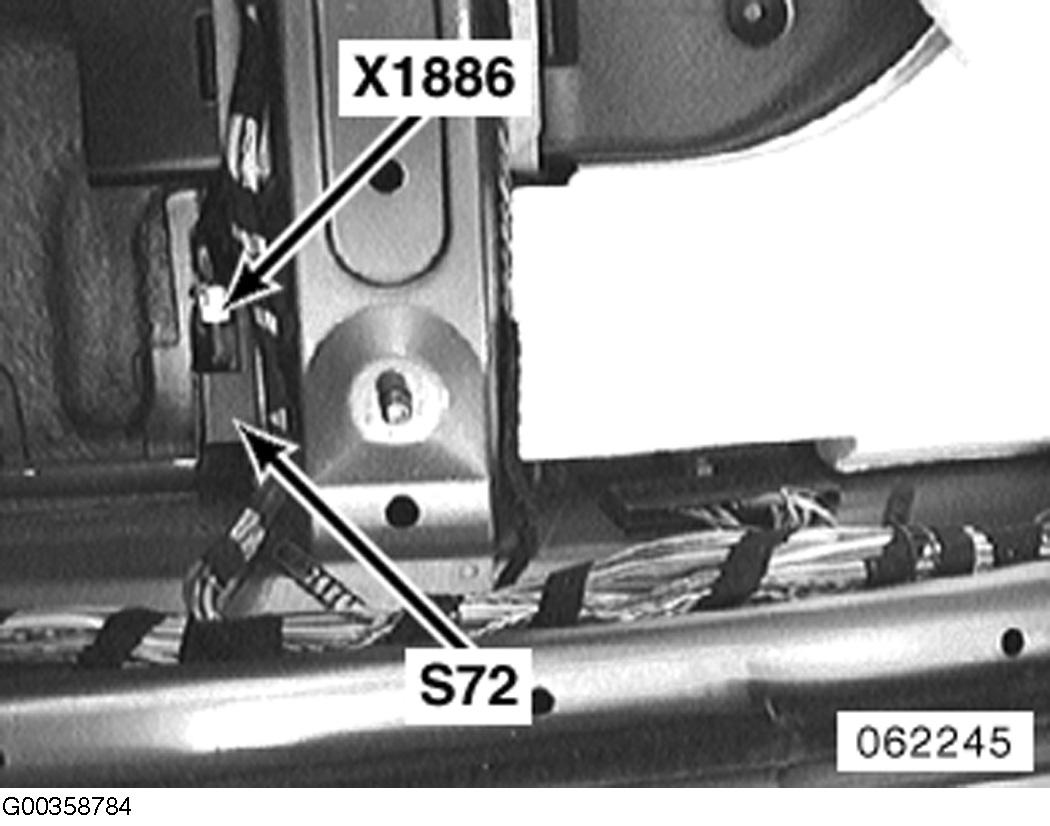

Fig 228: Under Passenger's Seat

G00358784

Courtesy of BMW OF NORTH AMERICA, INC.

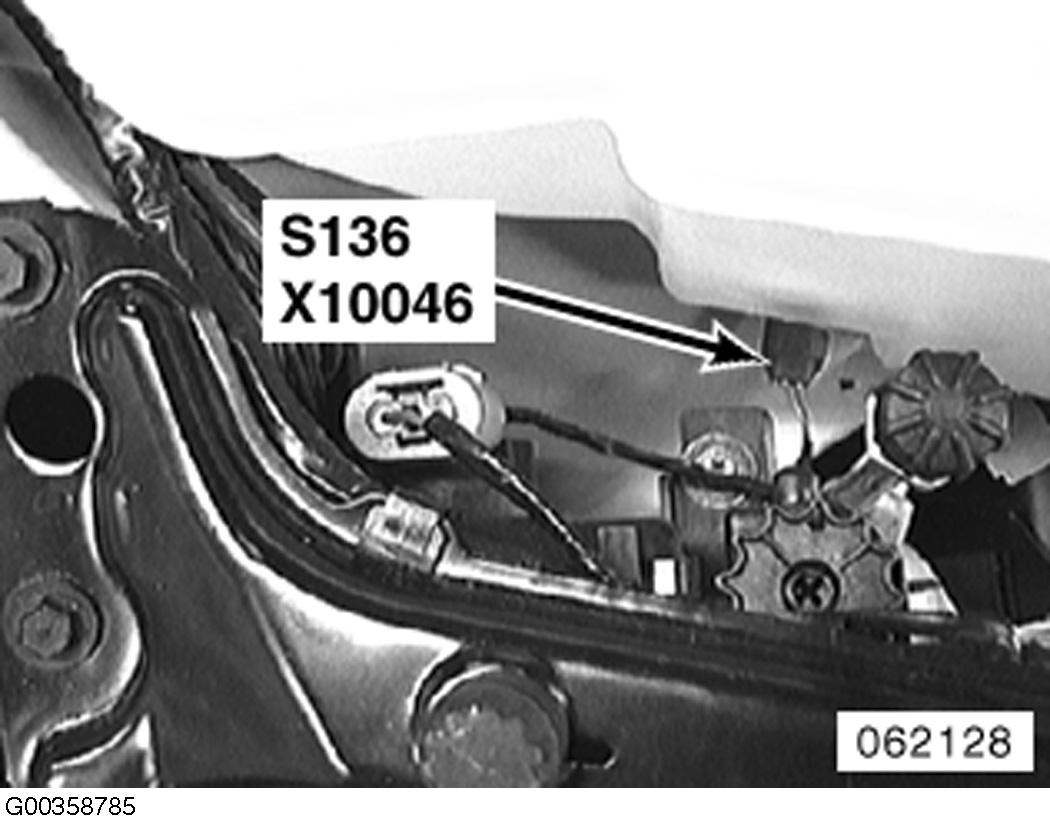

Fig 229: Right Front Of Engine Compartment

G00358785

Courtesy of BMW OF NORTH AMERICA, INC.

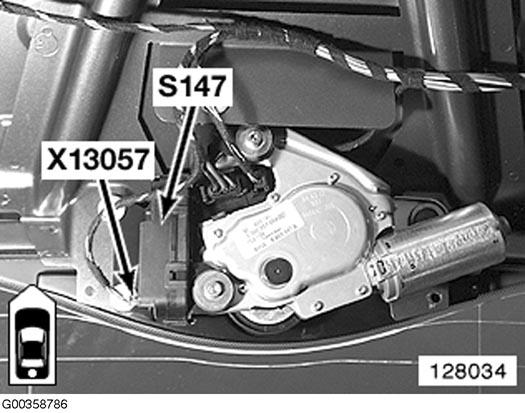

Fig 230: Lift Gate

G00358786

Courtesy of BMW OF NORTH AMERICA, INC.

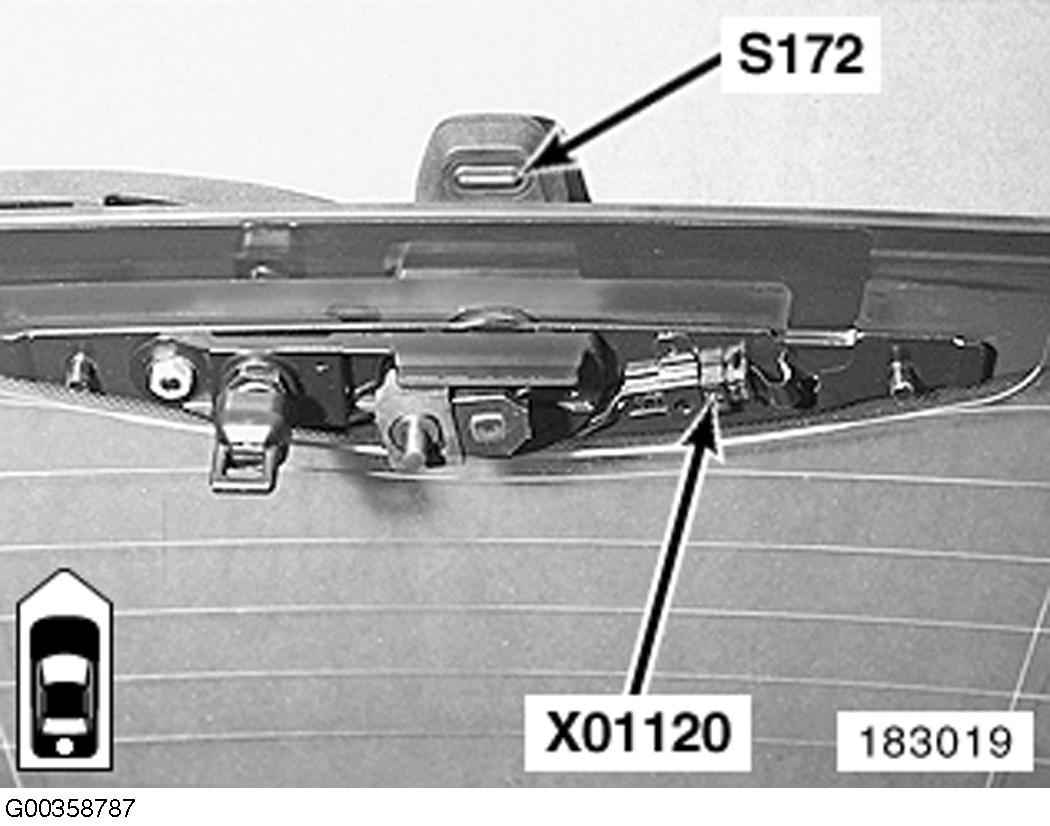

Fig 231: Rear Window

G00358787

Courtesy of BMW OF NORTH AMERICA, INC.

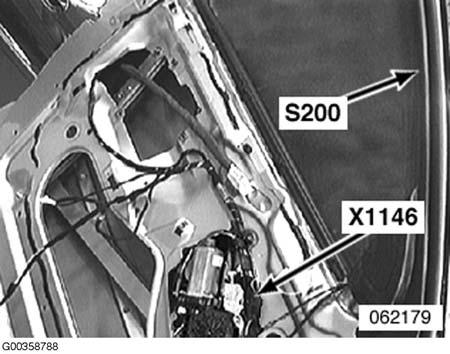

Fig 232: Driver's Door

G00358788

Courtesy of BMW OF NORTH AMERICA, INC.

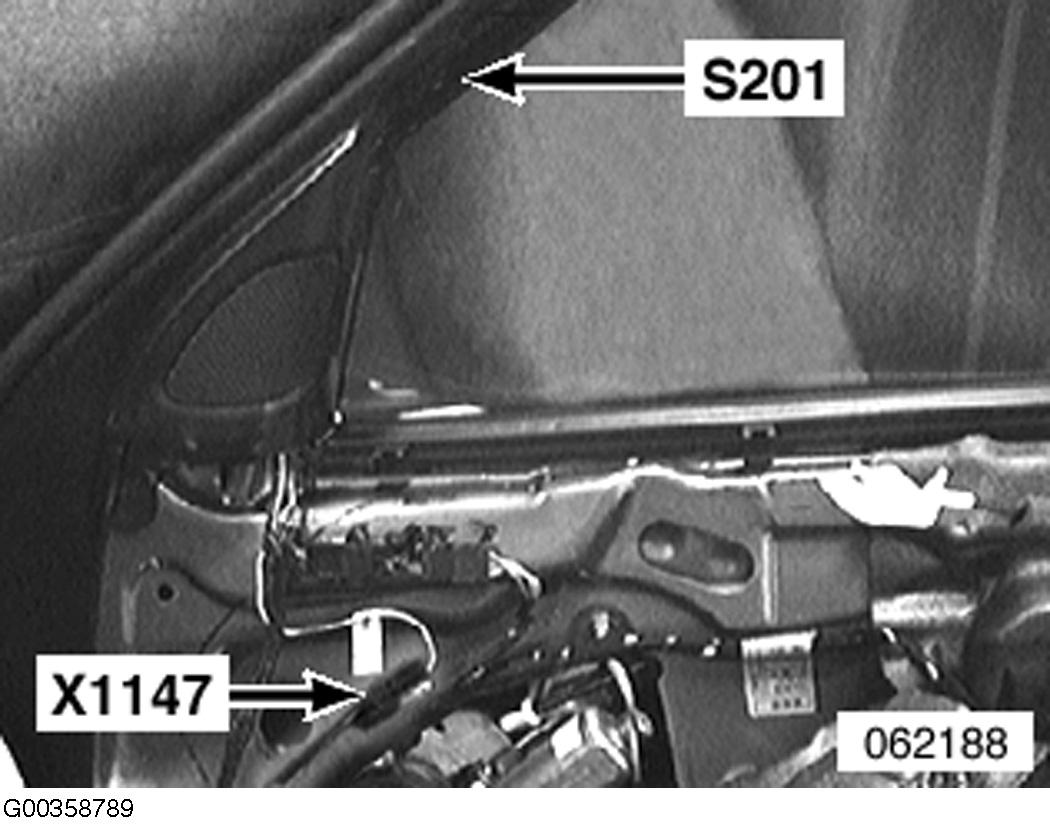

Fig 233: Passenger's Door

G00358789

Courtesy of BMW OF NORTH AMERICA, INC.

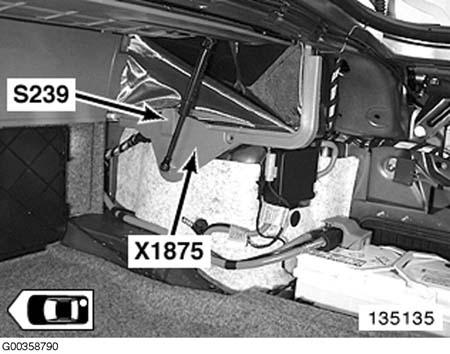

Fig 234: Right Rear Of Luggage Compartment

G00358790

Courtesy of BMW OF NORTH AMERICA, INC.

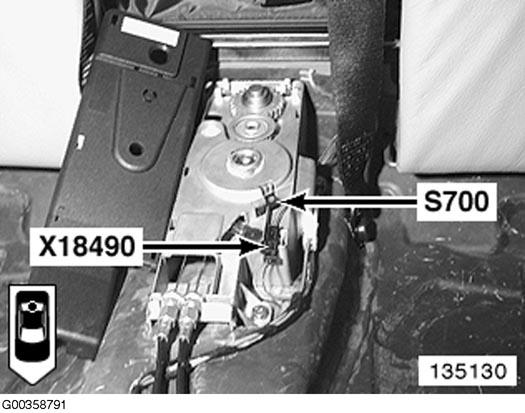

Fig 235: Under Center Of Rear Seat

G00358791

Courtesy of BMW OF NORTH AMERICA, INC.

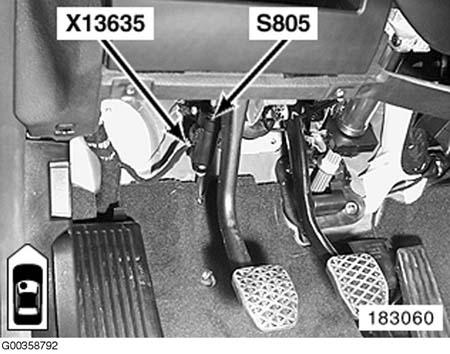

Fig 236: Clutch Pedal

G00358792

Courtesy of BMW OF NORTH AMERICA, INC.

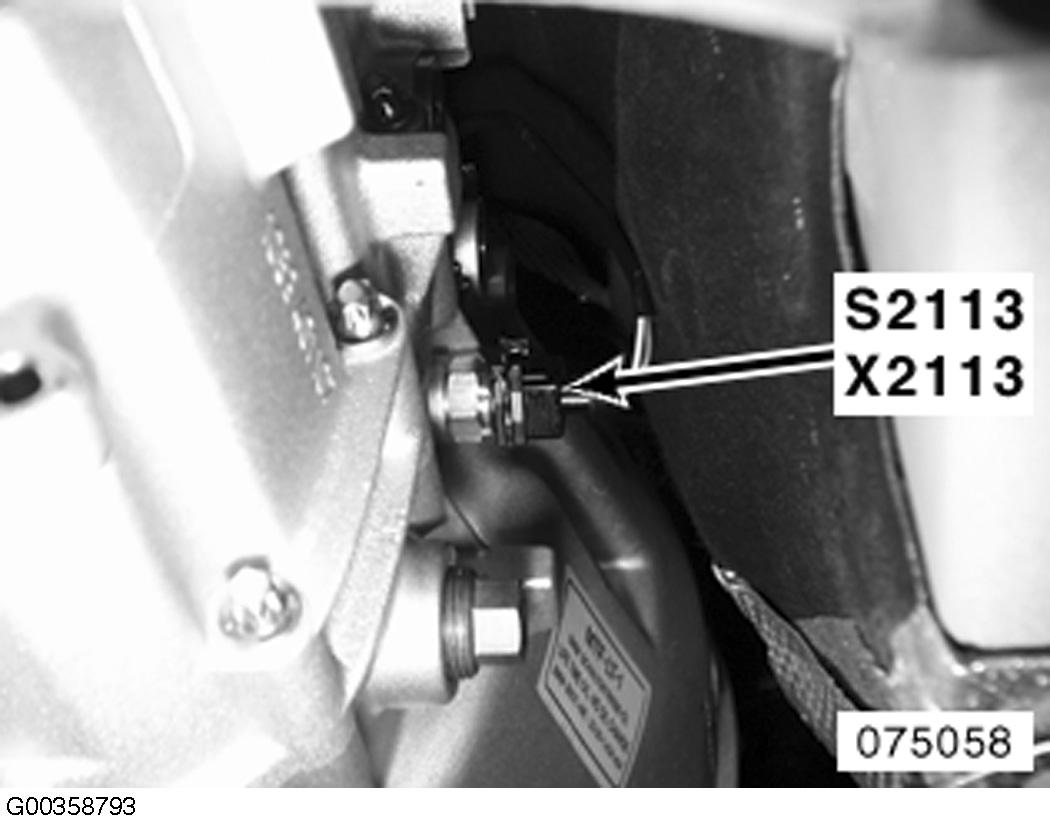

Fig 237: Right Side Of Transmission

G00358793

Courtesy of BMW OF NORTH AMERICA, INC.

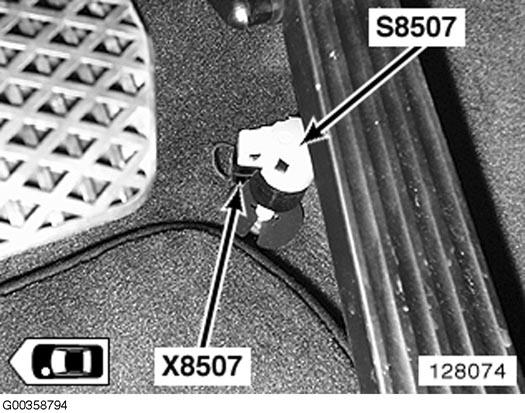

Fig 238: Under Accelerator Pedal

G00358794

Courtesy of BMW OF NORTH AMERICA, INC.

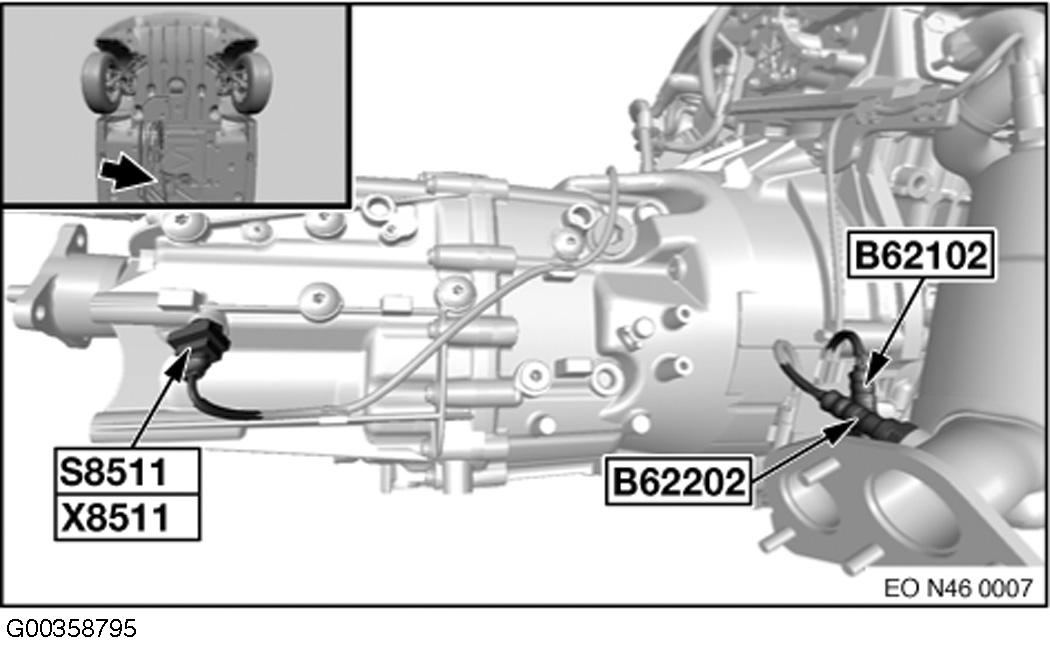

Fig 239: Right Side Of Transmission

G00358795

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 240: Left Side Of Transmission

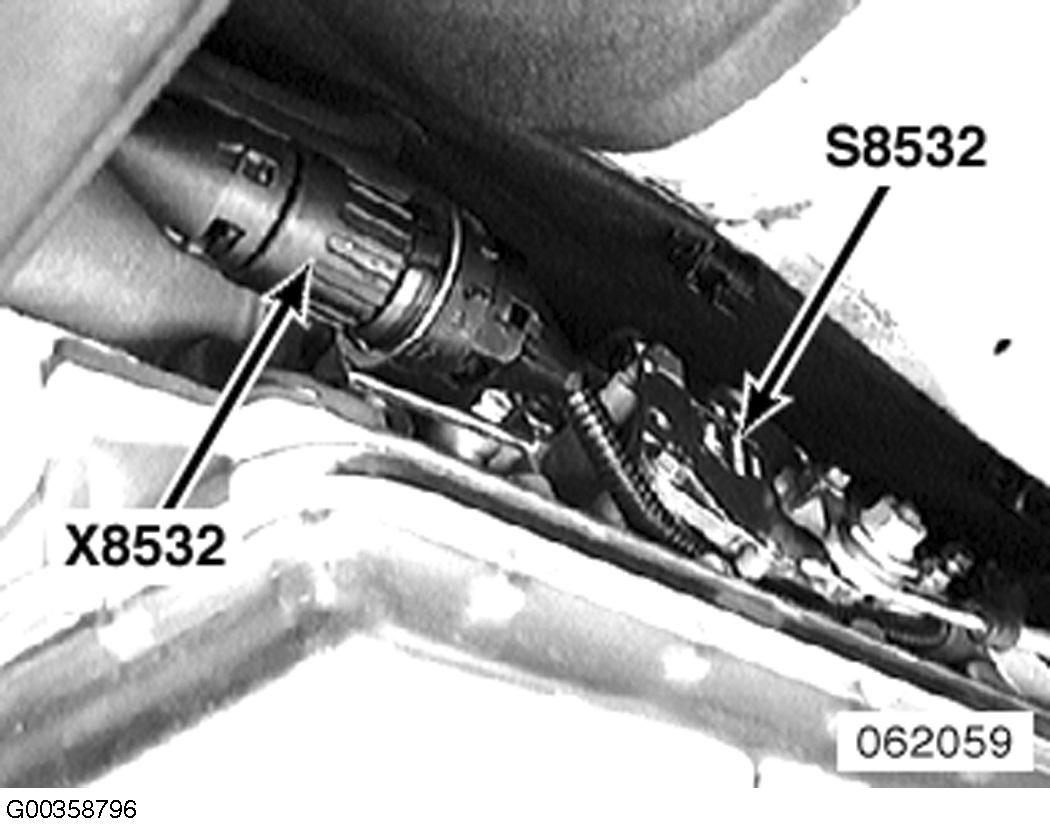

G00358796

Courtesy of BMW OF NORTH AMERICA, INC.

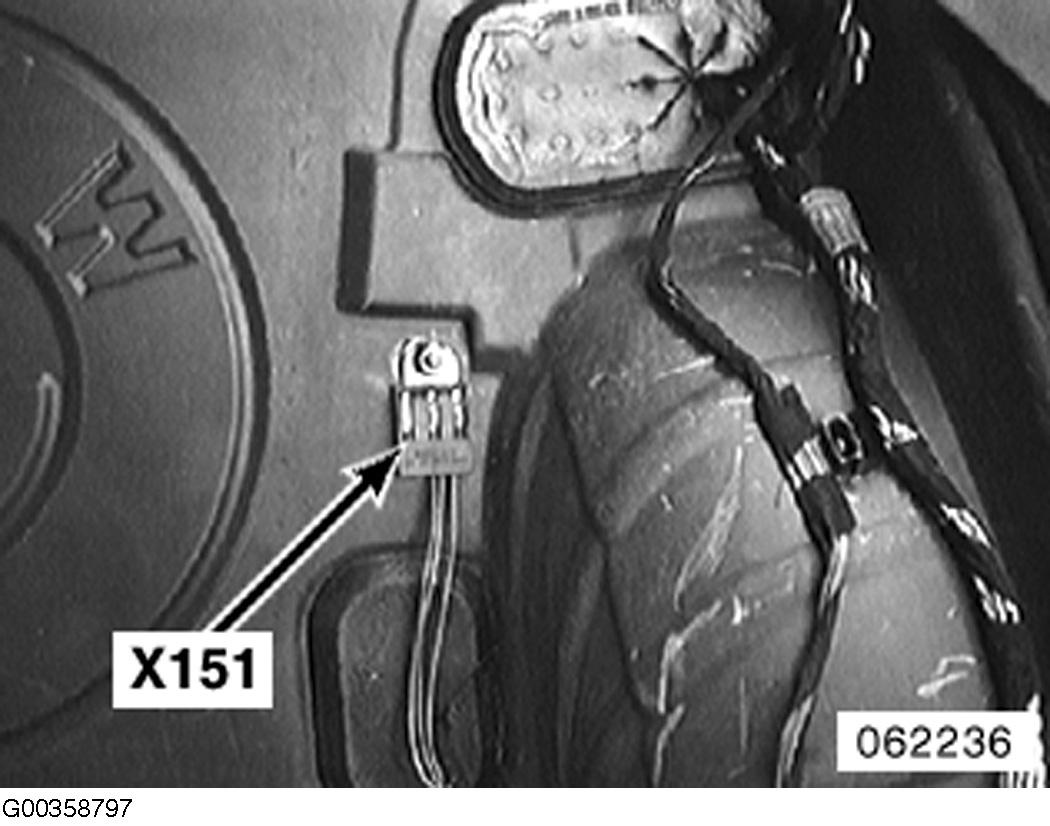

Fig 241: Behind Left Rear Seat

G00358797

Courtesy of BMW OF NORTH AMERICA, INC.

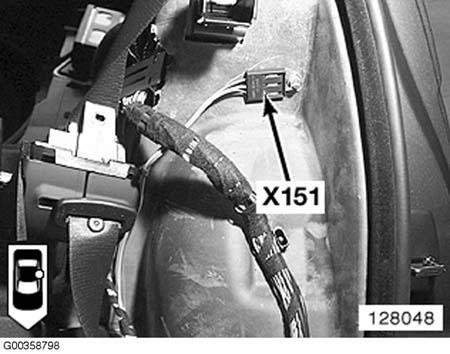

Fig 242: Behind Left Rear Seat

G00358798

Courtesy of BMW OF NORTH AMERICA, INC.

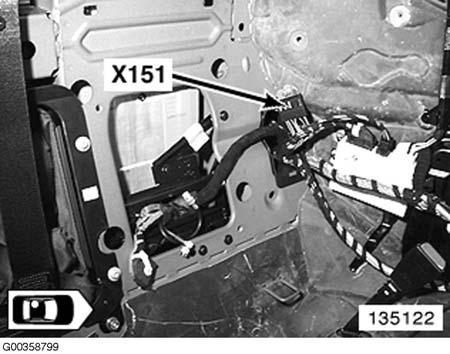

Fig 243: Behind Left Rear Seat

G00358799

Courtesy of BMW OF NORTH AMERICA, INC.

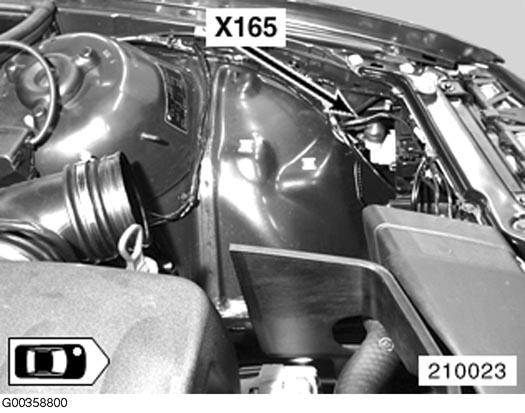

Fig 244: Left Front Of Engine Compartment

G00358800

Courtesy of BMW OF NORTH AMERICA, INC.

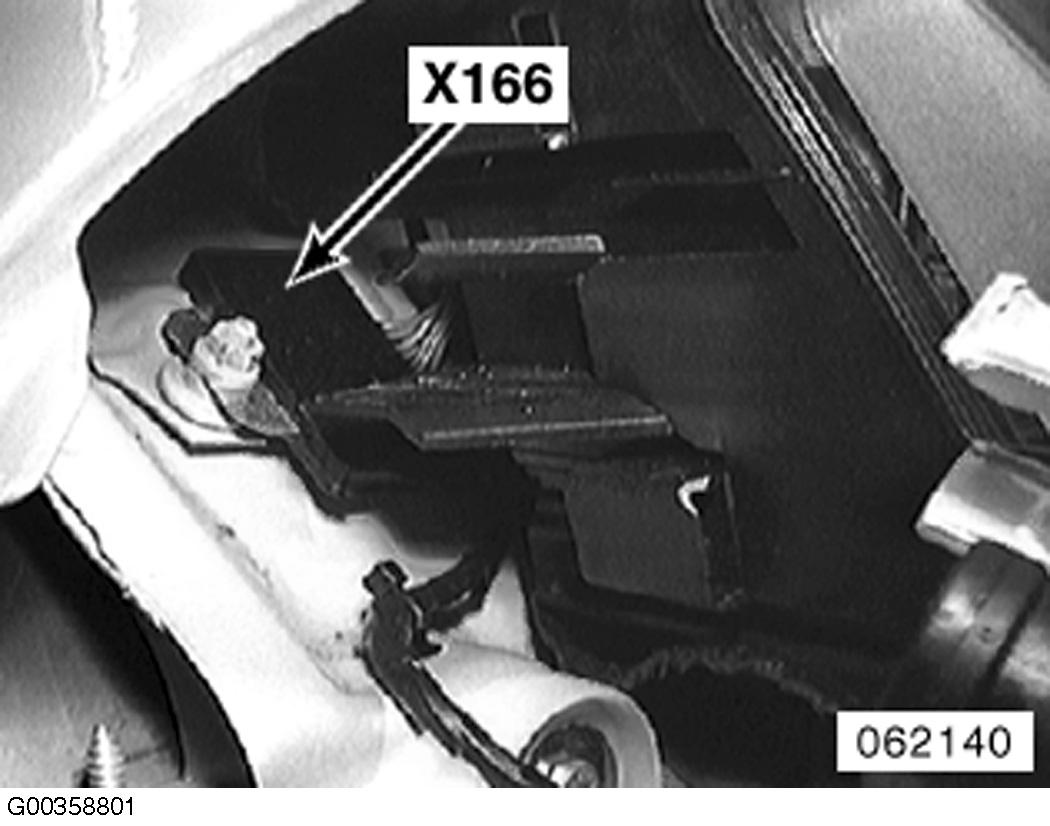

Fig 245: Right Front Of Engine Compartment

G00358801

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 246: Right Rear Of Engine Compartment

G00358802

Courtesy of BMW OF NORTH AMERICA, INC.

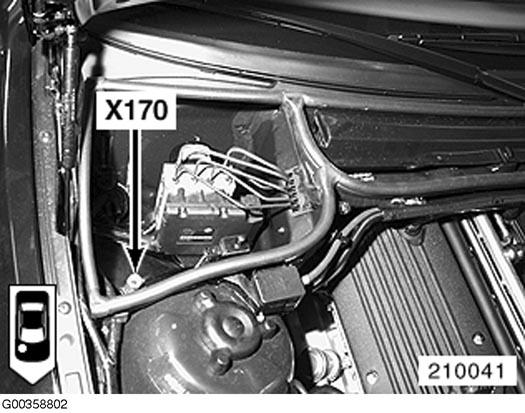

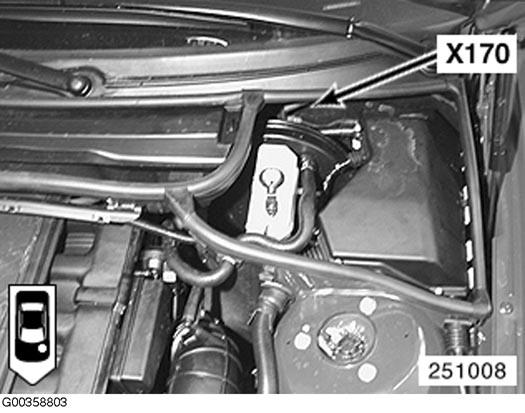

Fig 247: Behind Brake Booster

G00358803

Courtesy of BMW OF NORTH AMERICA, INC.

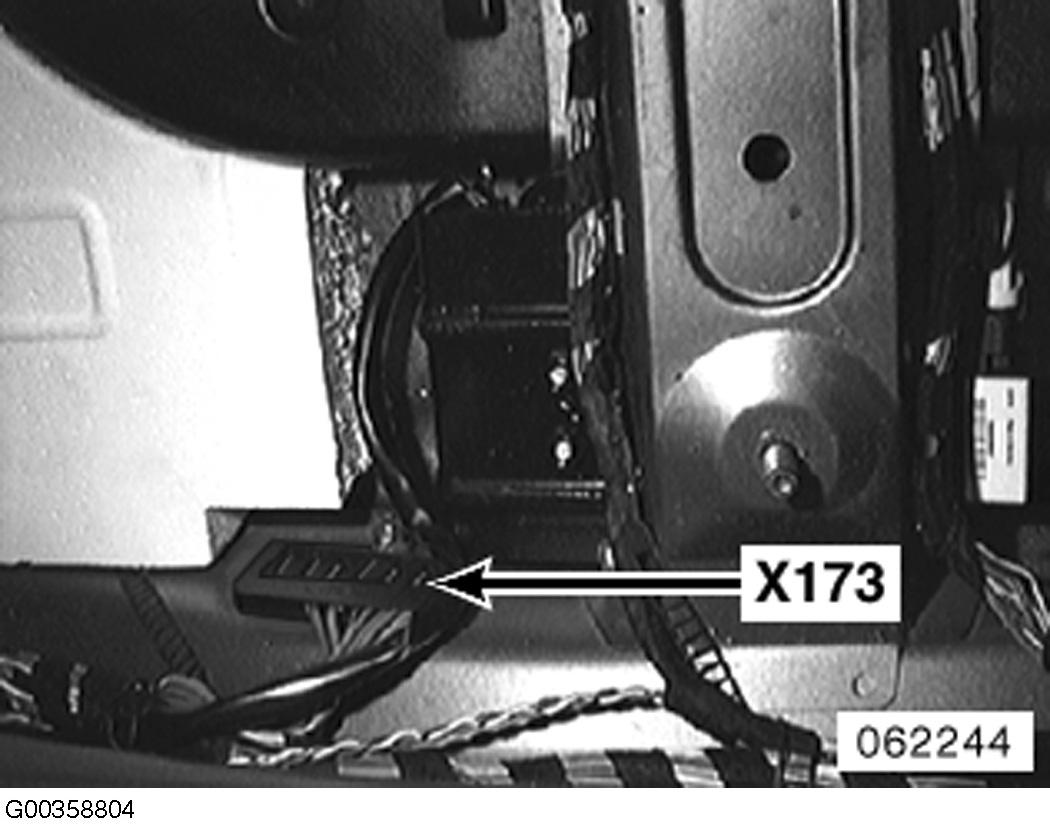

Fig 248: Under Driver's Seat

G00358804

Courtesy of BMW OF NORTH AMERICA, INC.

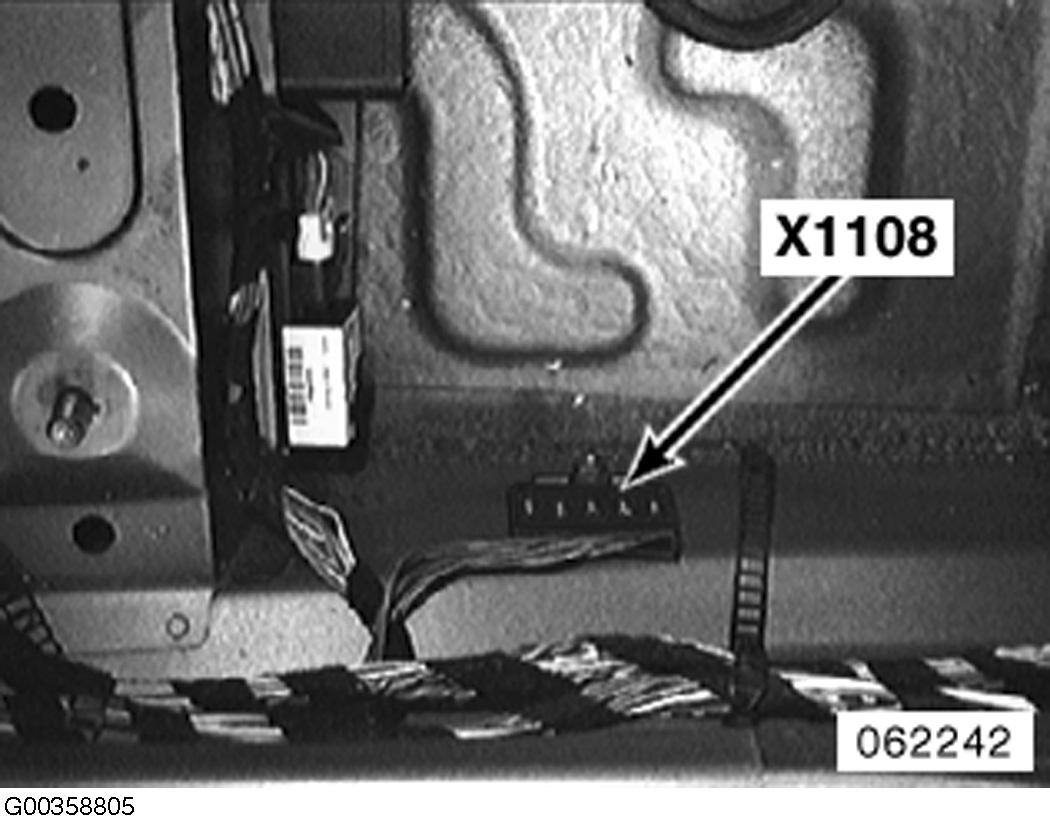

Fig 249: Under Driver's Seat

G00358805

Courtesy of BMW OF NORTH AMERICA, INC.

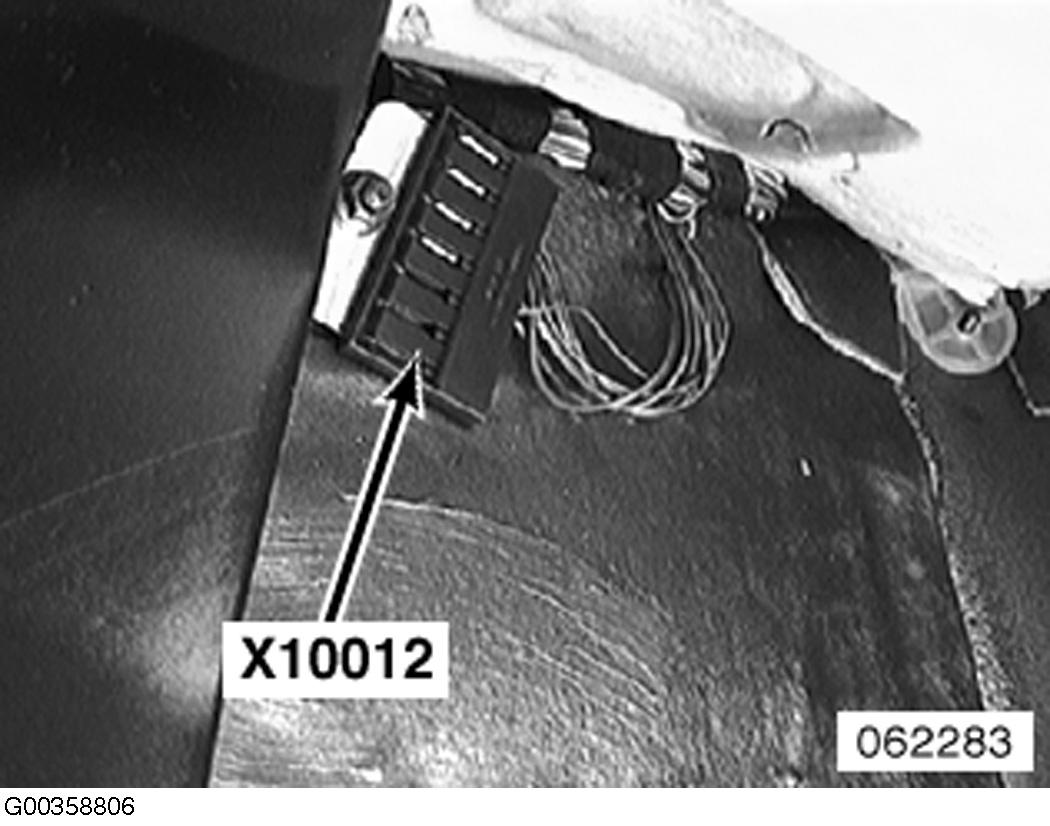

Fig 250: Left Side Of Right Footwell

G00358806

Courtesy of BMW OF NORTH AMERICA, INC.

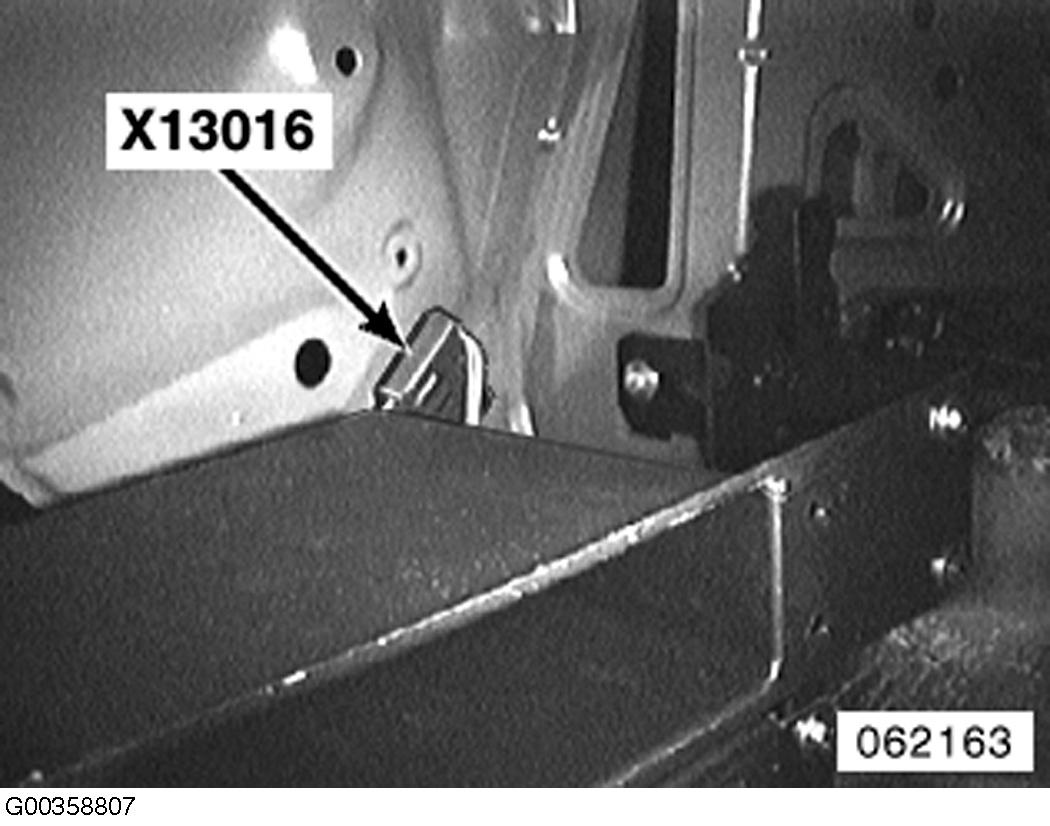

Fig 251: Left Side Of Luggage Compartment

G00358807

Courtesy of BMW OF NORTH AMERICA, INC.

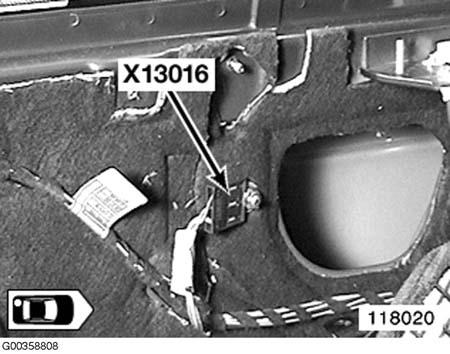

Fig 252: Left Side Of Luggage Compartment

G00358808

Courtesy of BMW OF NORTH AMERICA, INC.

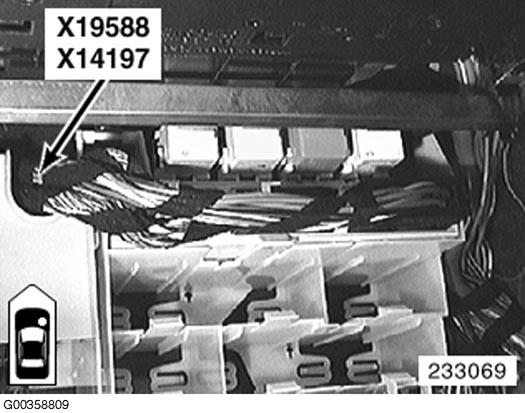

Fig 253: Behind Glove Box

G00358809

Courtesy of BMW OF NORTH AMERICA, INC.

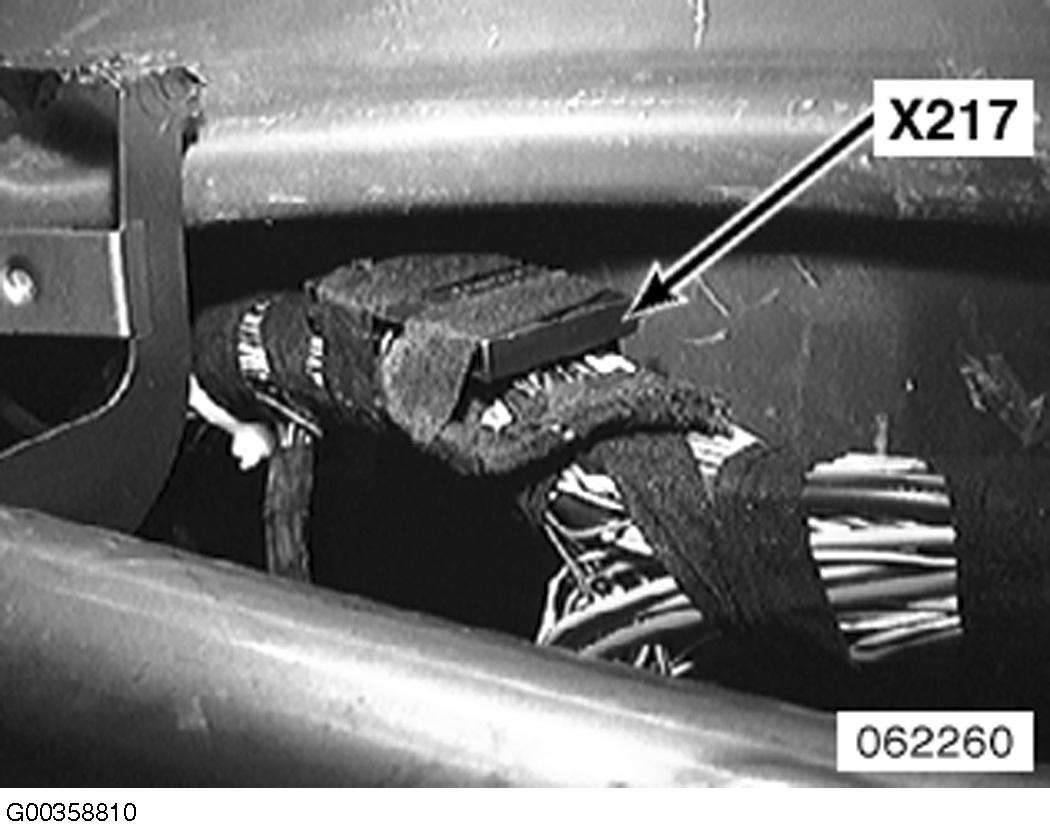

Fig 254: Under Left Side Of Dash

G00358810

Courtesy of BMW OF NORTH AMERICA, INC.

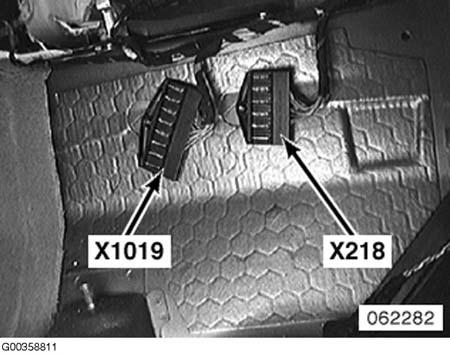

Fig 255: Right Side Of Transmission Range Switch

G00358811

Courtesy of BMW OF NORTH AMERICA, INC.

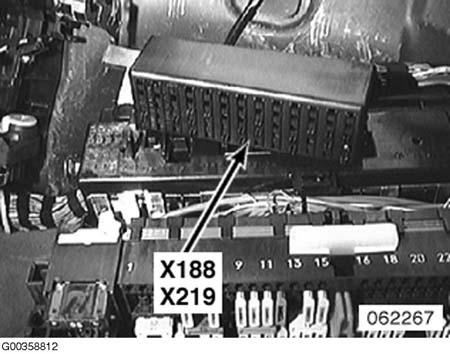

Fig 256: Behind Glove Box

G00358812

Courtesy of BMW OF NORTH AMERICA, INC.

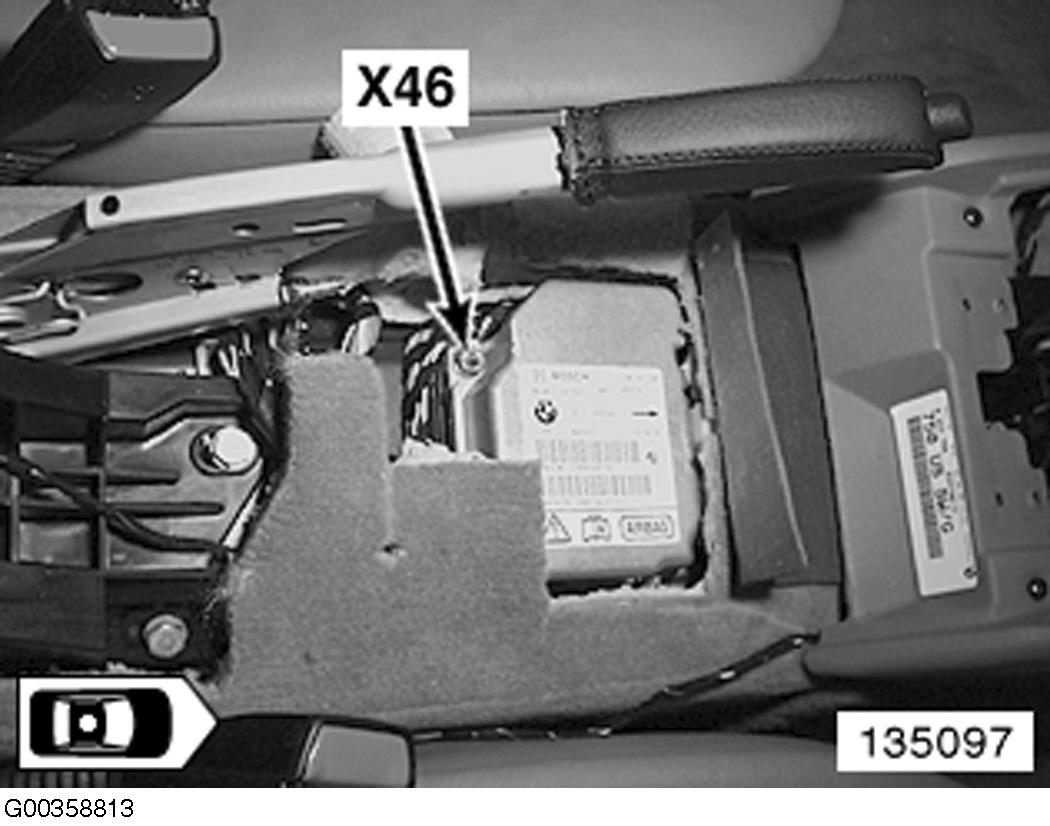

Fig 257: Under Center Console

G00358813

Courtesy of BMW OF NORTH AMERICA, INC.

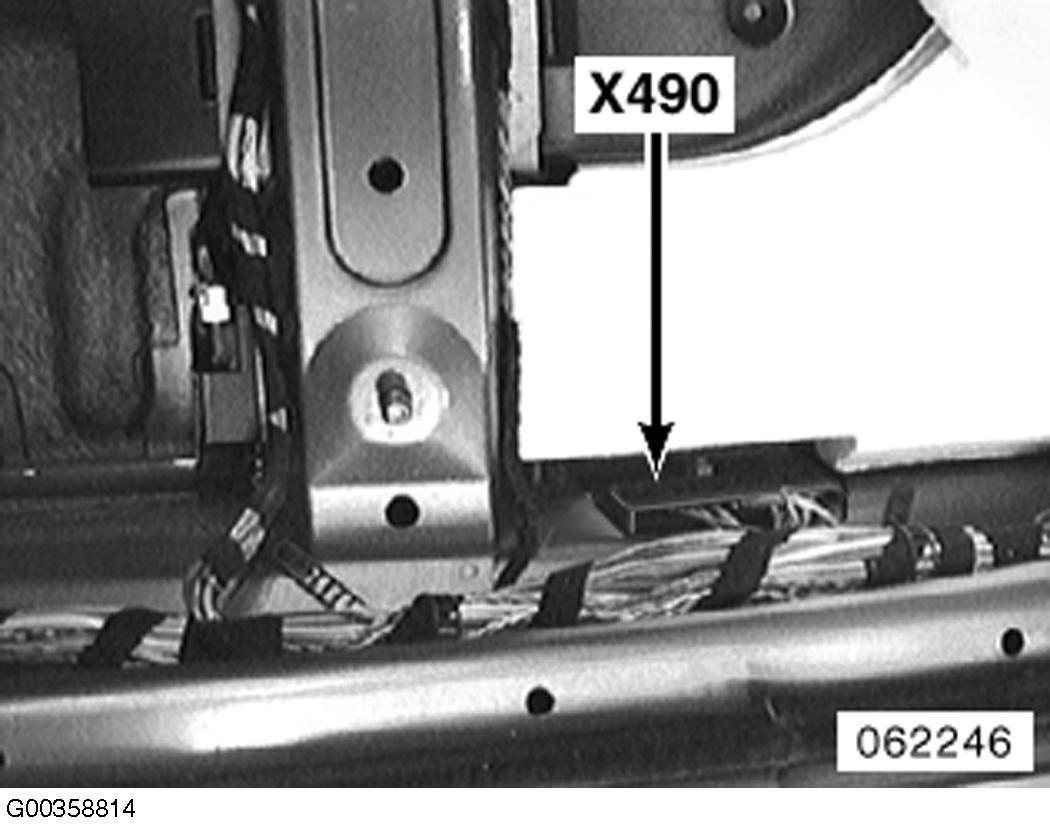

Fig 258: Under Passenger's Seat

G00358814

Courtesy of BMW OF NORTH AMERICA, INC.

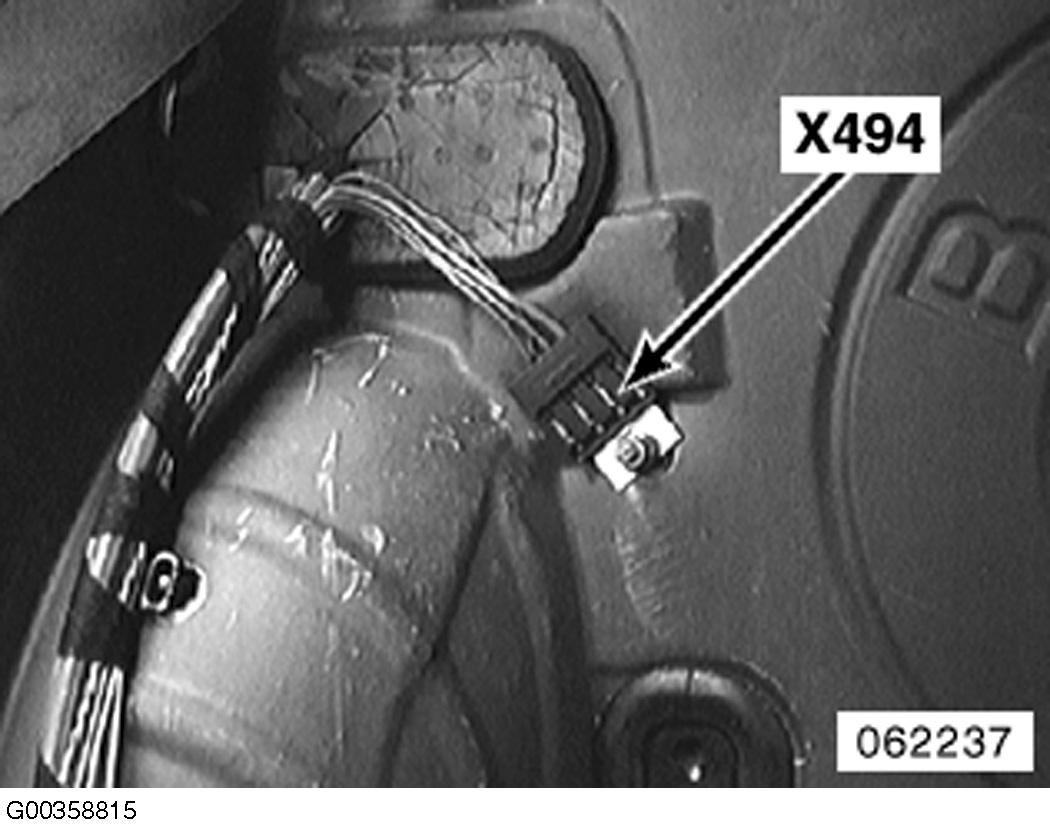

Fig 259: Behind Right Rear Seat

G00358815

Courtesy of BMW OF NORTH AMERICA, INC.

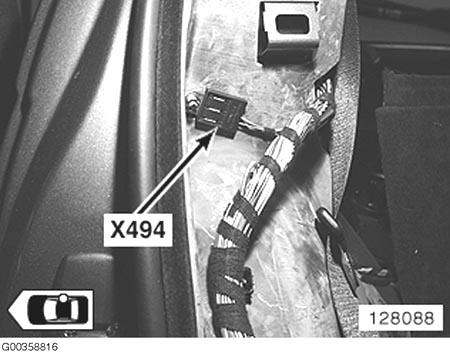

Fig 260: Behind Right Rear Seat

G00358816

Courtesy of BMW OF NORTH AMERICA, INC.

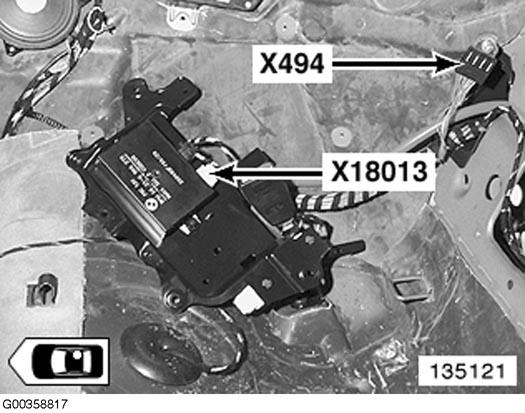

Fig 261: Right Rear Of Passenger Compartment

G00358817

Courtesy of BMW OF NORTH AMERICA, INC.

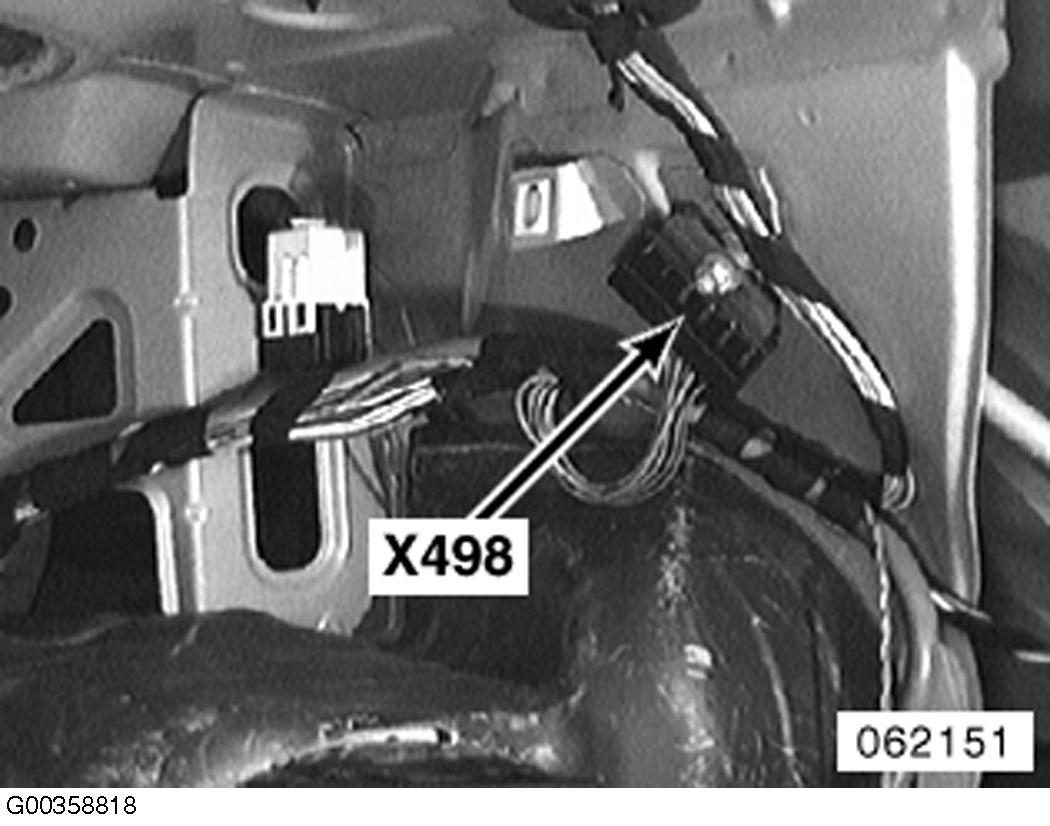

Fig 262: Right Side Of Luggage Compartment

G00358818

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 263: Right Side Of Luggage Compartment

G00358819

Courtesy of BMW OF NORTH AMERICA, INC.

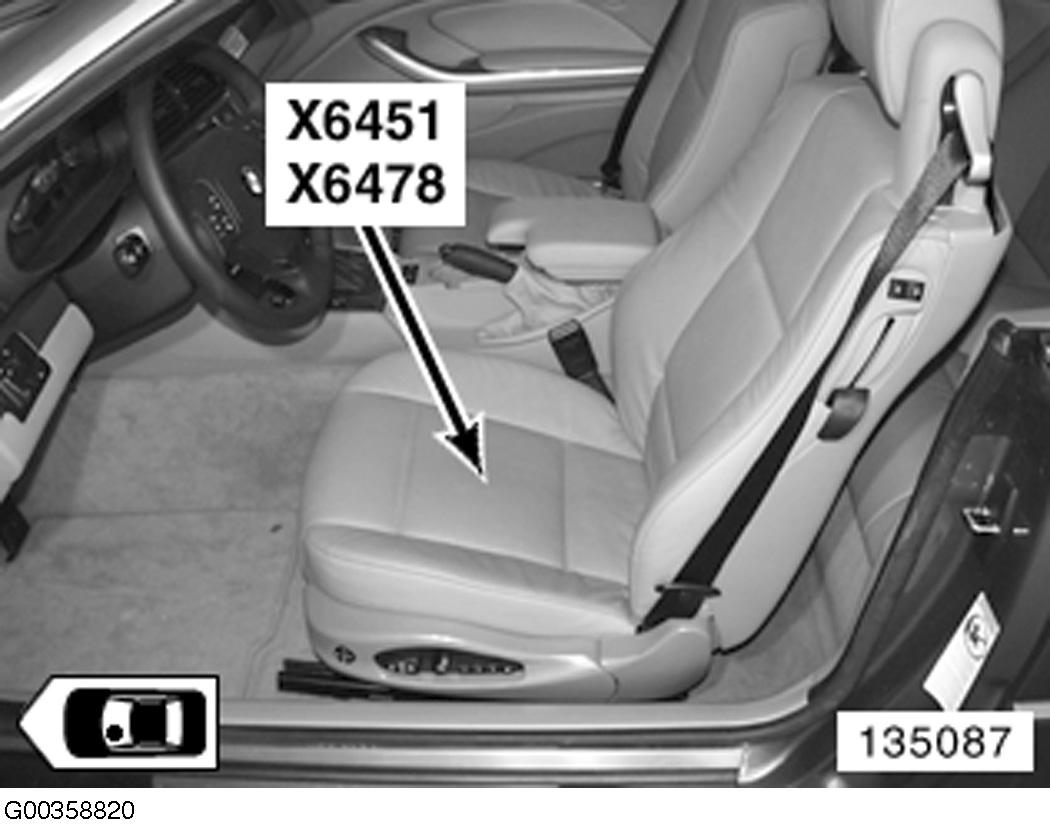

Fig 264: Under Driver's Seat

G00358820

Courtesy of BMW OF NORTH AMERICA, INC.

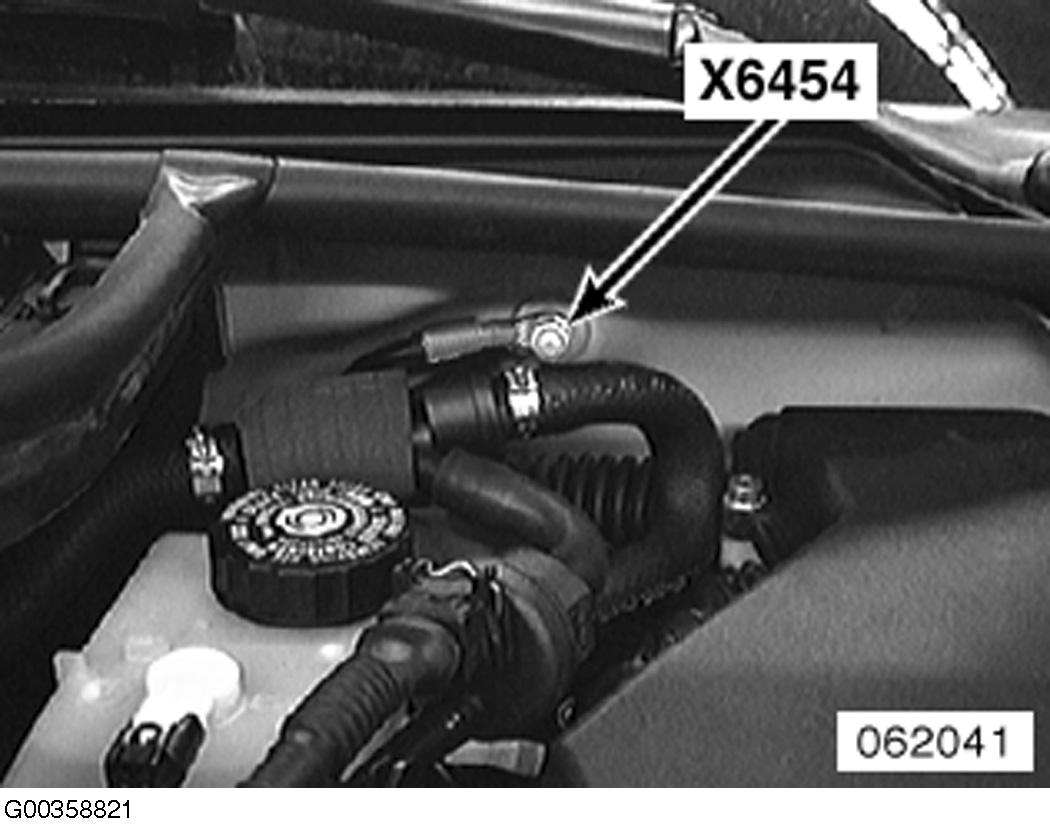

Fig 265: Left Rear Of Engine Compartment

G00358821

Courtesy of BMW OF NORTH AMERICA, INC.

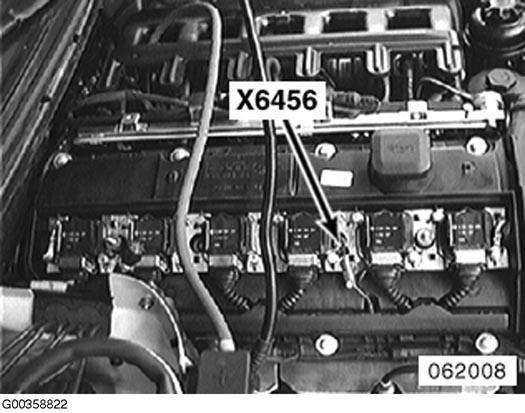

Fig 266: Right Side Of Engine

G00358822

Courtesy of BMW OF NORTH AMERICA, INC.

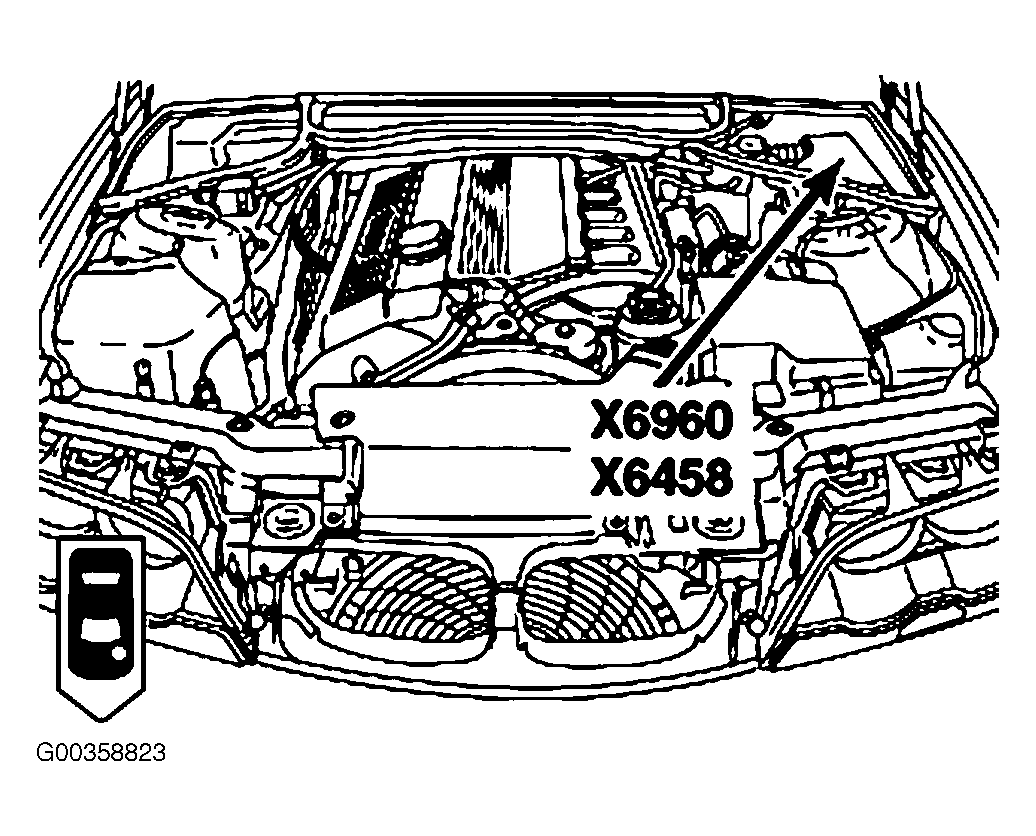

Fig 267: Left Rear Of Engine Compartment

G00358823

Courtesy of BMW OF NORTH AMERICA, INC.

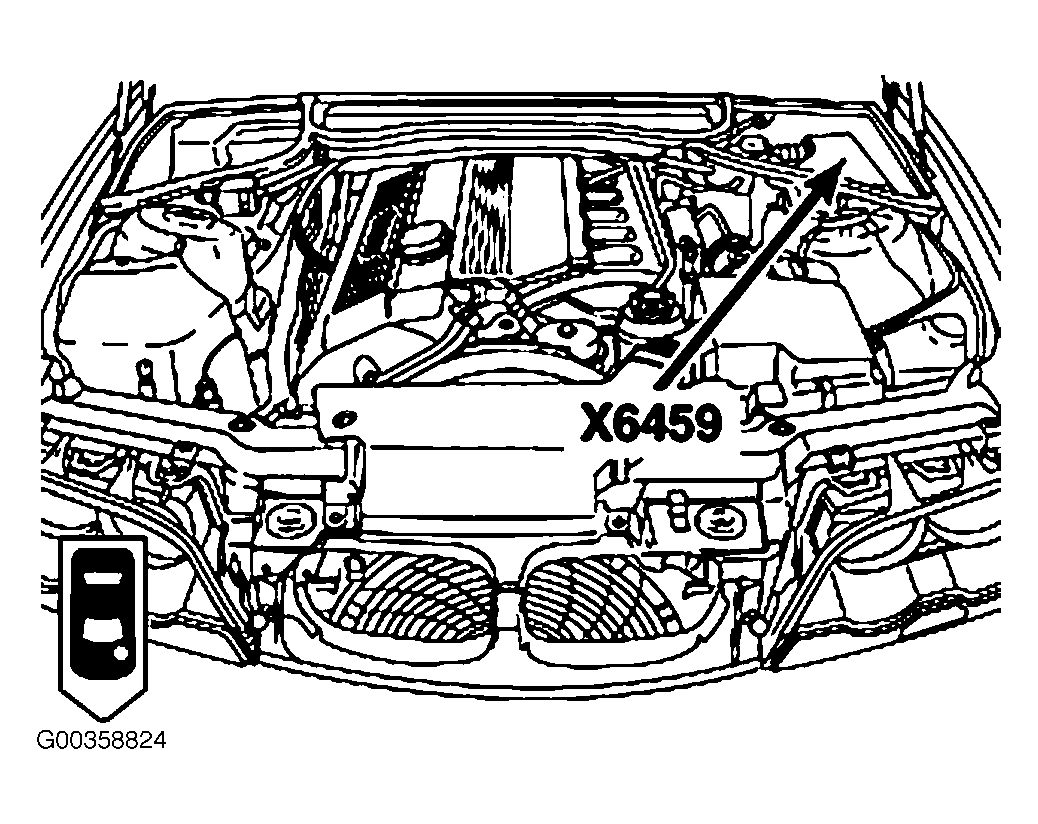

Fig 268: Left Rear Of Engine Compartment

G00358824

Courtesy of BMW OF NORTH AMERICA, INC.

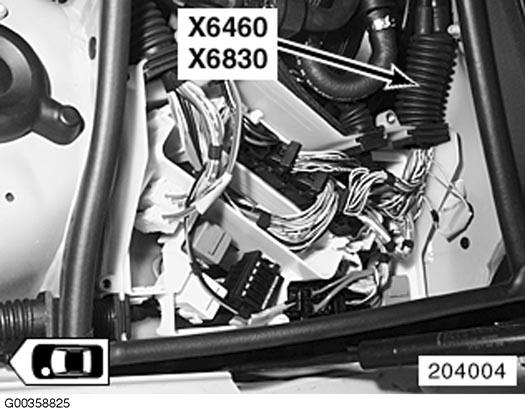

Fig 269: Left Rear Of Engine Compartment

G00358825

Courtesy of BMW OF NORTH AMERICA, INC.

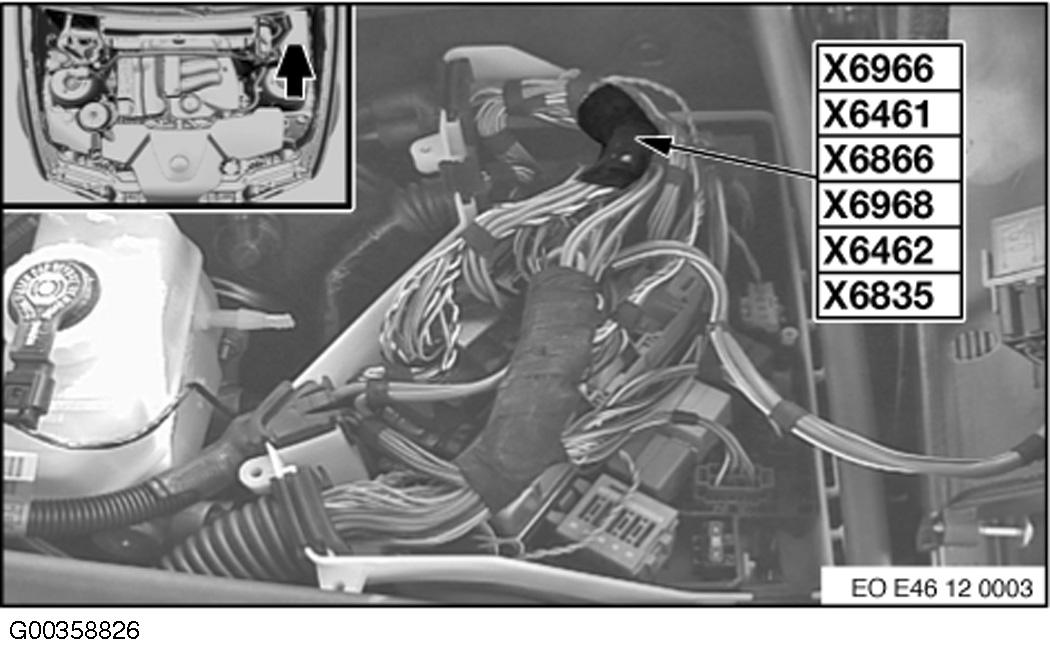

Fig 270: Left Rear Of Engine Compartment

G00358826

Courtesy of BMW OF NORTH AMERICA, INC.

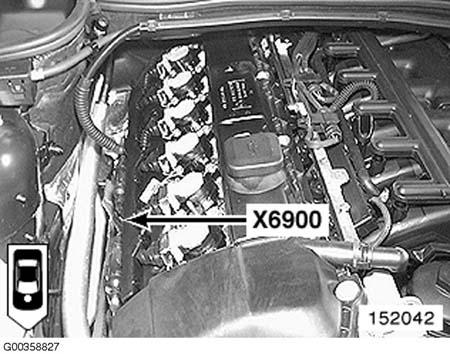

Fig 271: Right Side Of Engine

G00358827

Courtesy of BMW OF NORTH AMERICA, INC.

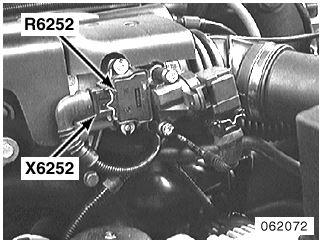

Fig 272: Front Of Engine

G00552873

Courtesy of BMW OF NORTH AMERICA, INC.

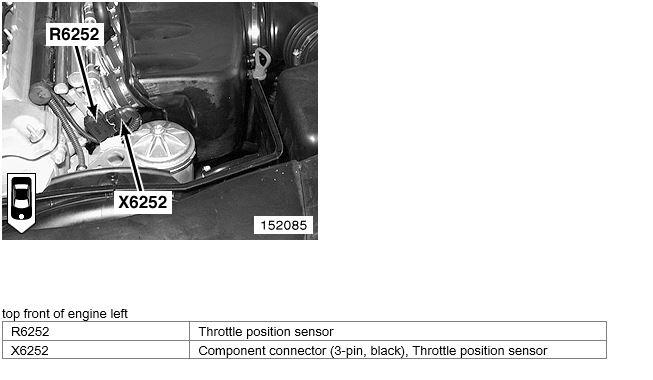

Fig 273: Front Of Engine

G00552874

Courtesy of BMW OF NORTH AMERICA, INC.

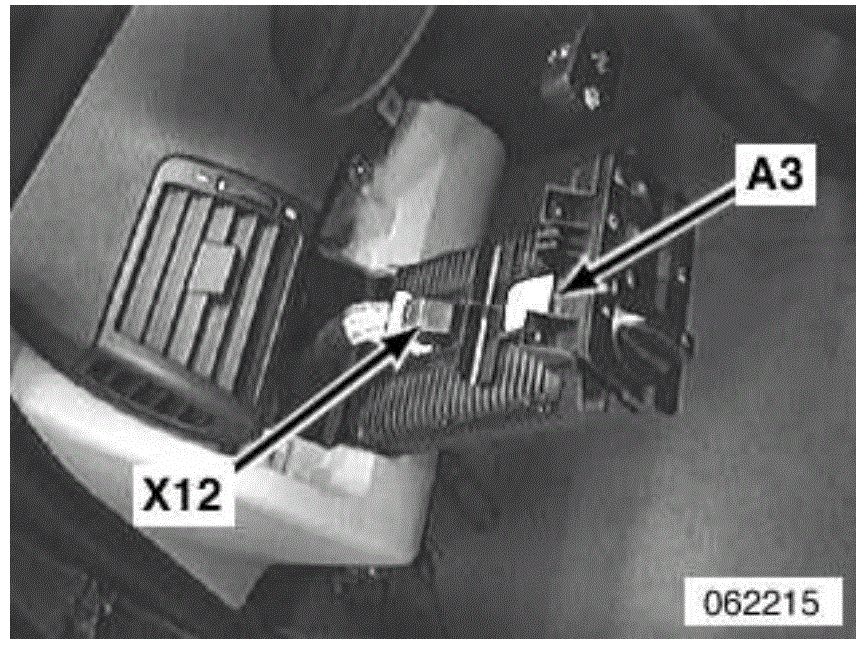

Fig 274: Driver side Instrument Panel

G00596408

Courtesy of BMW OF NORTH AMERICA, INC.
