Multi-Function Test Cable-MFK #1 (Two Cable Ends)

MFK 1 is used to measure:

• Voltage - up to 50 Volts
• Current - up to 2 Amps
• Resistance
• Diode Testing
• Frequency
• Period
• Duty Cycle
• Pulse Duration
• Oscilloscope Measurements

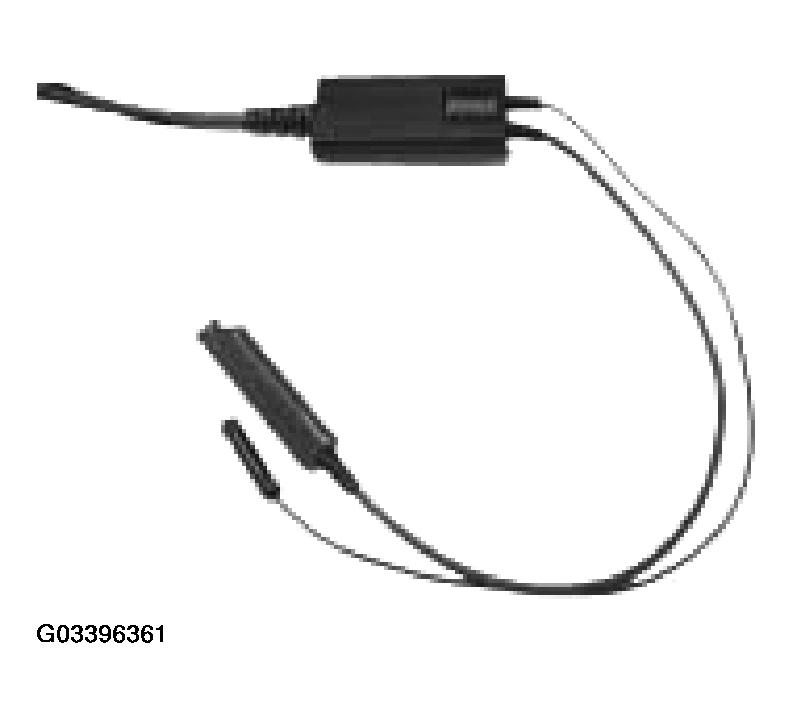

  Fig 1: Identifying Multi-Function Test Cable-MFK #1
