Pressure Regulation

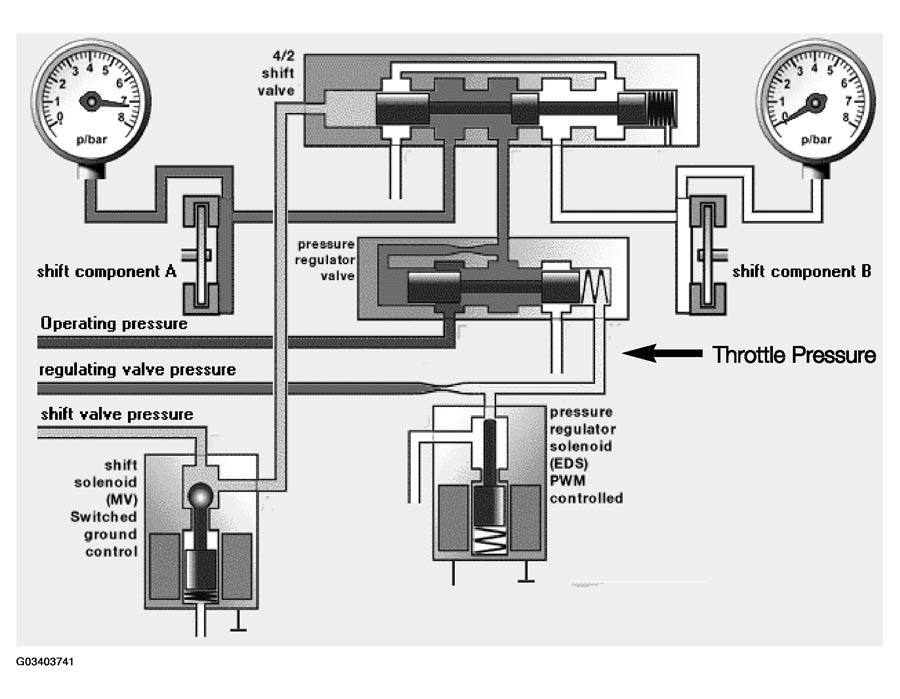

As the diagram shows, regulating valve pressure is fed to the pressure regulating solenoid. This pressure is then regulated to create throttle pressure. Throttle pressure is modified based on throttle angle, engine speed and engine load. Throttle pressure is then fed to the pressure regulating valve. As throttle pressure increases, the regulating valve piston is moved to the left (with respect to the diagram). As the regulating valve piston is moved to the left, operating pressure is increased to the 4/2 shift valve. The operating pressure to the 4/'2 shift valve will be fed to Shift Component A or Shift Component B depending the position on the 4/2 shift valve. The operating pressure to the shift components will be increased or decreased depending upon the throttle valve pressure. As engine speed and load are increased, the operating pressure will be increased to provide higher clamping forces on the shift components.
When there is no electrical power present to the pressure regulator solenoid, throttle pressure will be a maximum. Therefore maximum operating pressure will be available at the 4/2 shift valve. This condition would exist if the transmission was operating in fail-safe mode.
