Cylinder Head Measurement
If a repair requires removal of the cylinder head, a few basic measurements can be performed to save time and unnecessary machine shop costs. If an engine has been overheated or has an internal or external fluid leakage (coolant/oil), it is a good idea to check the cylinder head for warpage.

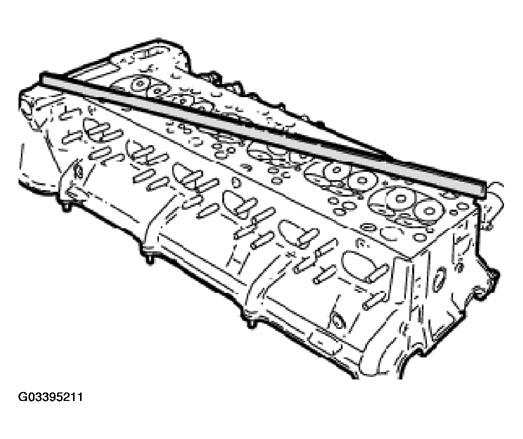

This can be done by using a commercially available machinists straight edge and a feeler gauge. by sliding the feeler gauge under the straight edge in various locations, it can determine if there are any low spots or warpage. Usually, the specification is about .05 mm.
Also, check to see if the cylinder head has a specification for machining limit. If so, it may be possible to have the cylinder head re-surfaced. Depending on the amount of material removed during the machining process, it may be necessary to install a thicker head gasket. There are some "service" head gaskets available through the part s department.

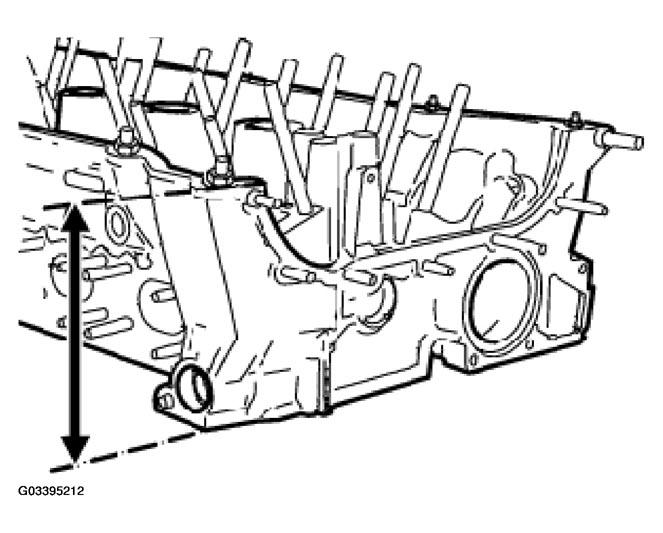

The cylinder head can be checked for minimum thickness. This is done using a micrometer or a vernier caliper. This is not possible on all engines, the example shown is a 6-cylinder (M52TU/M54).
If the minimum thickness is not met, the head will need to be replaced.
