61 31 101 Removing and installing/replacing switch for backrest width adjustment (M3)

Detach outer cover on front seat and lay to one side. Refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC) .

Disconnect plug connection (1).

Unclip switch for backrest width adjustment (2) and remove towards outside of cover (3).

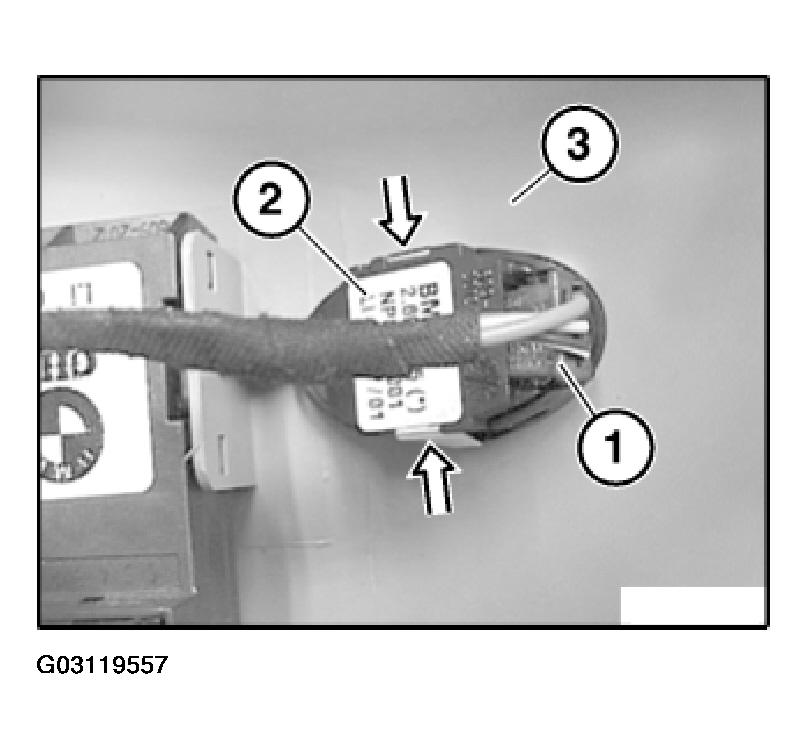

Fig 1: Removing Switch For Backrest Width Adjustment
G03119557Courtesy of BMW OF NORTH AMERICA, INC.
