61 31 079 Replacing switch for hazard warning system/central locking

Necessary preliminary tasks:

Version without sequential M transmission only:

Unclip gaiter (1) at side and force upwards over gear lever knob (2).

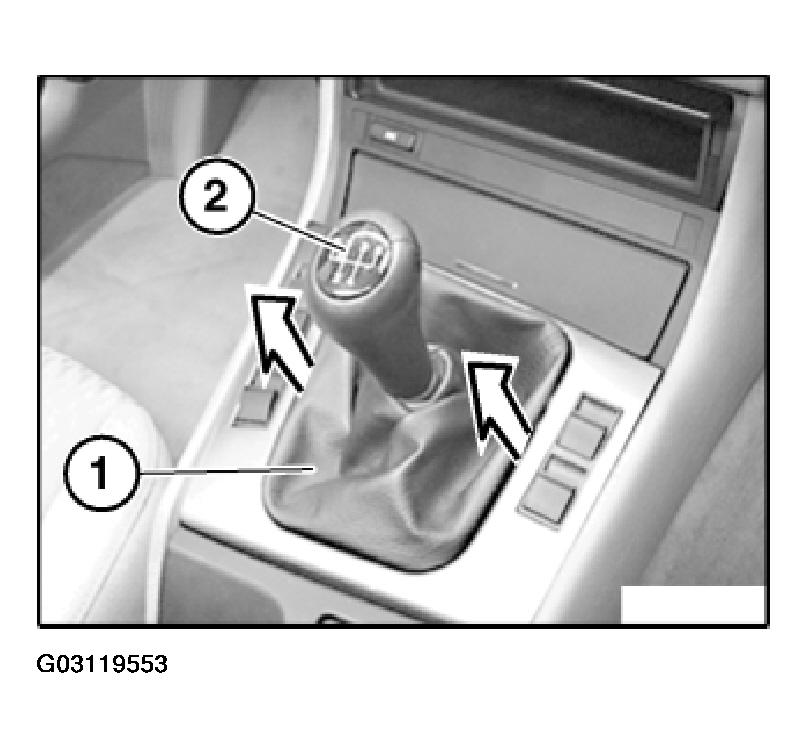

Fig 1: Removing Gaiter At Side

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Release screws (1).

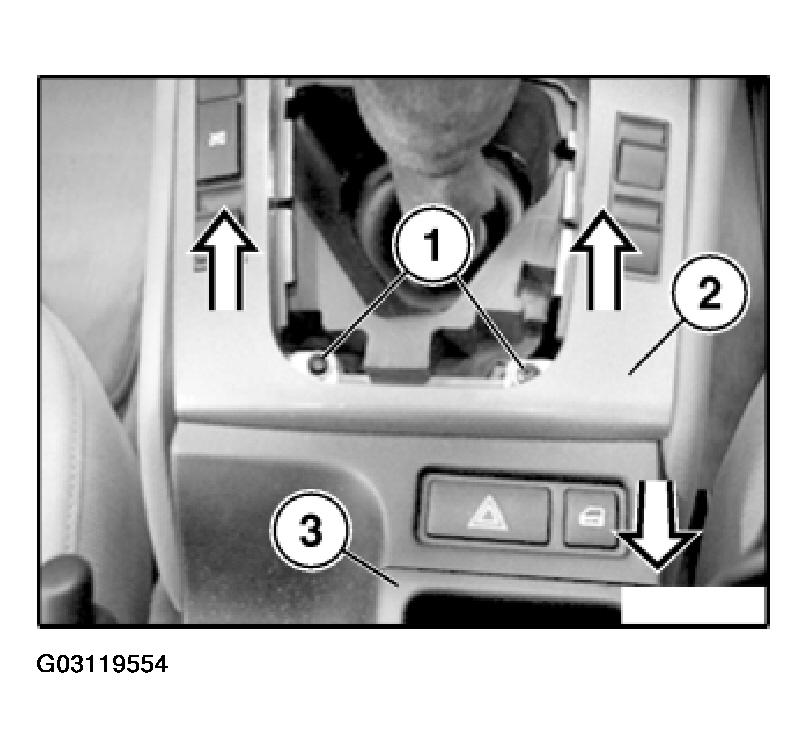

Fig 2: Folding Storage Compartment Floor Up

Courtesy of BMW OF NORTH AMERICA, INC.

Fold storage compartment floor (2) up at rear and place to one side.

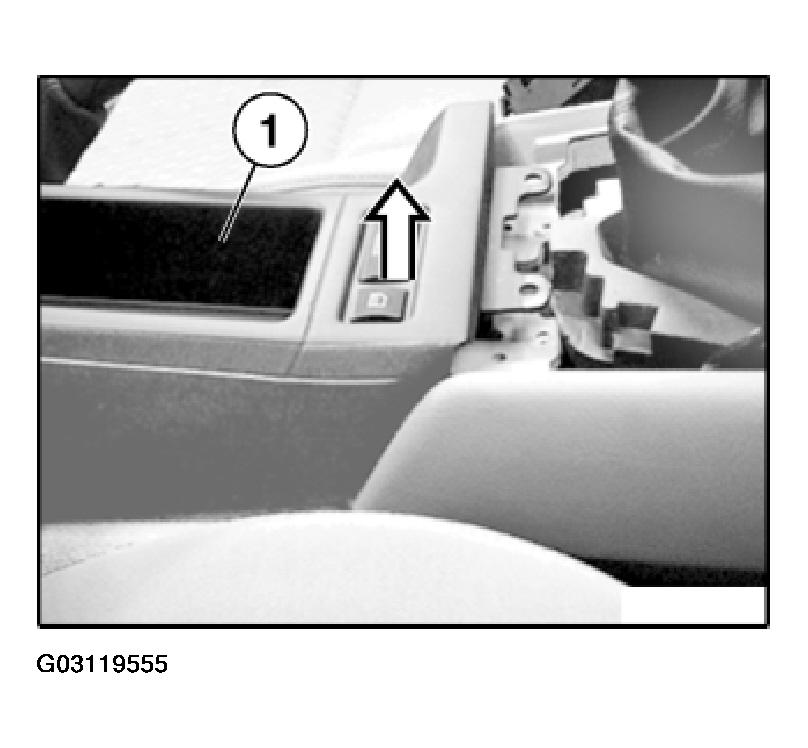

Fig 3: Raising Storage Compartment At Front

Courtesy of BMW OF NORTH AMERICA, INC.

Raise storage compartment (1) at front slightly.

Press side catches and press switch for hazard warning system/central locking from below out of storage compartment (1).

Disconnect plug connection and remove switch for hazard warning system/central locking.

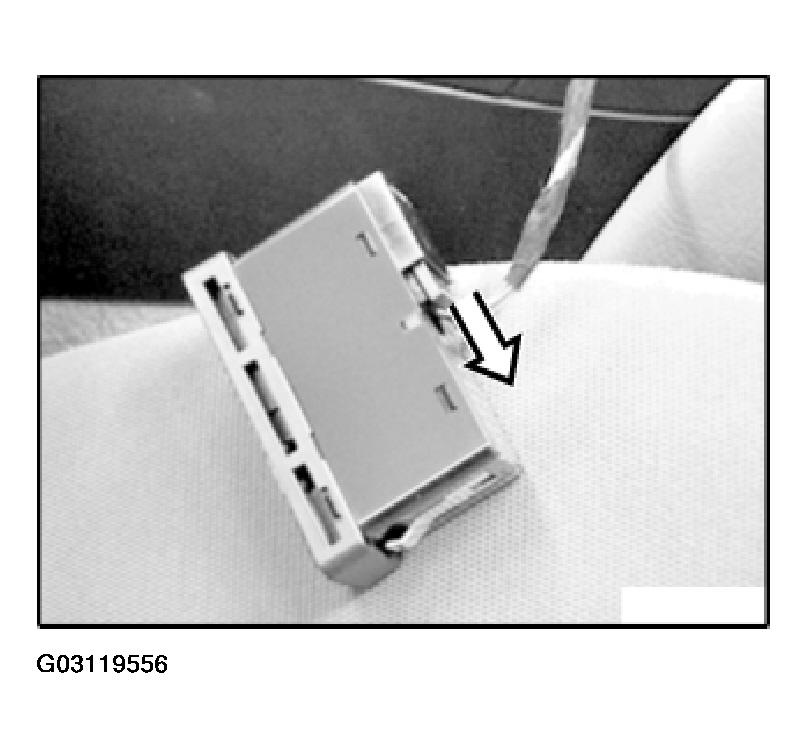

Fig 4: Removing Switch For Hazard Warning System/Central Locking

Courtesy of BMW OF NORTH AMERICA, INC.
