Test No. 11

STATUS BITS (OUTPUT SIGNALS) - The status of digital outputs is displayed.

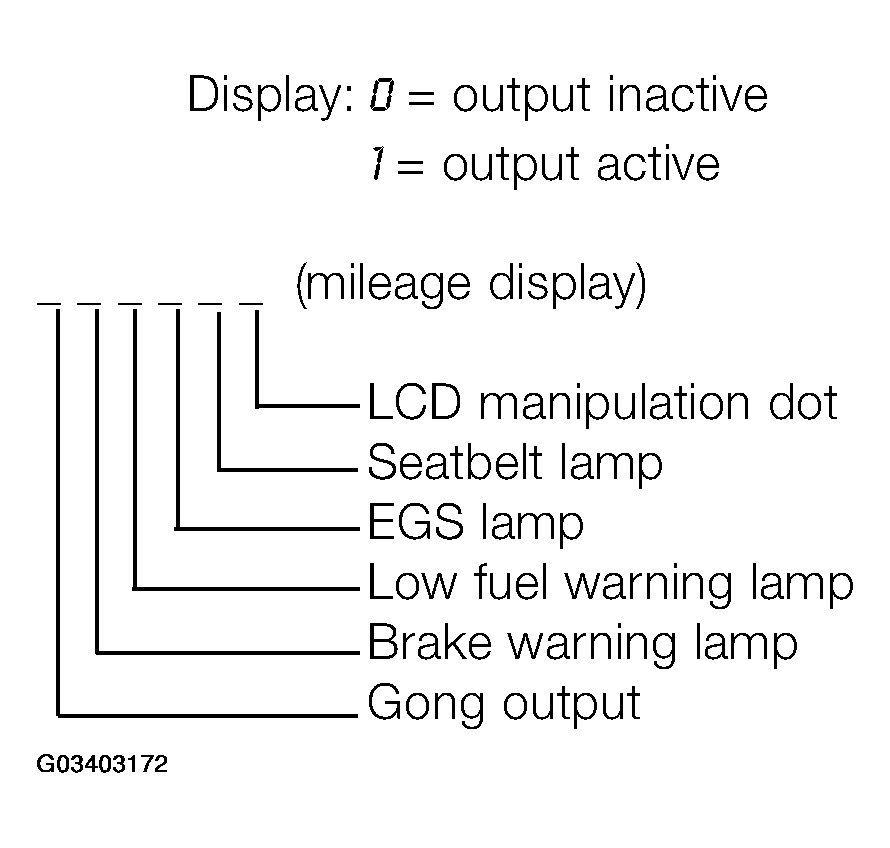

Fig 1: View Of Status Bits Graph (Output Signals)

G03403172

Courtesy of BMW OF NORTH AMERICA, INC.

TEST NO. 12- NOT USED
