Test No. 10

STATUS BITS (INPUT SIGNALS) - The status of digital inputs to the cluster are displayed as 0  or 1  .

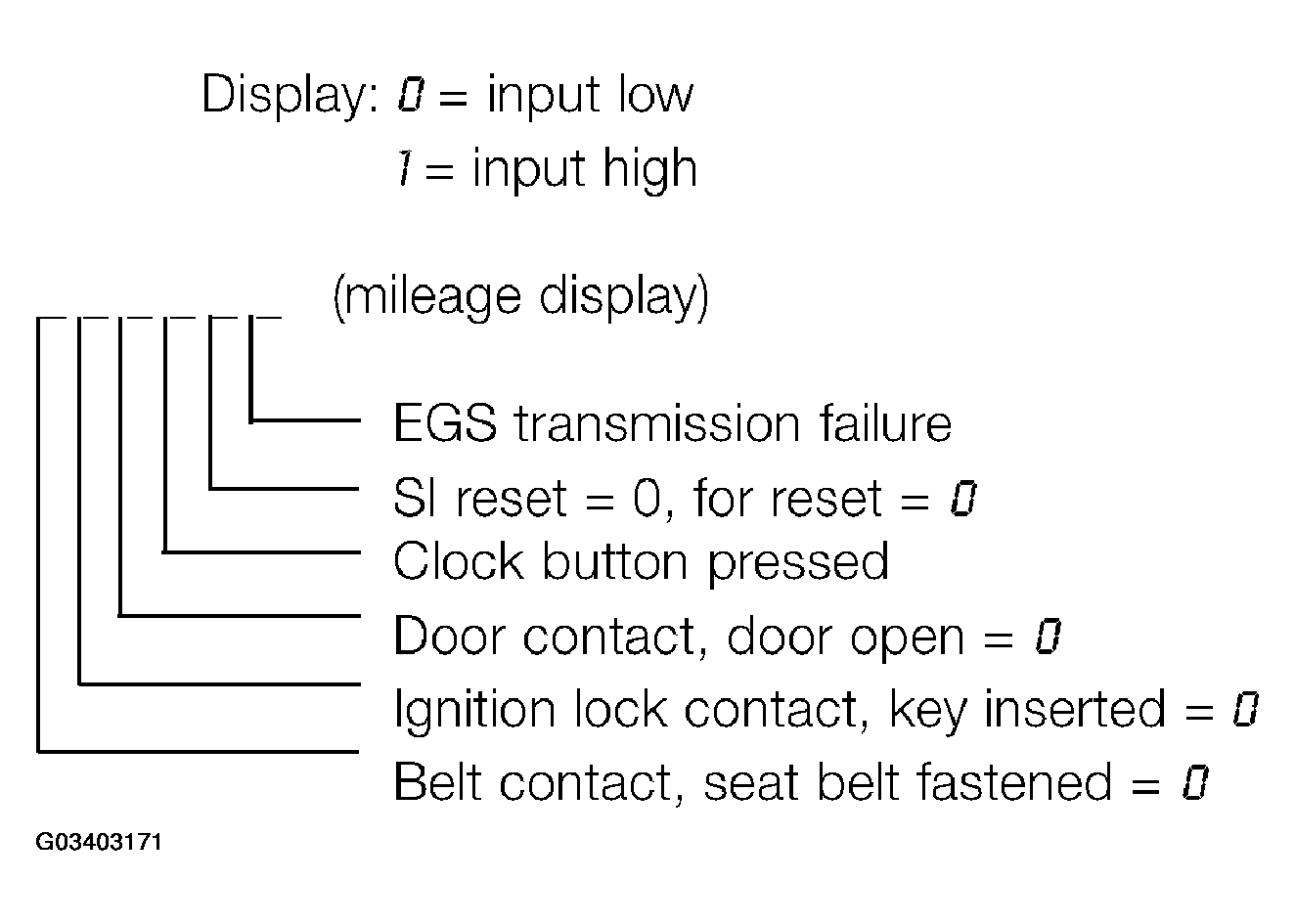

Fig 1: Identifying Status Bits Graph (Input Signals)

Courtesy of BMW OF NORTH AMERICA, INC.
