Test No. 06

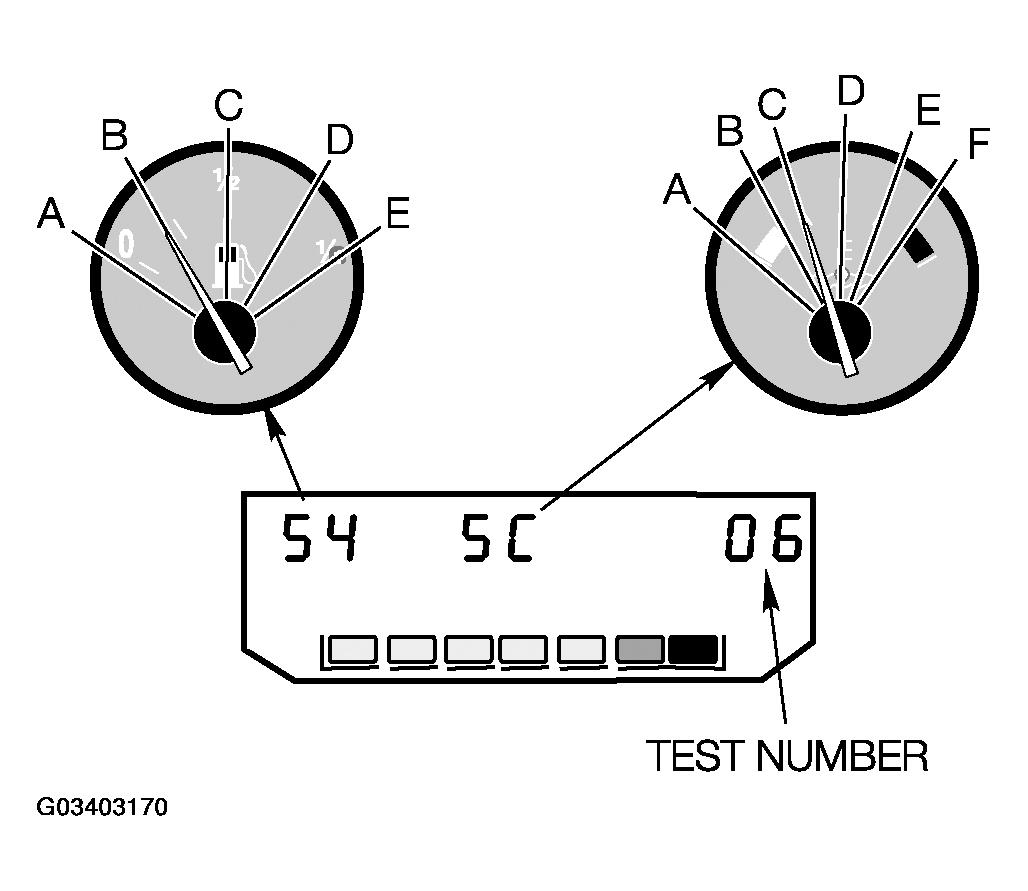

FUEL LEVEL AND COOLANT TEMPERATURE - Display of hexadecimal codes in relation to gauge position.
FUEL LEVEL AND COOLANT TEMPERATURE
| FUEL GAUGE | HEX VALUE | |
| "A" (empty) | ----------> | 0d |
| End of reserve | ----------> | 37 |
| "B" | ----------> | 54 |
| "C" | ----------> | 90 |
| "D" | ----------> | c4 |
| "E" (full) | ----------> | f0 |
| ENGINE TEMP GAUGE | HEX VALUE | |
| "A" | ----------> | ce |
| "B" | ----------> | 6d |
| "C" | ----------> | 5c |
| "D" (center) | ----------> | 4f-23 |
| "E" | ----------> | 1e |
