12 63 500 Replacing temperature sensor for electronics

1. Switch off ignition.

Unfasten screws.

Remove cover from electronics box.

Tightening Torque, refer to ENGINE - TIGHTENING TORQUES .

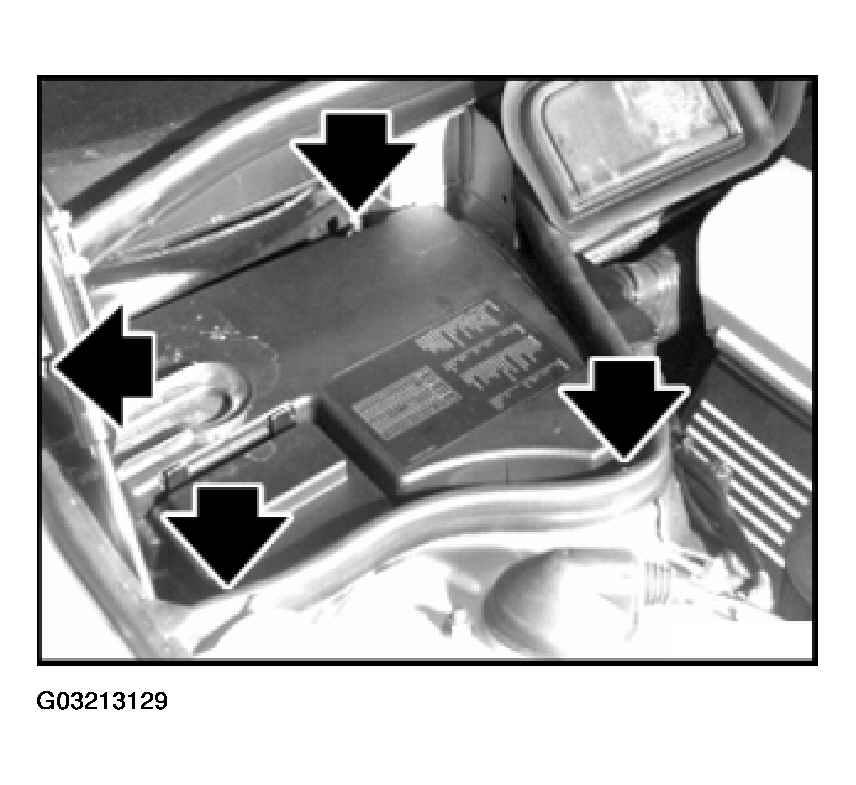

Fig 1: Removing Electronics Box Cover

Disconnect plug connection.

Unclip and remove temperature switch.

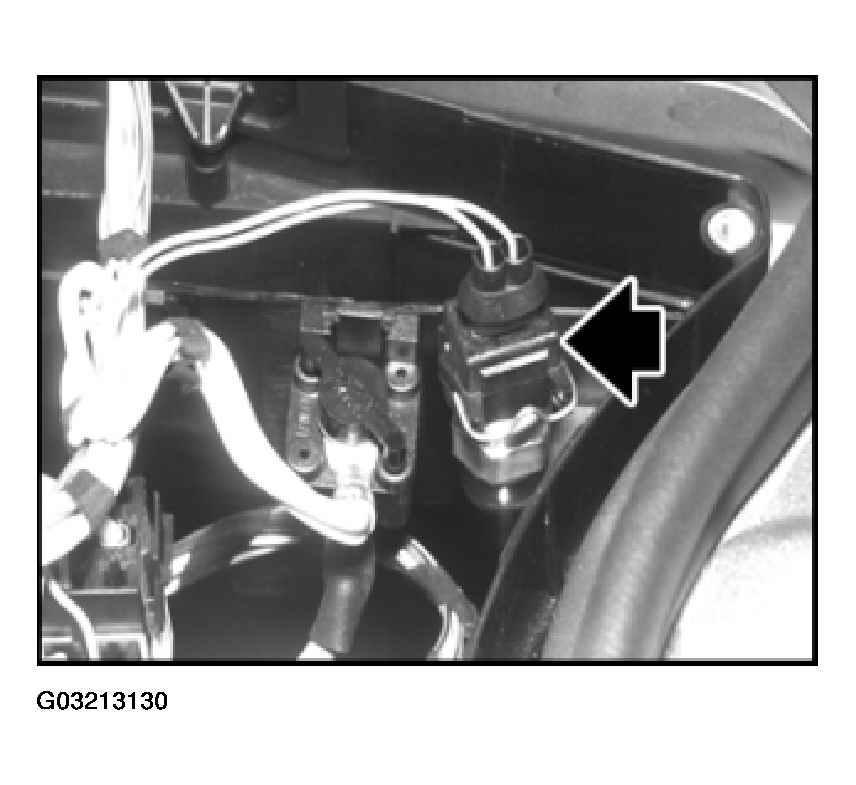

Fig 2: Removing Temperature Switch
