51 11 Repair solution for replacing lateral insert on bumper
Remove front bumper, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

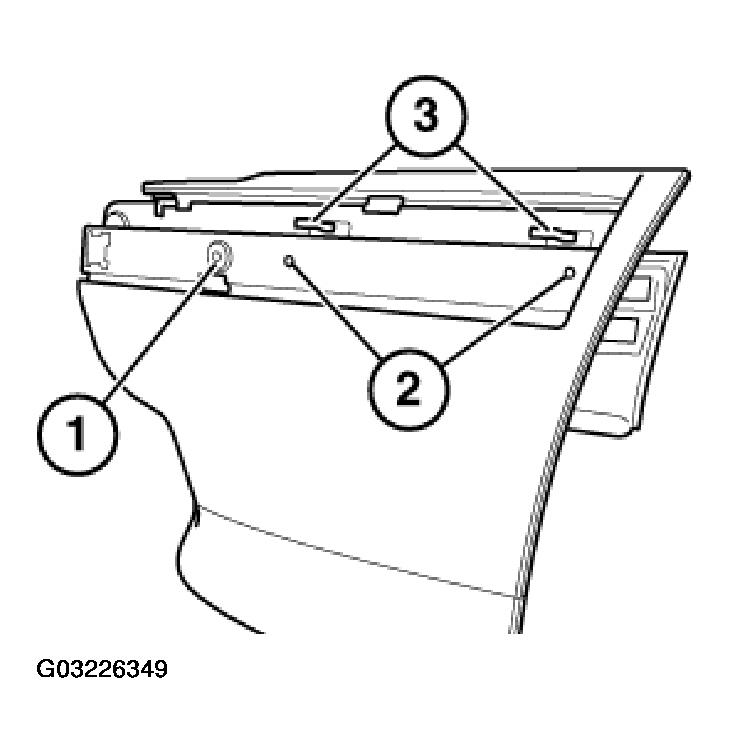

Lift out expanding rivet (1).
Installation:
Locate new insert correctly (3) and secure with suitable screws for plastic (similar to licence plate bracket, length 13 mm) to bore (2).

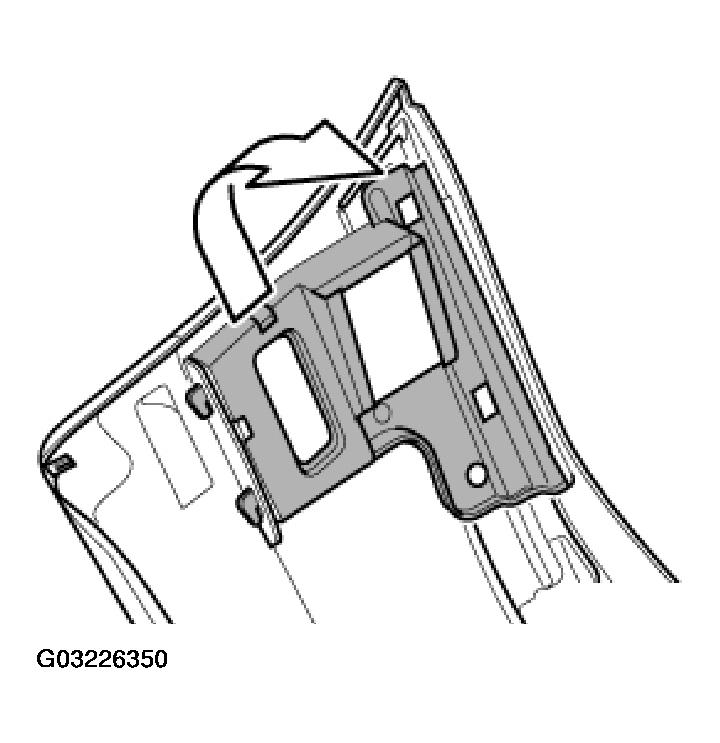

Lift out insert by moving backwards/upwards.
