32 31 020 Removing and installing / replacing lower section of steering column trim: Notes

Unfasten screws.

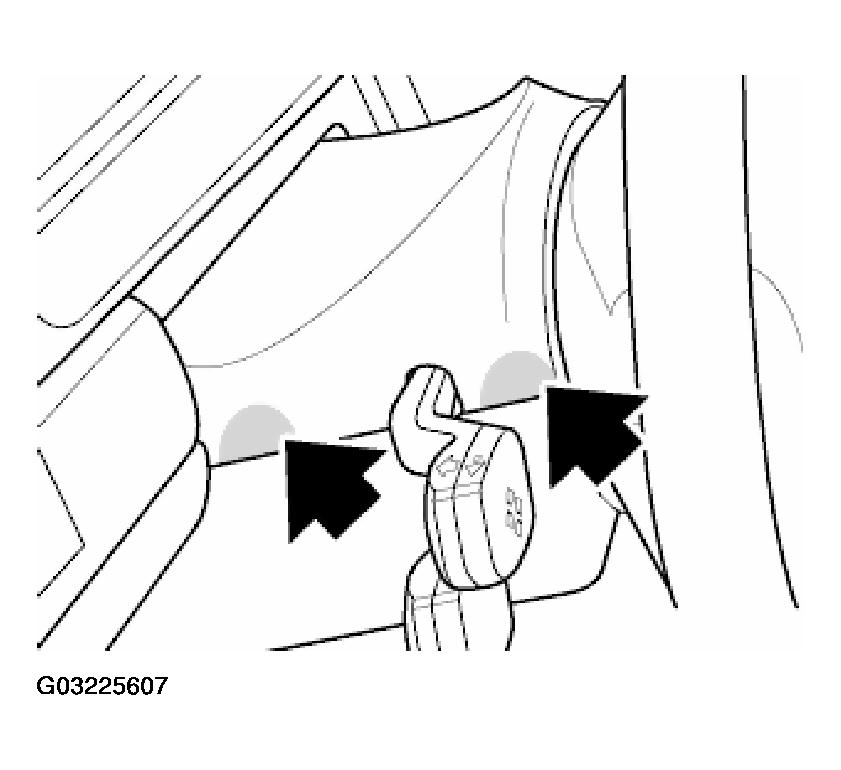

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press both sides of marked area of upper section of steering column trim inwards and pull lower section downwards to remove.

If necessary, unclip leather gaiter from trim.

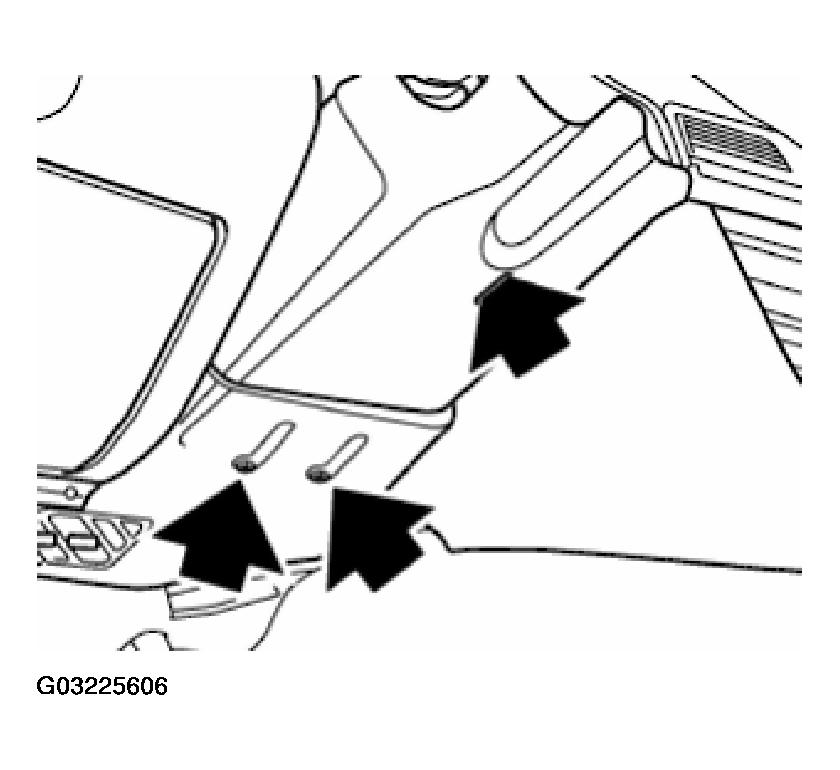

Fig 2: Identifying Marks On Steering Column Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.
