EDK Throttle Position Feedback Signals

The EDK throttle plate is monitored by two integrated potentiometers. The potentiometers provide linear voltage feedback signals to the control module as the throttle plate is opened and closed.

Feedback signal 1 provides a signal from 0.5 V (LL) to 4.5 V (VL).

Feedback signal 2 provides a signal from 4.5 V (LL) to 0.5 V (VL)

Potentiometer signal 1 is the primary feedback signal of throttle plate position and signal 2 is the plausibility cross check through the complete throttle plate movement.

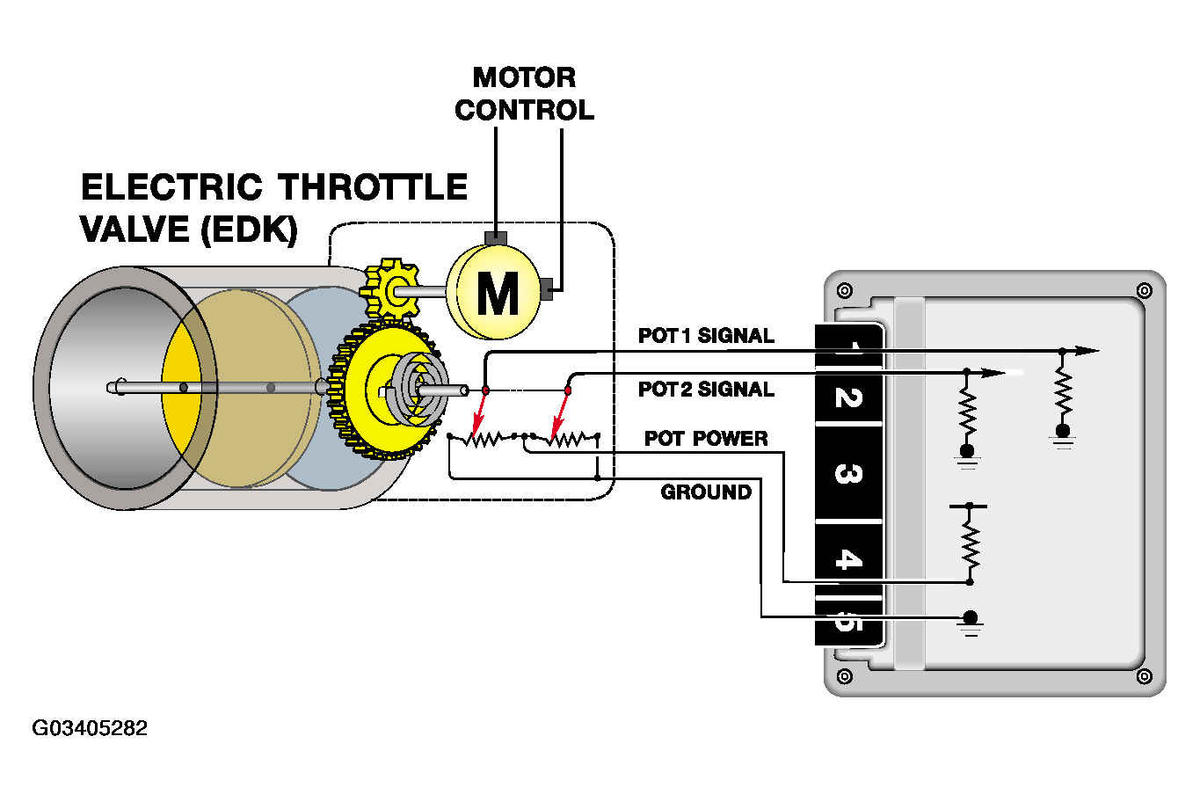

Fig 1: Identifying EDK Throttle Position Feedback Signals Diagram

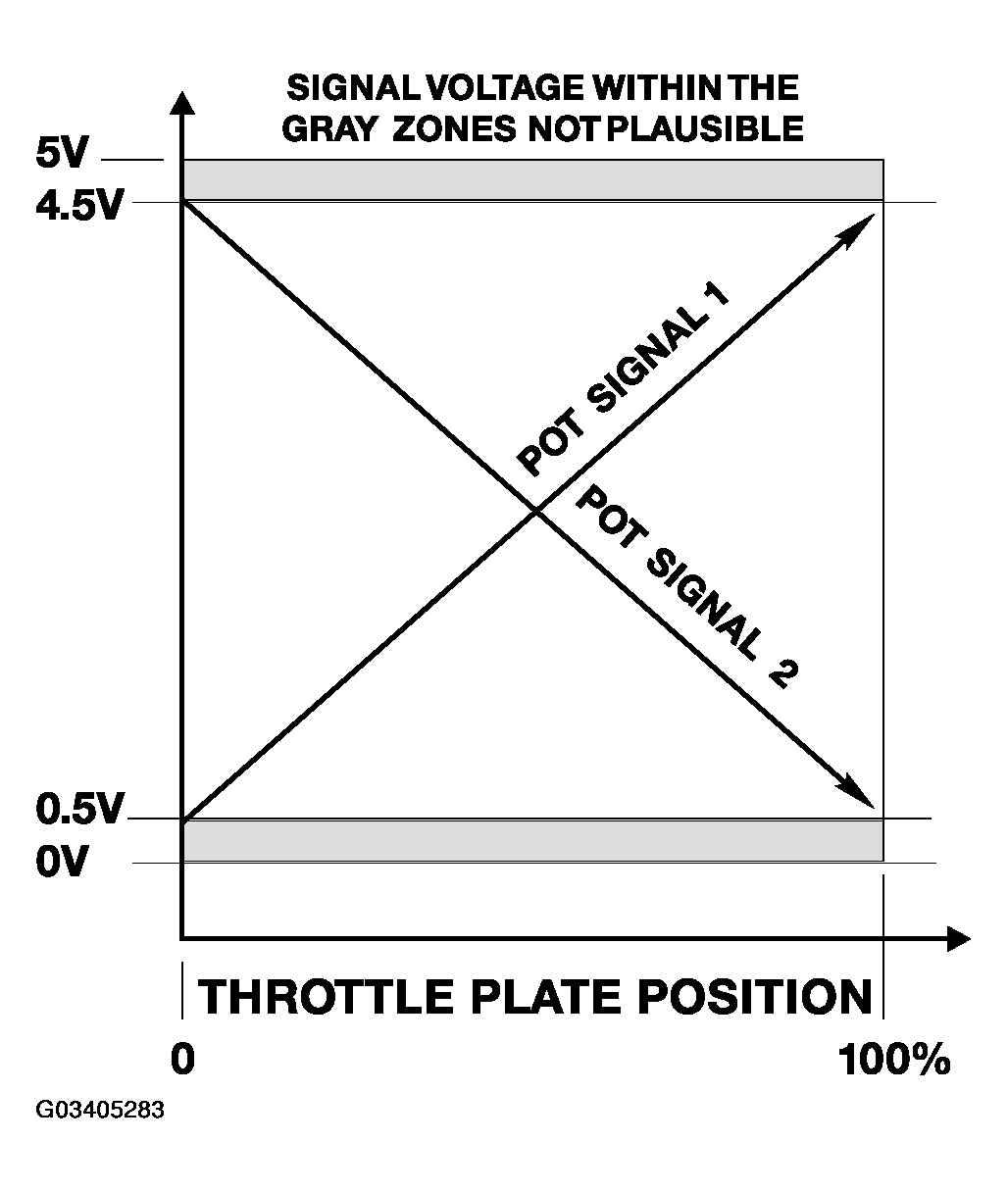

Fig 2: Identifying EDK Throttle Position Feedback Signals Graph
