Automatic Transmission Selector Position/Driving Program

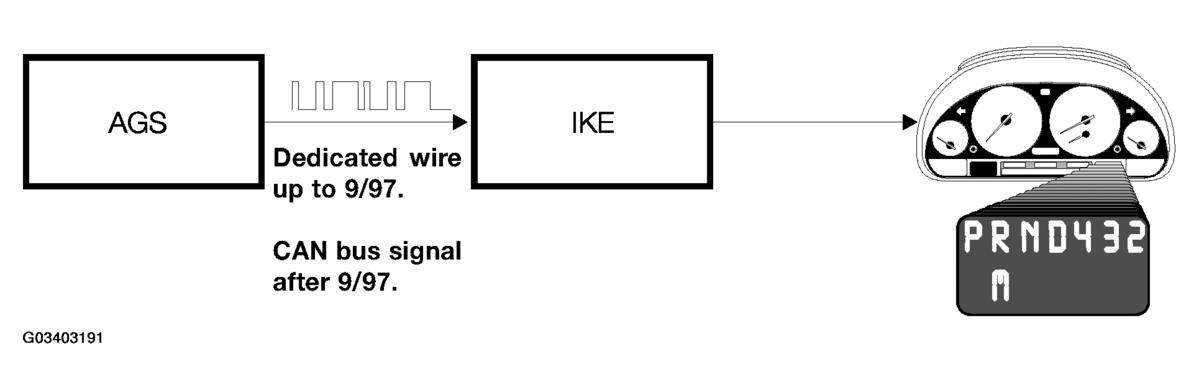

As introduced, the selector lever position and driving program were signaled to the IKE from the AGS control module over a single wire circuit. These signals are passed along by the CAN after the CAN bus was connected to the integrated IKE.
