Removal & Installation

NOTE: Use special tool (32 3 110) to disengage lock (1). Lock cylinder can be removed. If necessary, turn special tool in hole. See Fig 1 .

Detach instrument panel trim. See Figure .
With ignition lock key, turn lock barrel to position "R" (radio, windshield wipers, etc.). Press special tool (32 3 110) into locking cylinder hole and remove locking cylinder. See Fig 2 .
Press lock and detach plug. Remove rubber ring (1). See Fig 3 .
Clamp lock cylinder with plastic jaws in vise. Lever off ring antenna with special tool (61 3 300). See Fig 4 .
To install, reverse removal procedure.

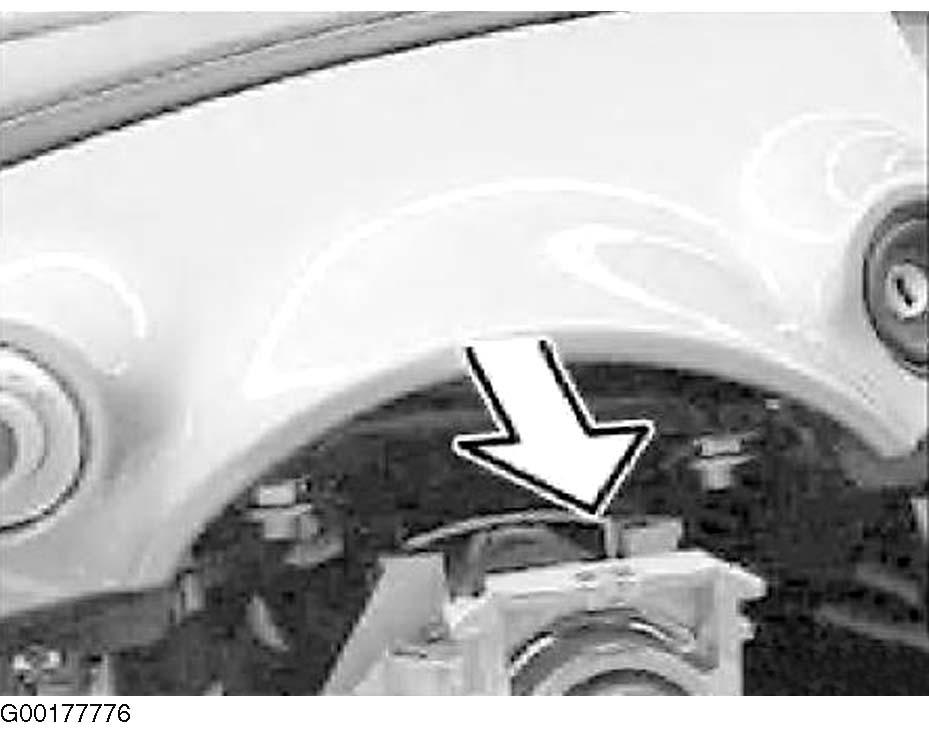

Fig 1: Using Special Tool (32 3 110)

Courtesy of BMW OF NORTH AMERICA, INC.

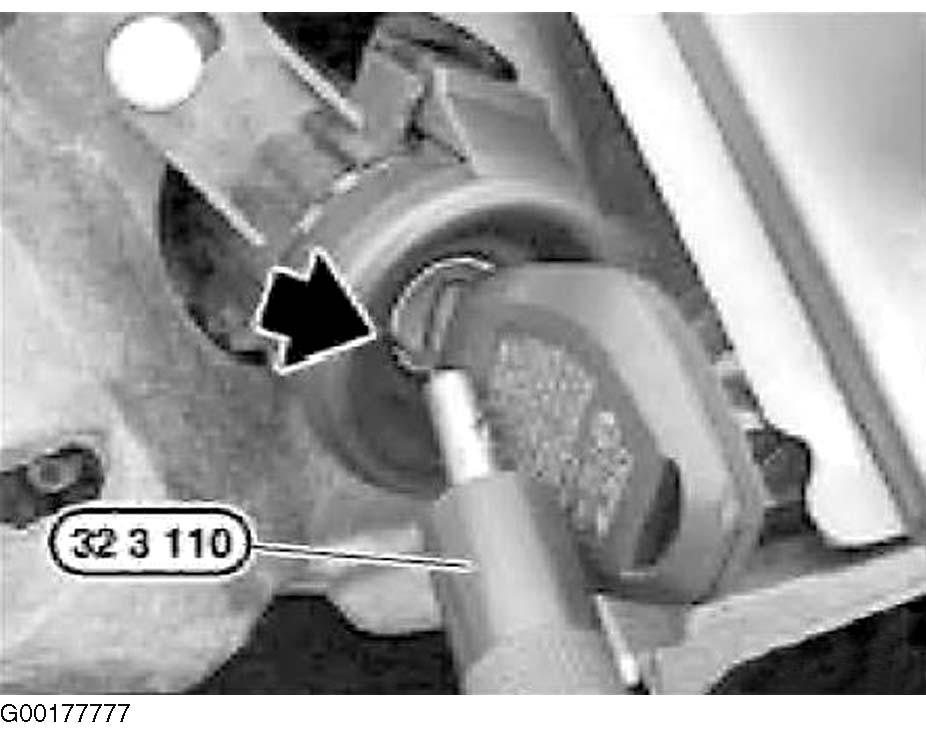

Fig 2: Removing Locking Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

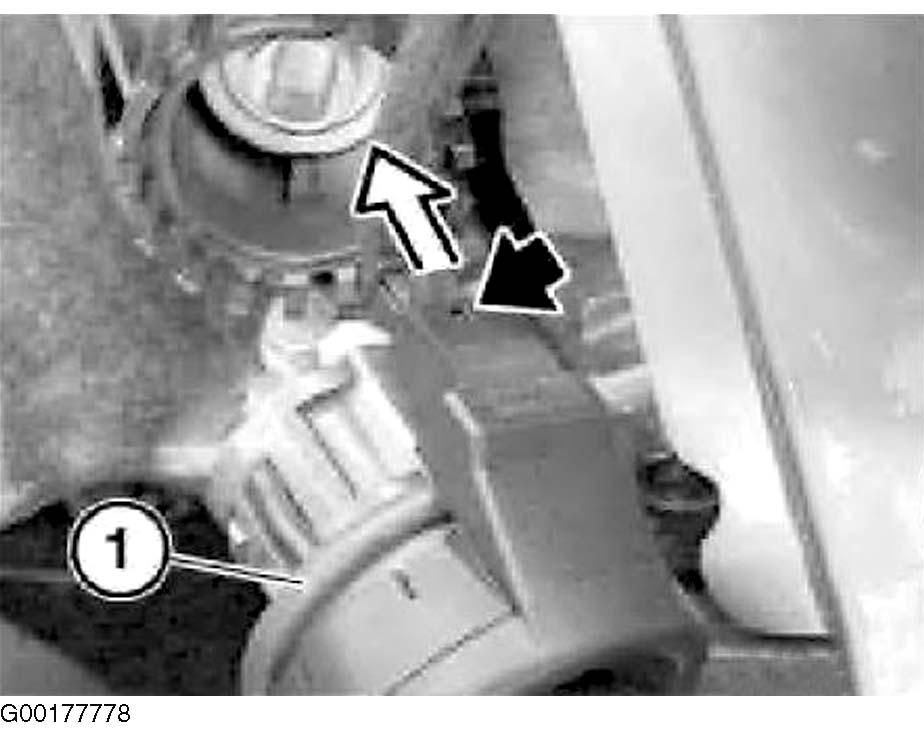

Fig 3: Removing Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.

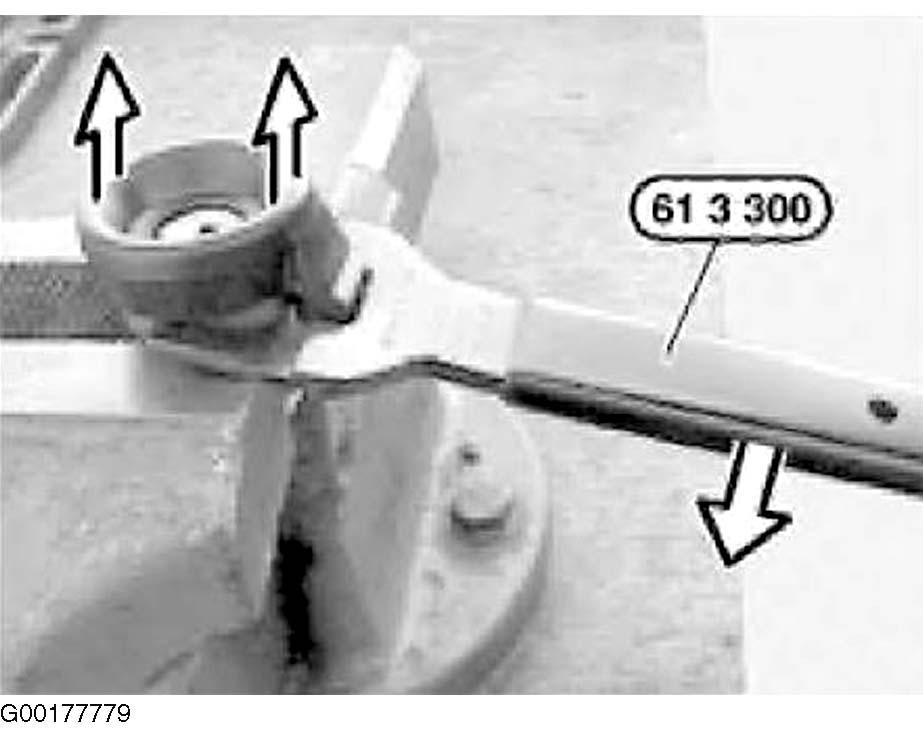

Fig 4: Removing Ring Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
