Universal Transmission Support For Manual And Automatic Transmissions (04 13 08)

Publication date: 2008-05-15
Reference number: 04 13 08

UNIVERSAL TRANSMISSION SUPPORT FOR MANUAL AND AUTOMATIC TRANSMISSIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 13 08, Date of Issue: May 2008

BMW:	All
GROUP:	Tools and Equipment

SUBJECT

Universal Transmission Support for Manual and Automatic Transmissions

SITUATION

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Tools may be purchased through your Regional Distribution Center (RDC).

Universal Transmission Support

Order PN 83 30 0 495 498

Cartool PN 234 050

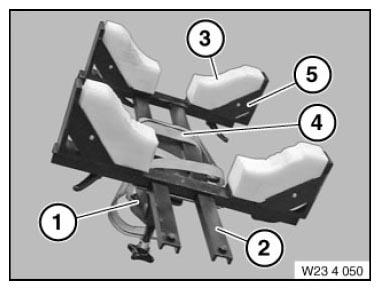

Fig 1: Universal Transmission Support

234 051 (83 30 0 495 547) Joint
234 052 (83 30 0 495 548) Basic frame
234 053 (83 30 0 495 549) Foam inlays (1 set = 4 pieces)
234 054 (83 30 0 495 550) Tensioning strap

This tool is used in conjunction with the hydraulic jack, 002 303, for supporting manual and automatic transmissions when removing and installing. For more details, refer to repair instructions for Series E60, section 24 00 030.

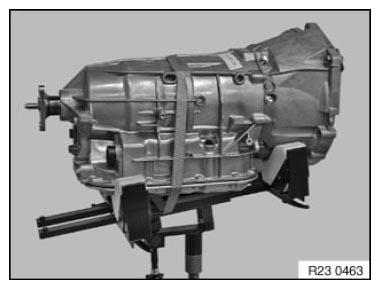

Fig 2: Transmission On Universal Transmission Support
