V10 Engine

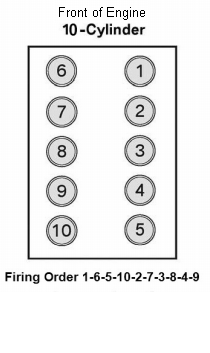

Engine Configuation Firing Order Cylinder Identification
V10 1-6-5-10-2-7-3-8-4-9
G00487234
