Light Control Module - LCM

The neon and fiber optic lights are directly activated by the LCM.

The LCM is located behind the carpet and protection plate on the passenger's side, below the glovebox.

The LCM is diagnosable via DIS/MoDIC, and requires coding when replaced.

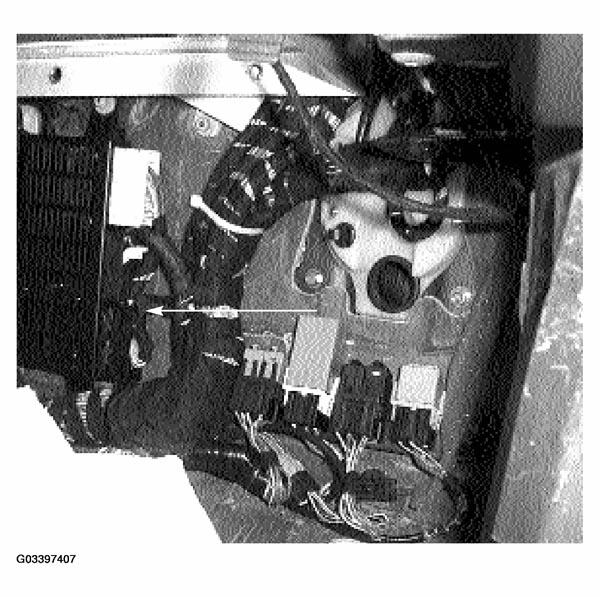

Fig 1: Identifying IKE Section
G03397407Courtesy of BMW OF NORTH AMERICA, INC.
