61 31 022 Removing and installing steering lock/ignition starter switch

Disconnect negative lead from body and cover. Refer to 12 00 ... Instructions for disconnecting and connecting battery  .

Remove air duct for footwell on left. Refer to 64 11 825 REPLACING SERVODRIVE OF RECIRCULATED AIR FLAPS .

Unlock plug connection (1) and disconnect.

Disconnect plug connection (2).

Release screws (3).

Remove steering lock/ignition starter switch (4).

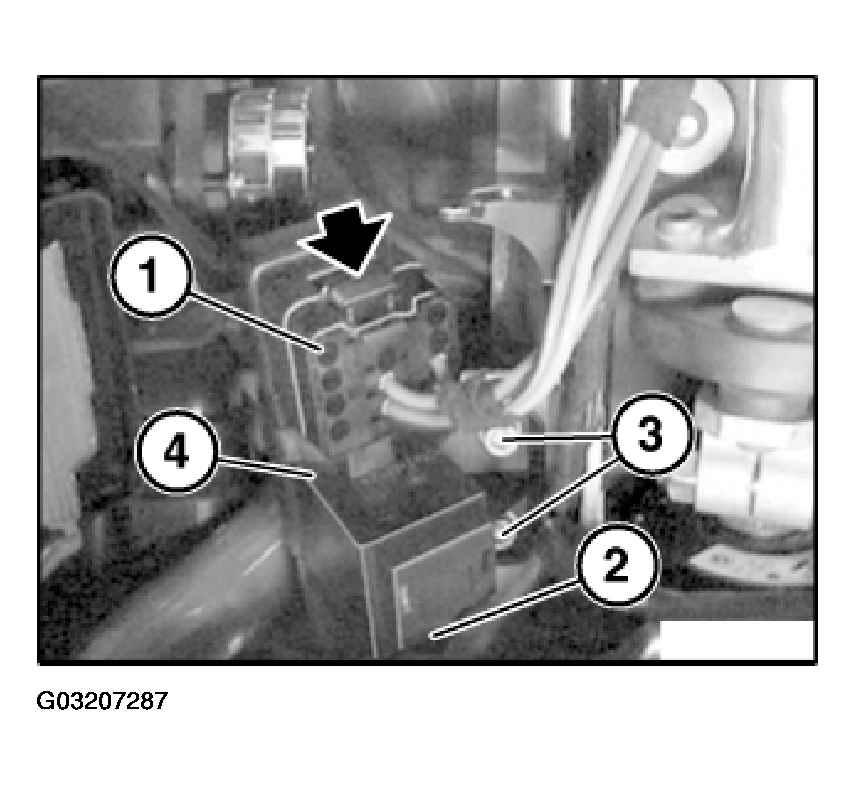

Fig 1: Removing Steering Lock/Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed pin (1) into hole for steering lock/ignition starter switch (2).

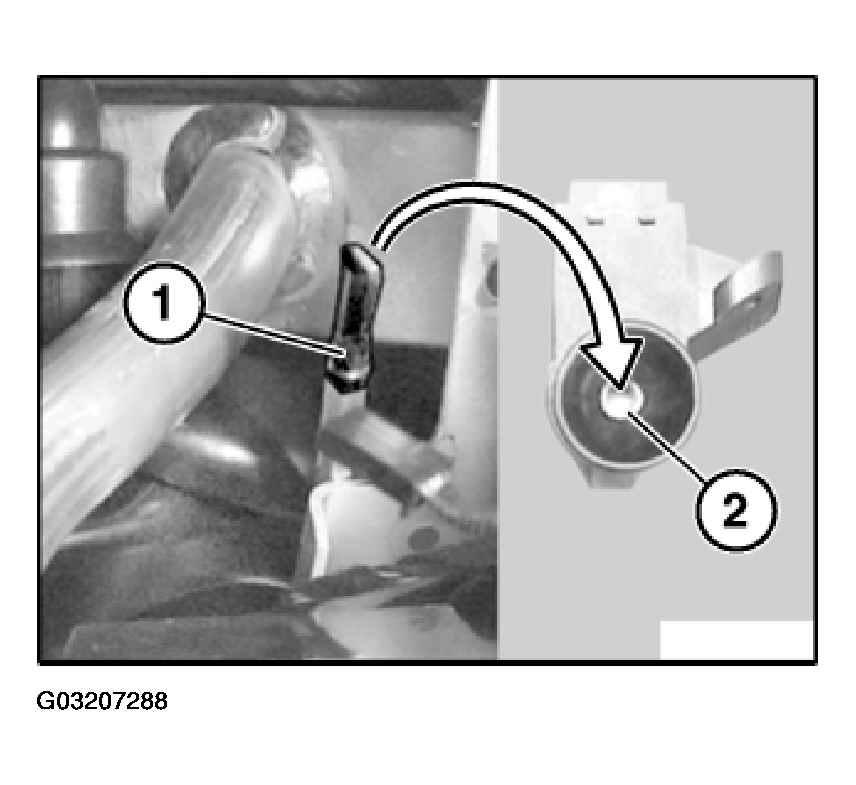

Fig 2: Feeding Pin Into Hole For Steering Lock/Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.
